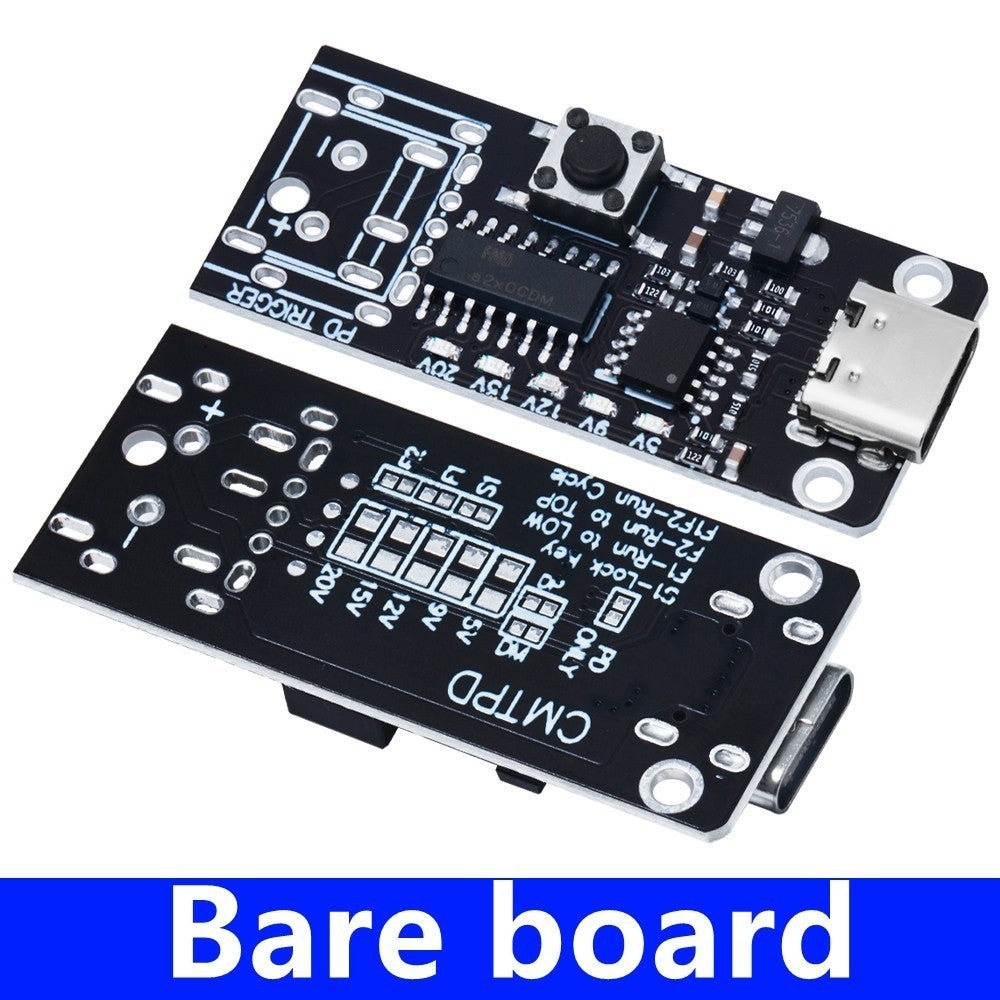

100W 5A USB-C Fast Charge Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c PD 2.0 3.0 Power Delivery Boost Module

Report Item

   ●

   Support PD3.0, PD2.0, QC, FCP, AFC voltage decoy output, free mode

   Switch. You can also set that only PD is supported.

   Support 5V/9V/12V/20V decoy output (specific range depends on your power supply).

   With key lock function, to prevent misoperation (to avoid damaging load equipment by setting voltage wrongly)

   ●

   5V/9V/12V/20V quick setting. LED indicates output.

   The parameters are saved automatically, and the last deception setting is executed after power on.

   Ultra low power consumption, high current, supporting 100W output.

   ●

   The maximum output is 20V5A (the actual value depends on your power supply).

   Type-c is solid and durable.

   Support automatic polling to the highest voltage and keep it, and automatic polling to the highest voltage

   Then maintain to 5V, infinite loop and other test functions.

   The test jump time is adjustable.

   Suitable for aging test, the module can withstand voltage above 30V.

   Each voltage can be connected externally - one key can be used for quick switching.

PD ONLY short circuit contact: the module only supports PD protocol after short circuit.

   DM and DP short contacts: DM and DP can be output from USB after short circuit, unless required,

   Short circuit is not recommended.

   5 independent key interfaces: 5 independent keys can be connected to quickly switch voltage, which can be short pressed

   Or long press or short circuit. The upper ends in the figure are all grounded contacts, which are connected together on the circuit.

S1 short contact: it is set for key lock. After short connection, the switching voltage needs to be unlocked by pressing

   Press the key to power on, and re unlock it when power on again.

   F1 short circuit: power on to automatically poll the highest voltage and then maintain it to 5V. And the LED will display

   The LED lamp corresponding to the voltage that should be supported is all on, otherwise it is flashing.

   F2 short circuit: short circuit with F1, but maintain the highest voltage supported by output after polling.

   F1 and F2 are shorted at the same time: it is an infinite loop test. The voltage will switch from low to high cycle output

   The default polling and jump time is 0.5 seconds, which can be modified according to the following red ink method.

Setting of polling or voltage jump time when F1 and F2 are short circuited: press and hold the key without powering on

   The first LED flashes. If the key is released, it is unlocked. Otherwise, continue to press straight

   When all LEDs flash, release the key to enter the time setting, and the switching time is reset to

   0.5 seconds, then add 0 5 seconds, and the LED will display

   The time required (if you are not familiar with binary, you can count how many times you have added the time)

   Increase it for 30 times (the corresponding maximum time is 15.5 seconds, and the LED lights are all on). Did not press the key within 3 seconds

   The time setting will aut
