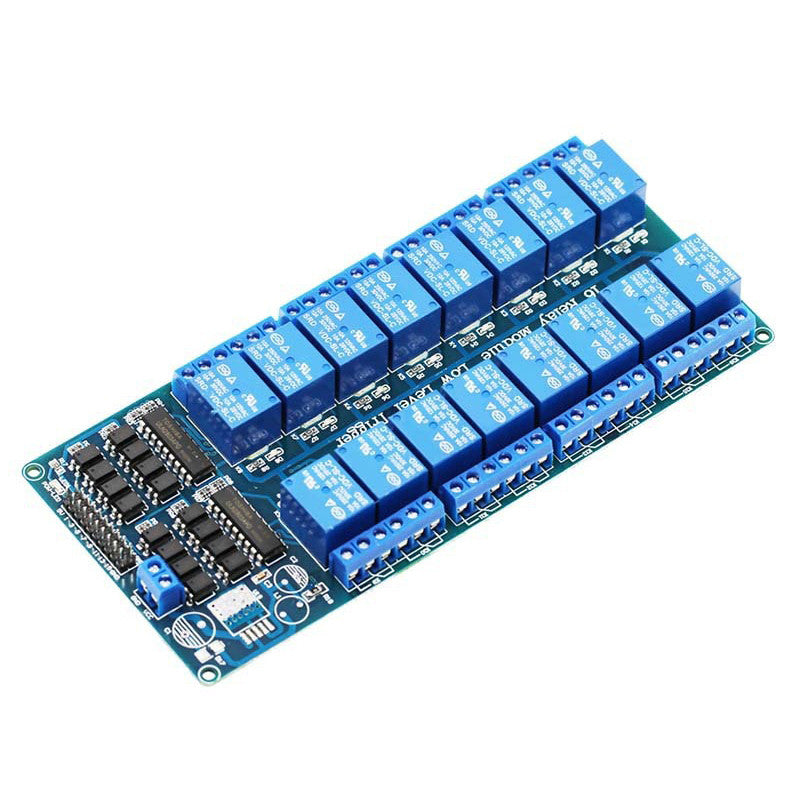

16 Channel 5V 12V 24V 10A Relay Module

  ● 16 Channel 5V 10A Relay Module with Optocoupler

  This 16 Channel 5V Relay Module SPDT (Single Pole Double Throw), can use to control devices which uses a higher voltage than what most micro-controllers such as an Arduino or Raspberry Pi can handle. This particular relay module can control a typical household appliance up to 10A.

  Specifications

  - 250VAC 10A, 28VDC 10A

  - Indicator LEDs

  - 5V control voltage

  ● 16 Channel 12V 10A Relay Module with Optocoupler

  This is a 12V 16-Channel Relay interface board, Be able to control various appliances, and other equipment with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

  SPECIFICATION:

  - The use of the industry's top quality optocoupler isolation, strong anti-interference ability, stable performance

  - 12V 16-Channel Relay interface board, and each one needs 15-20mA Driver Current

  - 1-16 road can be any full on / off, or any road.

  - Equipped with high-current relay, AC250V 10A ; DC30V 10A

  - Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

  - Indication LEDs for Relay output status

  Note: PCB color or layout may vary slightly.
