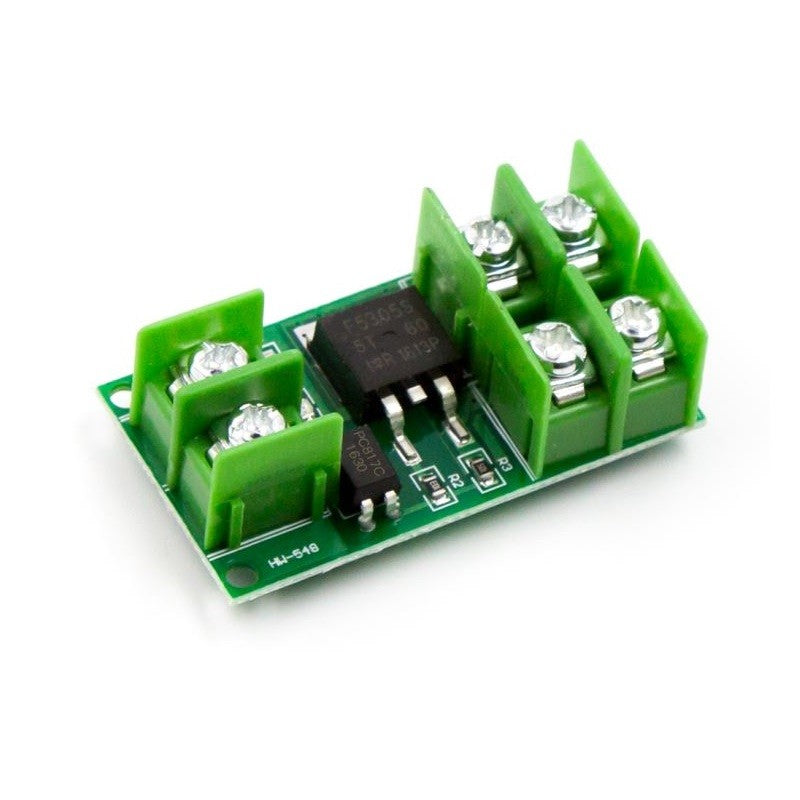

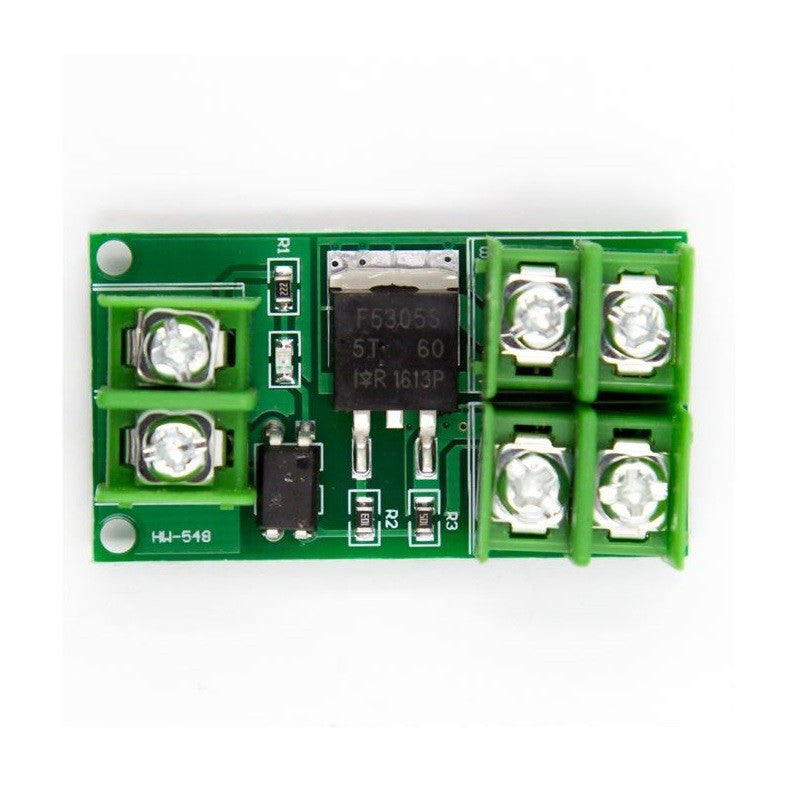

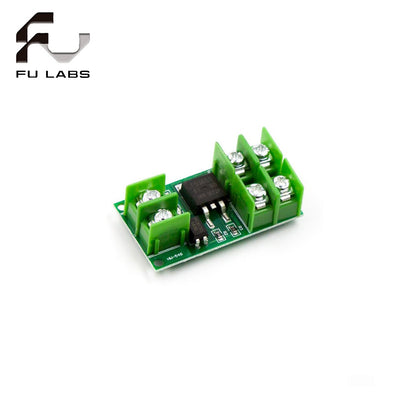

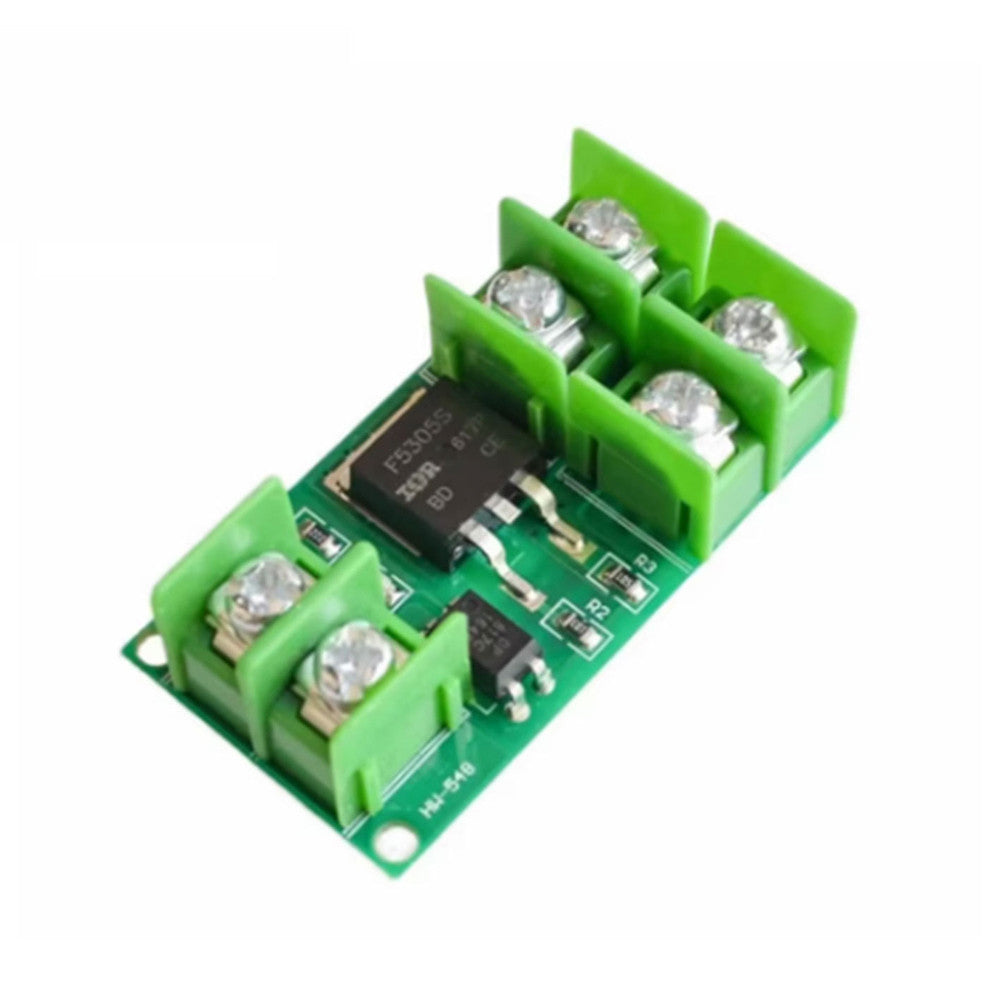

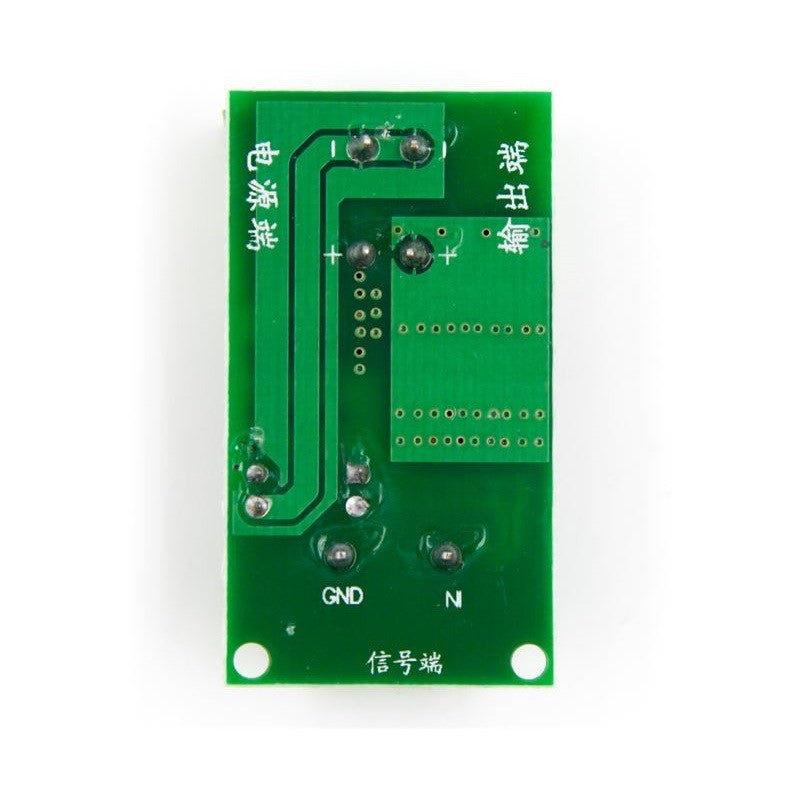

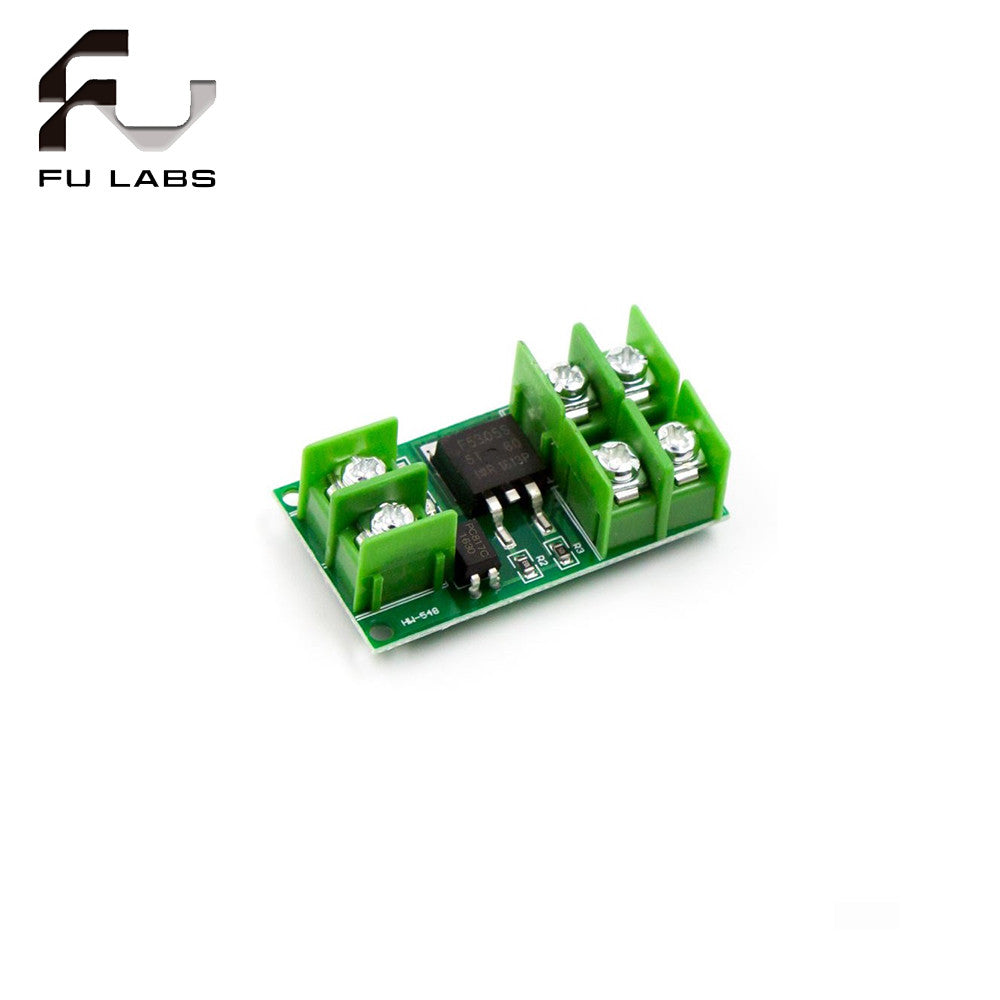

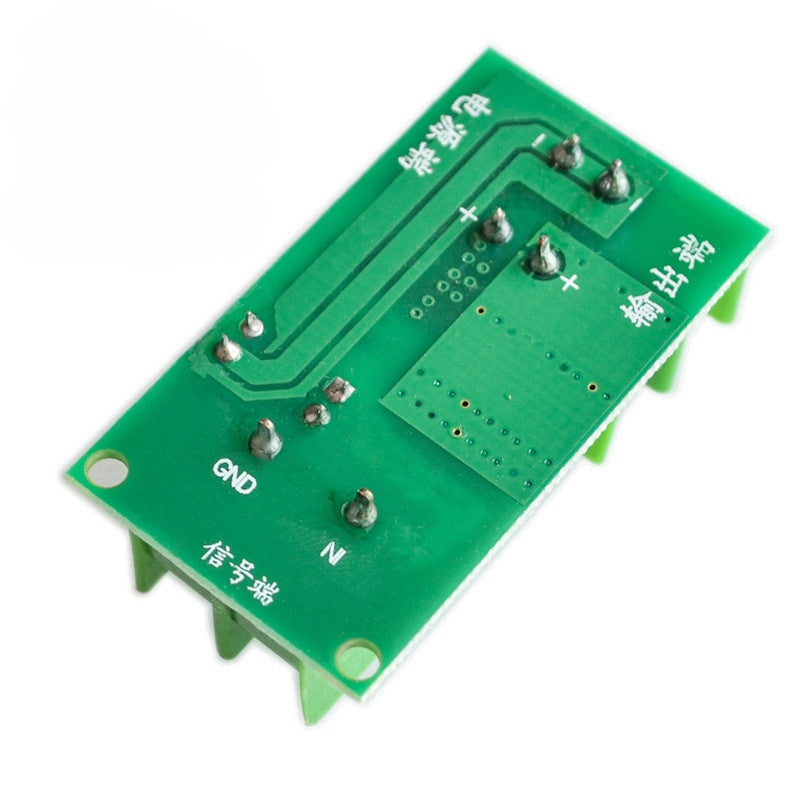

1pcs DC 5V-36V Electronic Pulse Trigger Switch Control Panel MOS DC controlled MOSFET optocouple

Product Description

Dscription:

● FET modules, input and output is fully isolated.

● The signal triggers the end: the digital high-low.IO ports can be connected microcontroller, PLC interfaces, DC power supplies.

● The input voltage: 3V-20V; Current: 5mA or so.

● You can control the power output of the equipment, motors, light bulbs, LED lights, DC motors, miniature pumps, solenoid valves, etc.

Output controlled voltage: 5V-36V. Current: less than 5A, if the current is more than 5A, heat sank is needed

------the maximum should be less than 20A.

● The original F5305S power FET can enter PWM, control the motor speed, the lamp brightness.

● Overall Size : 46 x 25 x 18mm(L*W*H)

● Weight : 15g

Package:

1 x DC 5V-36V Trigger Switch MOS Field Effect Module Driver for LED Motor Pump
