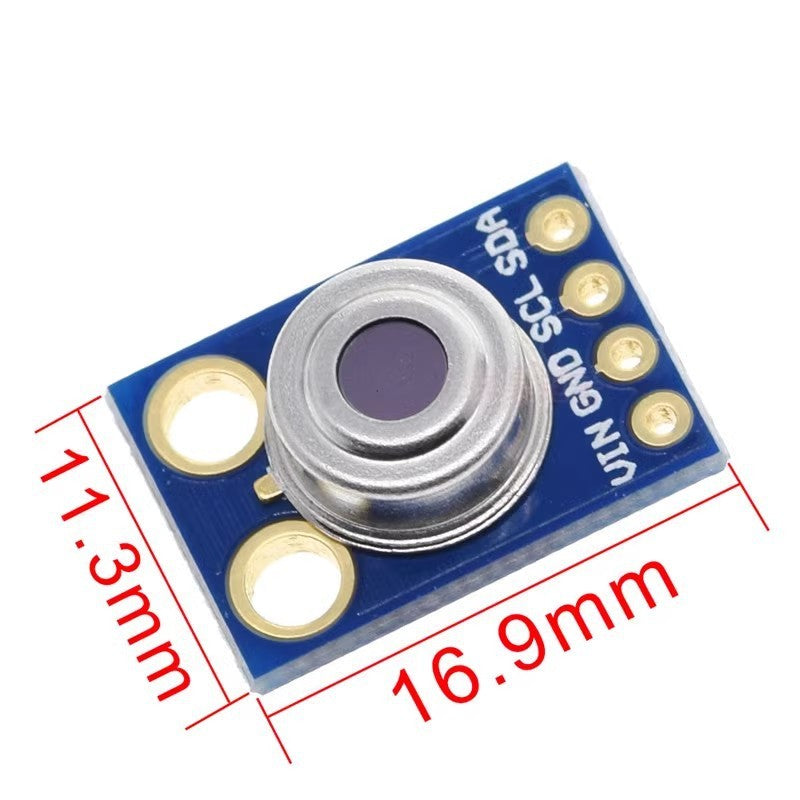

1pcs ESF MLX90614 Contactless Temperature Sensor Module For Arduino Compatible MLX90614 GY-906

Description of MELEXIS MLX90614ESF-BAA-000-TU-ND Non-Contact Infrared Thermometer Module

I. Product Parameters

(I) Hardware Specifications

- Power Supply Parameters:

- Supply Voltage: 3-5V (built-in low-dropout voltage regulator, ensuring stable power input)

- Operating Current: 5mA (low power consumption, suitable for battery-powered devices)

- Communication Protocol: Standard IIC communication protocol (easy to connect with most microcontrollers)

- Physical Dimensions: 21.5mm (length) × 23mm (width) × 22.5mm (height) (compact size, convenient for integration into small devices)

(II) Performance Indicators

  - Measurement Range:

  - Ambient Temperature: -40°C ~ +125°C (adapts to various environmental temperature conditions)

  - Target Temperature: -70°C ~ +280°C (supports low to high temperature measurement scenarios)

  - Measurement Accuracy (without compensation for body temperature measurement):

  - DCI/BCI models: ±0.5°C accuracy within 15cm

  - BCF model: ±0.5°C accuracy within 10cm

  - DCC/BCC models: ±0.5°C accuracy within 5cm

  - BAA/AAA models (including this module): ±0.5°C accuracy within 3cm

  - Default Output Parameters:

  - Baud Rate: 9600 or 115200 (two common rates optional, compatible with different development needs)

  - Automatic Output Frequency: 10Hz (fast data update, ensuring real-time temperature monitoring)

II. Product Features

Breakout Board Configuration

- Includes complete peripheral circuits, allowing direct connection to microcontrollers (no need for additional circuit design, reducing development difficulty)

- Provides two types of pins (not soldered by default; specify soldering requirements if needed, flexible for different installation scenarios)

- Equips two jumpers for the I2C interface (soldering may or may not be required depending on the application; no operation needed in most cases, simplifying usage)

Temperature Measurement Functions

- Adds a new body temperature measurement mode (for reference only, suitable for non-professional body temperature monitoring scenarios)

- Supports direct forehead temperature measurement, with available compensation values for calibration (improves measurement accuracy for human body temperature)

- Built-in power-off memory function, which saves custom calibration parameters (avoids repeated calibration after power-off, enhancing usability)

Development Support

  - Provides PC software for data viewing (facilitates real-time observation and analysis of temperature data)

  - Offers multi-platform development support:

  - Arduino sample code

  - 51 MCU driver code

  - STM32 driver library (covers mainstream microcontroller platforms, lowering development thresholds)

III. Application Recommendations

Optimizing Measurement Distance

- Select the optimal measurement distance based on the model (e.g., this BAA model recommends ≤3cm, ensuring me
