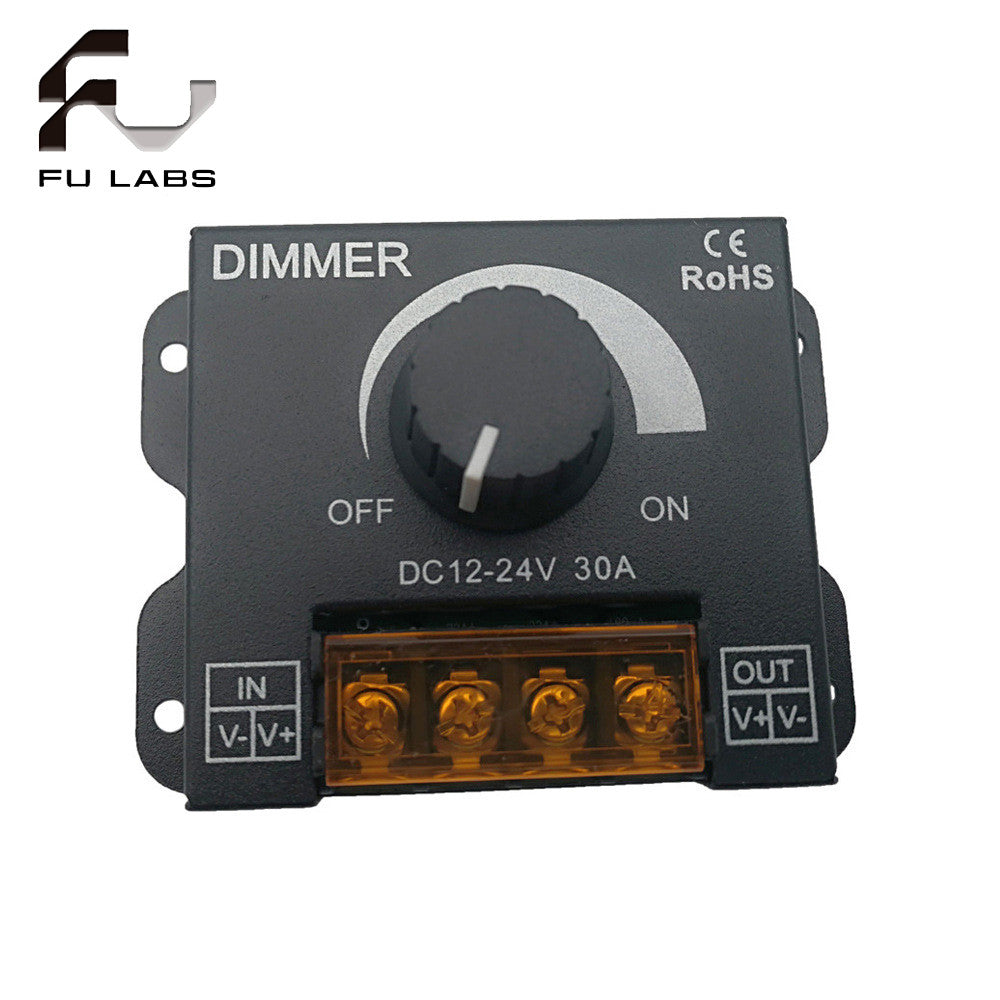

1pcs Led dimmer light strip Light with brightness adjustment controller Remote touch knob endless switch DC12-24V

Product Introduction

     This LED manual knob dimming controller is compatible with 12V constant current LED beads and 12-24V constant voltage LED beads, light strips. It adjusts brightness intuitively via the knob, meeting the dimming needs of single-color LED lighting.

Core Functions

•Equipped with automatic memory function, restores the last set brightness after power-off and restart

•Dimming range 0-100%, supporting seamless adjustment from dim to full brightness

•PWM digital dimming technology ensures soft and stable light without flicker, avoiding inrush current and protecting LED fixtures

•Achieves smooth brightness adjustment by precisely controlling output voltage and current

Technical Parameters

•Input Voltage: DC 12-24V

•Input Current: 0-30A (≤30A)

•Rated Power: 360W at 12V, 720W at 24V (minimum power ≥1W)

•Operating Temperature: -20~60℃

•Product Dimensions: 66mm (L) ×61mm (W) ×20mm (H)

•Product Weight: 90g

•Package Weight: 110g

•Material: Metal

Application Scope

•Suitable for single-color LED lighting fixtures and light strips, including single-color 5050 and 3528 model light strips.

Notes

•Not suitable for multi-color mixed LED fixtures (such as RGB light strips/lights), nor for non-LED single-color lighting equipment like table lamps, fans, energy-saving lamps, bulb lamps, etc.
