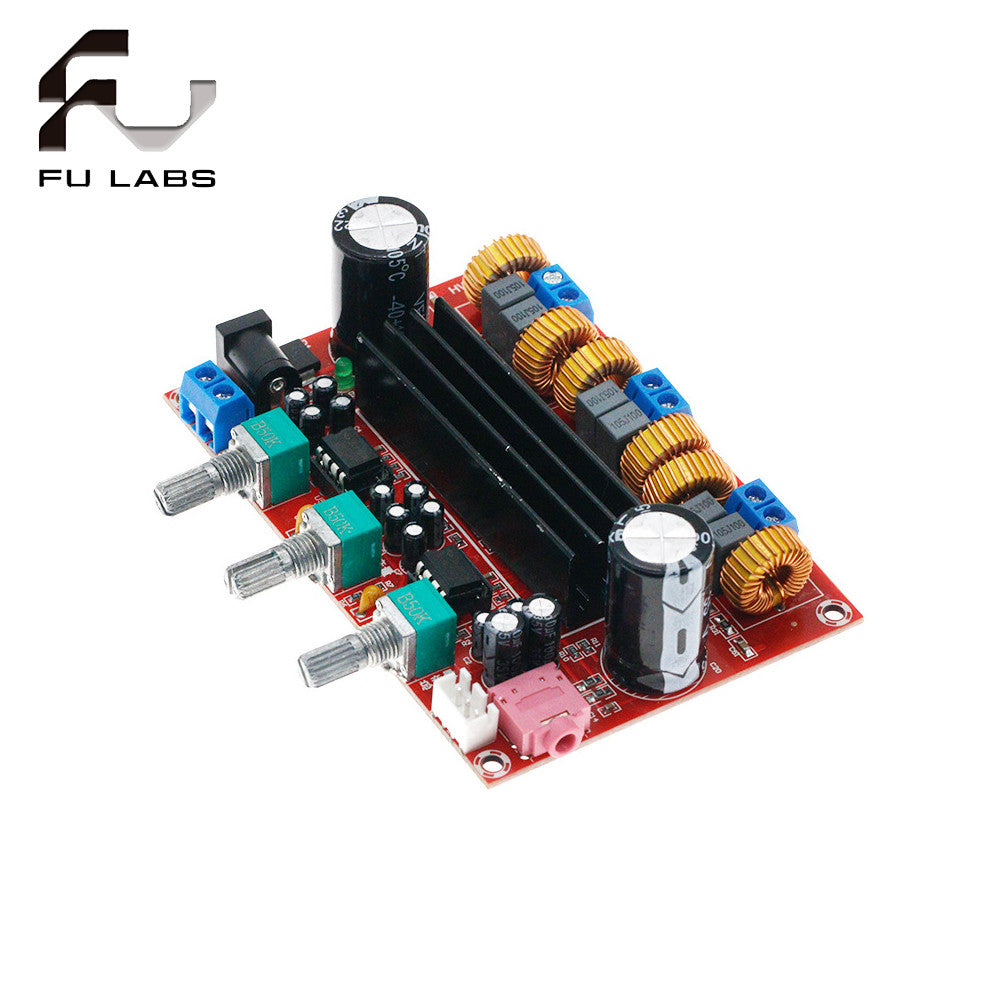

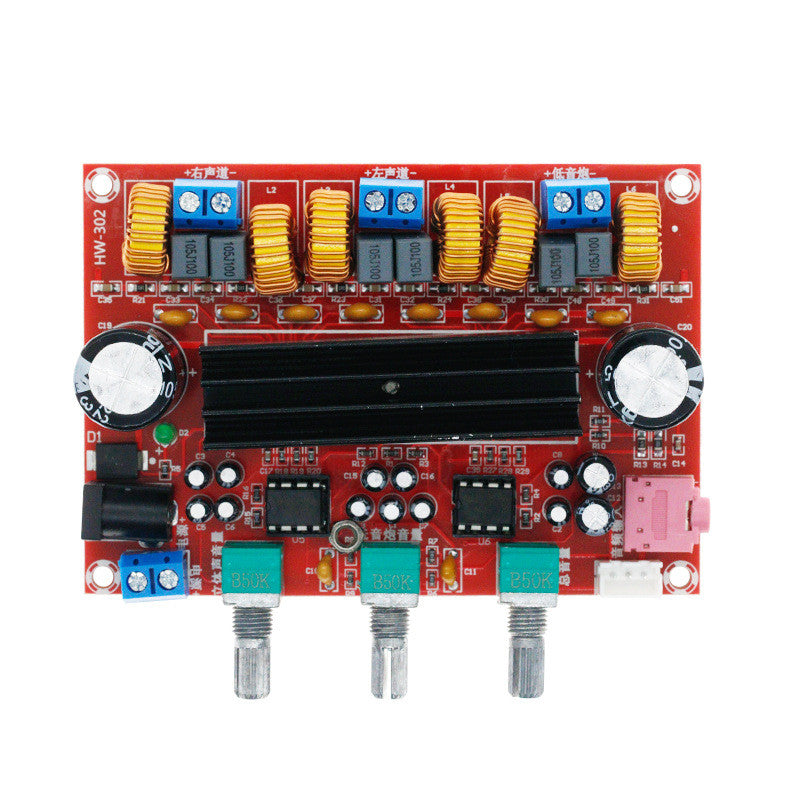

1pcs TPA3116D2 Channel 2.1 Digital Subwoofer Power Amplifier Board Module XH-M139 12V - 24V 2*50W+100W HiFi Amplifier Board

Main Parameters

- Product Name: 2.1 - Channel Audio Amplifier Board

- Power Supply Voltage: DC12 - 24V

- Output Power: 50W2 + 100W subwoofer1

- Output Load: 4 - 8Ω

- Frequency Response Range: 14 - 100KHZ

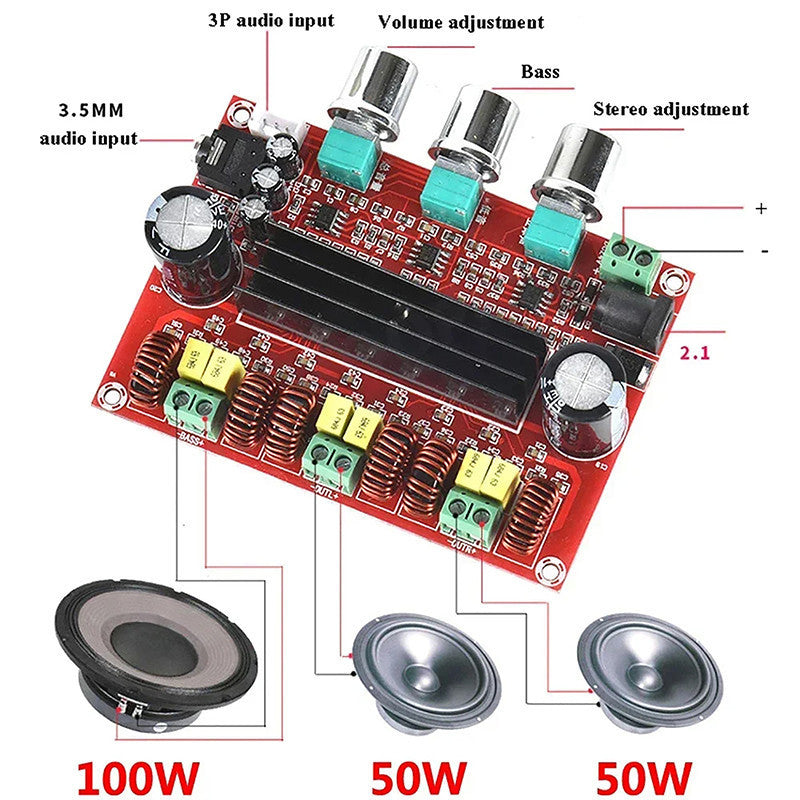

- Number of Channels: 3 (left channel + right channel + subwoofer)

- Switching Frequency: 1.2MHZ

Warm Reminder:

Sufficient output power can only be achieved when there is adequate audio input and sufficient power supply voltage/current. A relatively higher power supply voltage will result in greater power. Speakers with different impedances will have different output powers. When the voltage and current are sufficient, the higher the ohm value of the speaker, the relatively smaller the sound power will be. Please note!

Power Supply Voltage:

12V ------- 8Ω speaker: 12W (left channel) + 12W (right channel); 4Ω speaker: 20W (left channel) + 20W (right channel)

15V ------- 8Ω speaker: 18W + 18W; 4Ω speaker: >30W + 30W

19V ------- 8Ω speaker: 32W + 32W; 4Ω speaker: >45W + 45W

24V ------- 8Ω speaker: 38W + 38W; 4Ω speaker: >55W + 55W
