1pcs Universal Lcd Tv Backlight Board Below 65 Inches Led Boost Constant Current Driver Adapter

  Features:

1: Wide range of applications

2: Small size

3: stable performance

4: Simple to use

5: General purpose below 65 inches

Specification:

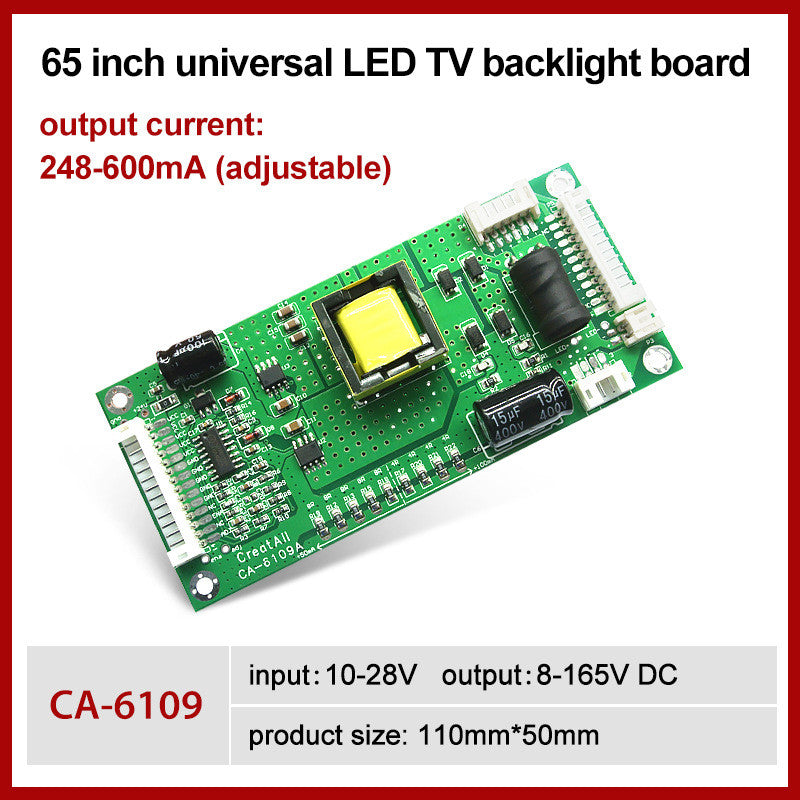

[Input voltage range] 10-28V

[Output voltage range] 8-165V

[Support range] Any below 65 inches

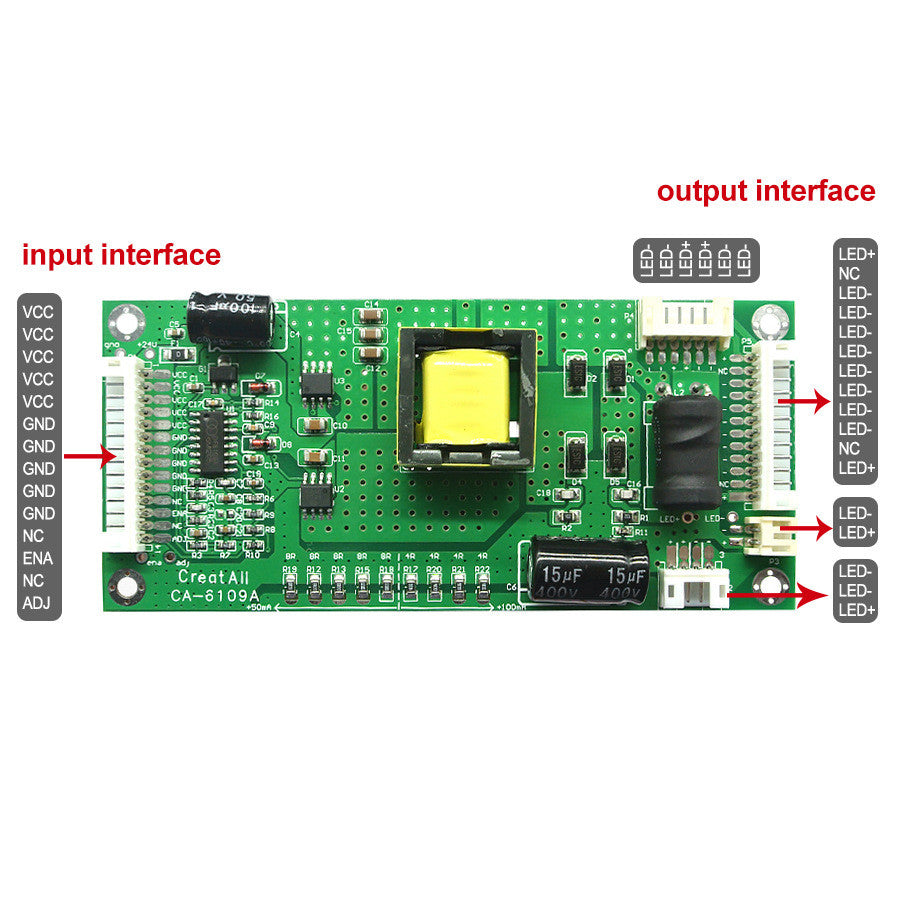

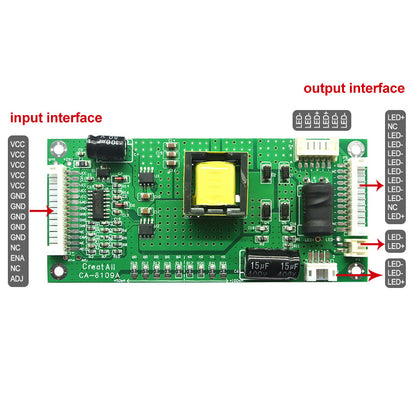

[Interface definition] VCC: 10V-28V input, GND=ground,

ENA=switch, NC=empty pin, ADJ=brightness adjustment

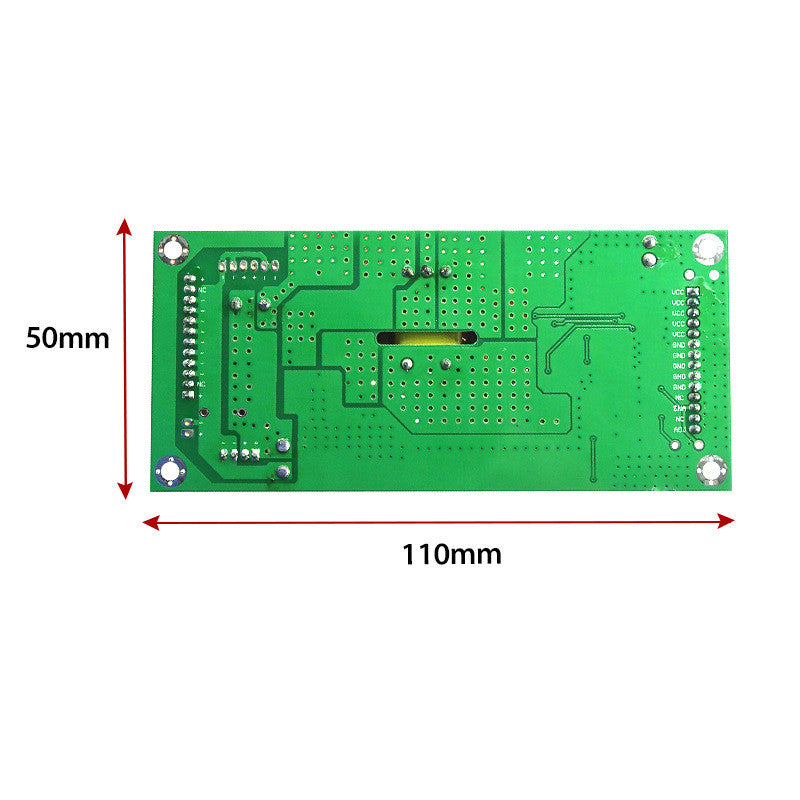

[Size] 11*5cm (manual measurement) Net weight: 40g

Note:

When 12V input, the output voltage is below 80V, when 24V power supply, the output voltage is above 80V, please see clearly, buy as needed, thank you

Package includes:

1*65 inch general LCD TV backlight board LED boost constant current board
