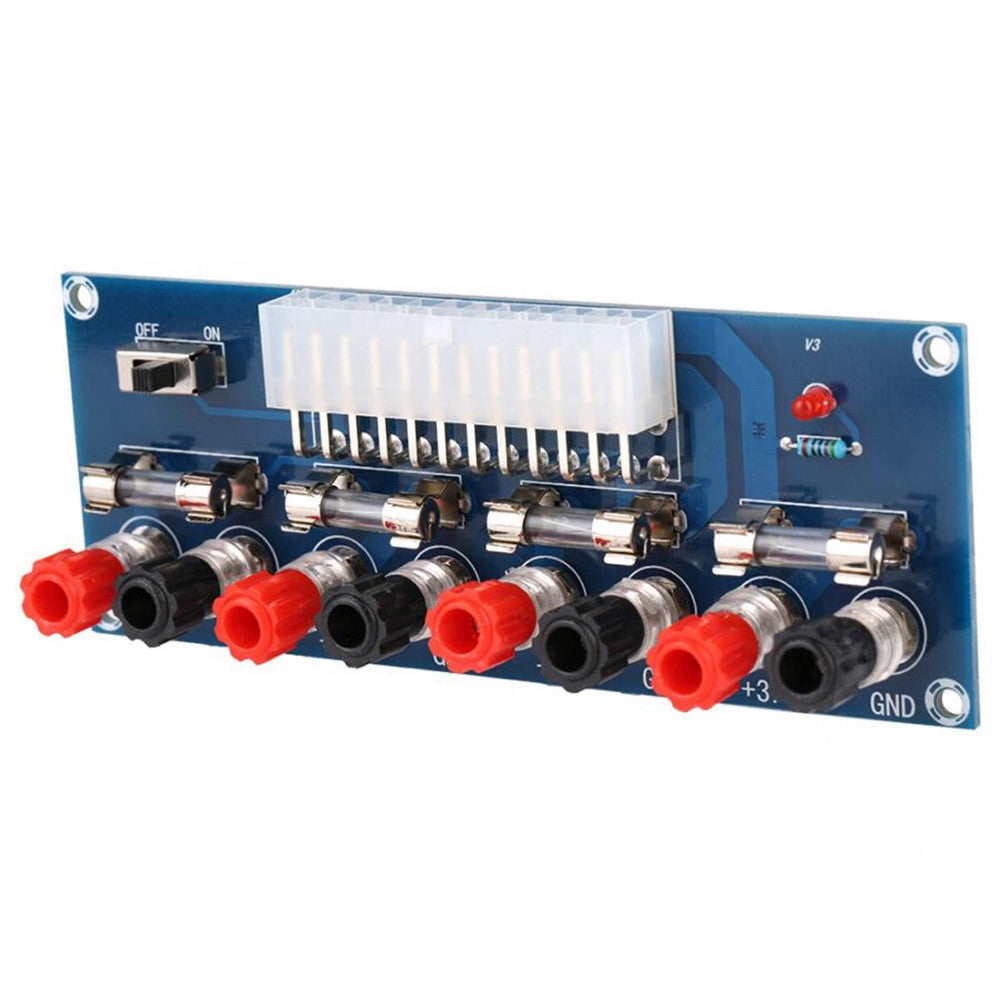

1pcs XH-M229 Desktop PC Power ATX Transfer Board Supply Power Module Precise 24Pin

Product Parameters of ATX Power Take - off Board

- Product Name: ATX Power Take - off Board

- Model: XR - M229

- Compatible Ports: ATX (compatible with some BTX types)

- Switch: Available

- Output Groups: Four groups of different voltages

- Dimensions: 1284830mm

- Weight: Approximately 63g

  24PIN Port Description

It supplies power to the computer motherboard in the computer host and is usually used together. If the power supply is a 20PIN or non - 24PIN port, plug in the wire from the origin mark on the circuit board. Pay attention during use.

Voltage Description of Each Terminal

-12V to GND: GND is the positive pole, -12V is the negative pole, voltage DC12V

+12V to GND: +12V is the positive pole, GND is the negative pole, voltage DC12V

+12V to -12V: +12V is the positive pole, -12V is the negative pole, voltage DC24V

+5V to GND: +5V is the positive pole, GND is the negative pole, voltage DC5V

+3.3V to GND: +3.3V is the positive pole, GND is the negative pole, voltage DC3.3V

The -12V terminal is not recommended to carry a large - current load. It only provides a logic potential for the motherboard, usually with a current of about 300mA.
