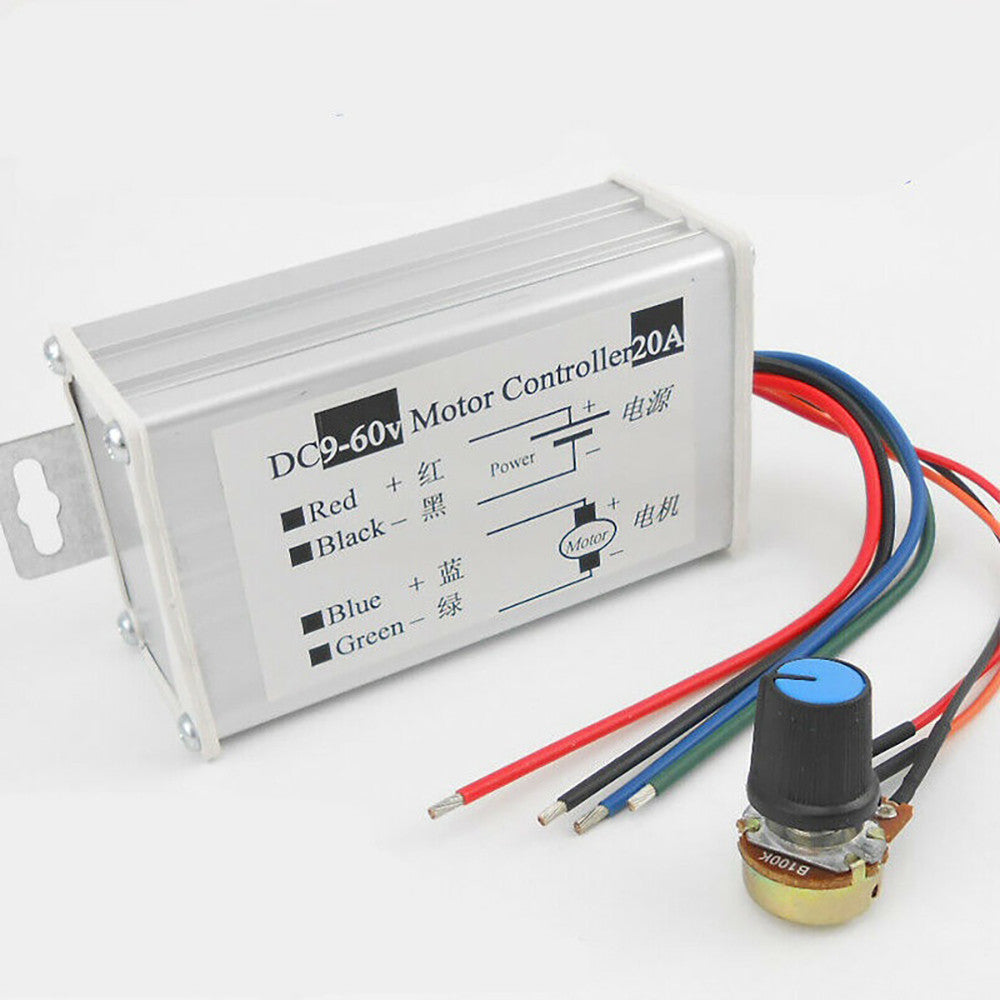

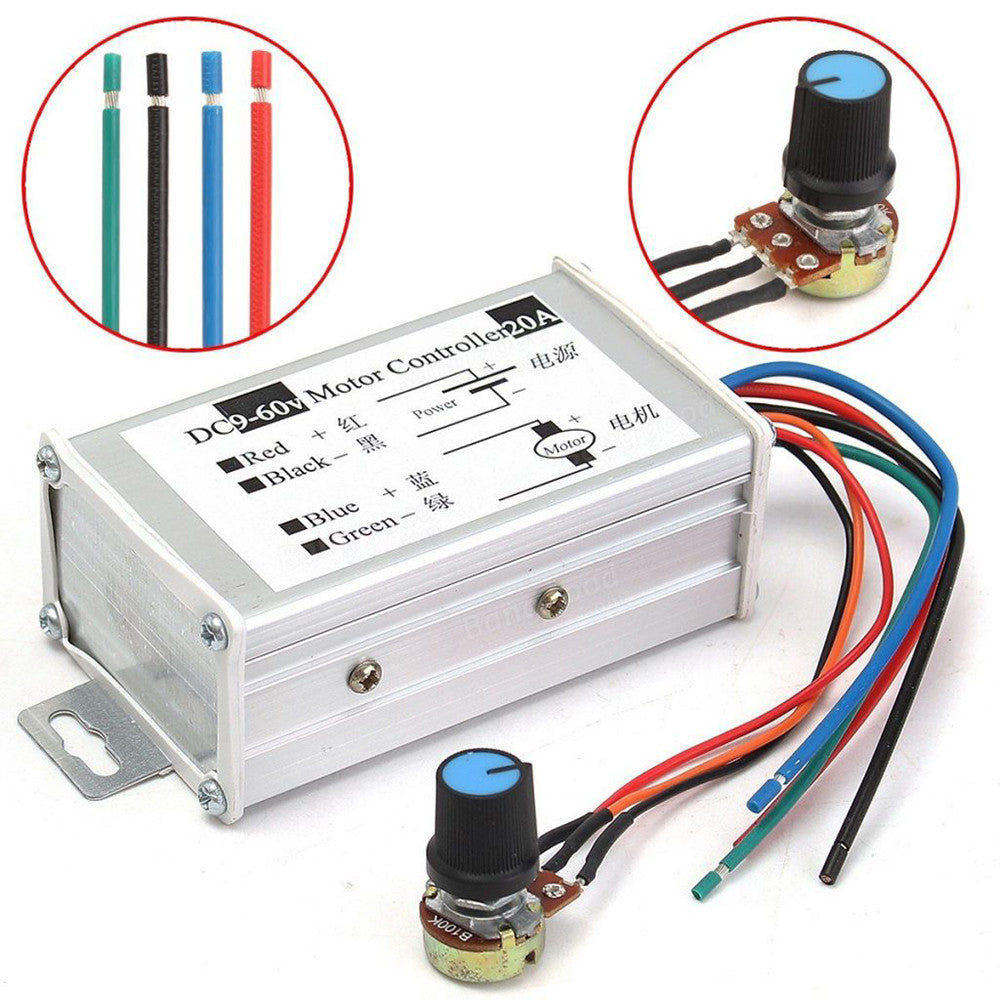

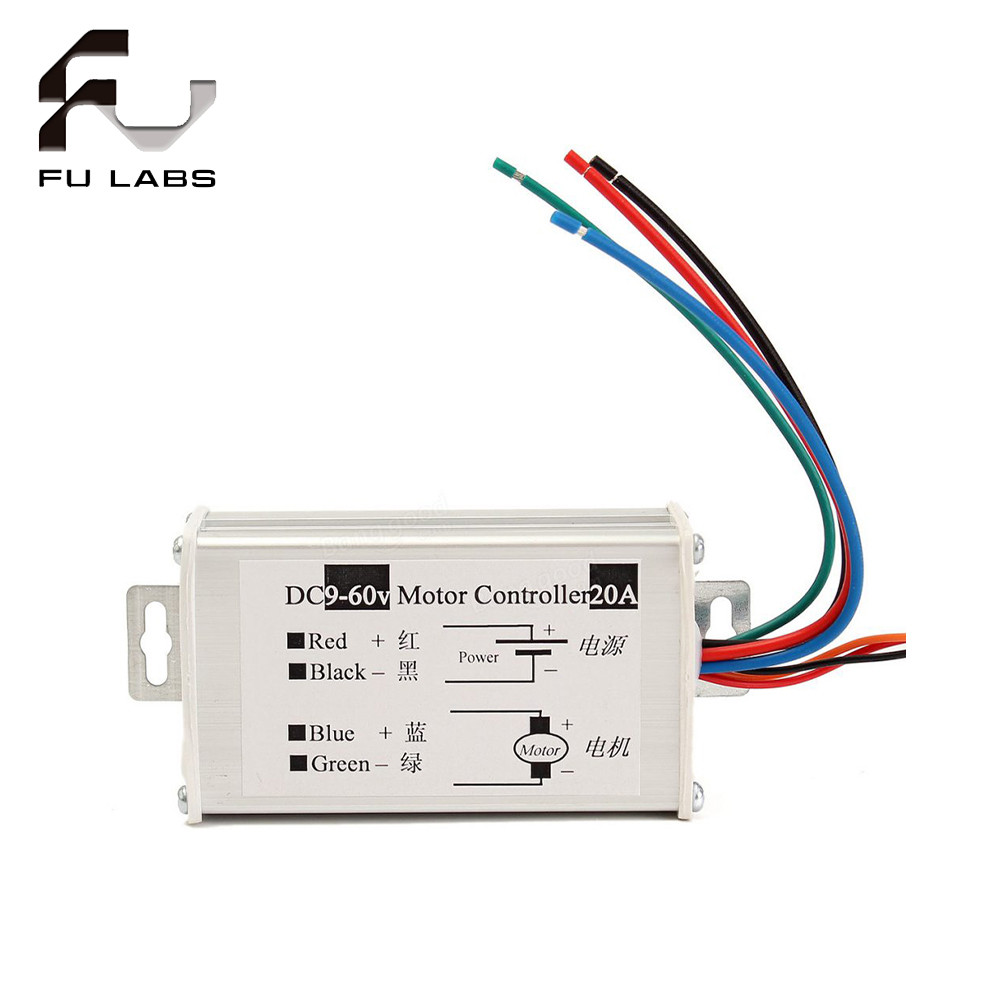

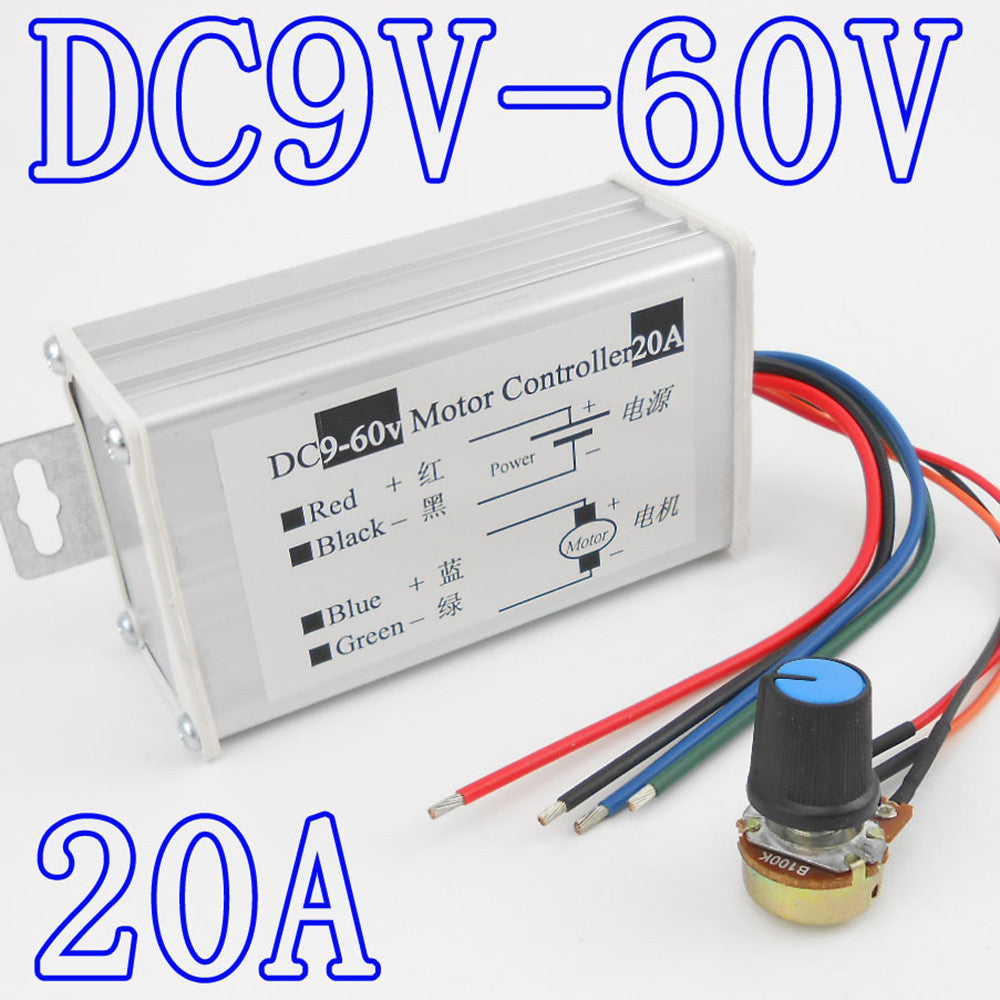

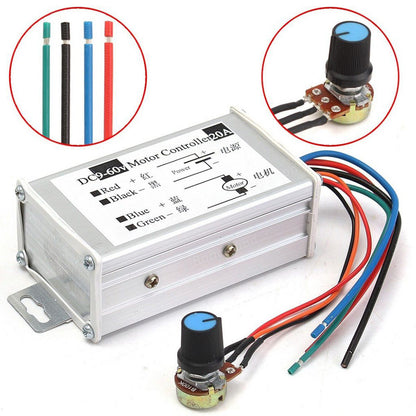

9v~60v PWM DC Motor Speed Regulator 20A Motor Controller Metal Shell

● Model: Dc Motor Speed Controller

● Place Of Origin: Mainland China

● Province: Guangdong Province

● City City: Shenzhen

● Decoration And Construction Content: Installation Works

● Product Parameters

● Input Voltage: DC9-60V Output Voltage: Under Load Linearity

● Output Current: 0-20A (Within 10A For A Long Time Use, Pay Attention To Keeping The Module Unobstructed Heat Dissipation Conditions)

● Extreme Power: 1200W

● Speed Regulation Type: PWM Adjustment Speed Regulation Mode: Potentiometer (Linear)

● Speed Regulation Range: 0 – 100% Control Frequency: 25KHZ

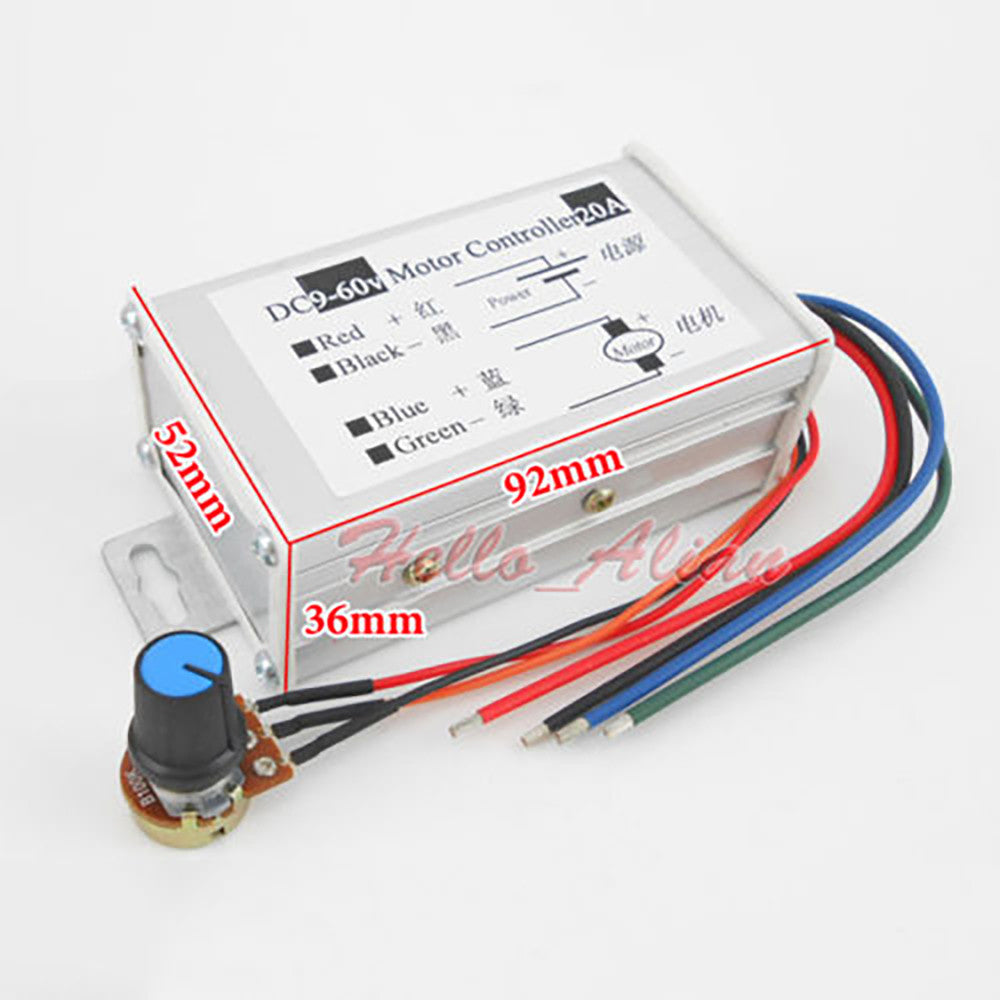

● Module Size: 92MM * 52MM * 36MM Product Net Weight: 130 Grams

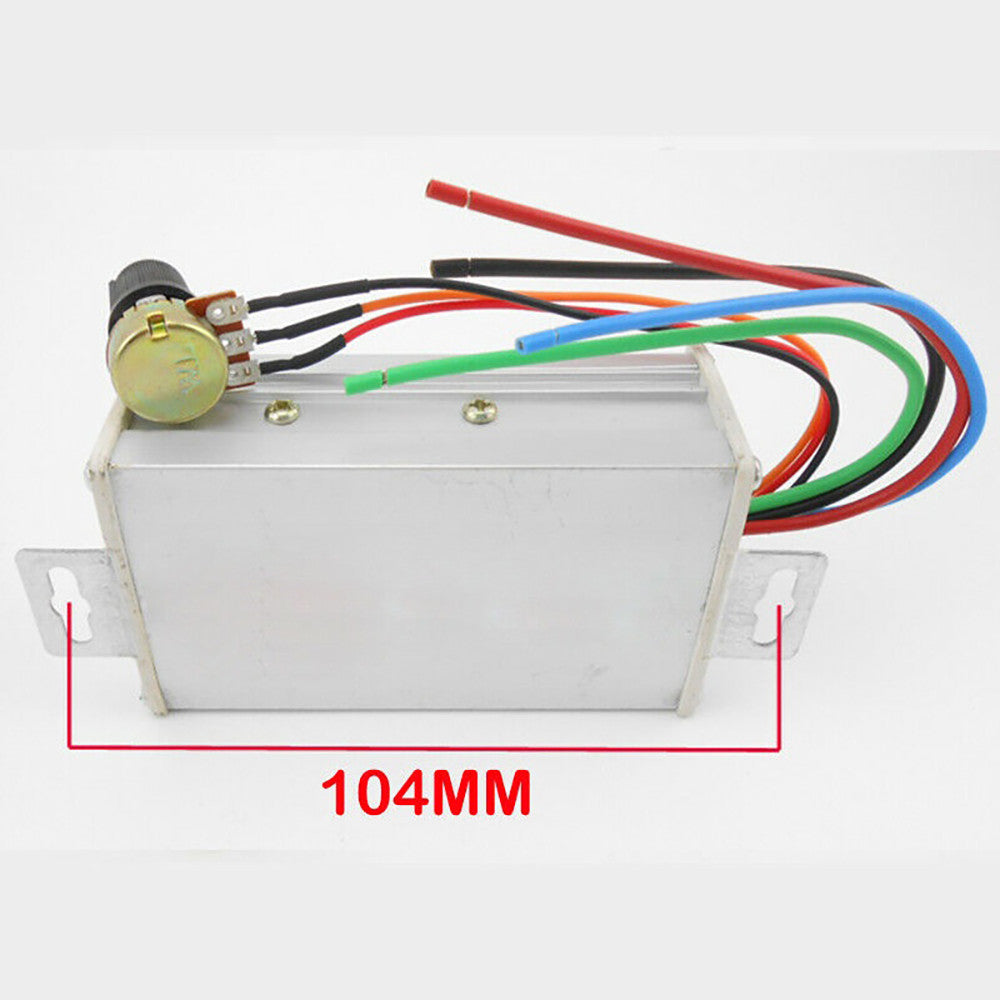

● Press Size: The Center Distance Of The Fixed Hole On The Back Is 104MM

● Potentiometer Press And Install Opening: 7MM

Special Reminder:

Dc Motor Governor Connects To Dc Power Supply,

Never Directly Connect To Household 220V Ac,

Otherwise, The Consequences Of Damage Will Be At Your Own Risk!

Note That This Is Not A Power Module, You Must Connect The Motor To Adjust The Speed, And There Is No Change In The Output Of The Multimeter     Output Without Connecting To The Motor.

The Connection Motor Can Be Positive Or Negative, When The Running Direction Is Inconsistent With Expectations, The Direction Can Be Changed By  Adjusting The Line Sequence.

Please Note:

1, This Speed Controller Is Used For The Use Of Dc Brushed Motor.

2, Not Suitable For The Speed Regulation Of Dc Brushless Motor; Can Not Be Used As A Voltage Regulator Or Regulator!
