DC-DC SX1308 Step-UP Adjustable Power Module Boost Conver

  Description:

LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.

Features:

Oscillation frequency 1.2MHz

efficiency is as high as 95%

Circuit has short circuit protection, overheating protection function

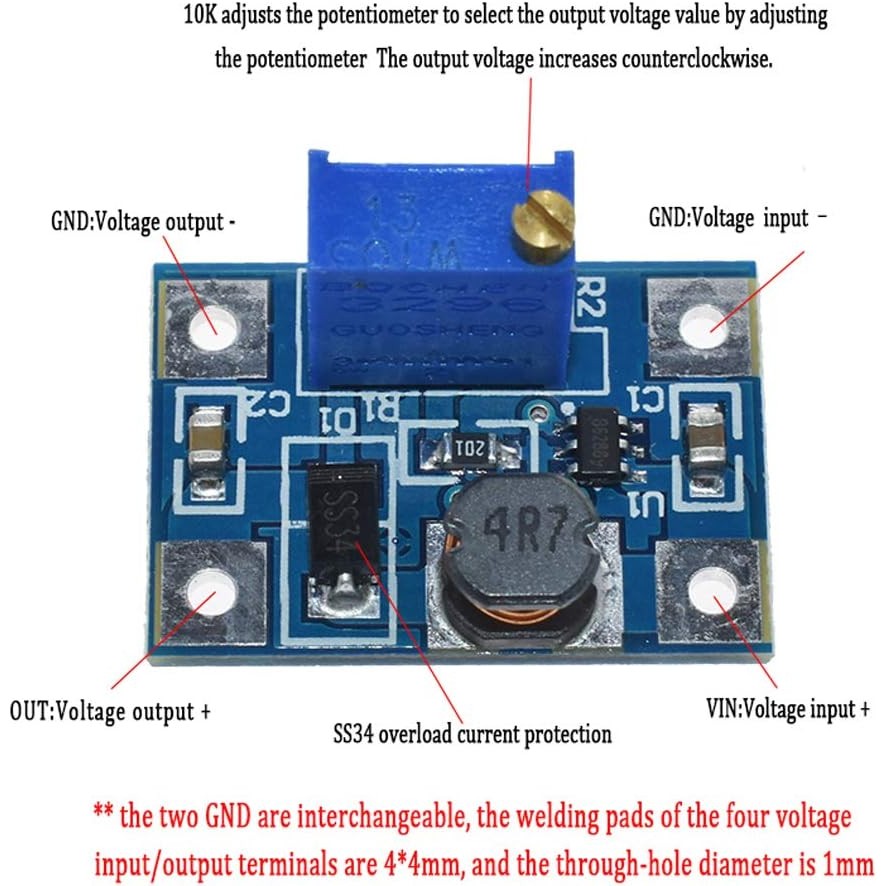

10k to adjust potentiometer, adjust the output voltage

Parameters:

Maximum input voltage: DC 2-24V

Maximum output voltage: DC 2-28V

Switching frequency: 1.2MHz

Maximum current output: 2A
