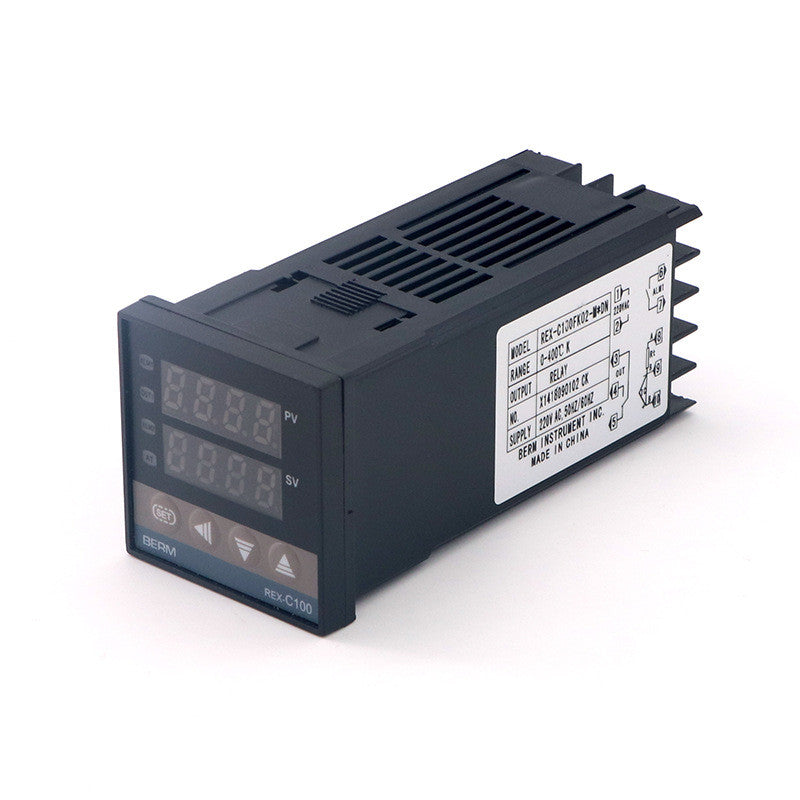

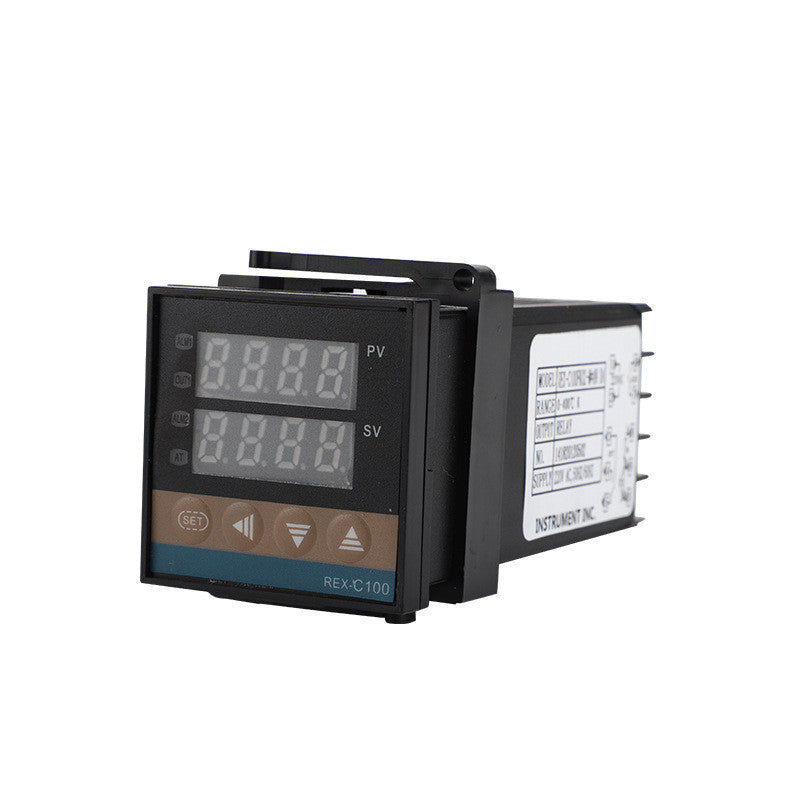

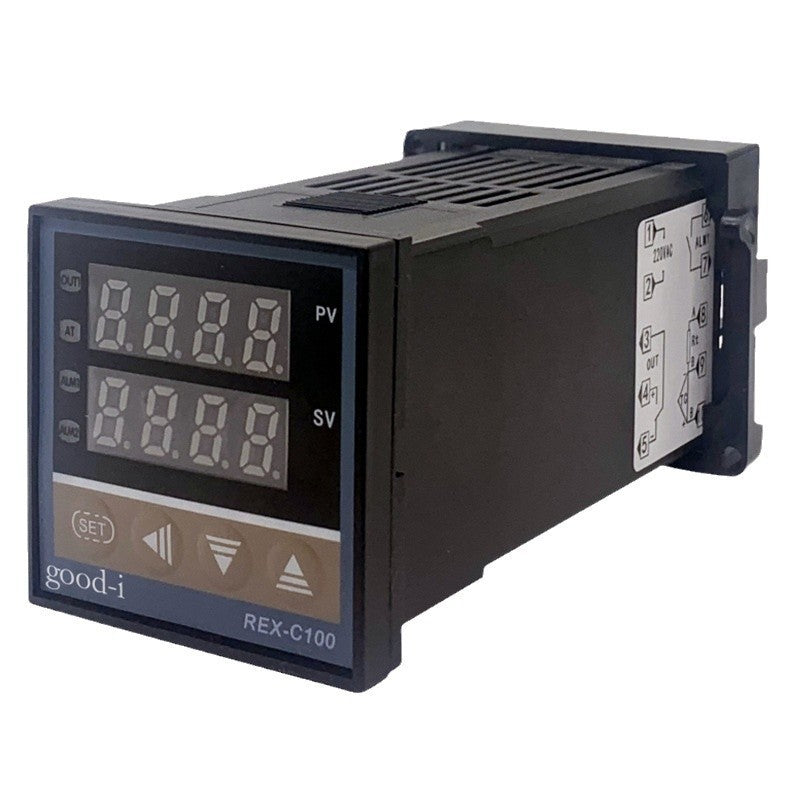

Digital Rex-C100 Lcd Pid Temperature Controller Set Ssr K Type Thermocouple

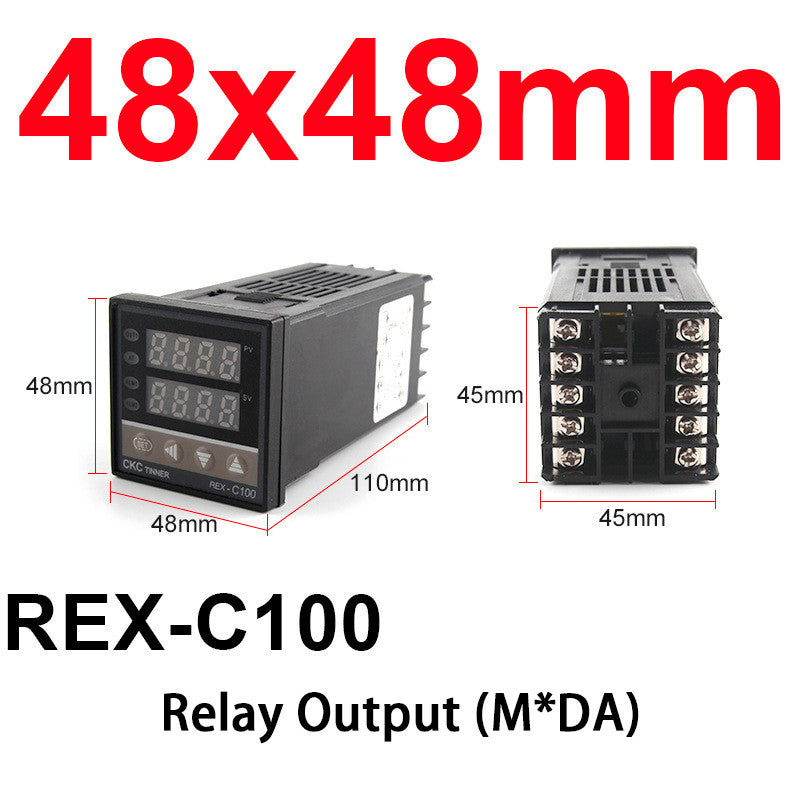

    REX-C100 ordinary relay output, REX-C100 ordinary SSR output, REX-C100 intelligent relay output M * DA, REX-C100 intelligent SSR output V * DA

notes:

1. REX-C100 ordinary relay output, REX-C100 ordinary SSR output, REX-C100 intelligent relay output M*AN, REX-C100 intelligent SSR output V*AN,

And only type K thermocouples can be used as inputs.

2. All input voltages are 220V

3. The output of the normal version has no alarm function

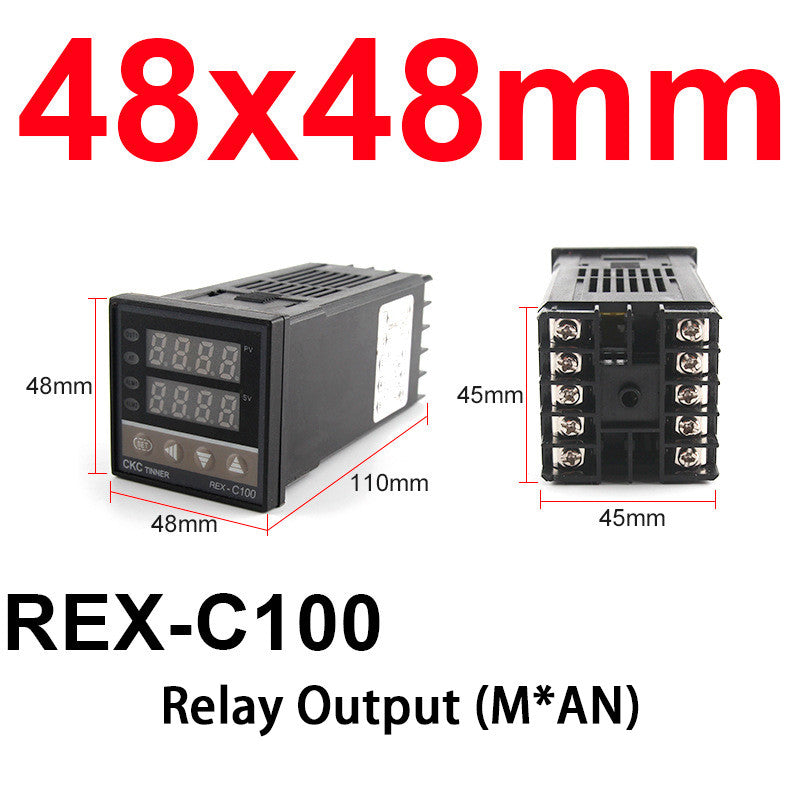

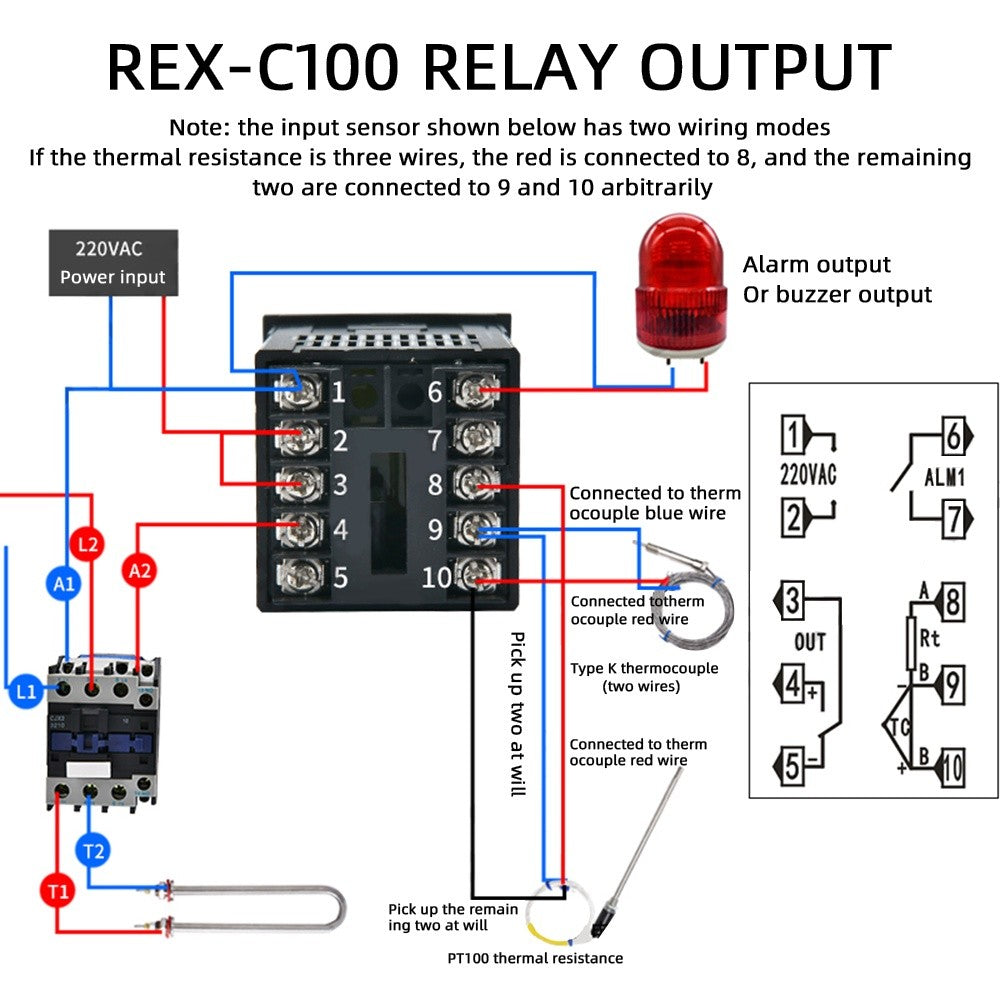

4.M*AN relay output: external contactor, output voltage 220V

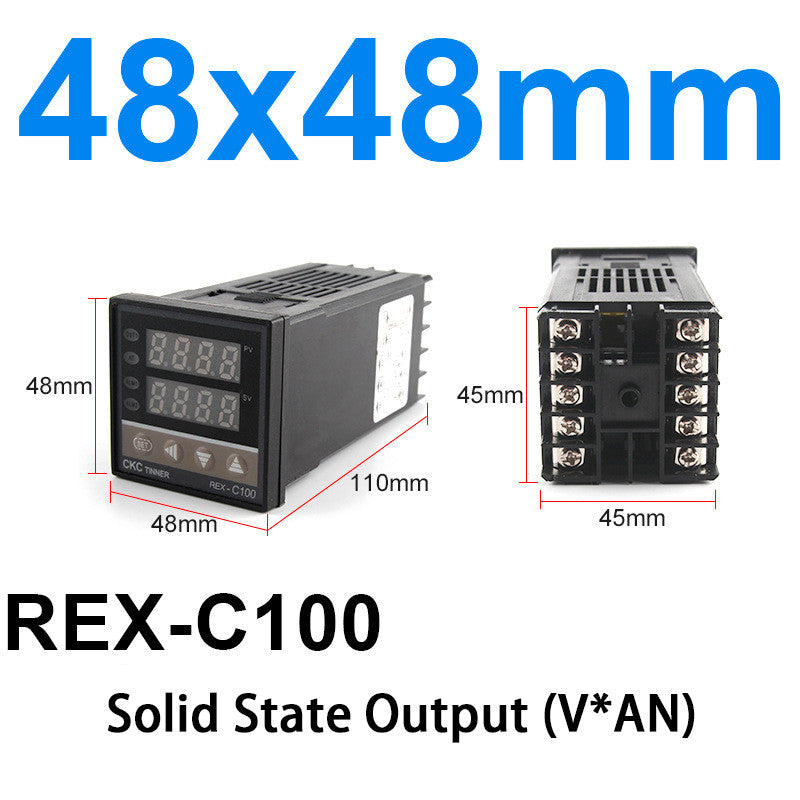

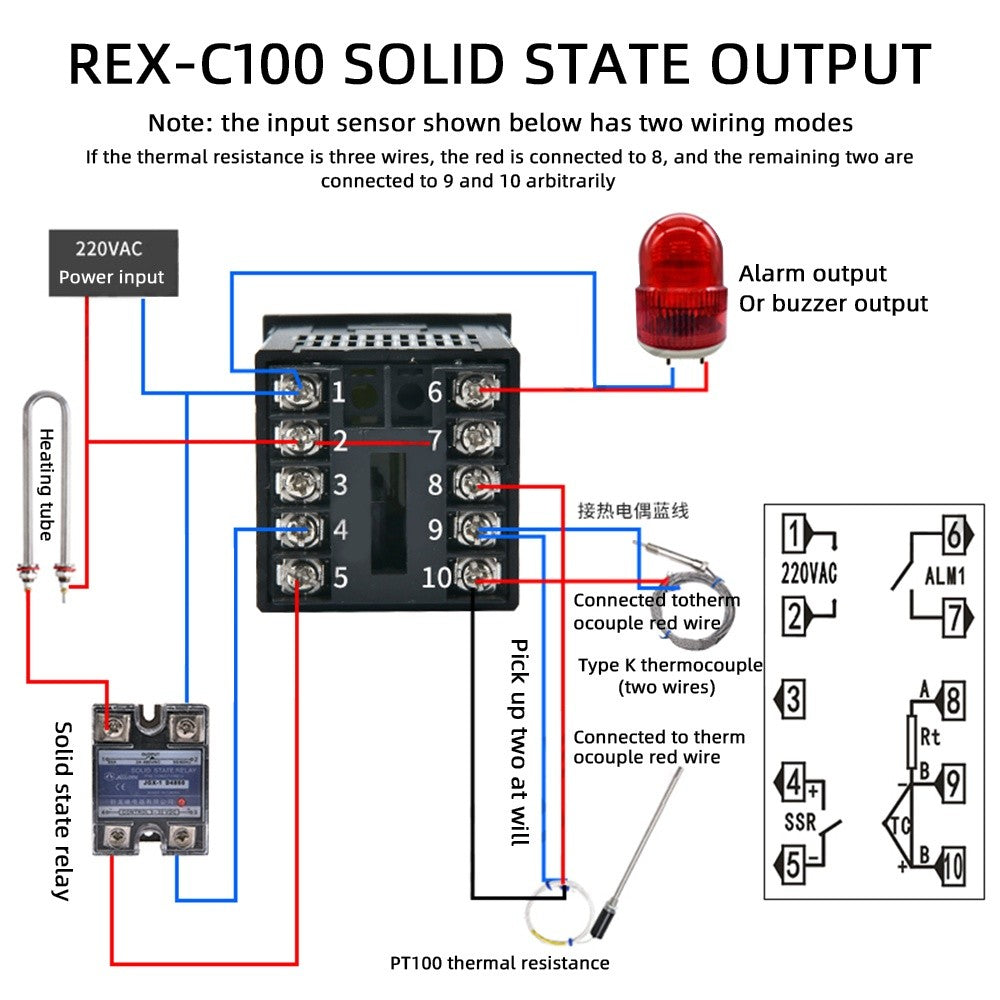

5.V*AN solid-state output: connect to solid-state relay output, and the output voltage is 12V.

scope

1. Measurement accuracy: ±0.5%FS

2. Cold junction compensation tolerance: ±2°C (software can be modified within 0～50°C)

3. Resolution: 14 bits

4. Sampling period: 0.5 seconds

5. Power supply: AC 100-240V 50/60HZ

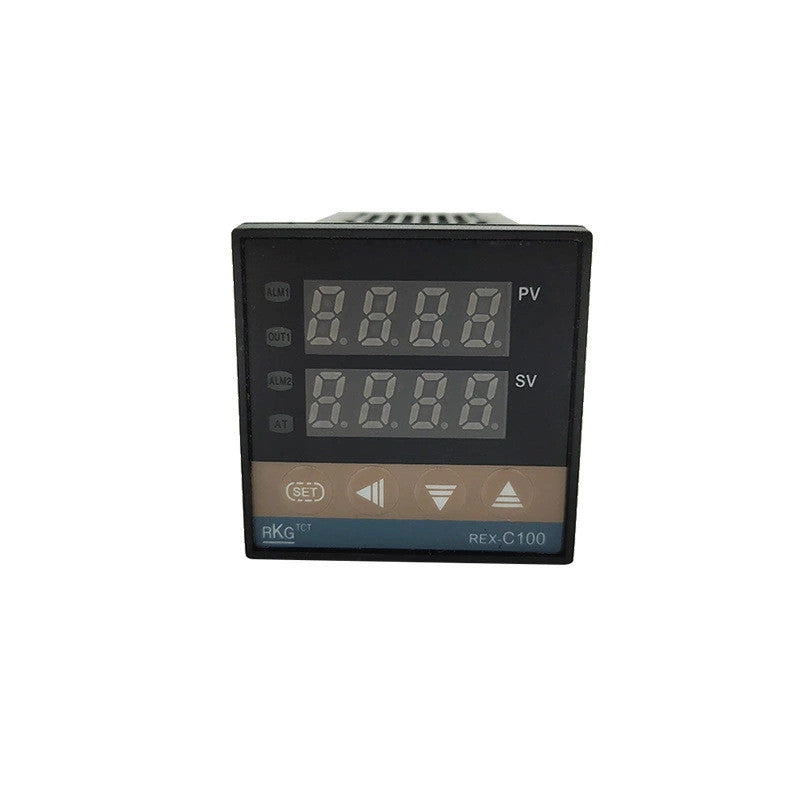

6. Process value (PV), set value (SV)

7. Output and self-tuning can be through: LED indication, output control: relay/SSR four-state optional

8. PIN control (including ON/OFF, step PID and continuous PID)

9. Self-tuning control

10. Relay output: contact capacity 250V AC 3A (resistive load)

11. Proportional band (P): 0 to full range (ON/OFF control when set to 0)

12. PID temperature controller detection temperature range: 0 ~ 999 ℃ (probe sensor temperature range 0 ~ 999 ℃)

13. Insulation resistance: > 50M ohm (500V DC)

14. Insulation resistance: 1500V AC/min

15. Insulation resistance: power consumption <10 VA

16. Working environment: 0～50℃

17. Non-corrosive gas environment 30~85% RH

18. Short and precise welding, full intelligent temperature measurement, constant temperature control

use:

General precision temperature control equipment, such as oven power chemical industry, injection-molded packaged food, incubator, oven, etc. Common temperature control accessories

The package includes:

1*REX-C100

REX-C100 relay output M AN, REX-C100 solid state output V AN

Product selling point:

1. Universal input, wide application range

2. This series of products are based on the most advanced modern control theory and are controlled by microcomputer single chip microcomputer.

3. Intelligent temperature controller with PID self-tuning (automatic optimization) function

4. Oven uses, uses, ovens, temperature-controlled incubators

5. Used in various IT industries to control and monitor process temperature

packing list:

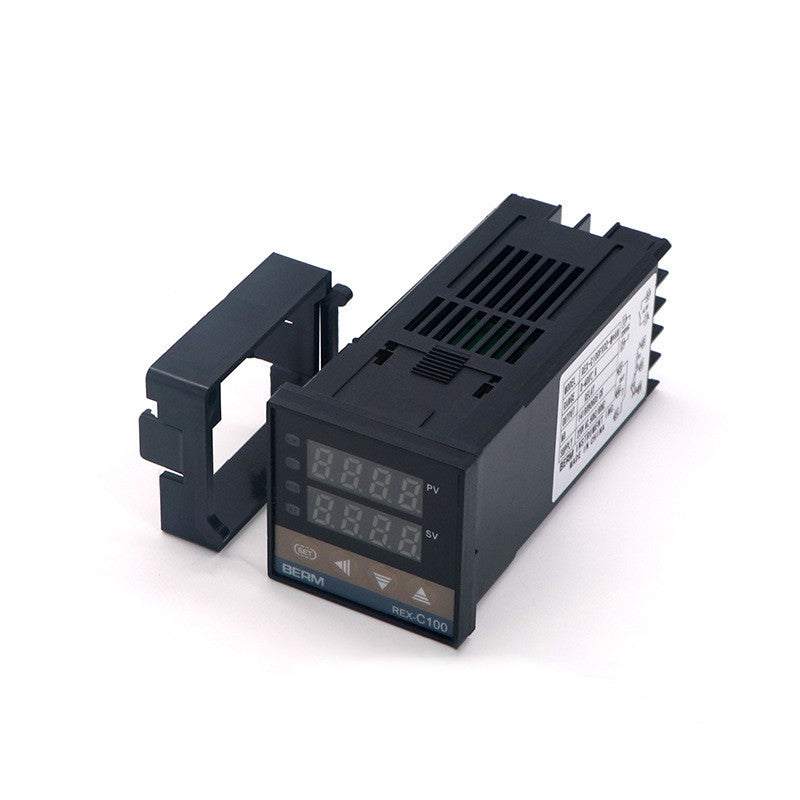

1x Temperature Controller (Thermocouple and Sensor need to be purchased separately)

1 black buckle

1x manual
