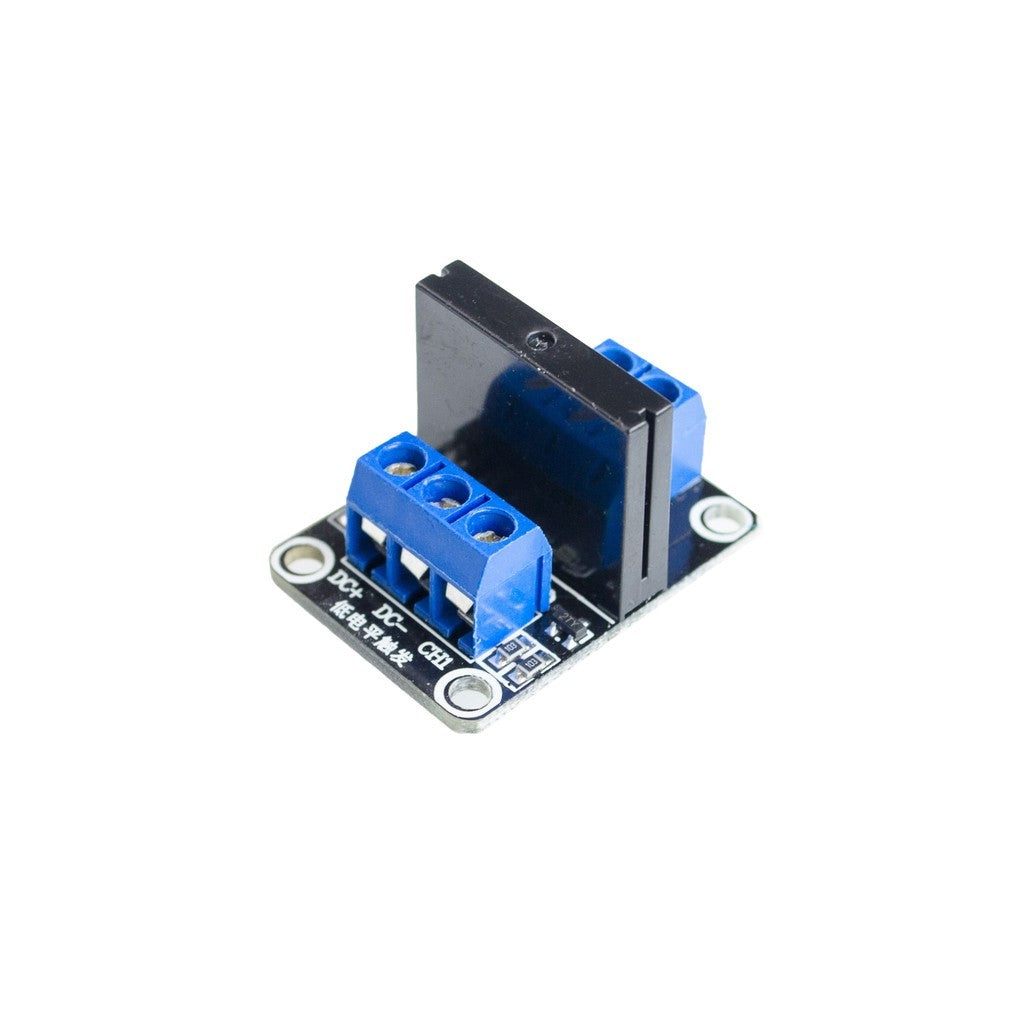

Fulabs 1 Channel 5V DC Solid State Relay Module Board Low Level Solid State Relay Module 250V 2A

Low-Level Trigger Principle

      When the voltage between the signal trigger terminal and the negative pole of the power supply is 0V, or the trigger terminal voltage is lower than the positive pole voltage to the trigger threshold, the relay is activated. This triggering mode is typically achieved by connecting the negative pole of the power supply to the trigger terminal.

Omron 5V Solid State Relay Product Description

1. Model Specifications

● Omron 5V solid state relay, rated output 240V/2A, with built-in resistive fuse (240V/2A).

2. Dimension Parameters

● 1-Channel: Dimensions 25×34×25mm (L×W×H), positioning hole size 17.4×28.4mm, net weight 13.0g.

3. Input Power Supply

● 5V DC (160mA).

4. Input Control Signal Voltage

● Low level (0-2.5V): Relay ON.

● High level (3.3-5V): Relay OFF.

5. Terminal Design

Blue KF301 terminals for convenient control line connection.

Module Interface Definition

● DC+: Connect to positive pole of power supply (power according to relay rated voltage).

● DC-: Connect to negative pole of power supply.

● CH1: Signal trigger terminal for 1-channel relay module (low-level trigger effective).

● CH2: Signal trigger terminal for 2-channel relay module (low-level trigger effective).
