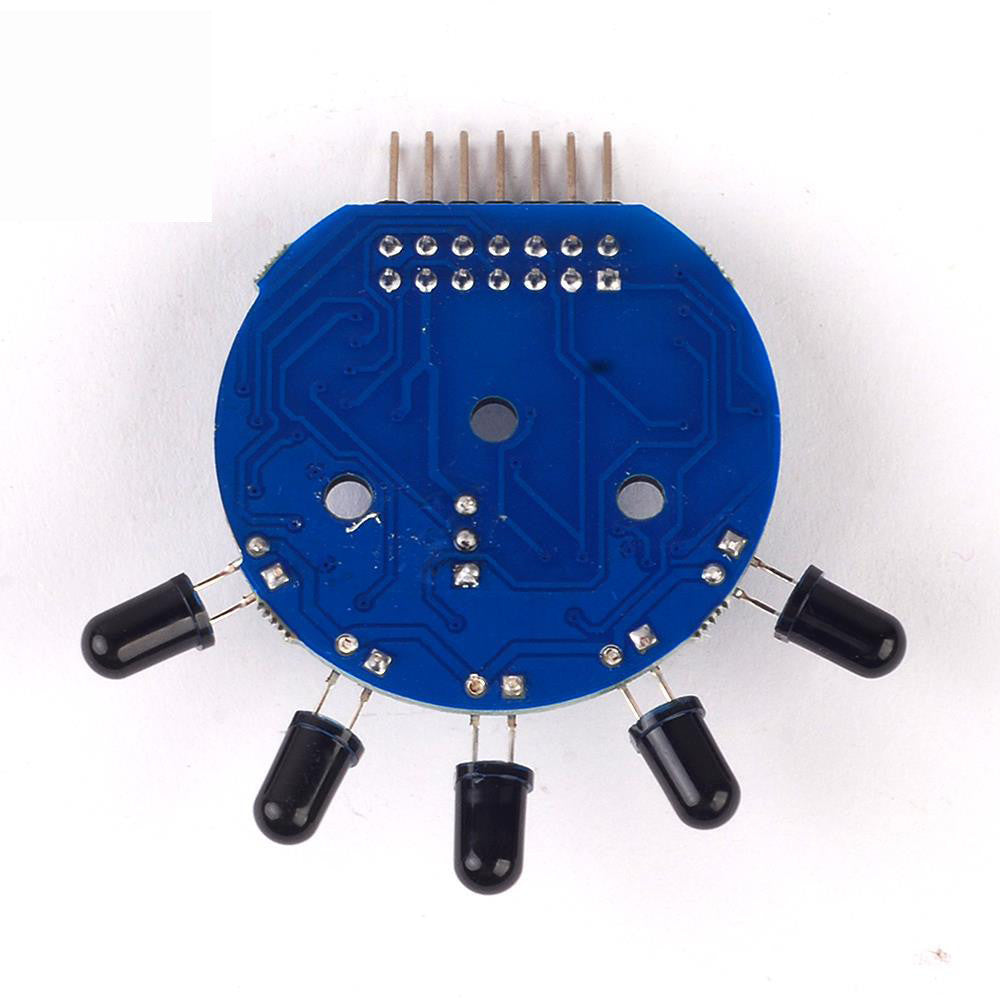

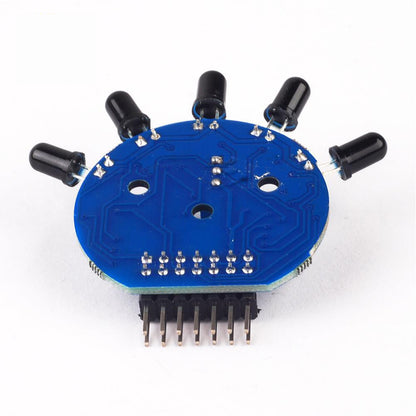

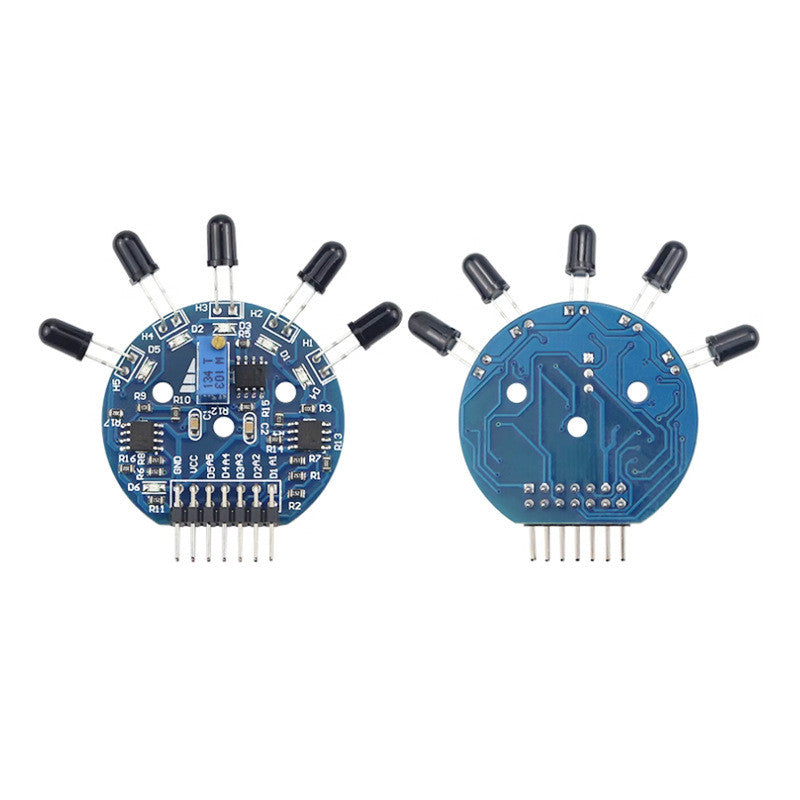

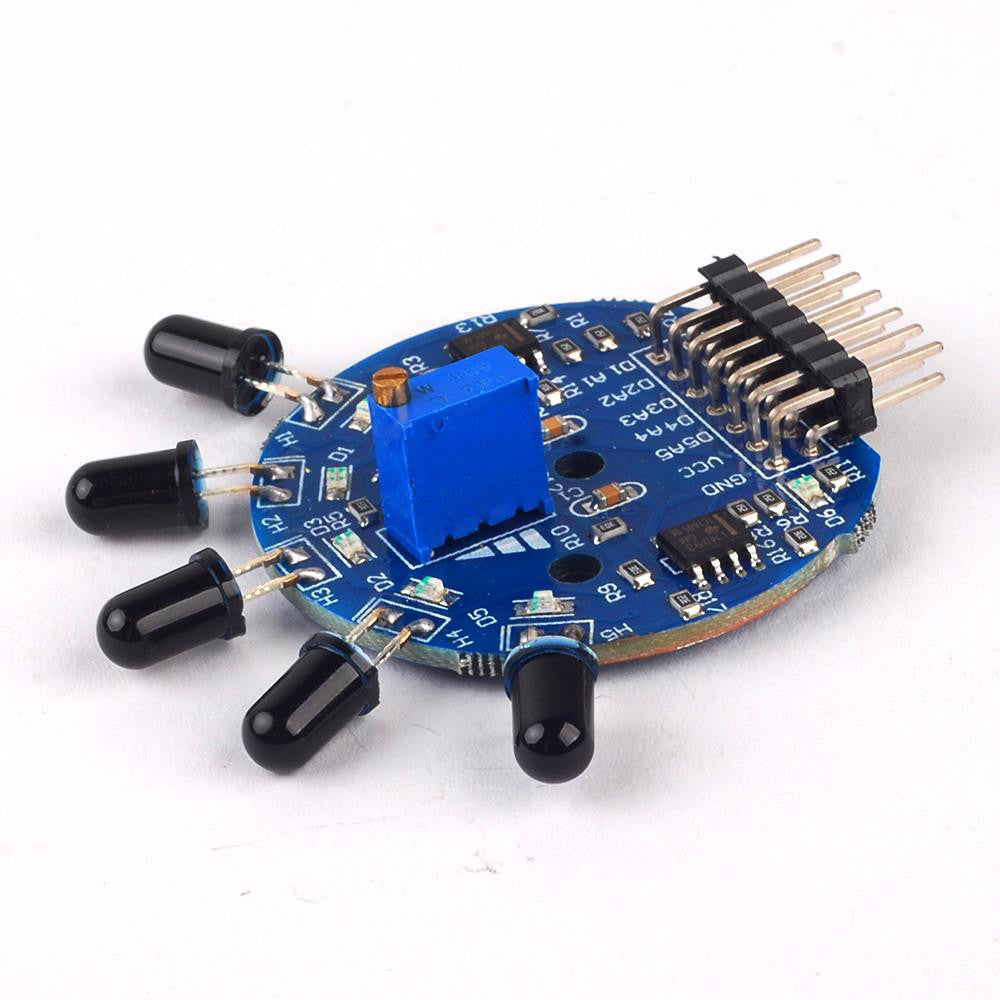

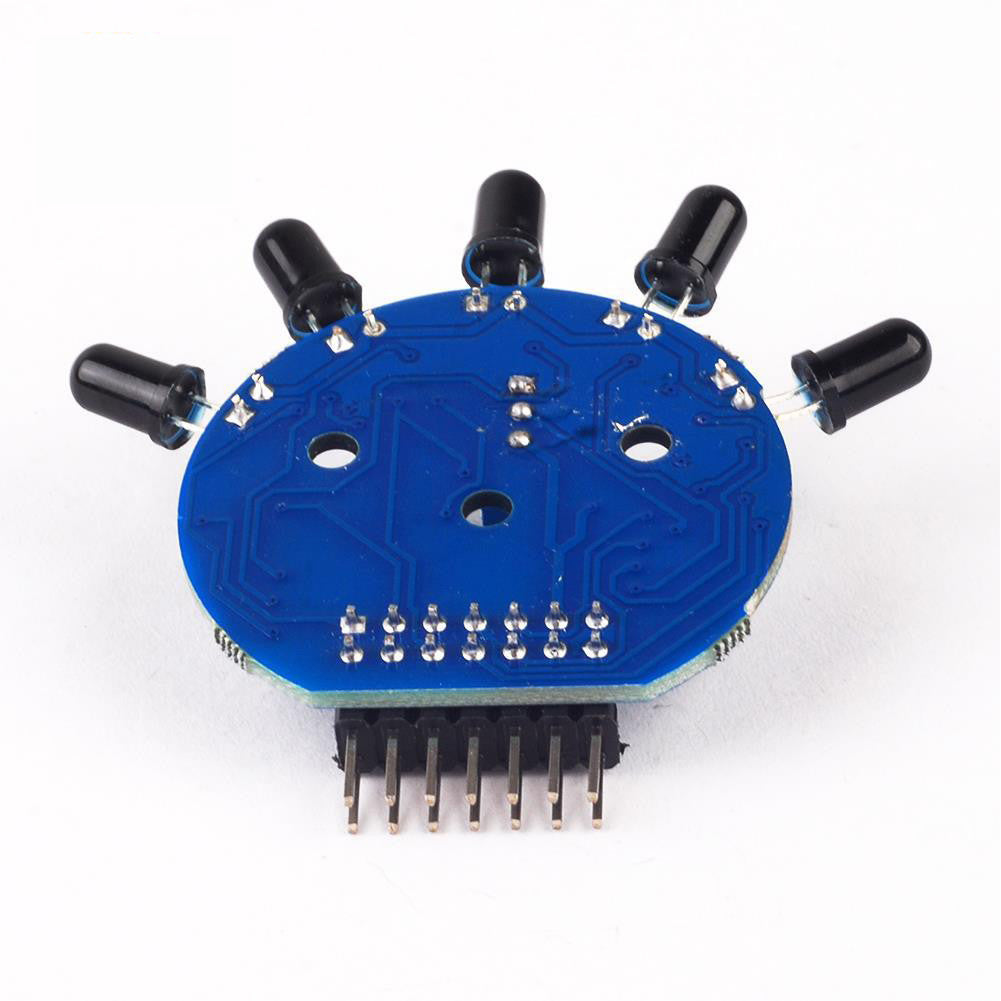

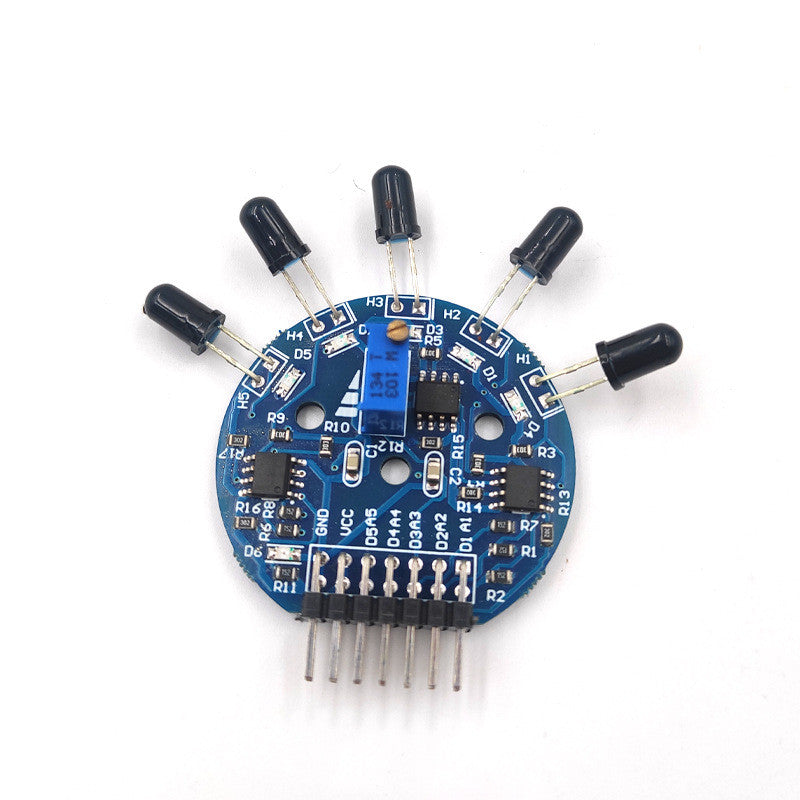

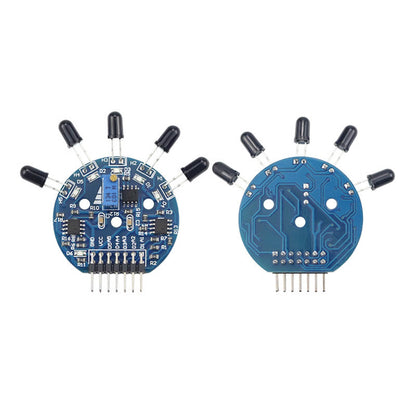

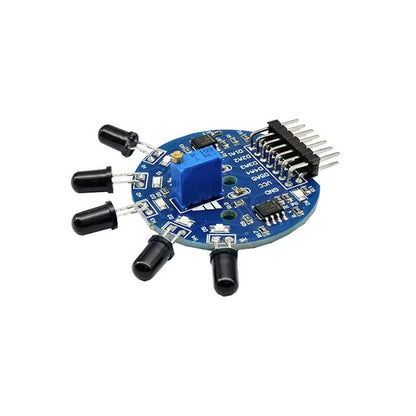

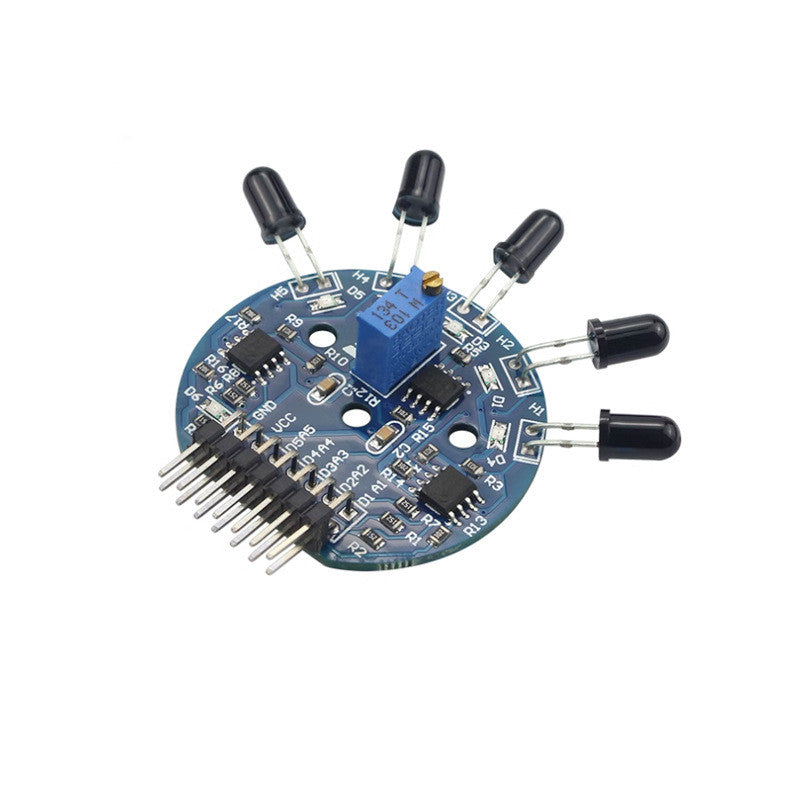

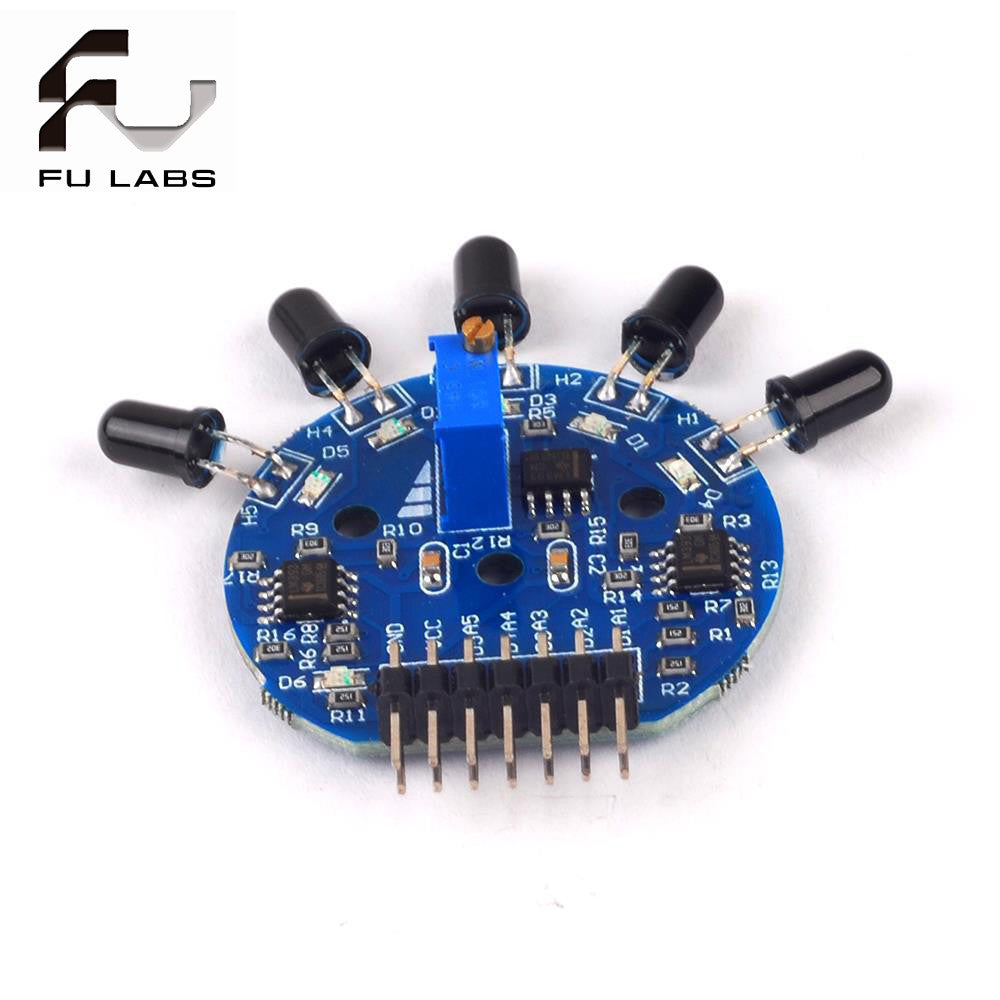

Fulabs 5 Way Flame Sensor Module 5 Road Digital Analog Signal Dual Output Fire Detection Sensor Module for arduino DIY Kit

Product Description of 5 - Pin Flame Sensor

1. Product Information

Function: Detects flames and near - infrared light with wavelengths of 700 - 1100nm (such as sunlight, infrared lamps, etc.), and outputs signals (voltage signals/DO). Suitable for flame alarm and fire source detection scenarios

Application: Occasions requiring flame/brightness monitoring (such as fire - fighting robots, flame alarms)

2. Product Introduction

Wide Detection Range: Adopts imported flame sensor design with a wide detection angle (the maximum detection angle of an ordinary single flame sensor for flames is about 30 degrees, and the range decreases as the distance increases; this product has a larger detection range)

High Compatibility: Outputs analog signals (voltage values), compatible with 3.2V - level microcontrollers (needs voltage reduction if the voltage is higher than 20V). Combining with brightness values can enhance detection accuracy

High Sensitivity: Equipped with a high - sensitivity combination for more sensitive detection

Visible Status: Equipped with a status indicator light, which can be clearly identified even in strong light or actual scenarios

Flexible and Easy to Use: The digital output has a threshold, and the analog output can be customized, with flexible design; the output pin is connected to a resistor (10KΩ is recommended), compatible with 5V/3.3V microcontrollers

Stable and Reliable: Undergoes high - temperature aging tests, with stable performance, suitable for complex environments

Convenient Installation: Equipped with M3 fixing holes for easy installation
