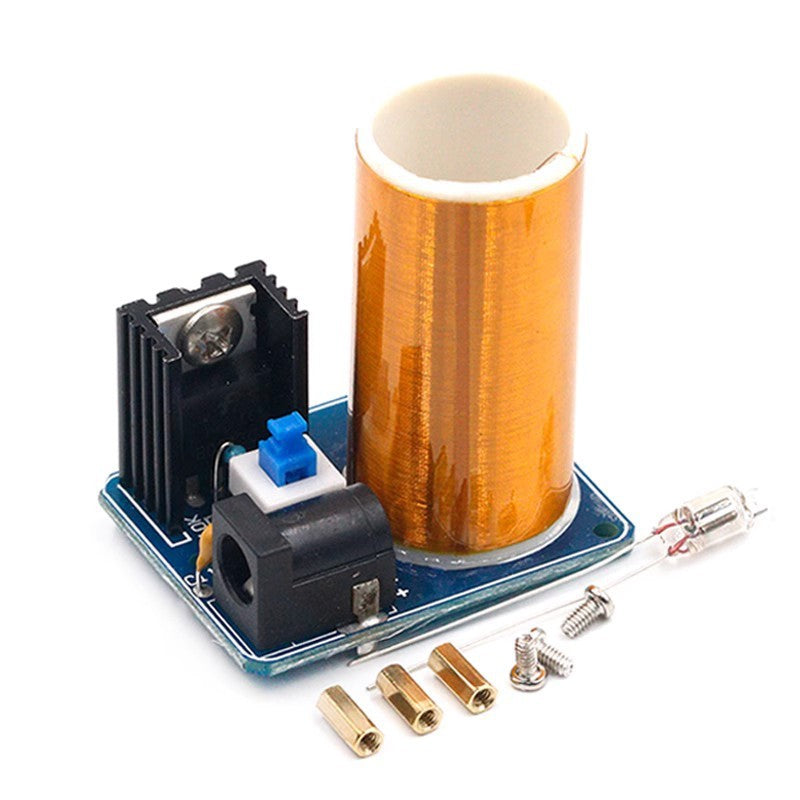

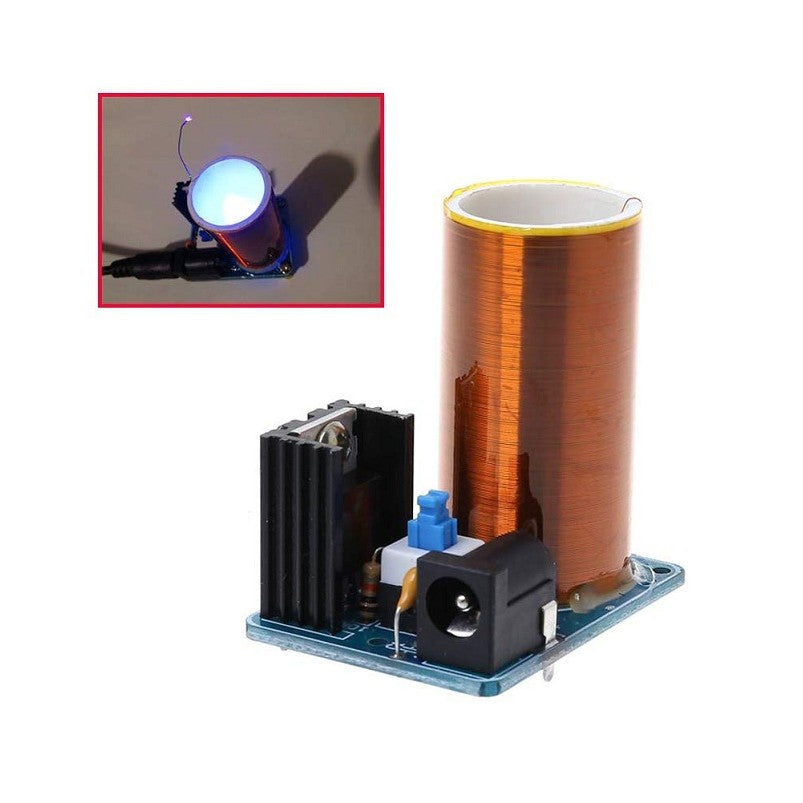

Fulabs BD243 Mini Tesla Coil Kit Magic Props DIY Parts Empty Lights Technology Diy Electronics BD243C DIY

Tesla Coil DIY Kit Product Information

1. Product Parameters

Input Voltage: 9 - 12V. Can be started with a 9V battery, but a 12V operating voltage is required to generate an arc.

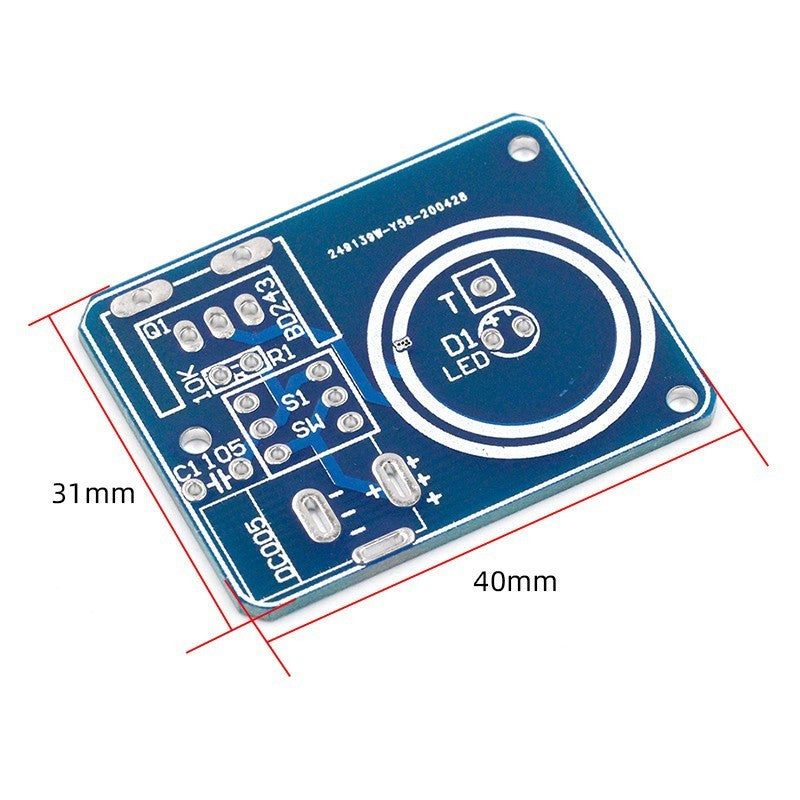

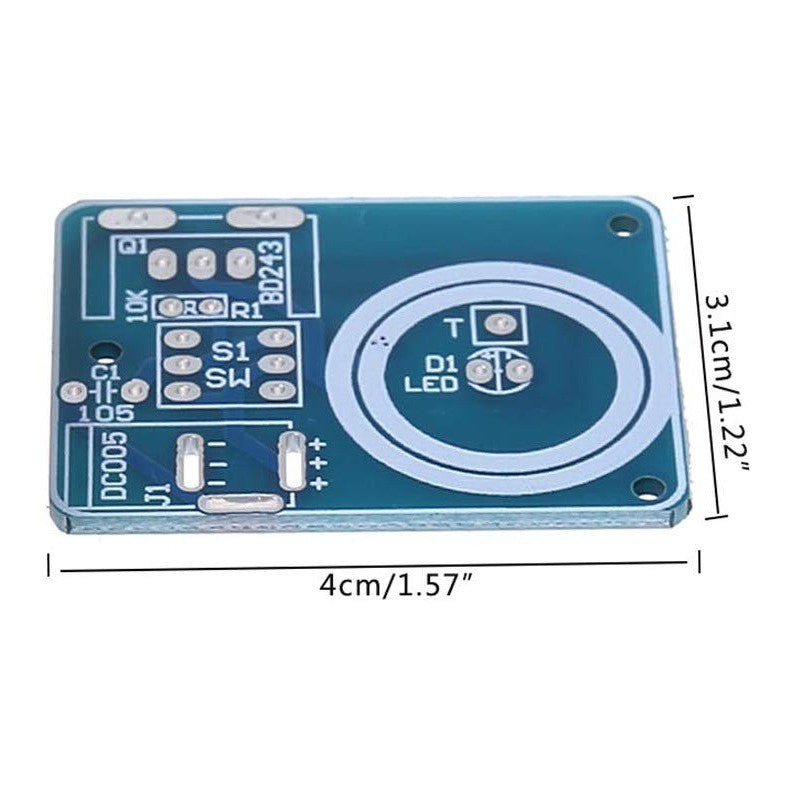

PCB Board Size: 4CM * 3.1CM

Weight:

Kit (unassembled): ~23g

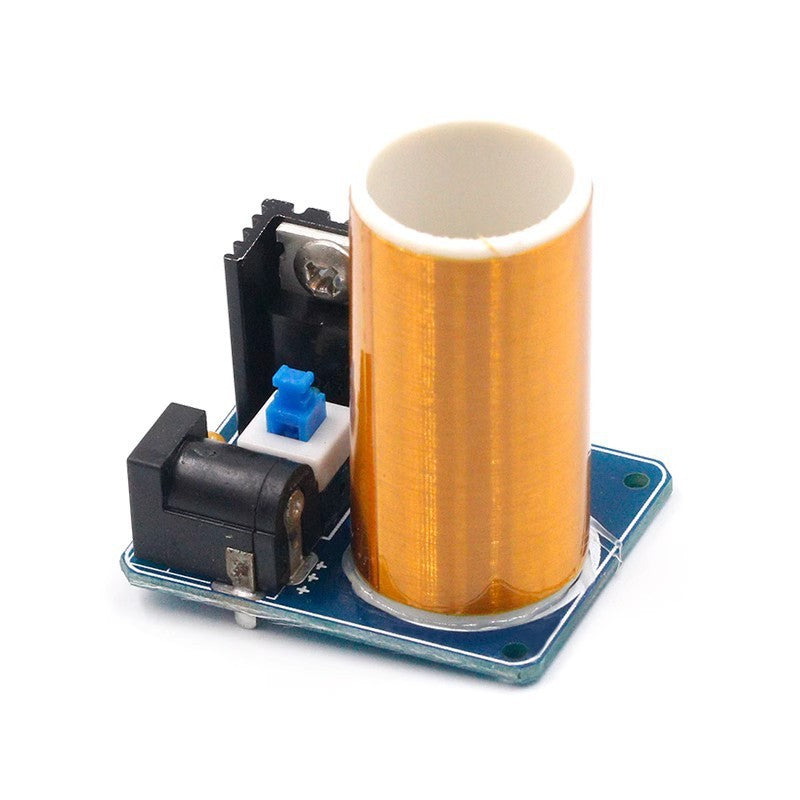

Finished product: ~22g

Required Tools: Soldering iron, hot glue gun, sprue cutter

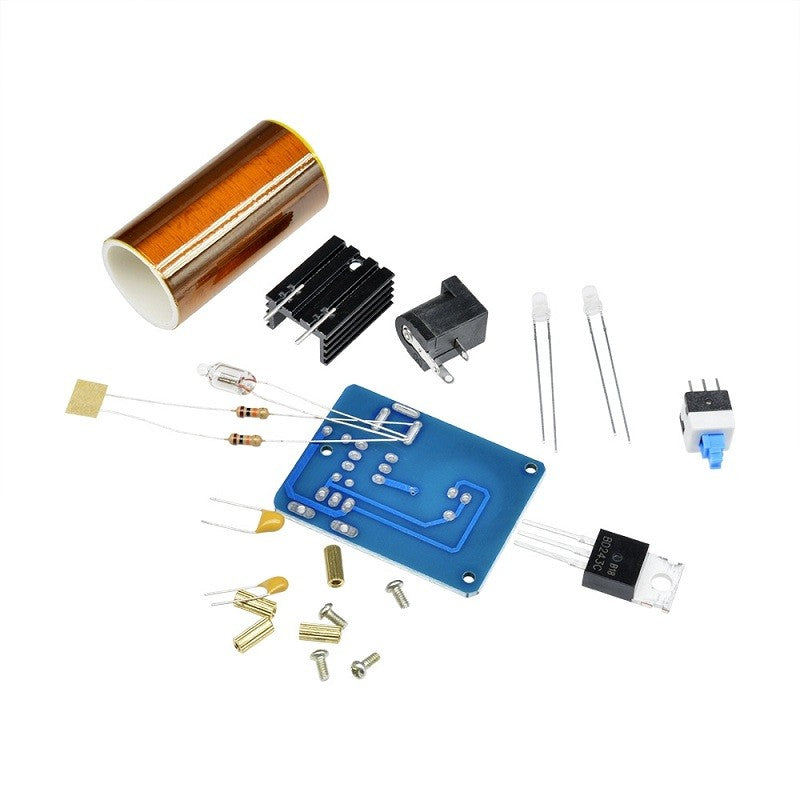

2. Product Components

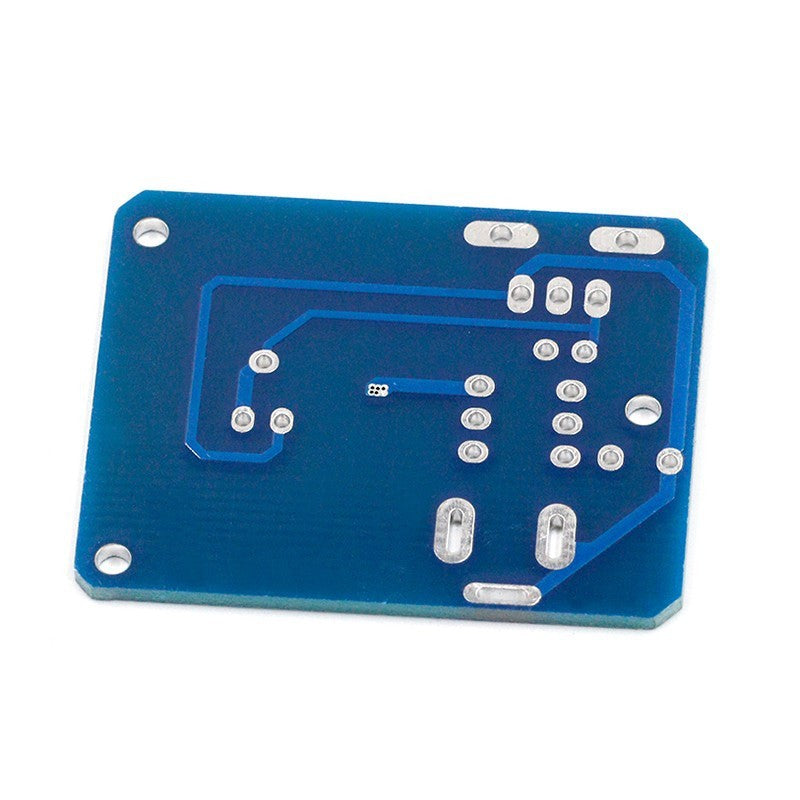

1 x PCB board

1 x Coil

2 x 3MM blue LEDs

1 x DC005 socket

2 x 105 monolithic capacitors

1 x 8*8 self - locking switch

2 x 10K resistors

1 x 151020 small heat sink

1 x 3*6 screw

1 x BD243

1 x Neon bulb

3 x M2*4 screws

3 x M2*7 double - pass copper pillars

3. Product Introduction

This amazing Tesla Coil generates high - temperature and high - pressure plasma. It can ignite fires, enable wireless power transmission, light up fluorescent lamps, and produce wonderful arcs. There are many ways to play with it, making it a very interesting science experiment DIY project.

A Tesla Coil is a type of transformer (resonant transformer) that operates on the principle of resonance. It was invented by the Serbian - American scientist Nikola Tesla in 1891. It is mainly used to generate high - voltage, low - current, and high - frequency alternating - current electricity.
