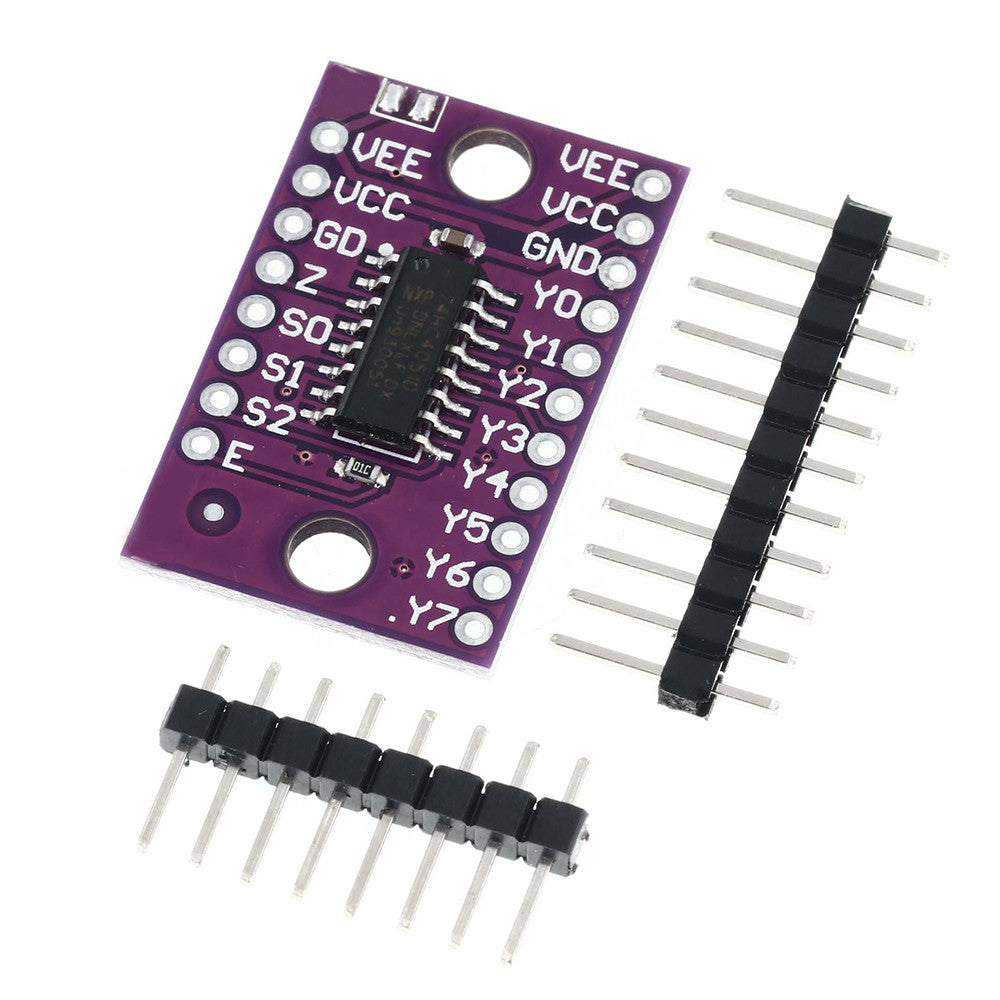

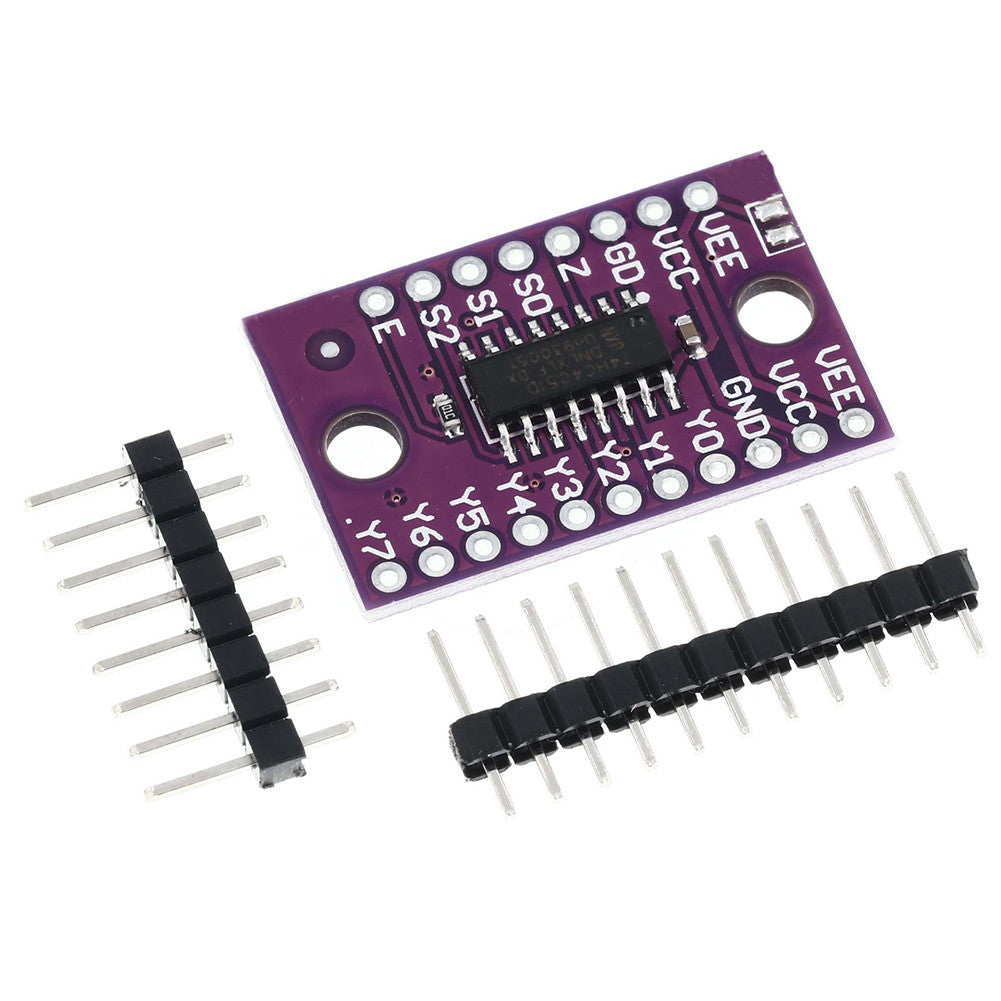

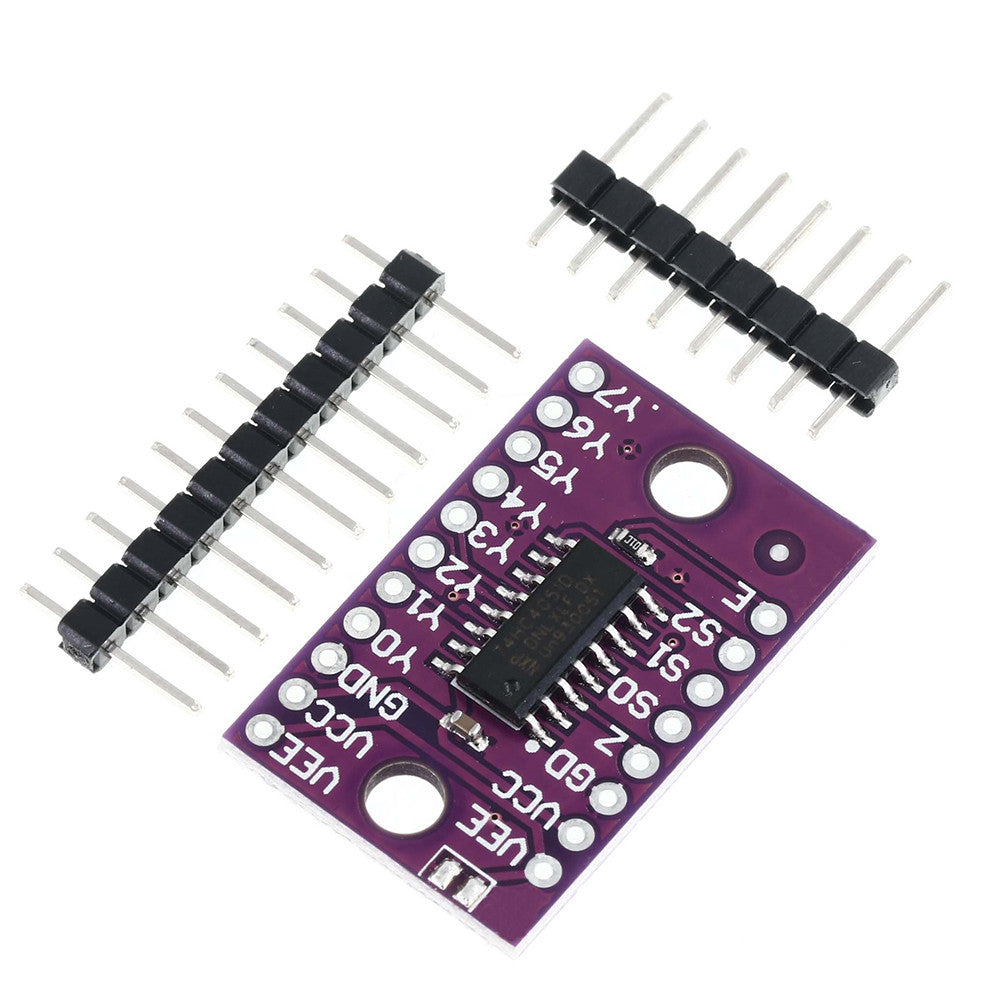

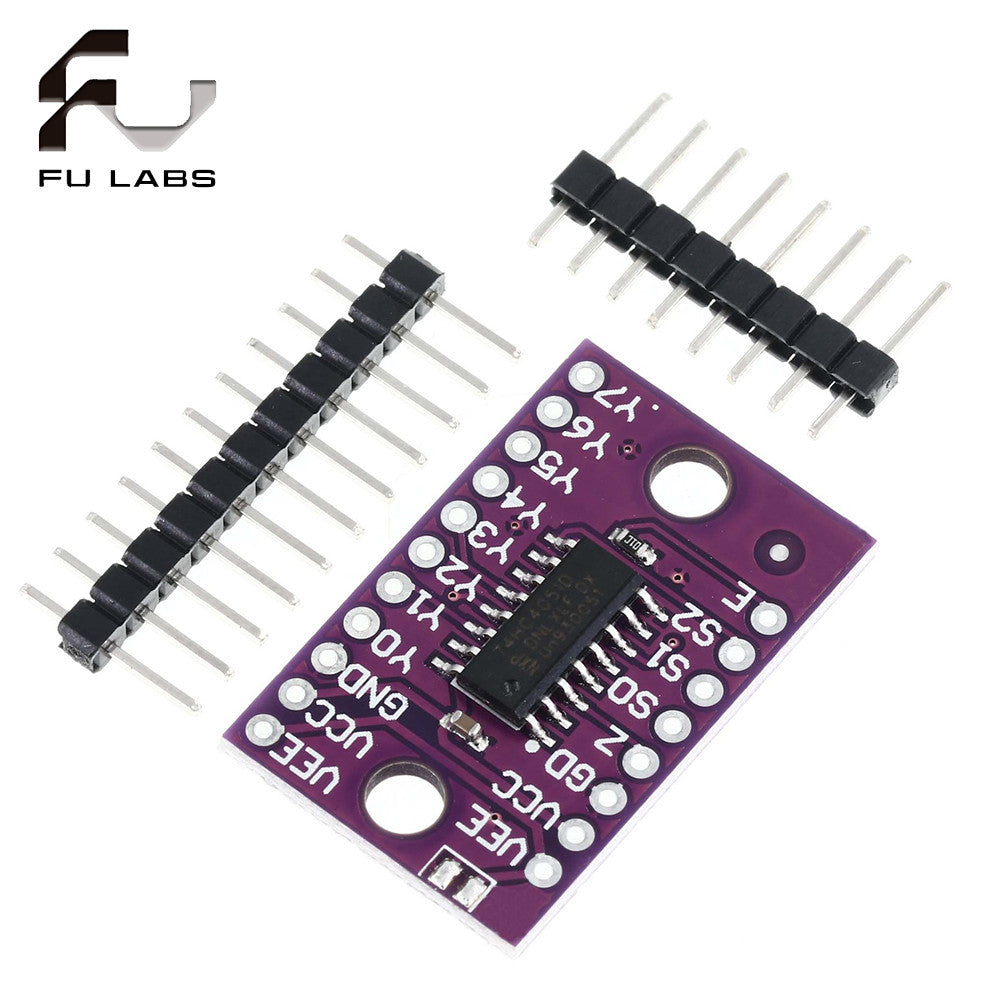

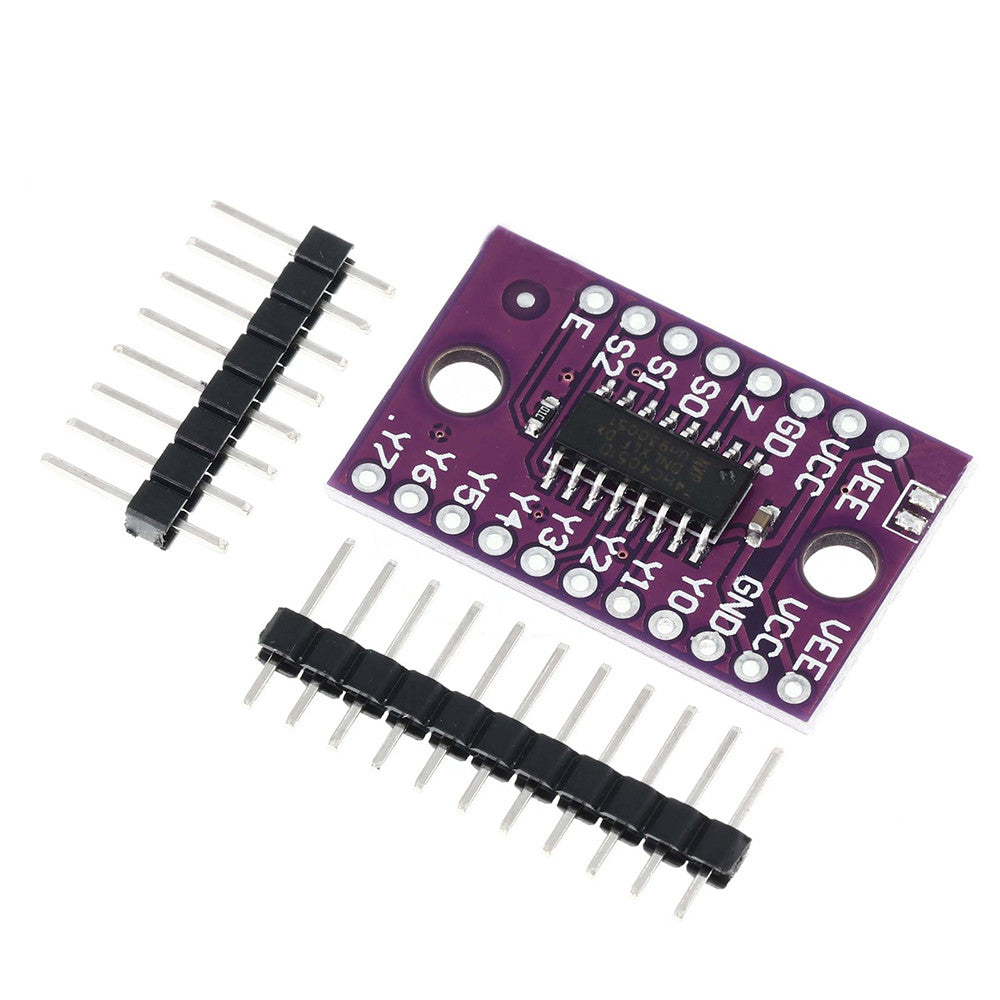

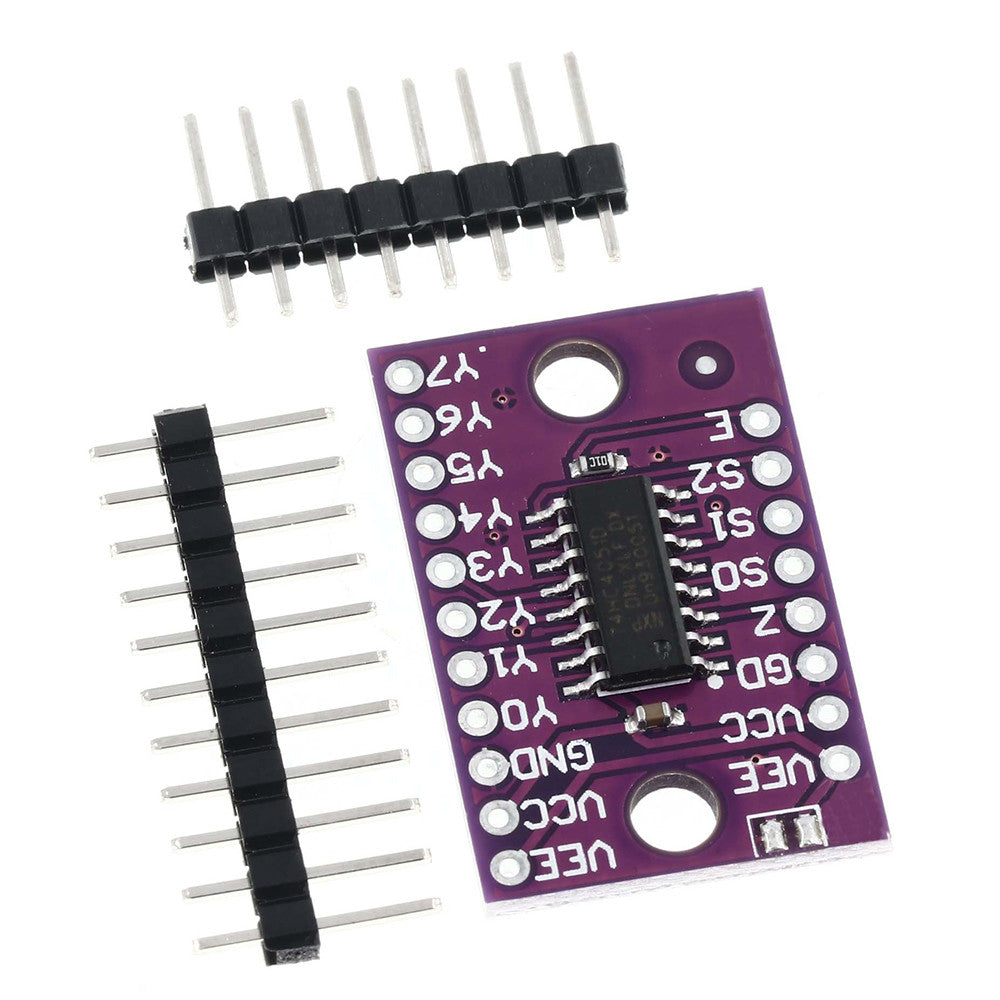

Fulabs Multiplexer Breakout 8 Channel 74Hc4051

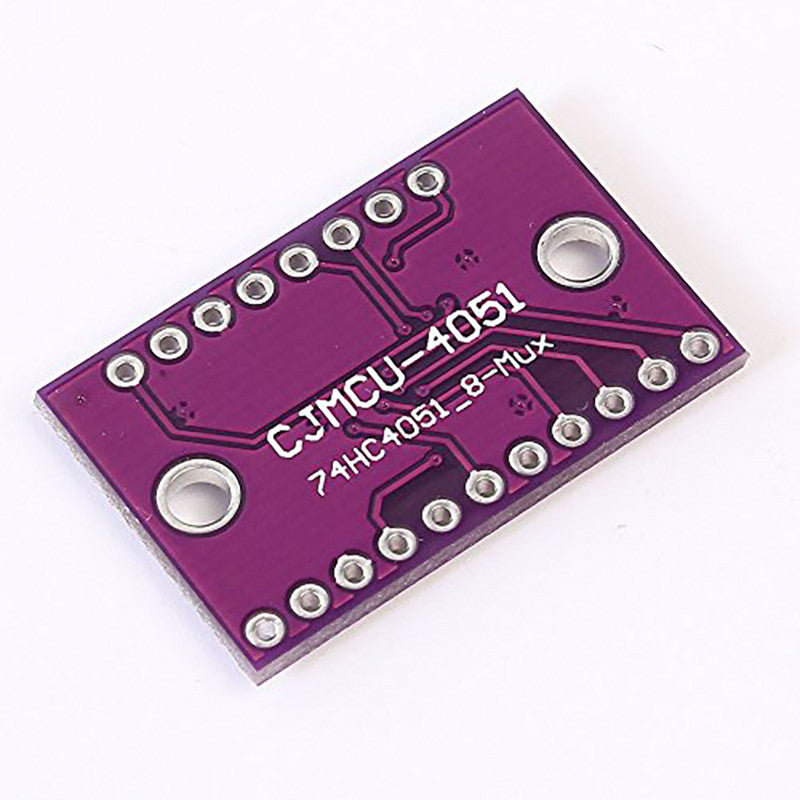

CJMCU-74HC4051; 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for

use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features

three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a

common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are

turned off. Inputs include clamp diodes. This enables the use of current limiting resistors

to interface inputs to voltages in excess of VCC.

2. Features and benefits

● Wide analog input voltage range from 5 V to +5 V

● Complies with JEDEC standard no. 7A

  Low ON resistance:

● 80  (typical) at VCC ? VEE = 4.5 V

● 70  (typical) at VCC ? VEE = 6.0 V

● 60  (typical) at VCC ? VEE = 9.0 V

● Logic level translation: to enable 5 V logic to communicate with ?5 V analog signals

● Typical ‘break before make’ built-in

ESD protection:

● HBM JESD22-A114F exceeds 2000 V

● MM JESD22-A115-A exceeds 200 V

● CDM JESD22-C101E exceeds 1000 V

● Multiple package options

● Specified from 40 C to +85 C and 40 C to +125
