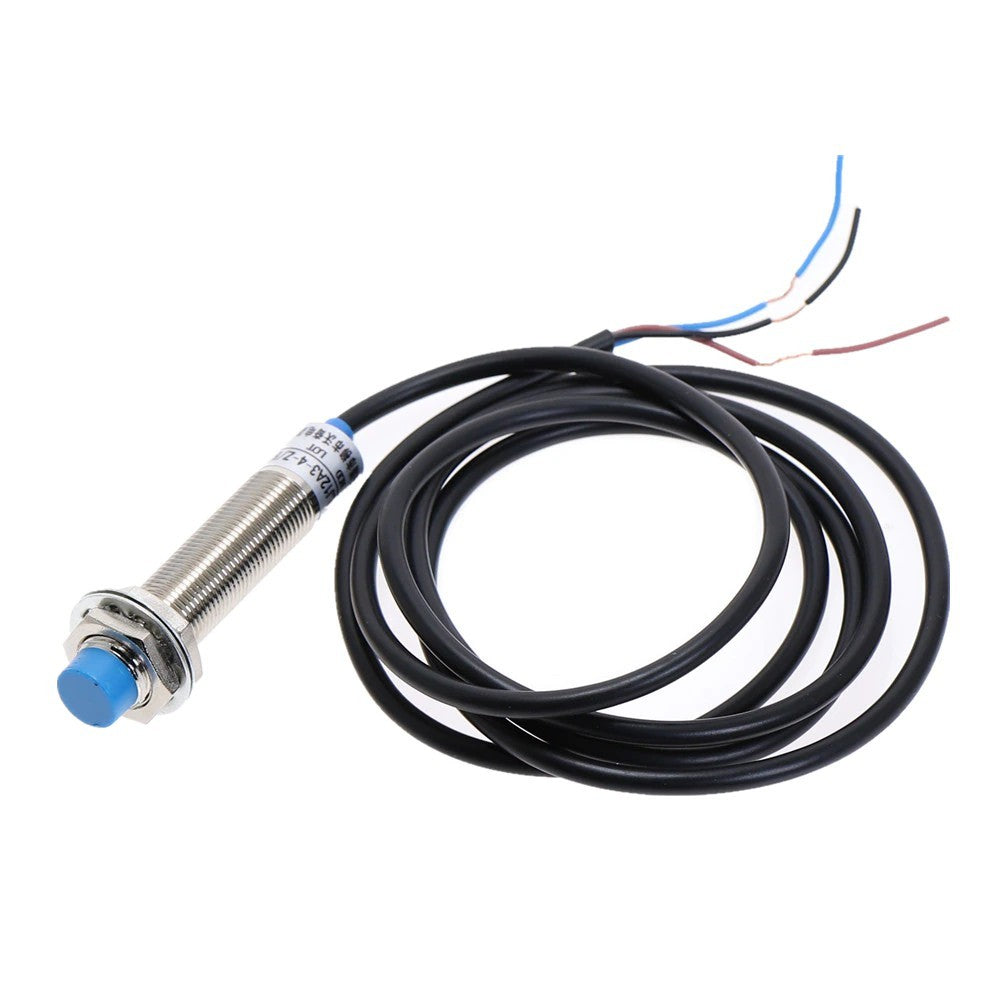

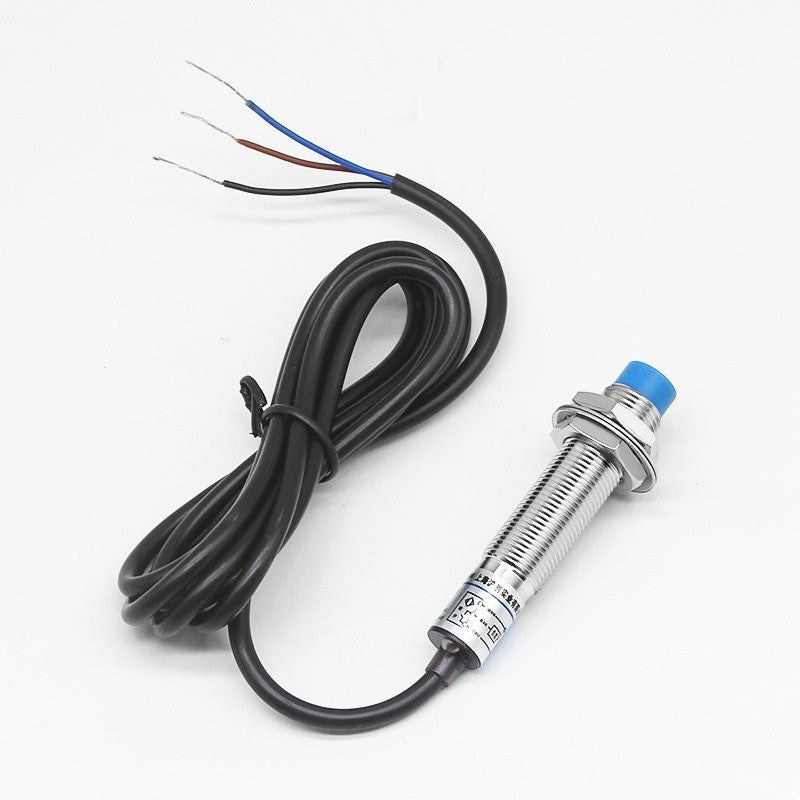

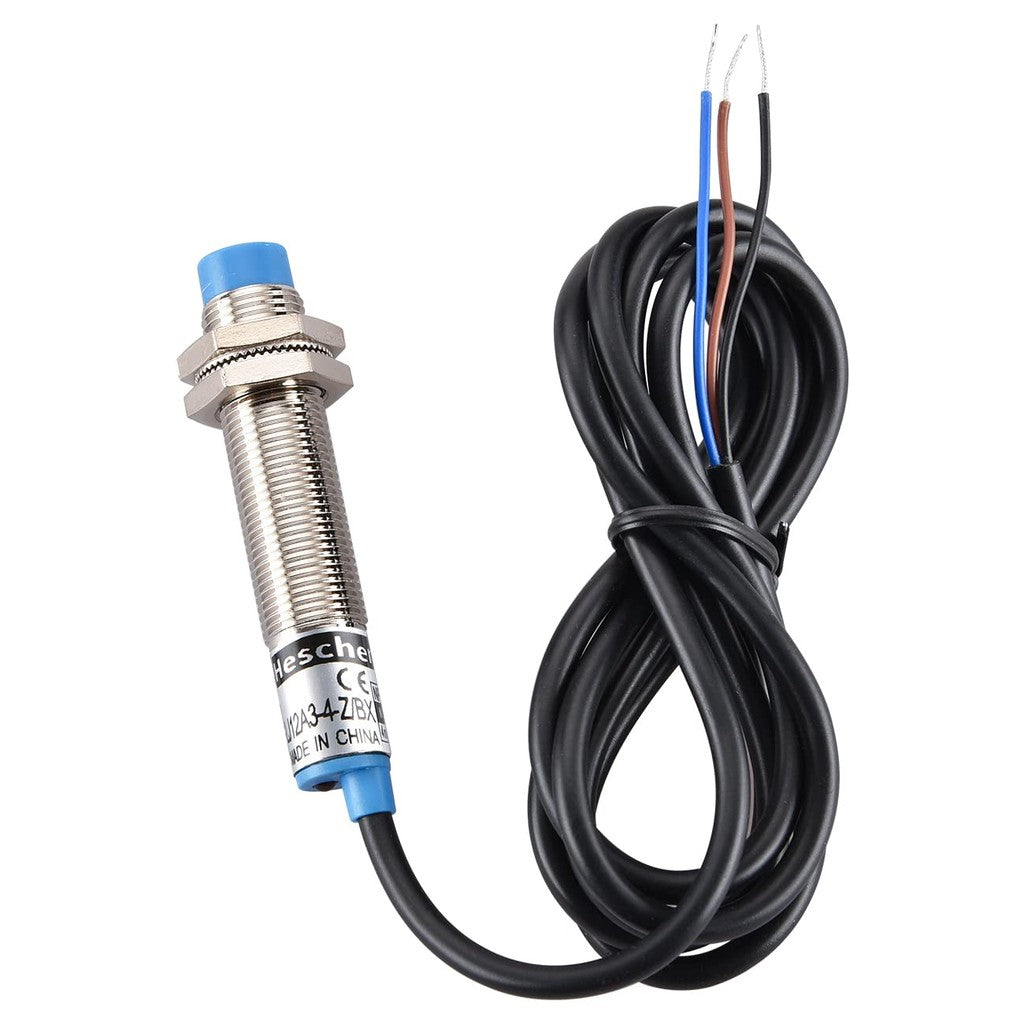

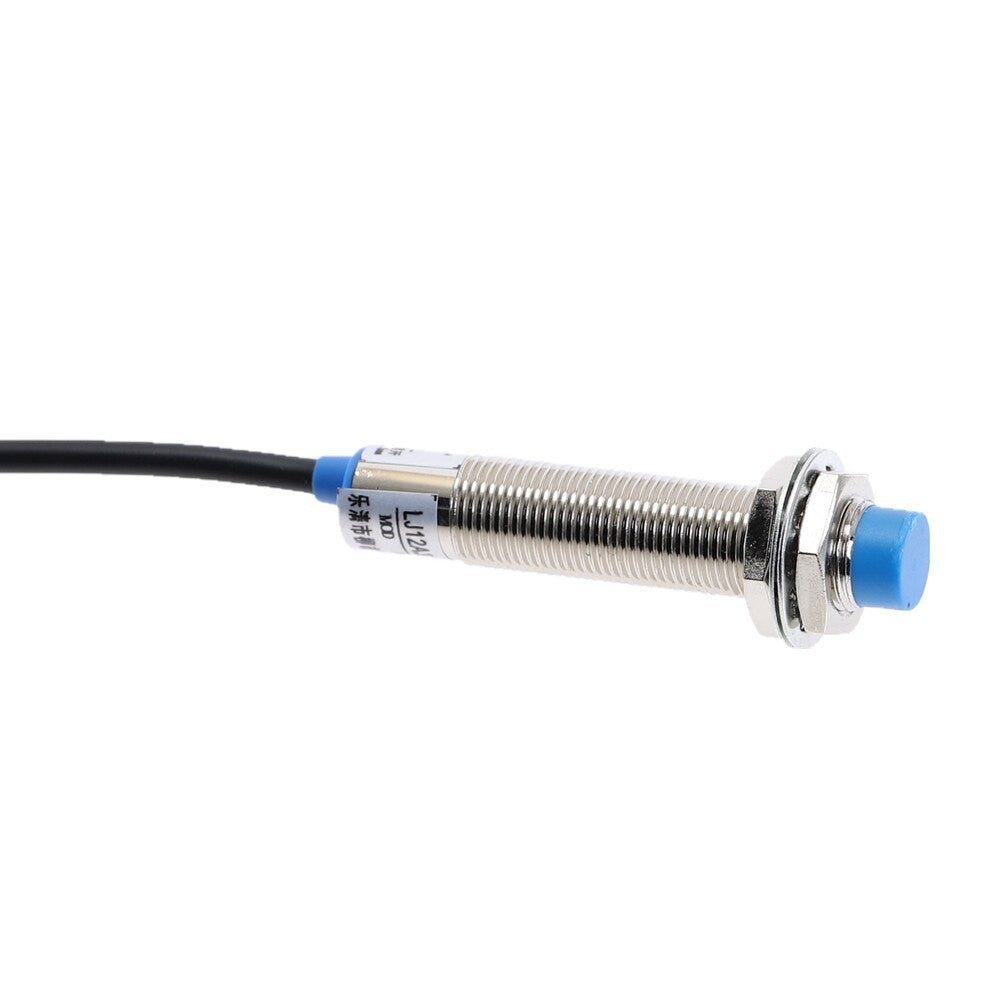

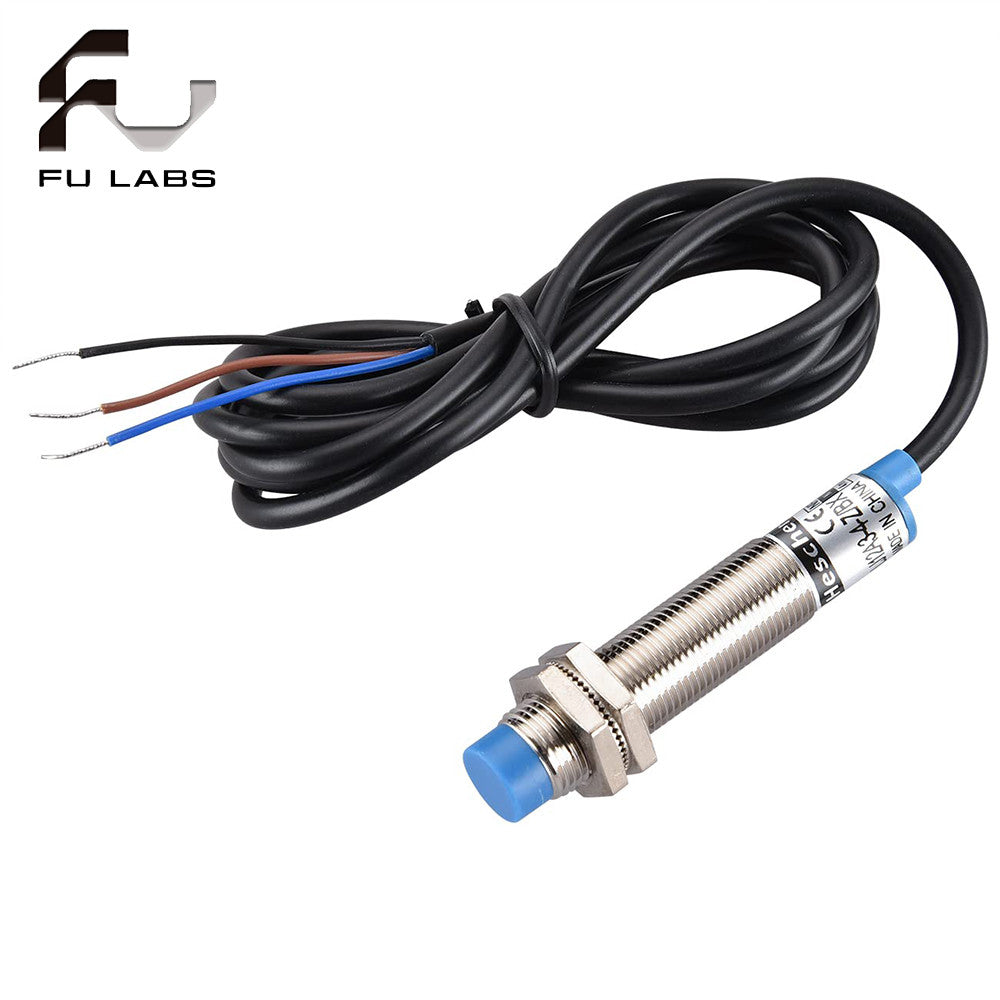

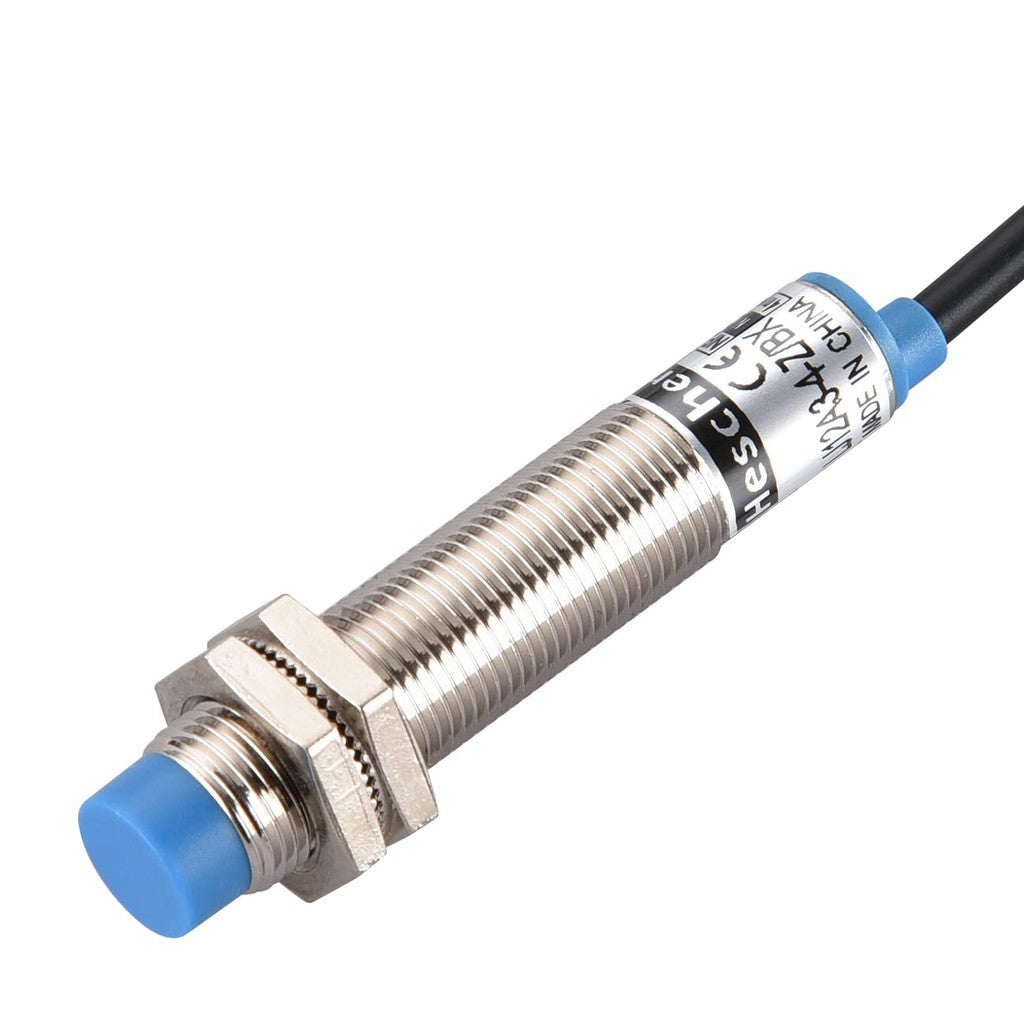

Fulabs Proximity Inductive 4mm Metal Sensor LJ12A3-4-Z/BX

SPECIFICATIONS:

- Working Voltage:DC 6~36V;

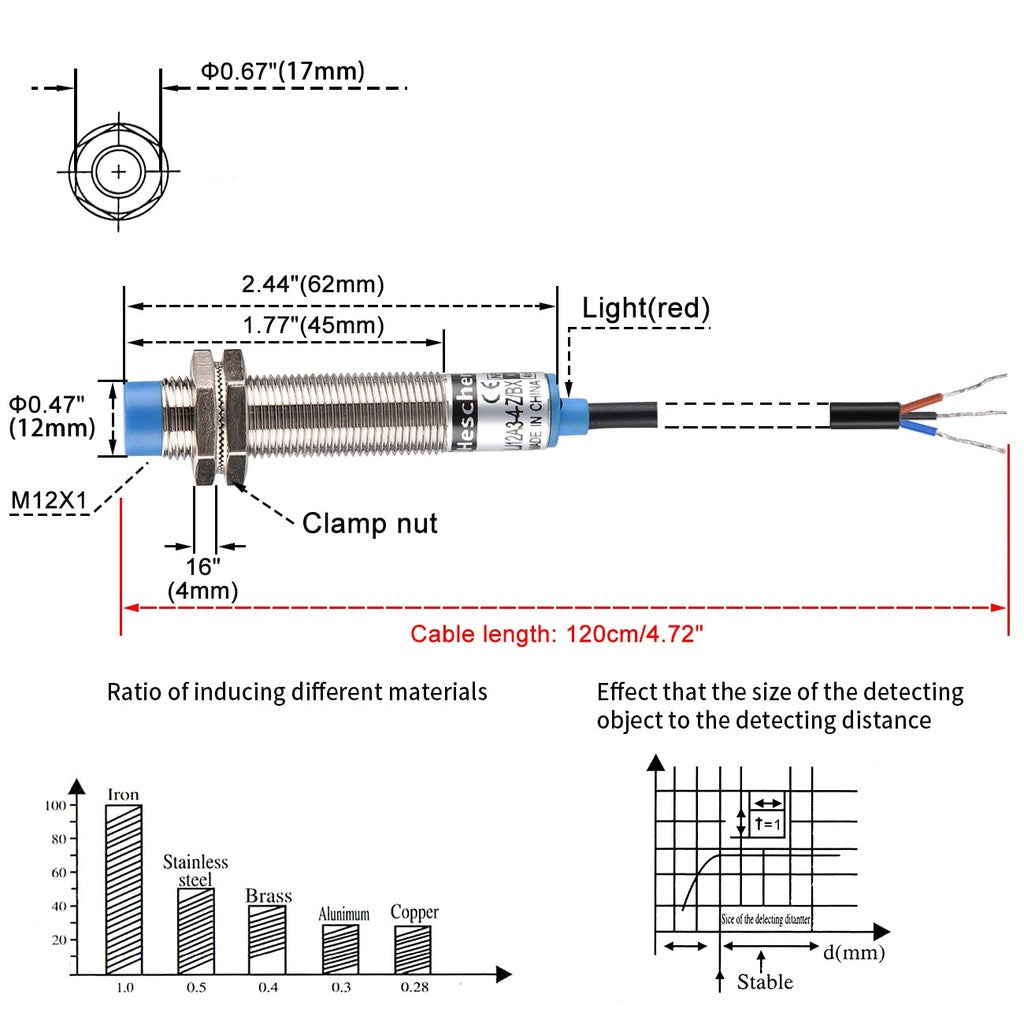

- Dimension: 2.2 x 6cm

- Detecting Distance: 0~4mm

- the output signal: Low

- Type: NPN 3-wires Normally Open

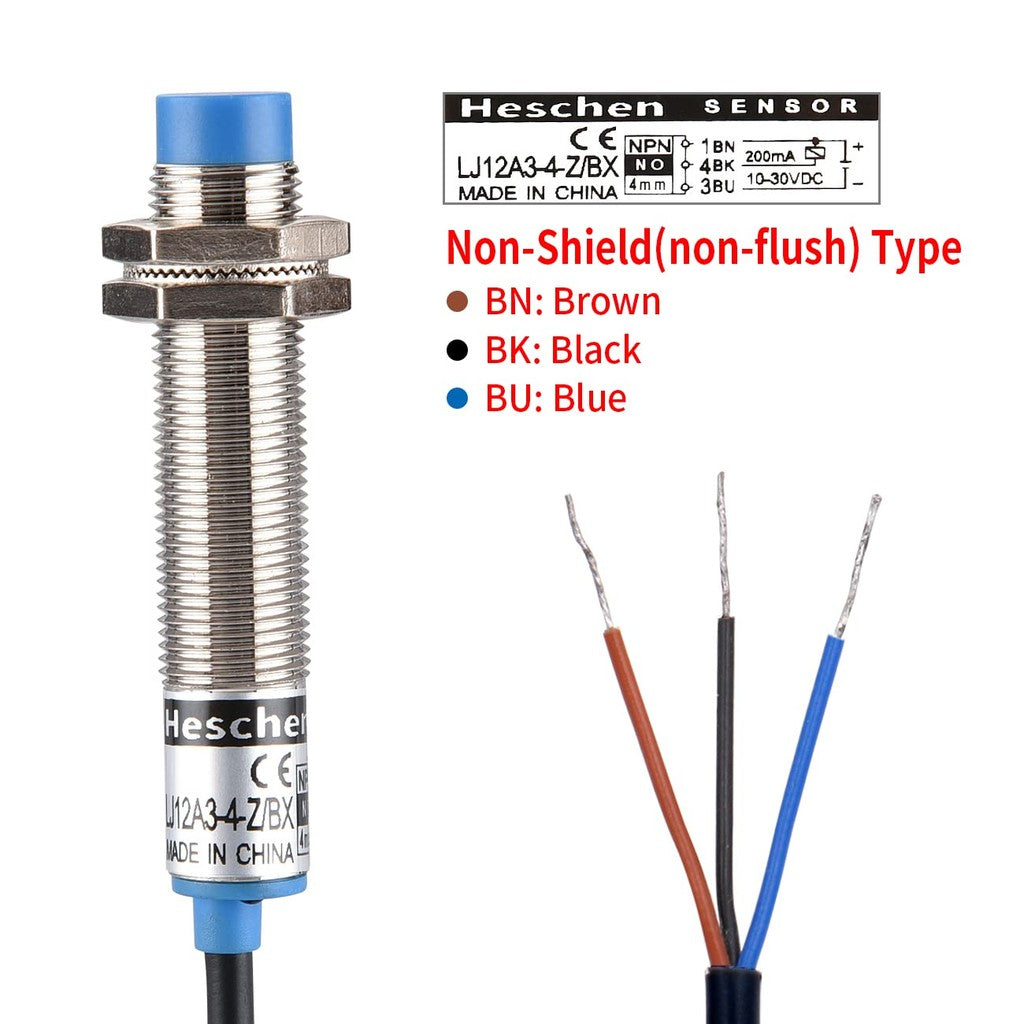

USAGE:

- Brown: VCC

- Blue: GND

- Black: Output

Proximity Inductive 4MM Metal Sensor LJ12A3-4-Z/BX

Metal Proximity Sensor, which is also called non-contact proximity switch, it is composed of generator and shaping amplifier oscillator vibration in the switch after induction head, and produces an alternating magnetic field when the metal body detected.

This Inductive Proximity Sensor has high sensitivity, fast frequency response, high repeat positioning accuracy and also stability and reliable, it can detects metal components in 0~4mm distance, and is widely used in modern industry, such as machinery, metallurgy, transportation, electric power, military industry and so on.
