GY-9250 sensor module I2C/SPI Communications Thriaxis gyroscope + triaxial accelerometer+triaxial magnetic field GY-6500

  Product Parameters

  Module

  - Model: GY-9250

  Use

-  Chip: MPU-9250

  Power

  - supply :3-5v (internal low dropout regulator)

  Communication:

-   Standard IIC/SPI communication protocol (Chip

  16bit AD converter, the output data 16 )

  Gyro

  - range: ± 250 500 1000 2000 ° / s

  Acceleration

  - range: ± 2 ± 4 ± 8 ± 16g

  Magnetic

  - field range: ± 4800uT

  Using

  Immersion Gold PCB, machine welding process to ensure quality

   2.54mm

  pin pitch

  Module

  size 15mm * 25mm

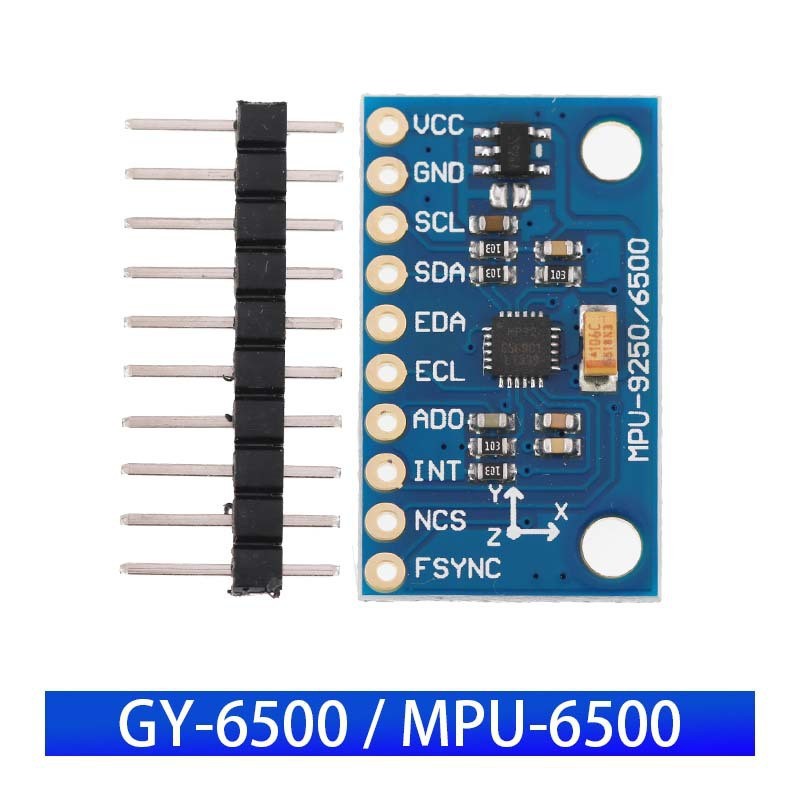

MUP-6500 Module (3-Axis Gyroscope + 3-Axis Accelerometer) Specifications

Module Model: GY-6500

Chip Used: MPU-6500

Power Supply: 3-5V (with internal low-dropout voltage regulator)

Communication Mode: Standard IIC/SPI communication protocol

Chip Features: Built-in 16-bit AD converter, 16-bit data output

Gyroscope Range: ±250, 500, 1000, 2000 °/s

Accelerometer Range: ±2, ±4, ±8, ±16g

Process and Design: Immersion gold PCB, machine welding for quality assurance; pin pitch 2.54mm
