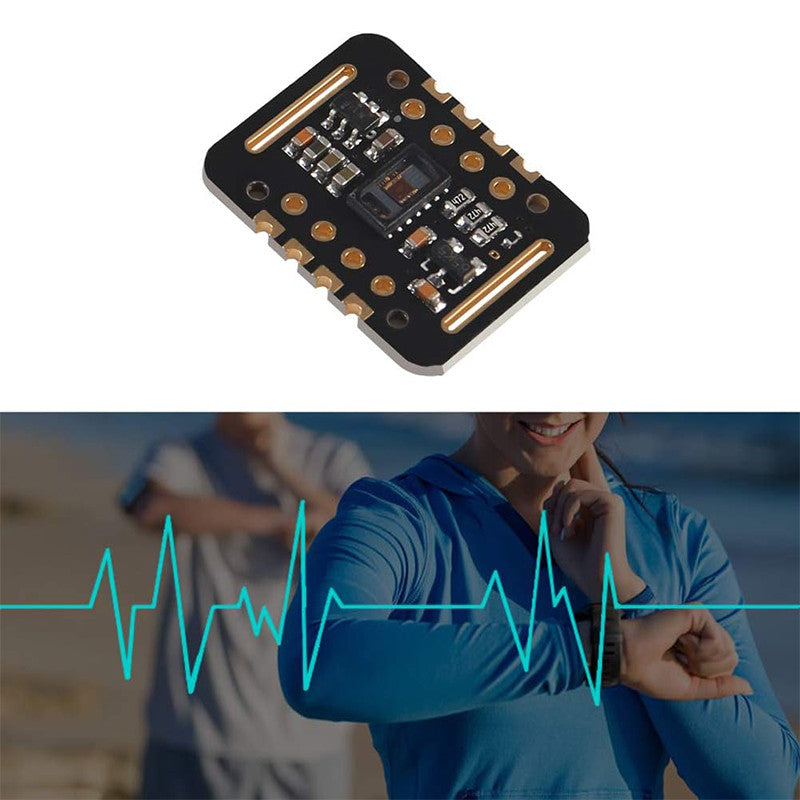

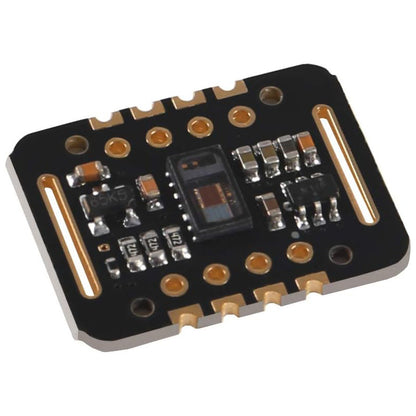

Heart Rate Sensor Module MAX30102 Pulse Detection Blood Oxygen Concentration Compatible for Arduino

  The MAX30102 is an integrated pulse oximeter and heart rate monitor biosensor module. It integrates a red LED and an infrared LED, photodetector, optical components, and low-noise electronic circuitry with ambient light suppression.

  It features a 1.8V power supply and a separate 5.0V power supply for internal LEDs for heart rate and blood oxygen acquisition in wearable devices, worn on the fingers, earlobe, and wrist. The standard I2C-compatible communication interface can transmit the collected values to the KL25Z and other microcontrollers for heart rate and blood oxygen calculation

  In addition, the chip can also shut down the module through software, the standby current is close to zero, and the power supply is always maintained. Because of its excellent performance, the chip is widely used in the Samsung Galaxy S series mobile phones.

  Compared with the previous generation MAX30100, the chip integrates a glass cover to effectively eliminate external and internal light interference and has the best reliable performance.

  ● Main Applications:

  Medical Monitoring Devices

  Fitness Assistant Devices

  Wearable Devices

  ● Features and Specifications:

  ● LED peak wavelength: 660nm/880nm

  ● LED power supply voltage: 3.3~5V

  ● Detection signal type: light reflection signal (PPG)

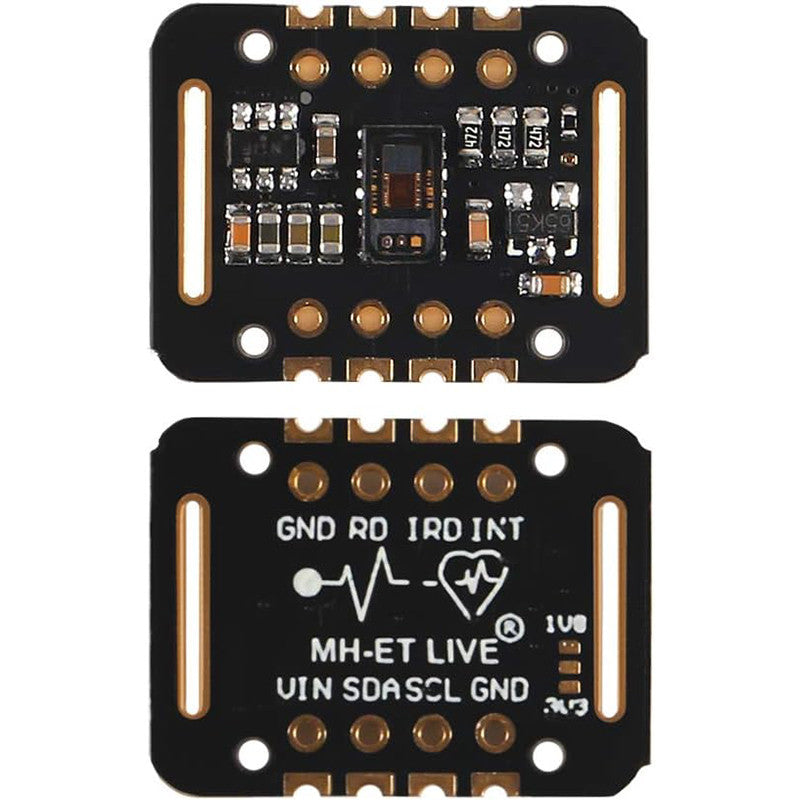

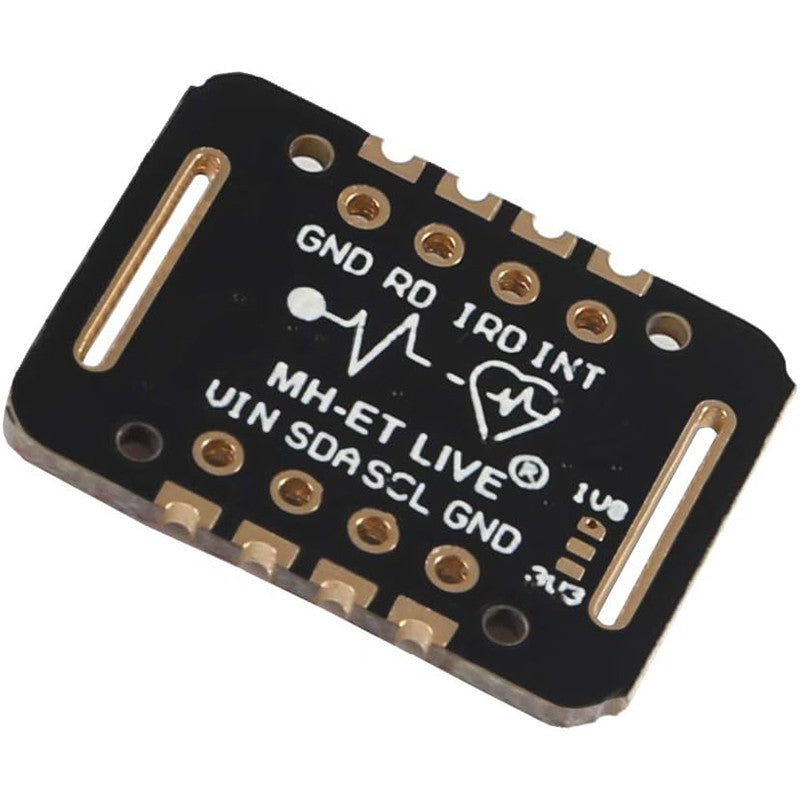

  ● Output signal interface: I2C interface

  ● Communication interface voltage: 1.8~3.3V~5V (optional)

  ● Board reserved assembly hole size: 0.5 x 8.5mm

  Package Includes:

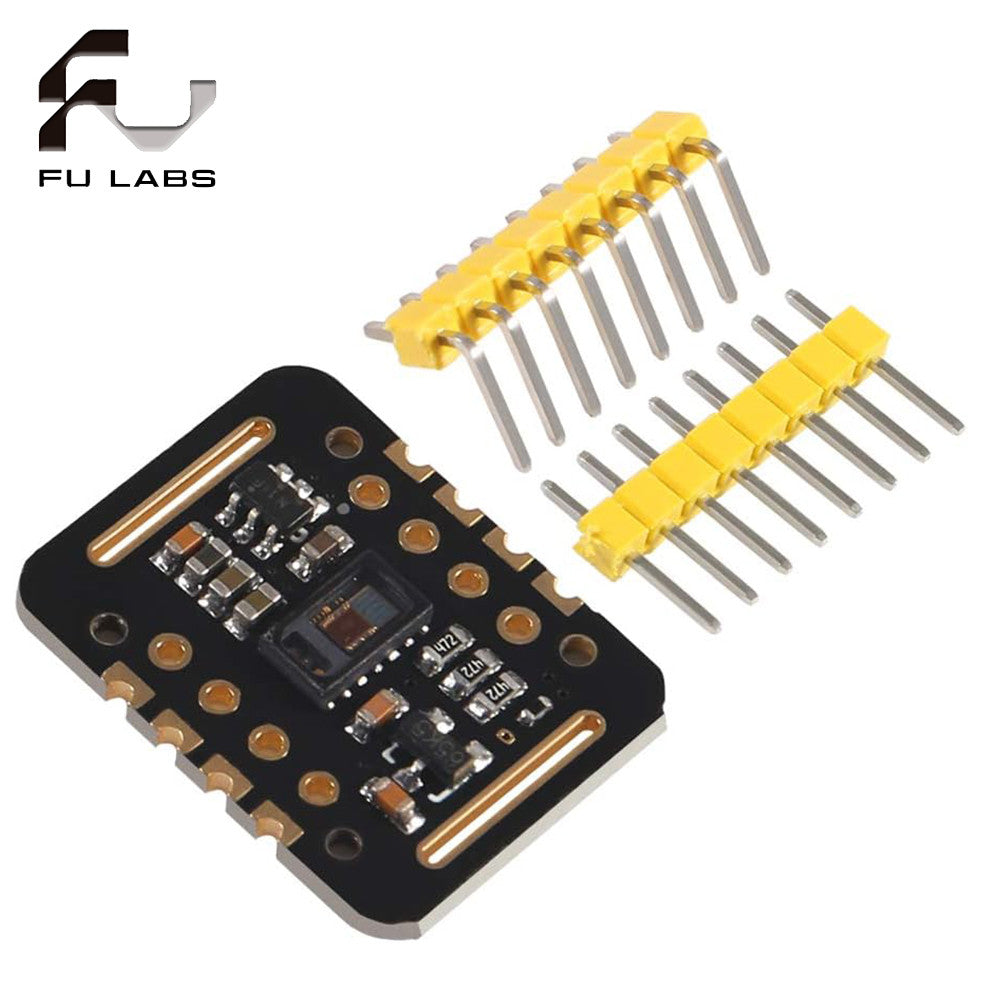

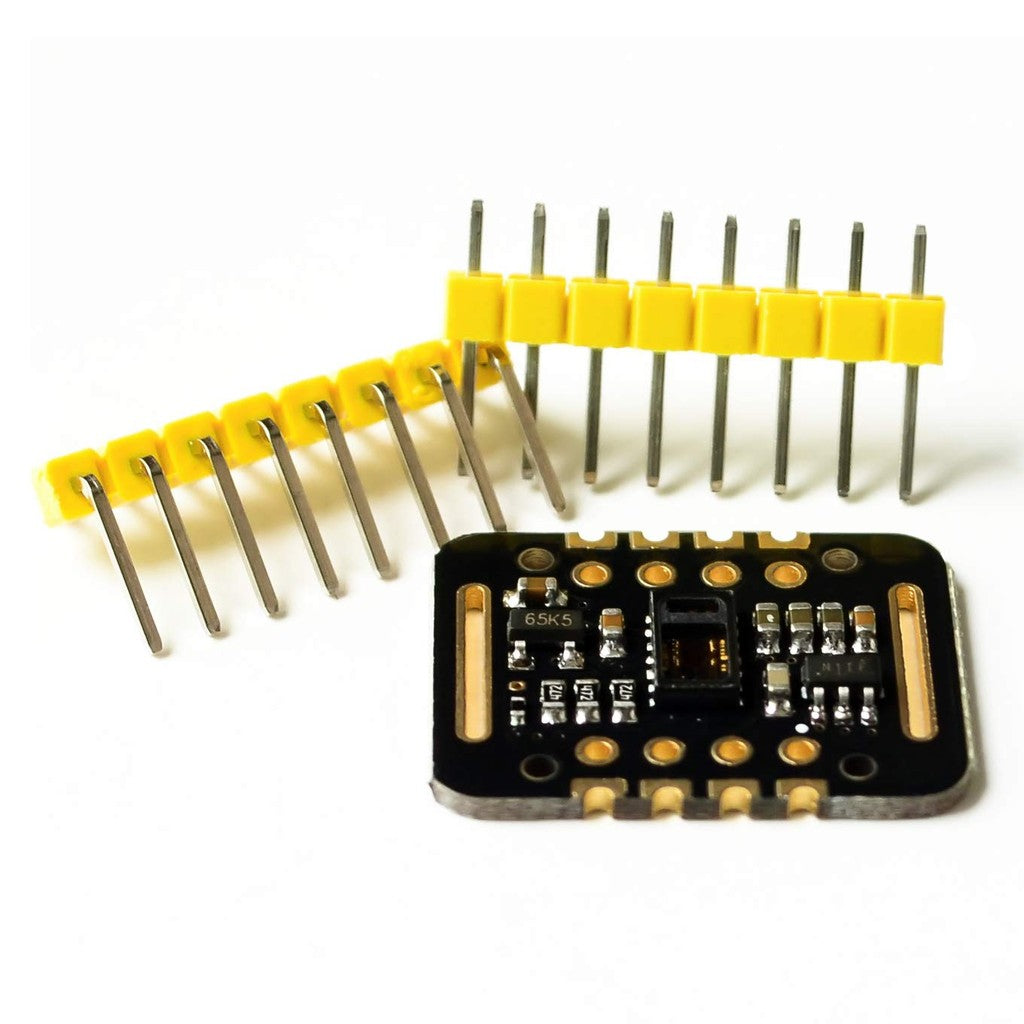

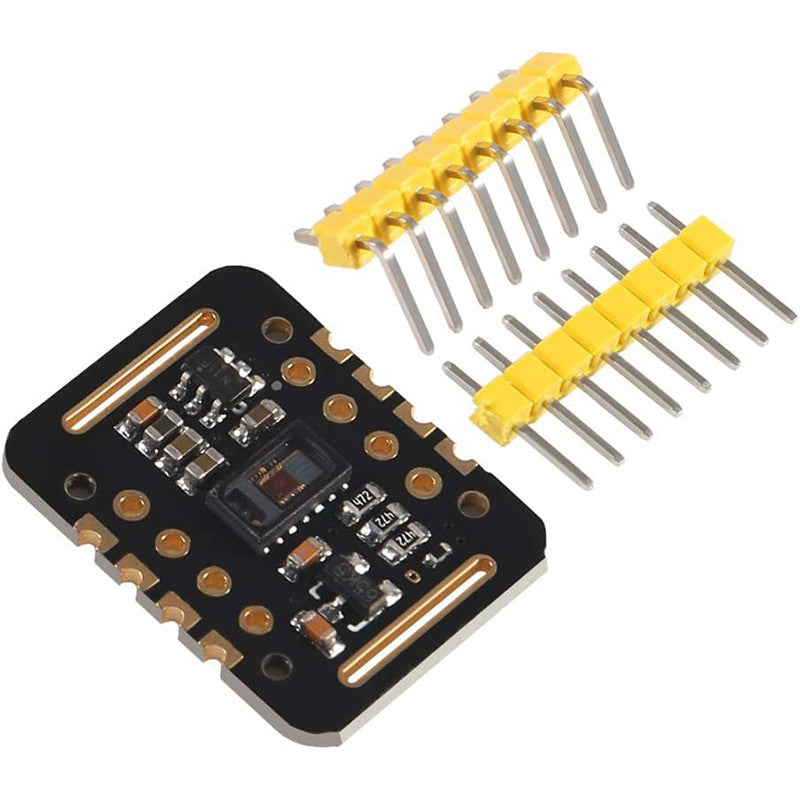

  1 x MAX30102 Heart Rate and Pulse Oximeter Sensor Module (Black)
