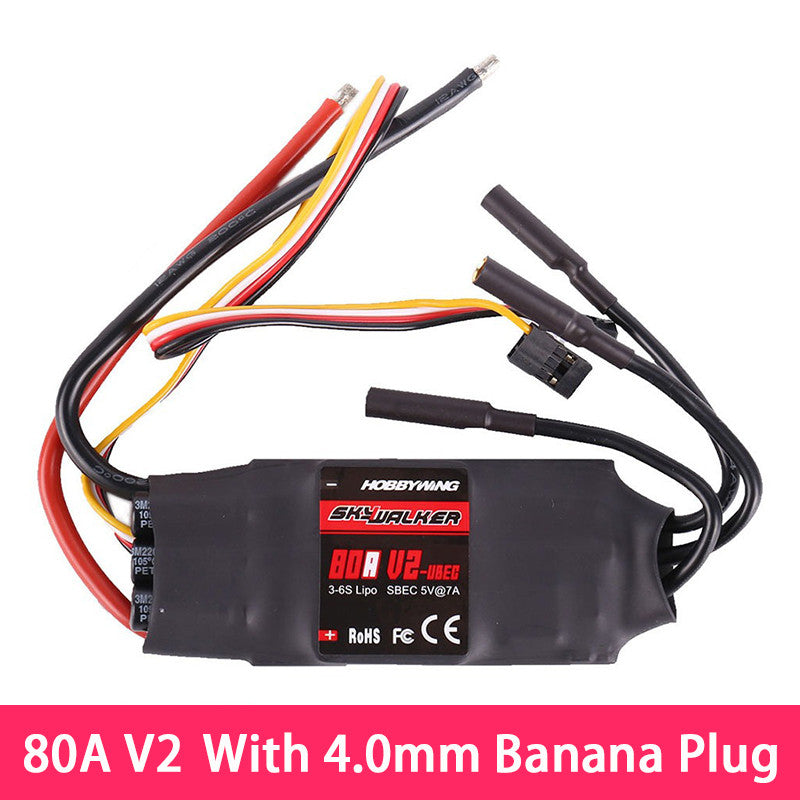

Hobbywing Skywalker V2 20A 30A 40A 50A 60A 80A ESC for RC

Hobbywing Skywalker V2 20A 30A 40A 50A 60A 80A ESC Speed Controler With UBEC For RC FPV Quadcopter RC Airplanes Helicopter

- Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.

- Specially optimized software for excellent compatibility with disc-type motors.

- The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

  Specifications:

15A:

- Model: Skywalker-15A

- Constant current: 15A

- Peak current (10s): 20A

- BEC: 5V 2A

- Lipo: 2-3S

- Net Weight: 14g

20A:

- Model: Skywalker-20A

- Continuous Current: 20A

- Burst Current (>10s): 25A

- BEC Mode: Linear

- BEC Output: 5V2A

- BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)

- Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)

- Net Weight: 19g

- Dimension (L x W x H): 42 x 25 x 8mm

- Cable length: 25cm

- Package size: 12.5 * 11 * 2.5cm

40A:

- Model: Skywalker-40A

- Continuous Current: 40A

- Burst Current (>10s): 55A

- BEC Mode: Linear

- BEC Output: 5V2A

- BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)

- Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)

- Net Weight: 35g

- Dimension (L x W x H): 68 x 25 x 8mm

- Constant Current: 30A

- Peak Current:40A(10s)

- Voltage: 2-3S lixx

- BEC: Yes

- BEC Output: 5V/2A

- Color: black

- Programmable:Yes

- Size: 70*25*8mm (not including cable length)

- Net Weight:38g

  - COntinuous output: 50A

  - Burst current: 60A@10S

  - Power input: 2-4S Lixx/5-12S Nixx

  - 5V/3A BEC output, switch mode

  - Refresh rate: 50Hz-432Hz

  - Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min

  - Dimension: 68*25*12mm

  - Weight: 43g
