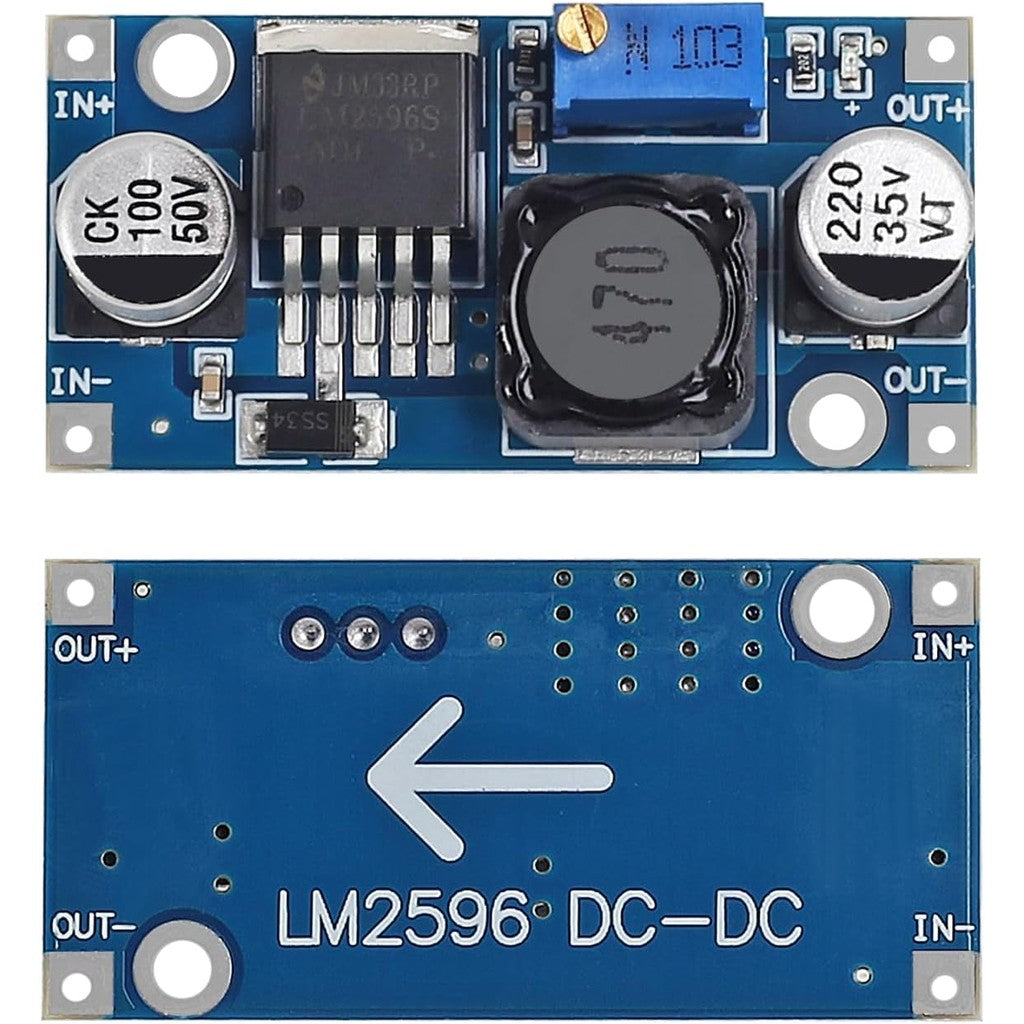

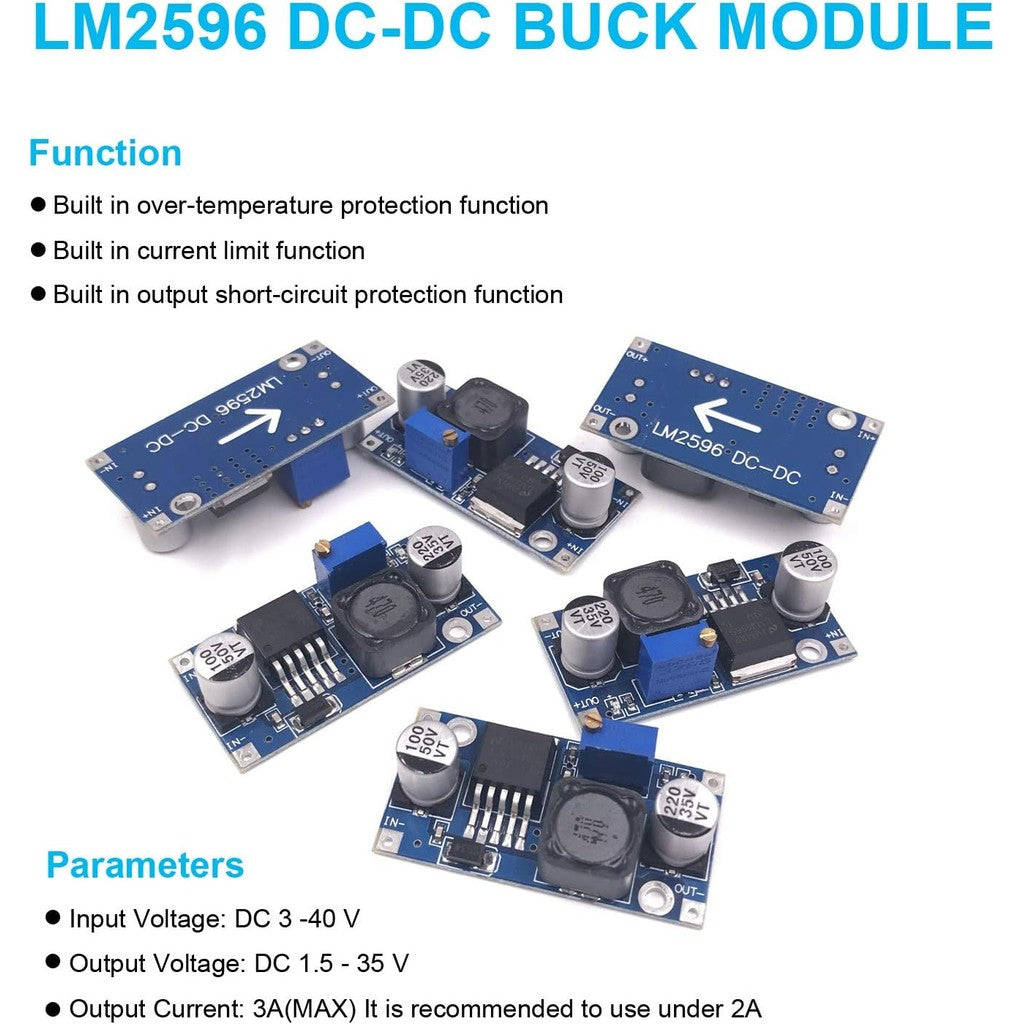

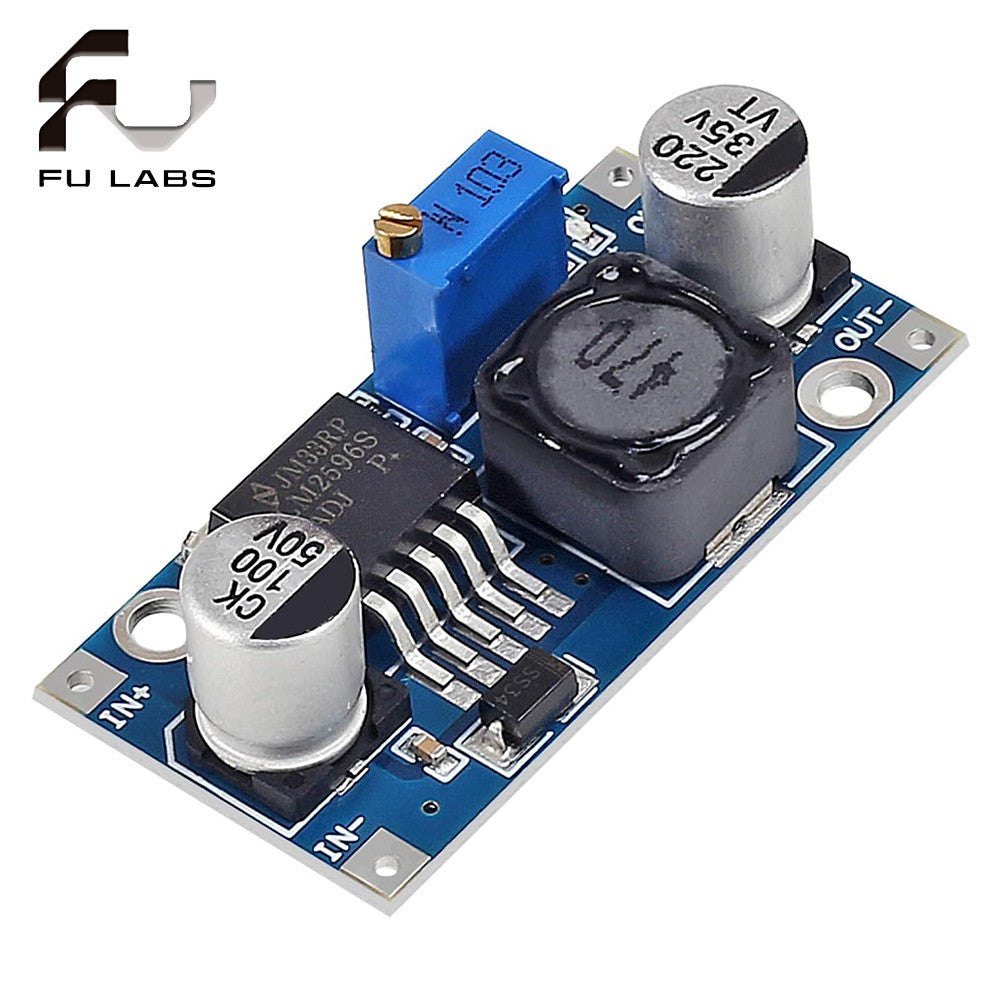

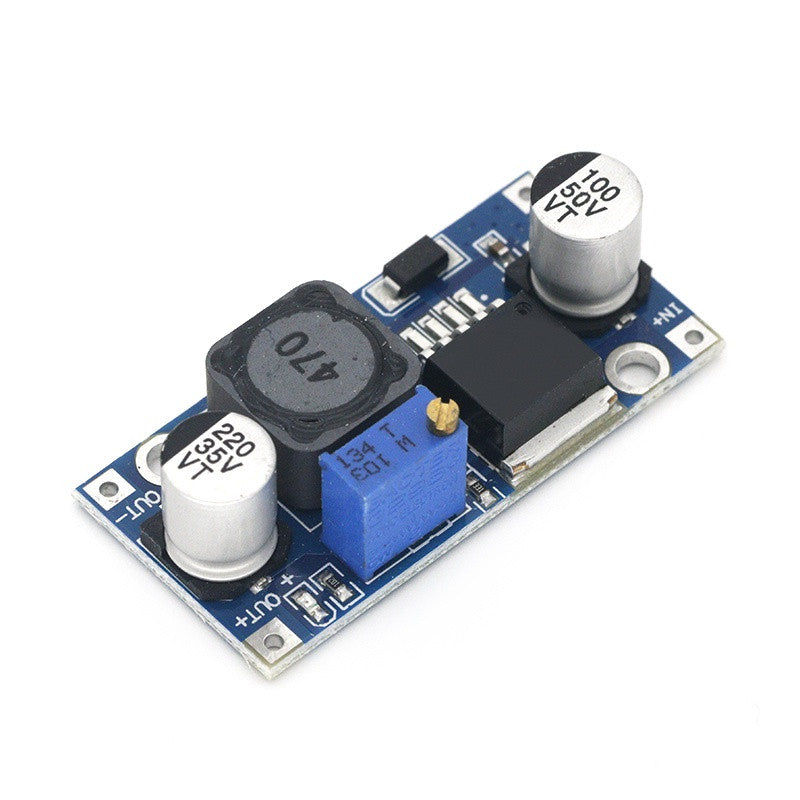

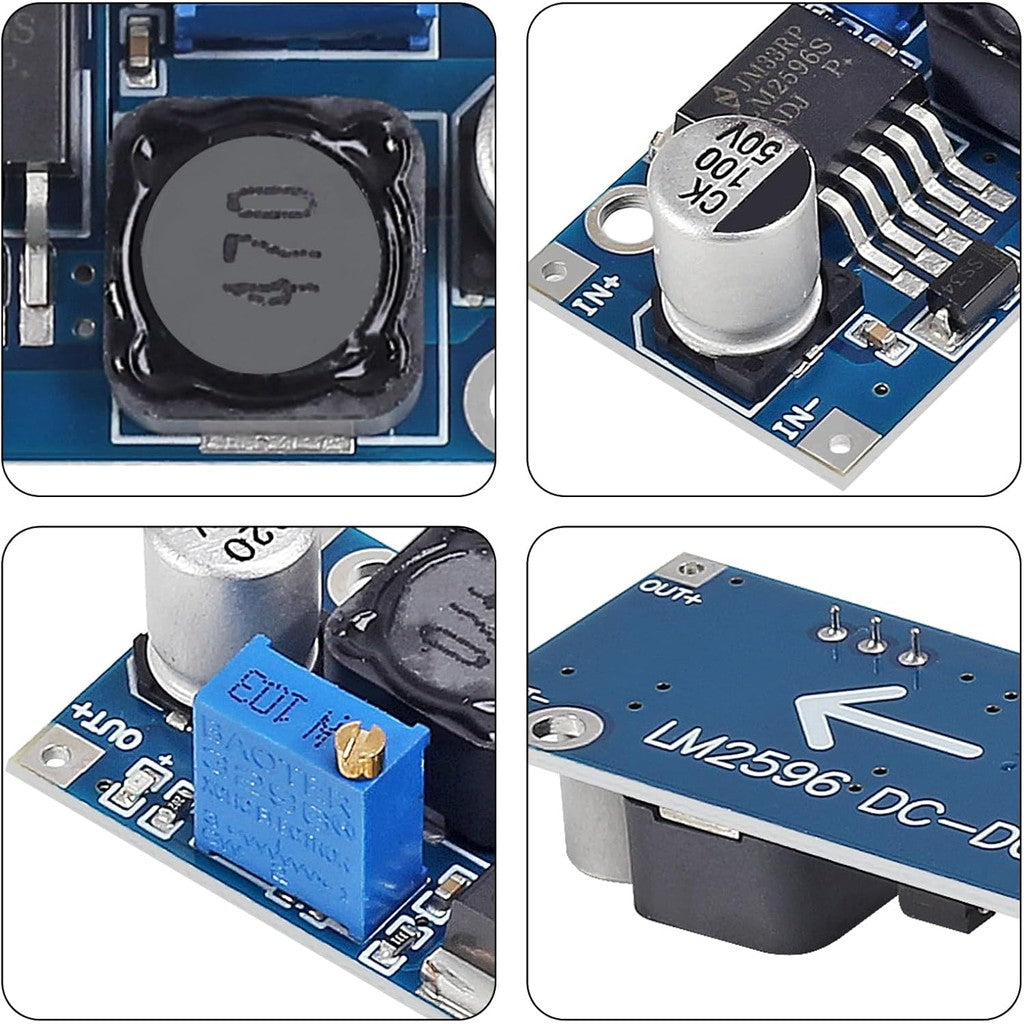

LM2596 DC-DC Buck Converter Step Down Converter Power Supply Module

      The DC-DC Buck Converter LM2596s solves this by converting higher voltage to lower voltage without the need for an additional power supply.  This DC-DC Buck Converter LM2596S is a step-down power module with adjustable voltage range  capable of driving a load up to 3A with high efficiency. Using this module with current above2.5A (or output power greater than 10W)  requires the addition of heatsink to prevent overheating.

LM2596

SPECIFICATIONS:

● Input Voltage: 3 to 40 V

● Output Voltage Range: 1.23 to 37 V

● Max Output Current: 3 A

● Adjustment: 25-Turn Trimpot

● Efficiency: up to ~93%

● Switching Frequency: 150 kHz

● Built-In Protection: thermal shutdown and current limit

● Size :43mm * 21mm * 14mm(Long*Width*Hight)

LM2596S

Specifications:

● Input: DC 9V--36V

● Output: 5.2V/5A/25W

● Material: electronic components

● Size: 65*28*13mm

● Color: blue

Package Inclusions:

1 pc. LM2596/LM2596S
