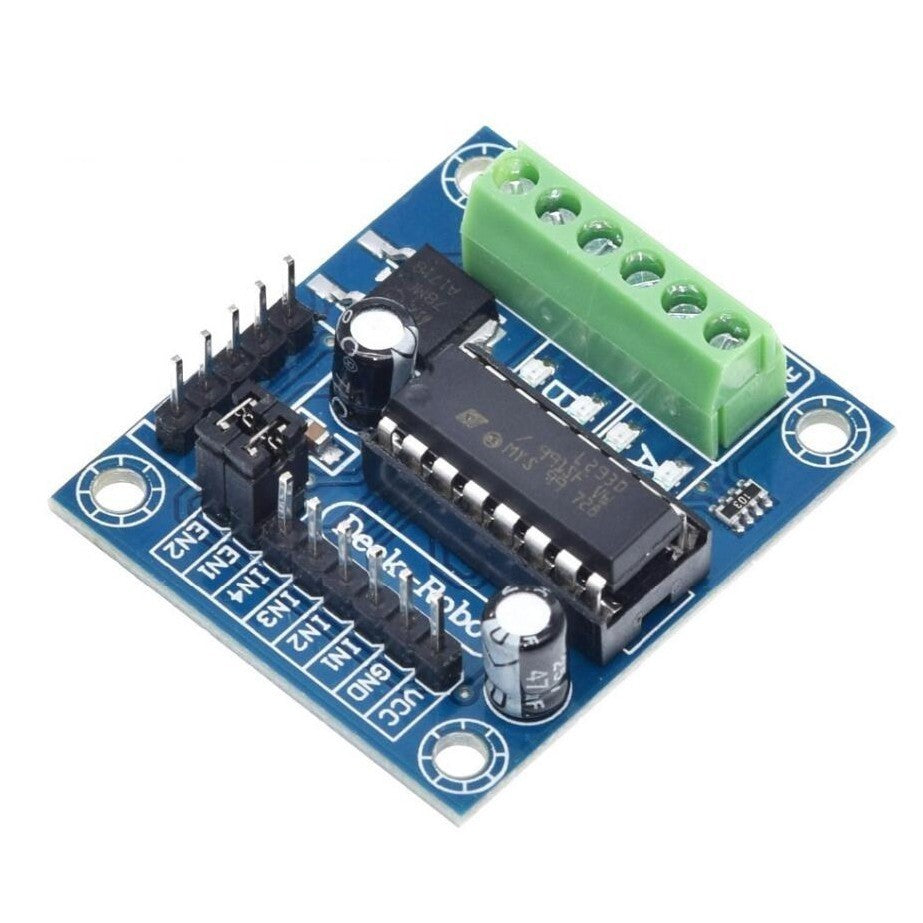

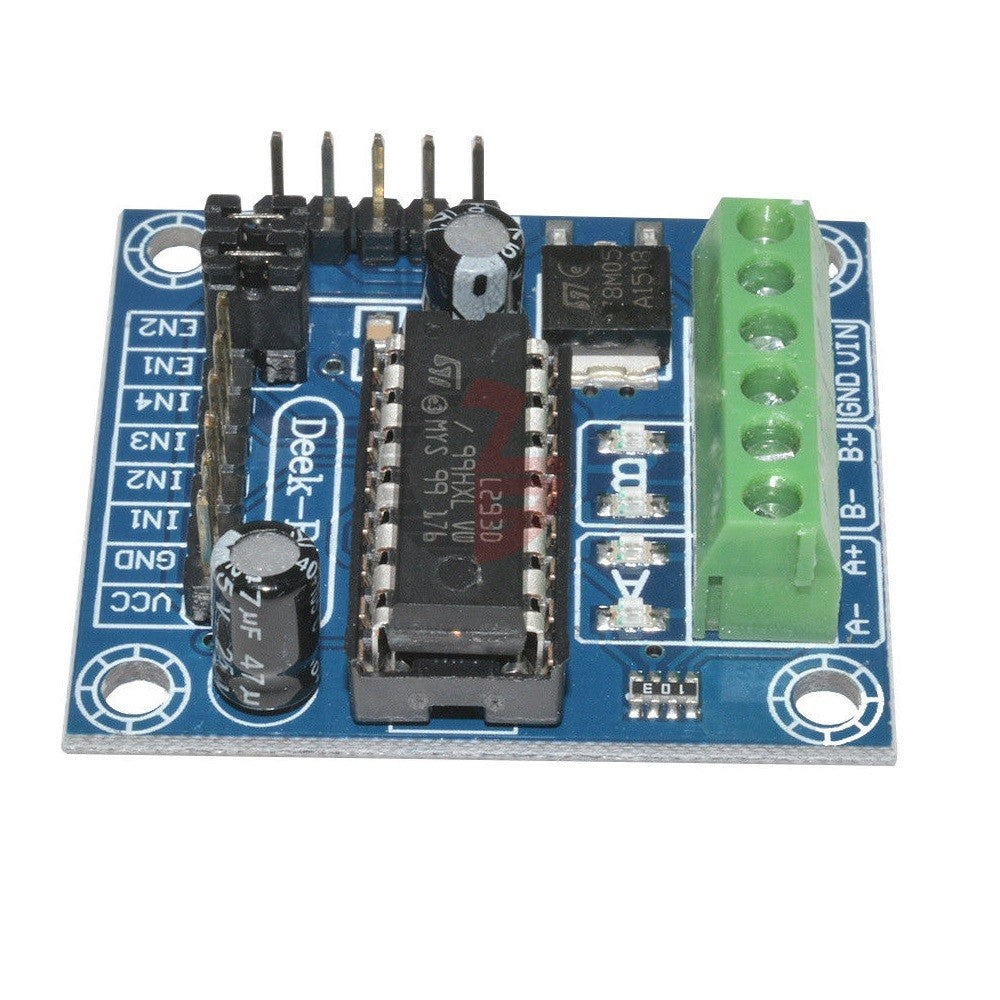

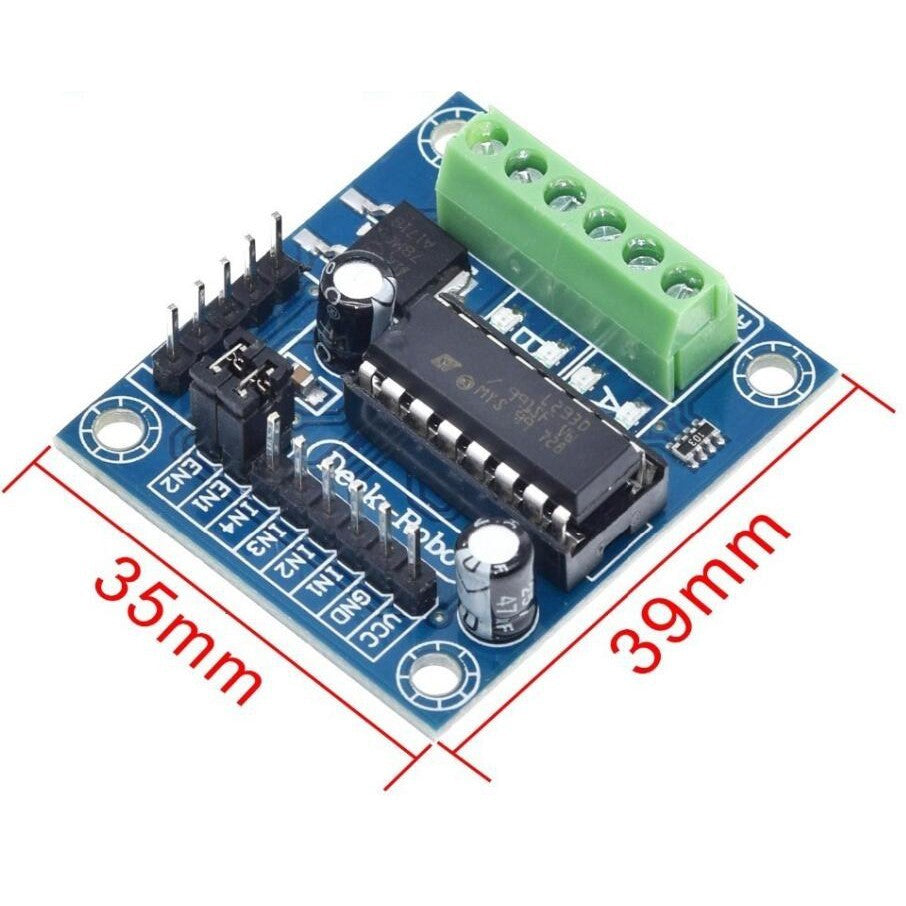

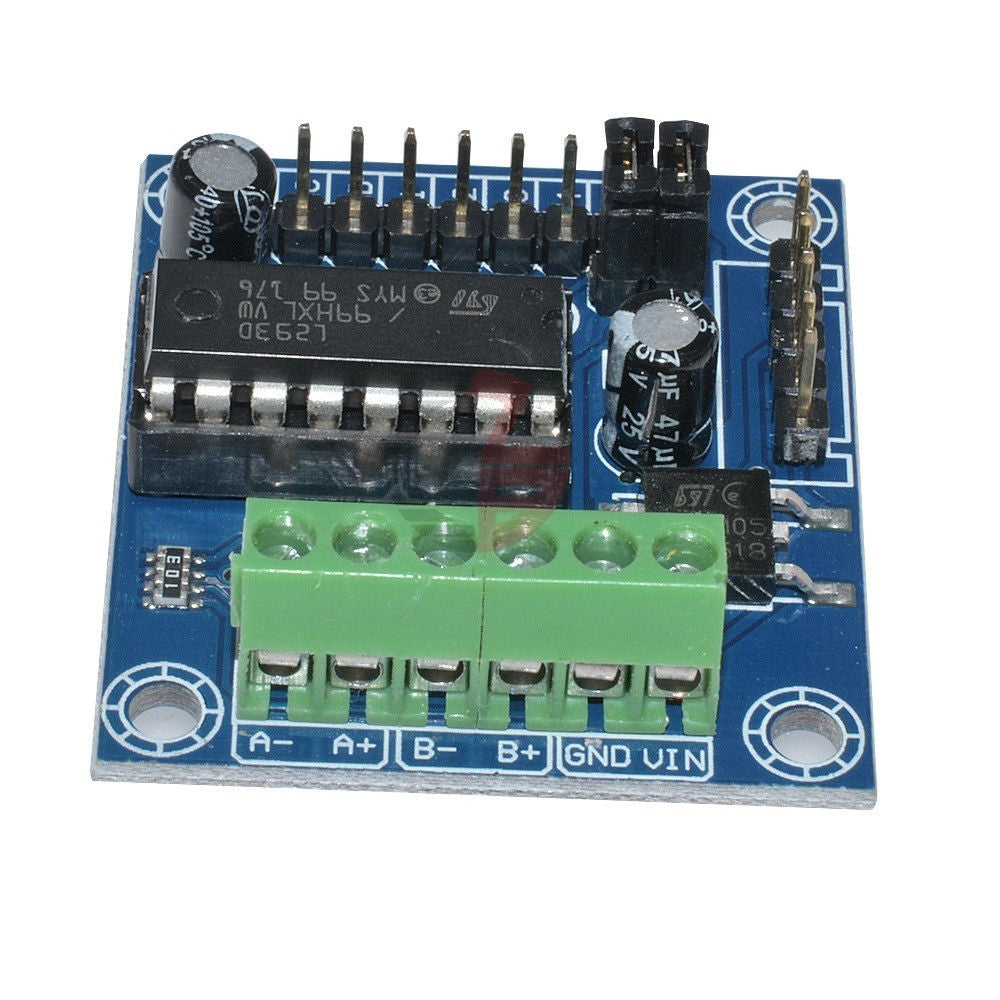

Mini 4CH 4 Channel Motor Drive Driver Shield L293 L293D Expansion Board Module

● 2 x 5V Servo Motor (Servo) Ports: Connected to Arduino's high-resolution, high-precision timer—no jitter!

● Up to 4 Bidirectional DC Motors and 4-Channel PWM Speed Control (approx. 0.5% resolution).

● Up to 2 Stepper Motors: Forward/reverse control, single/dual step control, interleaved or microstepping, and rotation angle control.

● 4 x H-Bridges: L293D chip, each bridge provides 0.6A (1.2A peak) current with thermal shutdown protection, 4.5V to 36V.

● Pull-down Resistors: Ensure motors remain stopped during power-up.

● Large Terminal Blocks: Make wiring easier (10-22AWG) for power and motor connections.

● Arduino Reset Button: Included for convenience.

● 2 x Large Terminal External Power Connections: Ensure separate logic and motor drive power supplies.

● Compatibility: Compatible with Mega, Diecimila, & Duemilanove.

Package Included:

1 x  L293D
