MP4560 Step-down Stabilized Voltage Supply Module Output 8～55V to 12V 9V 5V 3V

Product Description of Step - Down Module

1. Product Parameters

- Input Voltage: 6 - 55V

- Output Voltage: 3 - 16V (adjusted by potentiometer, voltage difference ≥ 2V)

- Output Current: Max 2A

- Conversion Efficiency: Up to 96%

- Switching Frequency: 2MHZ

- Operating Temperature: -45℃~ +85℃

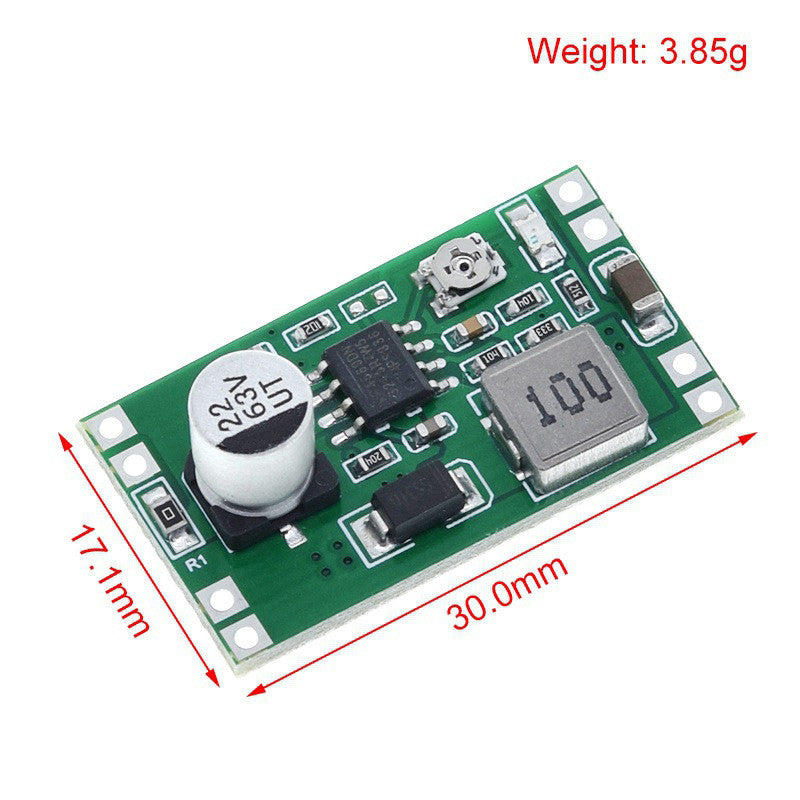

- Size: 30*17MM

- Remark: Step - down module, only supports step - down. Input voltage must be higher than output voltage, and voltage difference > 2V

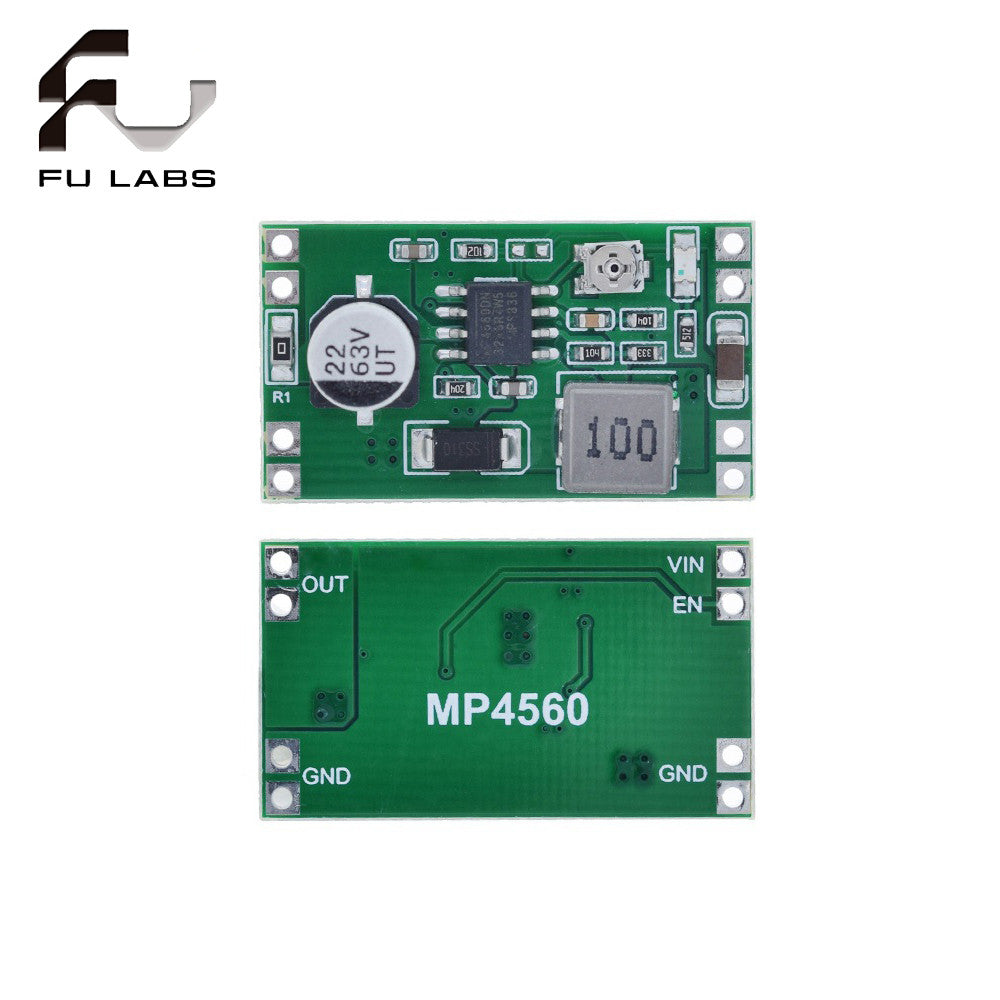

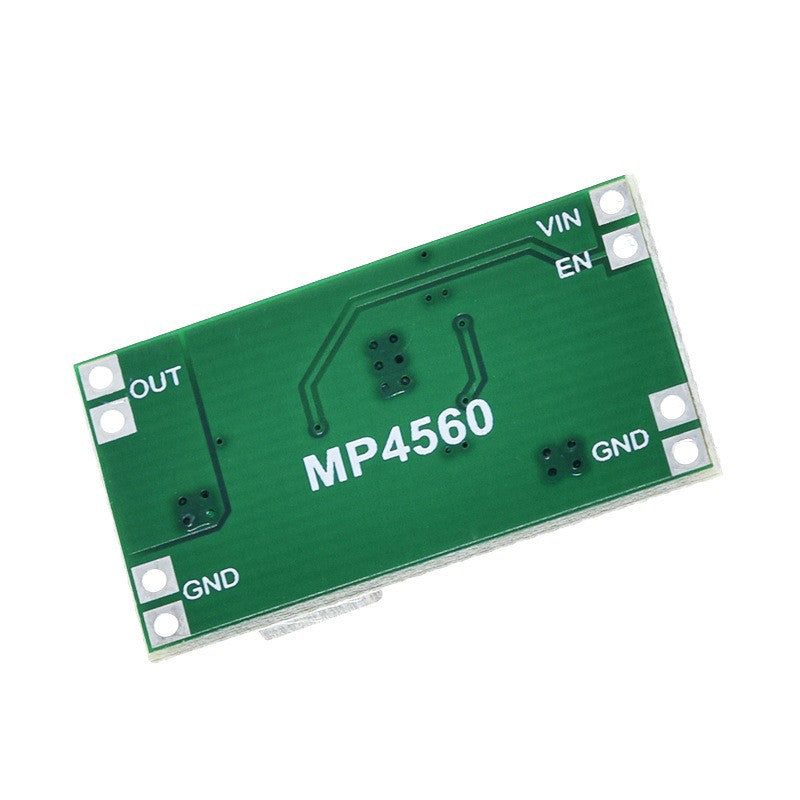

2. Pin Connection Method

- VIN: Input terminal, suitable for 8V - 55V

- EN: Control terminal, suitable for 2.3V - 55V, high - level enable (by default, EN terminal is short - connected to VIN terminal, output is available once powered on)

- 5V: Power output terminal

- GND: Power ground terminal
