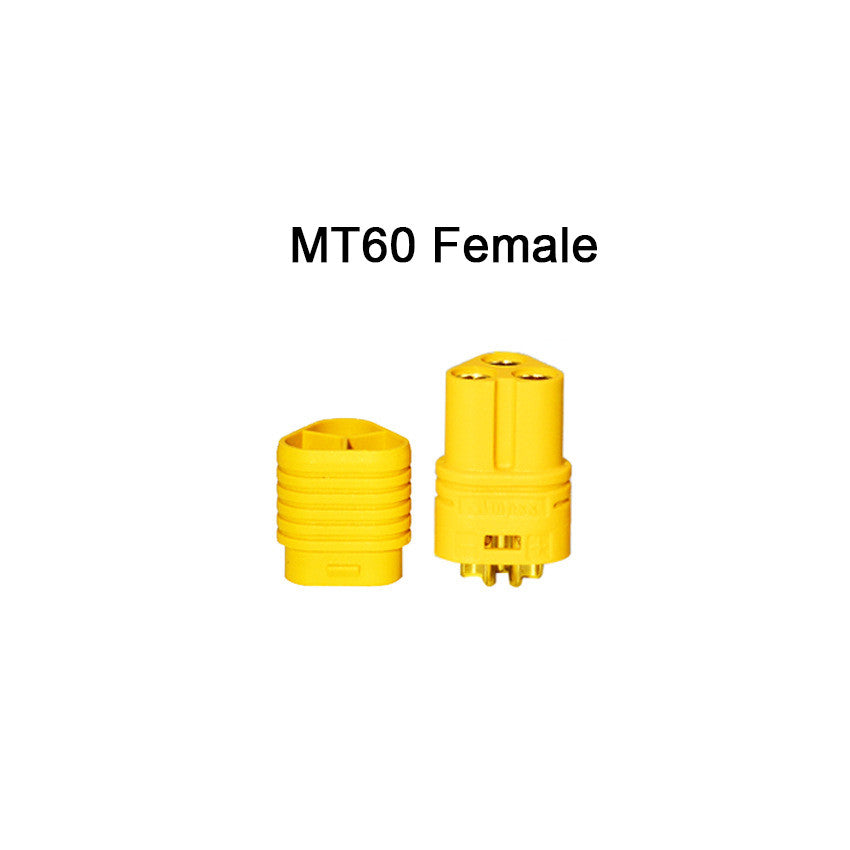

MT60 3.5mm 3 pole Bullet Connector Plug Set

# Key Specifications of MT60 Connector

- Model No.: MT60

- Contact Resistance: 0.45mΩ

- Color Options: 2 standard colors

- Metal Material: Gold-plated brass (low oxidation, ensuring good conductivity and long-term anti-corrosion)

- Insulation Material: PA (polyamide, offering reliable insulation performance)

- Flame Rating: UL94 V0 (high flame retardancy, meeting safety standards for fire prevention)

## Electrical Ratings

- Voltage: DC 500V

- Current: 30A (rated current), 60A (peak current)

- Wire Gauge: 12AWG recommended (optimal matching for current-carrying capacity)

## Durability & Compliance

- Mechanical Life: 1000+ insertions (strong wear resistance, suitable for frequent plugging and unplugging)

- Temperature Range: -20℃ to +120℃ (adaptable to most indoor and general industrial temperature environments)

- Certifications: Standard industrial (specific certification details not listed; compliant with common industrial quality requirements)
