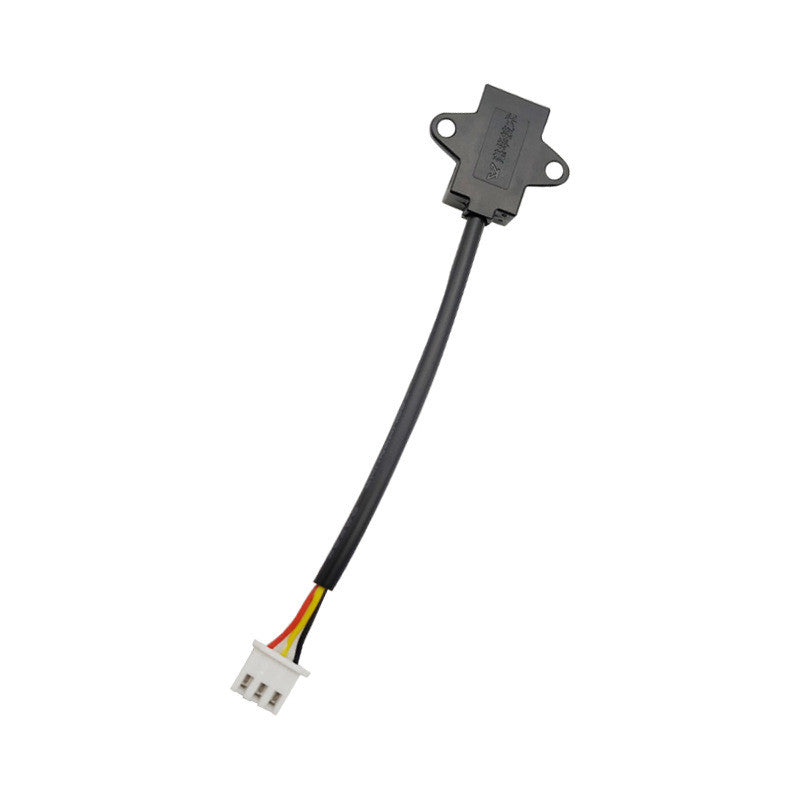

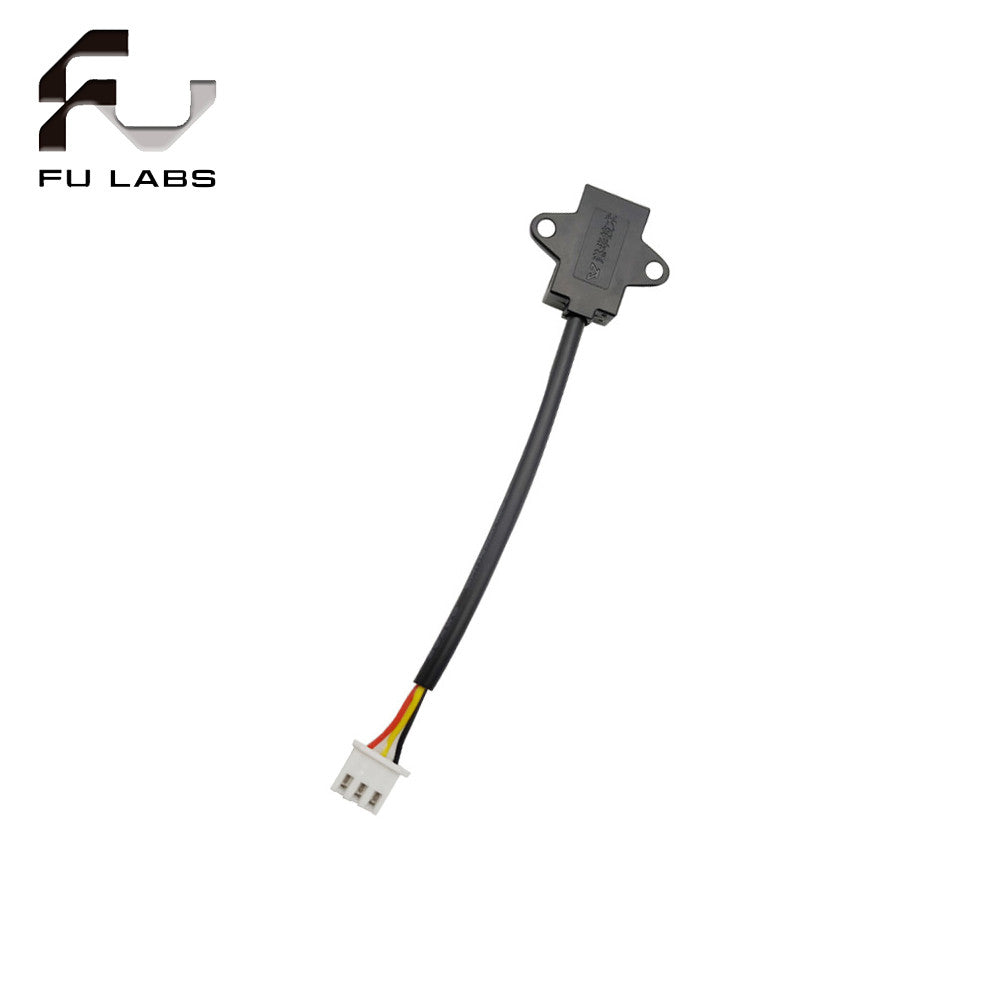

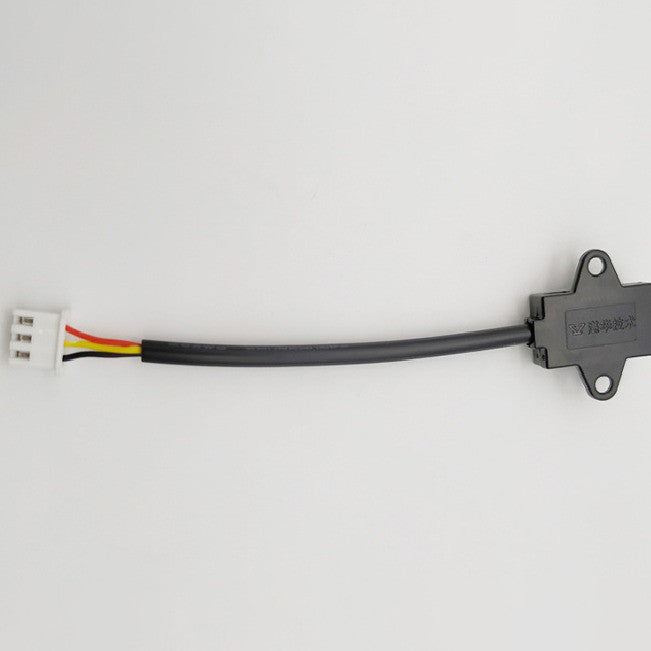

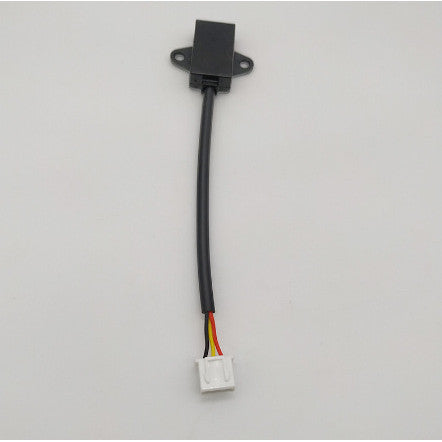

Non Contact Water Level Sensor Capacitive Liquid Level Sensor Liquid Detection Switch Controller Water Level Detector Tool 3.3V-5V

Description of Capacitive Liquid Level Sensor (ZV - GDR - 136)

1. Basic Parameters and Functions

- Product Name: Capacitive Liquid Level Sensor

- Product Model: ZV - GDR - 136

- Core Functions: Water Shortage Alarm, Full Water Alarm

- Applicable Scenarios: Needs to work closely attached to plastic water tanks; Cannot detect pure alcohol or gas

- Usage Restrictions: The environment needs to be dry; Avoid high - temperature use

2. Product Attributes

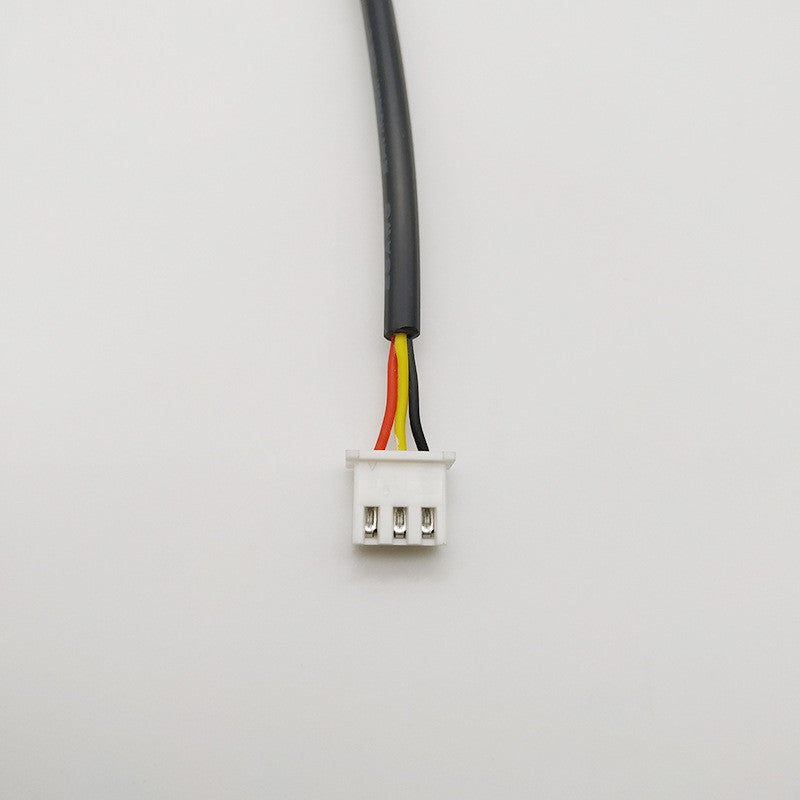

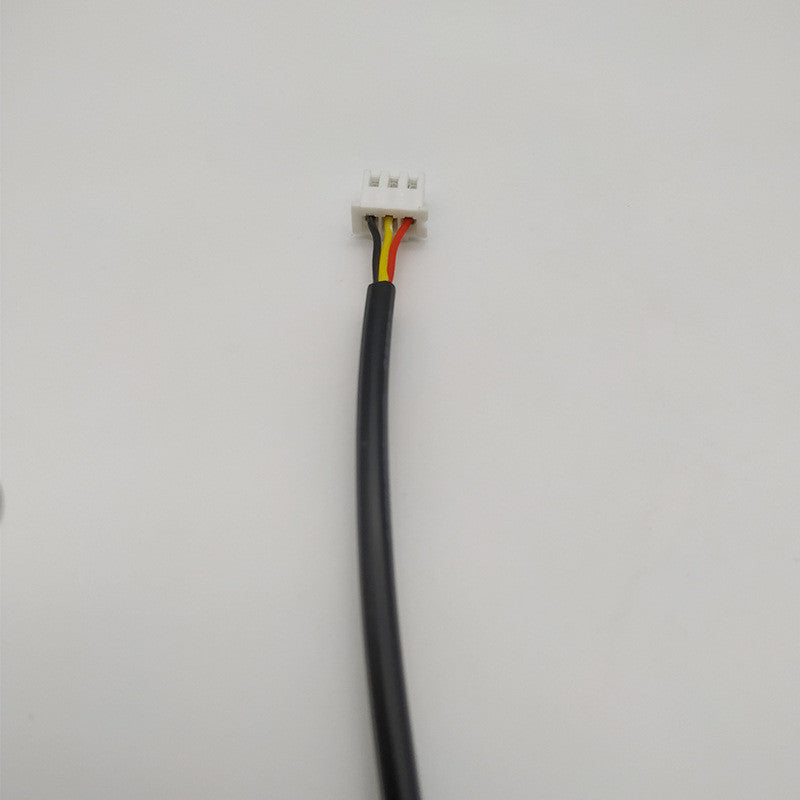

Wire Type: Sheathed Wire

Typical Applications: Hand Sanitizer Dispensers, Water Dispensers, Aromatherapy Machines, etc.

3. Product Advantages

(1) Design and Power Consumption

Small size, ultra - low standby power consumption. Compact in size but fully functional, and can be customized according to user needs.

(2) Installation and Detection

Non - contact detection, easy to install. Compatible with various plastic containers. Through capacitive sensing, it can be installed closely on the outside without drilling holes.

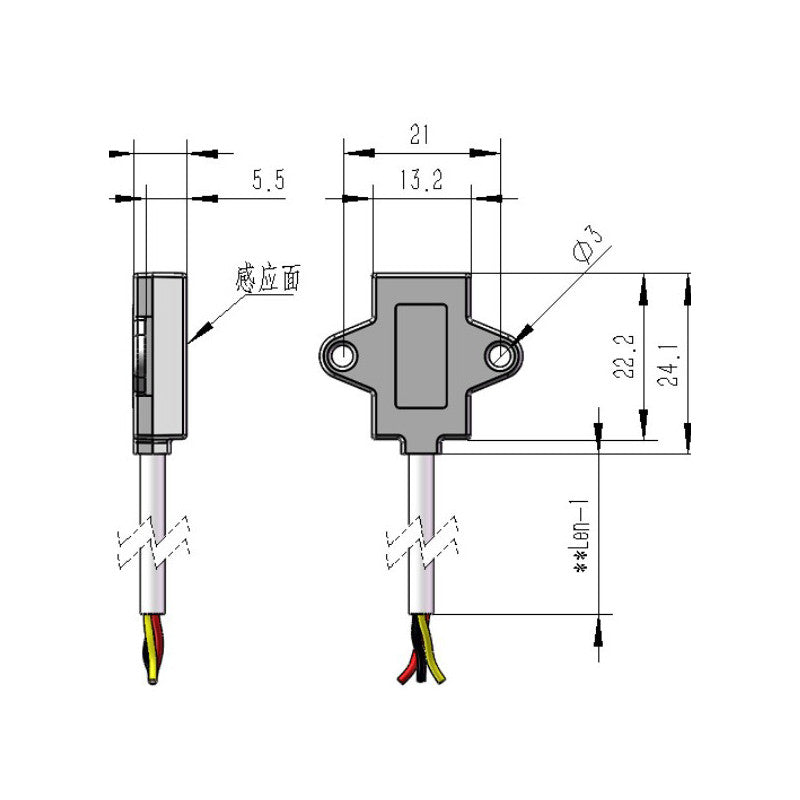

Precautions: There should be no motors or metal objects within 2CM around the sensor; The side without the LOGO font is the detection surface.
