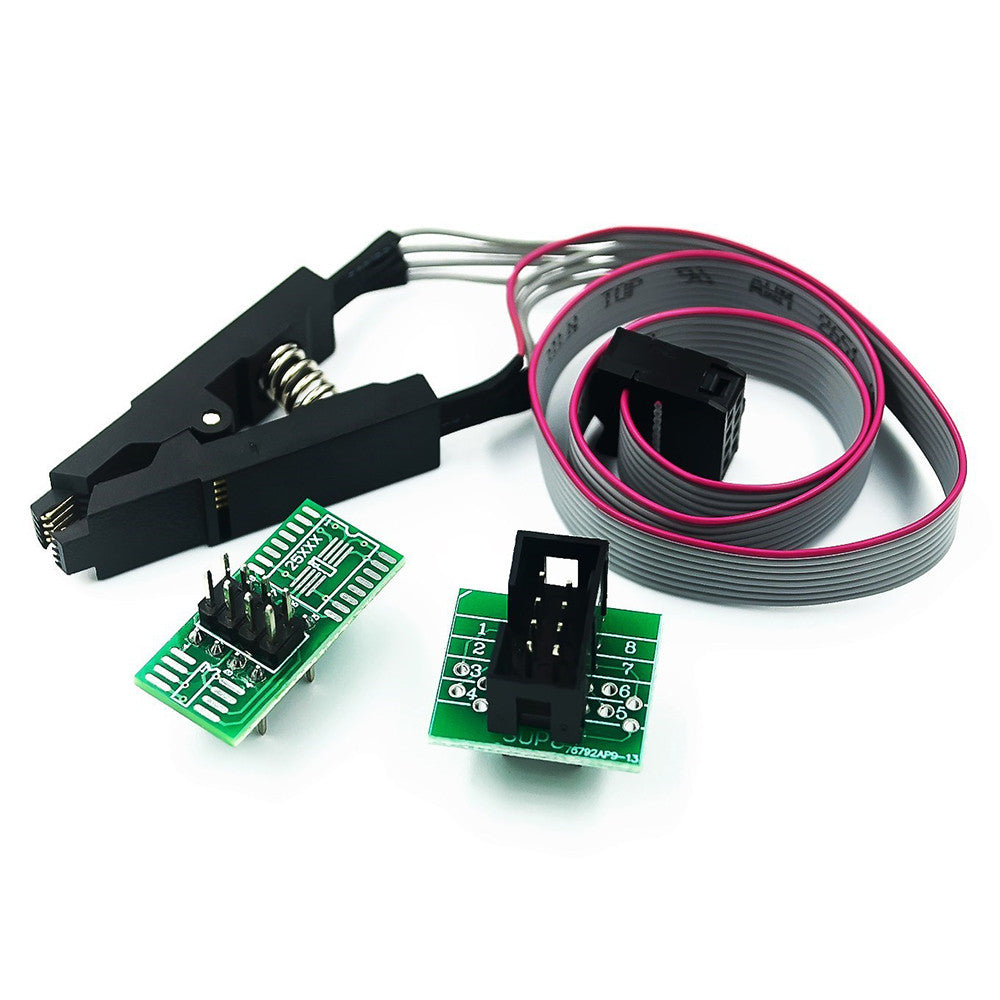

Programmer Testing Clip SOP8 Test Clip For EEPROM 24CXX in-circuit programming

1. Key Parameters

● Compatible Packages:

Standard SOP8 (150mil/208mil), wide/narrow 8-pin chips (e.g., BIOS Flash, EEPROM).

Some models support SOIC8 (check pin spacing).

● Contact Method:

Spring-loaded probes or gold-plated contacts for reduced oxidation and better conductivity.

● Cable Length:

Typically 15–30cm (with DuPont wires or direct programmer interface).

● Connector Type:

DuPont header (2.54mm pitch) or direct connection to programmers (e.g., CH341A, RT809H).

2. Features

● Solderless Operation:

Clips directly onto chip pins, eliminating desoldering or manual wiring.

● Wide/Narrow Compatibility:

Adjustable clamp spacing fits different SOP8 chip sizes.

● Anti-Reverse Design:

Some models mark Pin 1 (dot/triangle indicator) to prevent reverse connection damage.

● High Compatibility:

Supports common BIOS/EEPROM chips (e.g., Winbond, MXIC, GigaDevice).
