Qr /1d/2d/code Scanner V3.0 Bar Code Scan Recognition Module Serial Communication Uart Interface

  Qr /1d/2d/code Scanner V3.0 Bar Code Scan Recognition Module Serial Communication Uart Interface Usb Keyboard Input

extraction code: mmab

product introduction:

MH -ET LIVE Scanner v3.0 is a barcode and QR code scanning recognition module. It adopts a professional image processing chip for barcode recognition. It can quickly and accurately read under the high performance of fast and stable reading in complex environments. Take one-dimensional code and two-dimensional code on the carrier of paper, screen, plastic, etc. . Small in size, onboard USB and UART interface, can be directly connected to the computer, or integrated into a variety of devices. The product features low power consumption and low heat. Quick start, cold start and warm start can be kept on standby, no need to wait, it is ready to open.

Easy to operate, no need to understand complex image recognition algorithms

Support for reading of common one-dimensional codes and two-dimensional codes such as Barcode and QR

Onboard Micro- USB and UART serial port for access to a computer or embedded device

Onboard auxiliary light source for reading in a completely dark environment

Support for setting module parameters by scanning the setup code (see the specification for details)

Compatibility: All Compatible

Camera Equipped: Yes

Colour:black

Material:Metal + plastic

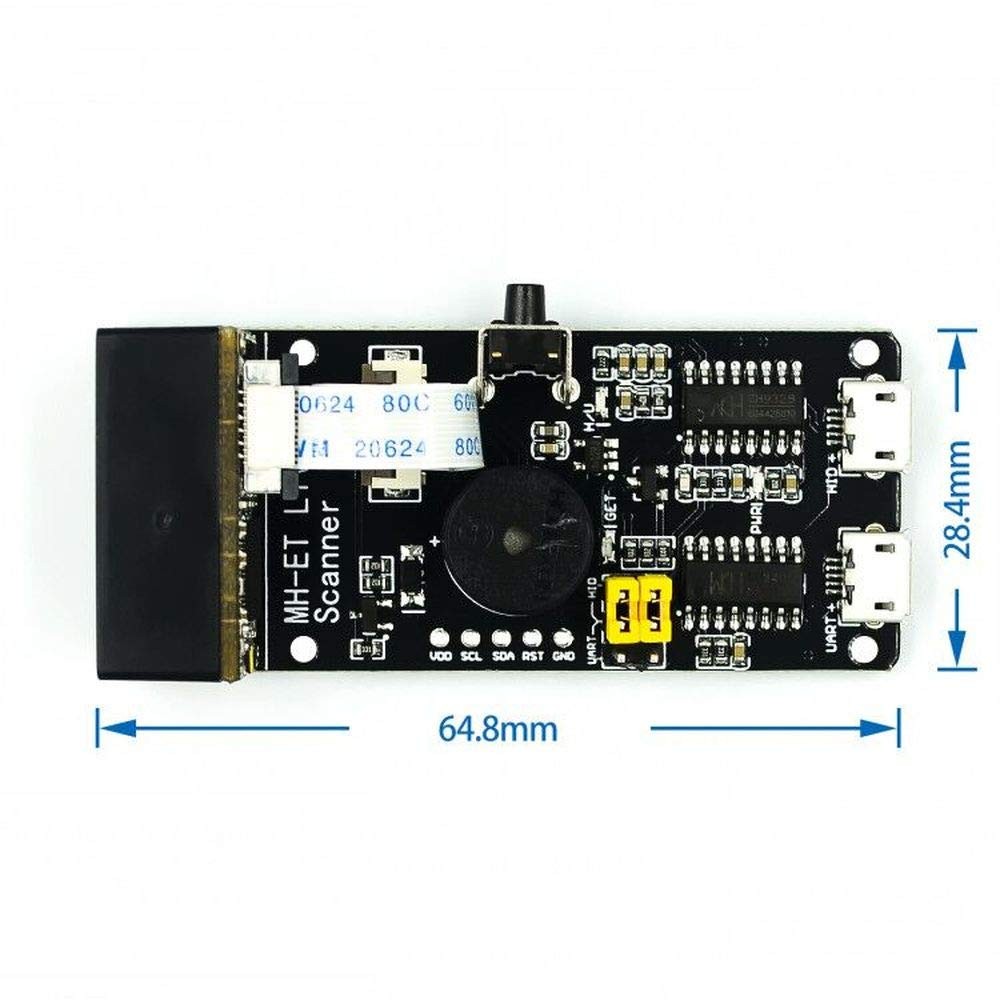

Size:65*28*13.5mm
