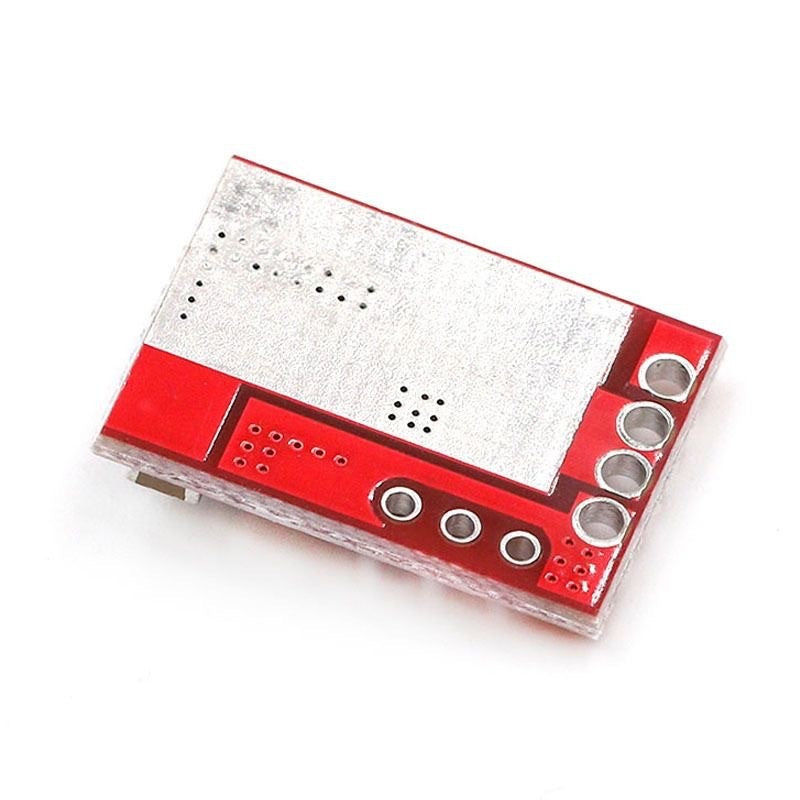

TP5000 4.2V/3.6V 1A Lithium Battery Charging Board Charger Module LED Indicator

TP5000 Charging Module Specifications

- Product Name: TP5000 Charging Board Module

- Input Voltage: 4.5-9V DC

- Output Voltage:

4.2V/3.6V (±1%)

- Default setting: 4.2V for Li-ion batteries

- Output Current: 1A (default)

- Dimensions: 21.5×14.5×4.2mm

- Weight: ~3.2g

Usage Instructions (Same as TP4056/4057 Charging Boards):

For Li-ion Batteries:

Connect 5V power input.

Attach battery to B+/B- terminals.

Red LED = Charging

Green LED = Fully charged (auto-cutoff)

For 3.6V LiFePO4 Batteries:

Desolder the connection between the two pads.

Power/battery connection remains identical.

*To revert to 4.2V Li-ion mode:* Resolder the pads.
