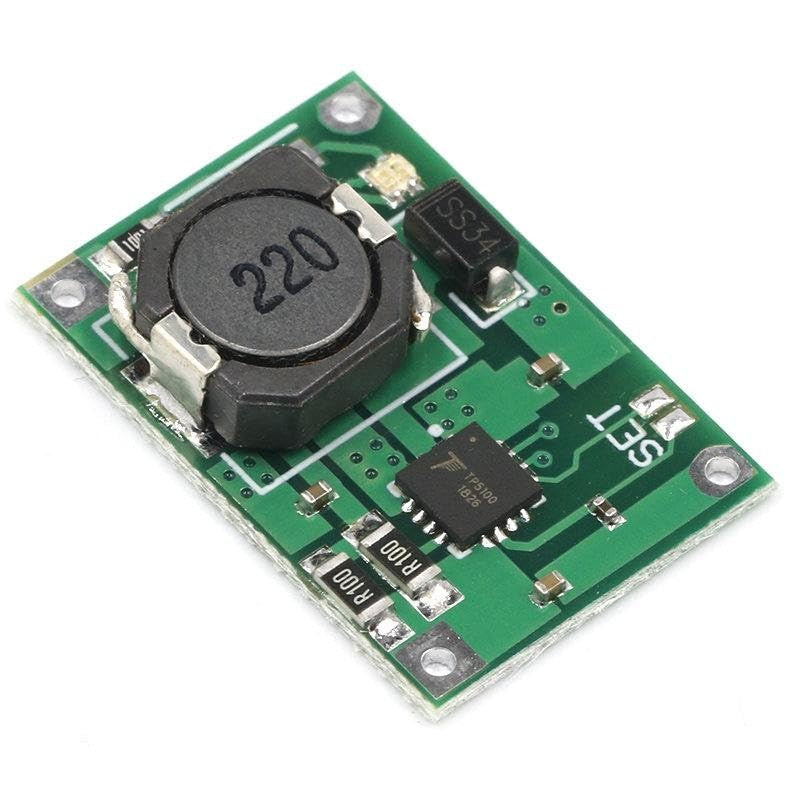

TP5100 2A 1S 2S 3.7V 7.4V Lithium Ion 18650 Battery Charger Module

  TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and a simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under voltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

  TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.

  TP5100 built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diodes.

  Features:

  • Double 8.4v / 4.2v lithium rechargeable single

  • Programmable charge current. 0. 1A-2A

  • Programmable steady precharge current 10% -100%

  • Wide operating voltage, maximum reach I8V

  • Red and green LED charge status indicator

  • Chip temperature protection, overcurrent protection, under voltage protection

  • Battery temperature protection, reverse battery shutdown, short circuit protection

  • Switching frequency 400Khz, usable inductance 20uH and more

  • PWR_ON Power battery for switching control

  Maximum Ratings:

  • Static input supply voltage (VlN): 20V

  • BAI: -8.4V-20V

  • BAT Short-Circuit Duration: Continuous

  • Operating environment Temperature range: -40 ° -85 °

  • Storage temperature range: -65 ° – 125 °

  Application:

  • Portable equipment, various chargers

  • Smartphone, PDA, mobile cellular telephone

  • MP4, MP5 players, tablets

  • HM

  • Power Tools

  • Walkie-talkie

  Specification:

  • Size: 25 * 17 * 5mm ultra-small size

  • Input voltage: 5-18V DC power supply

  • Charge status: full and unloaded blue lights, charging red.
