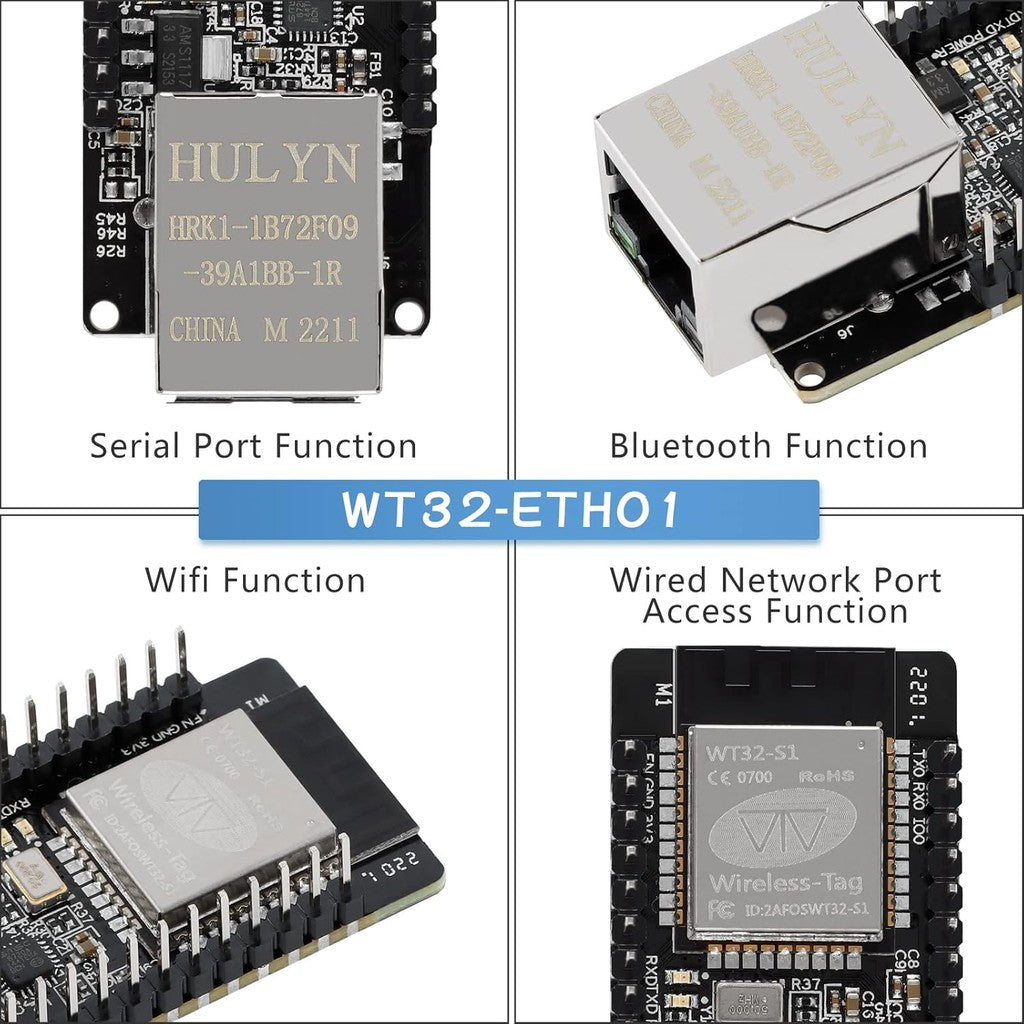

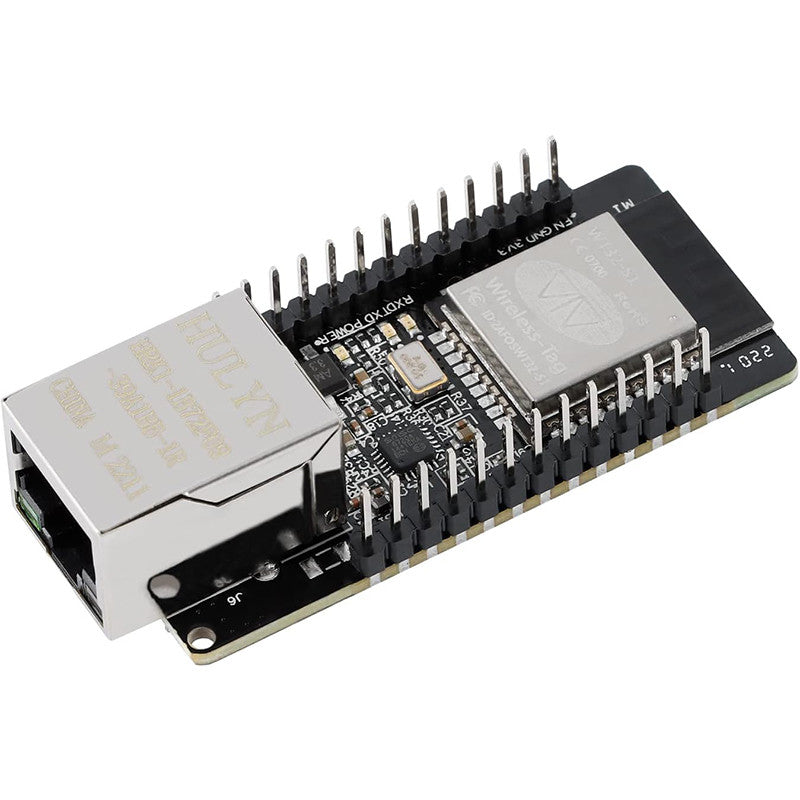

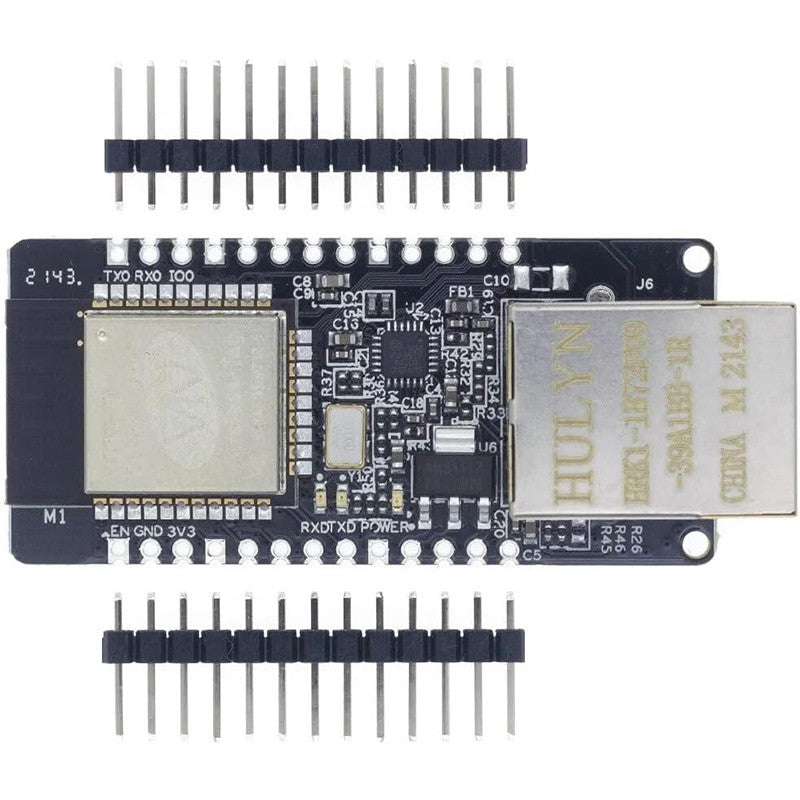

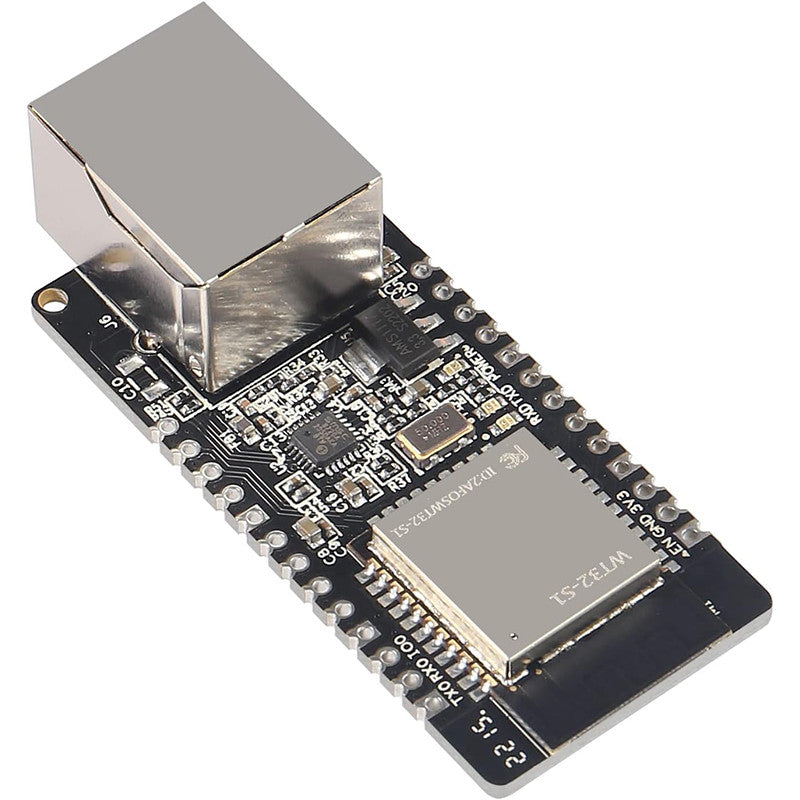

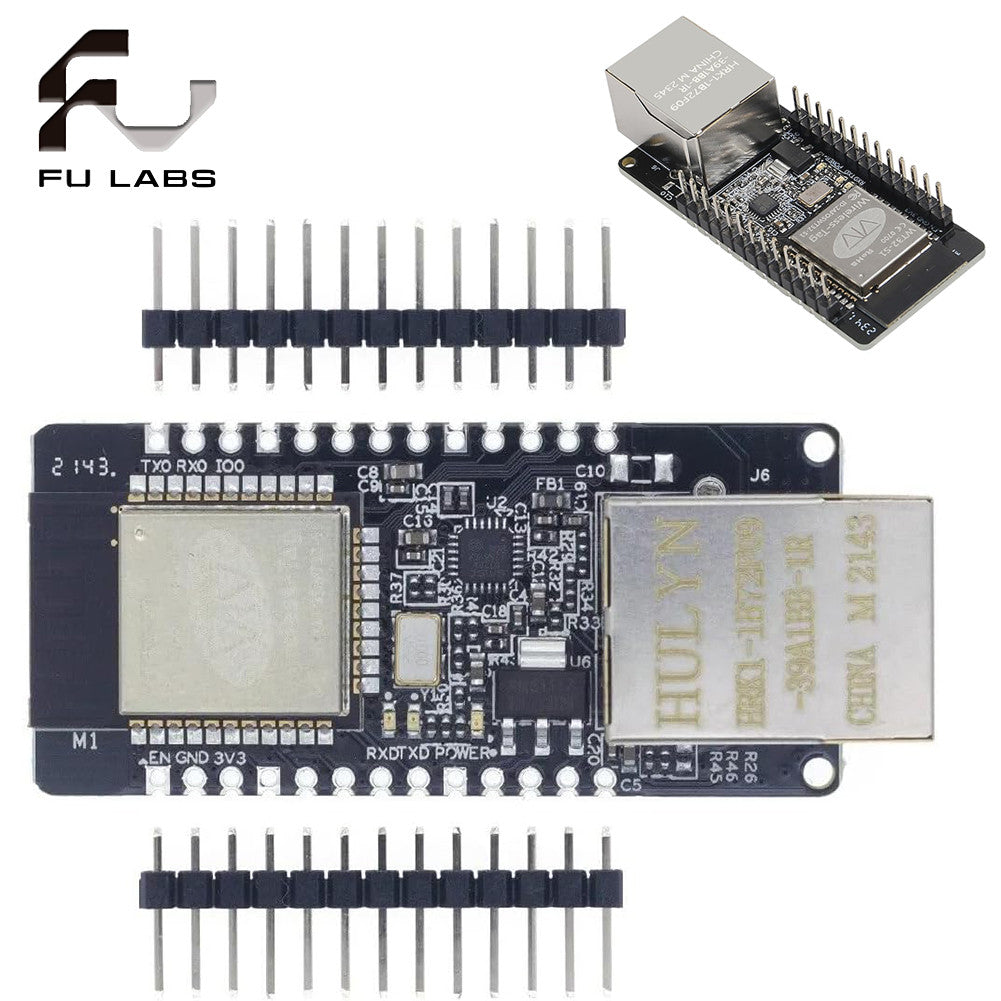

WT32-ETH01 Embedded Serial Port Networking Bluetooth-compatible Ethernet WIFI Combo Gateway MCU ESP32 Wireless Module WT32 ETH01

  WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth WIFI MCU Module ESP32 Wireless Combo Gateway Module Board

Main features of ETH 01 gateway:

  ● Using dual-core Xtensa 832-bit LX6 microcontroller. Integrated SPI flash memory 32 Mbit\SRAM 520 KB

  ● Support TCP server, TCP client, UDP server, UDP client working mode

  ● Supports four data ports of serial port, wifl, Ethernet and Bluetooth to be combined in pairs, and data is transparently transmitted

  ● Support to connect to the network via wired network or wifi to upgrade the firmware

  ● Support wifi to connect to the Internet or LAN through the router, establish tcp/udp connection, and access the user's designated service

  Device.

  ● Support wired network access

  ● Support user secondary development

  ● Industrial grade working temperature range: -40~+85

  ● Serial port baud rate: 80-5000000

  ● Network protocol: IPv 4, tcp/udp

  ● Software encryption: AES/RSA/ECC/SHA
