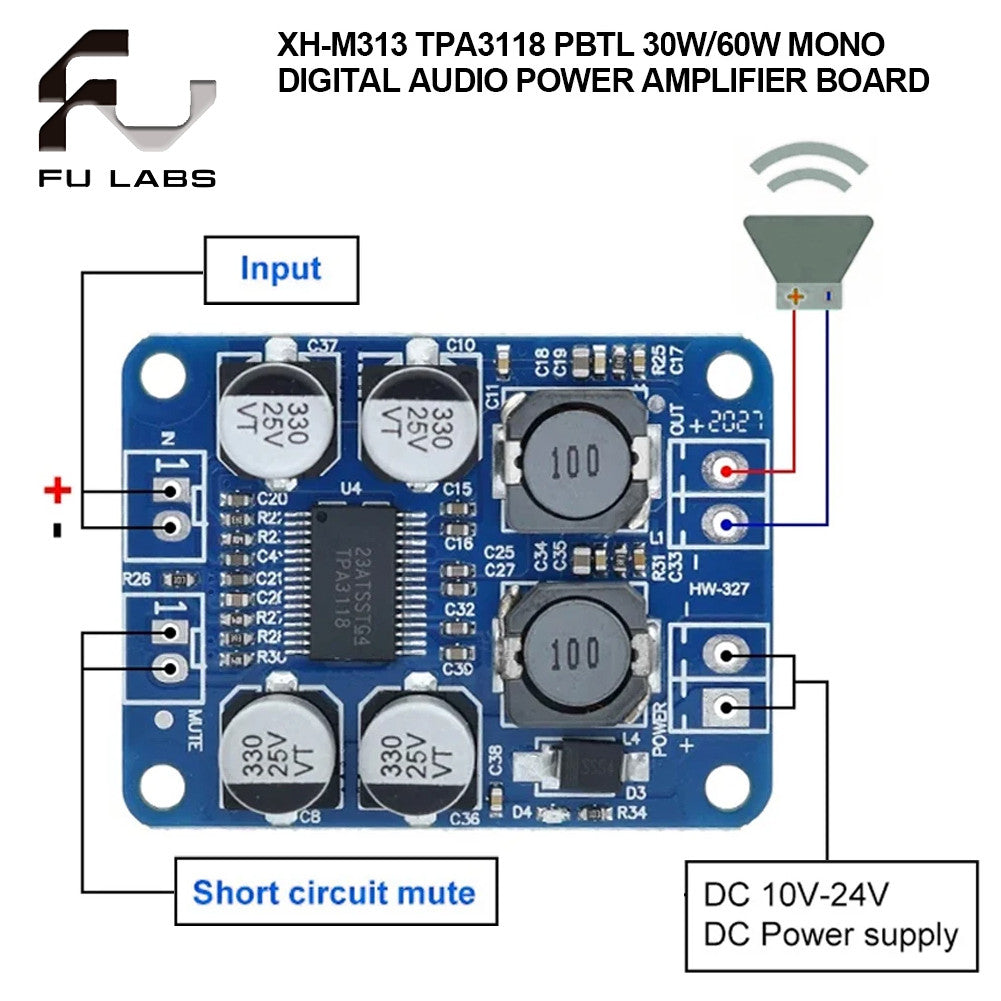

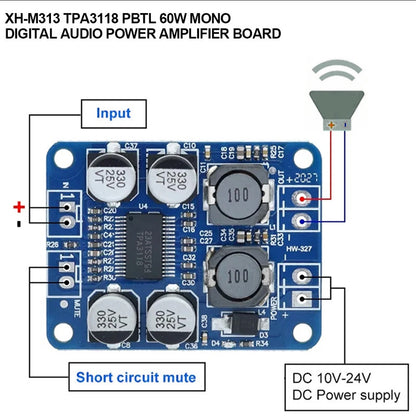

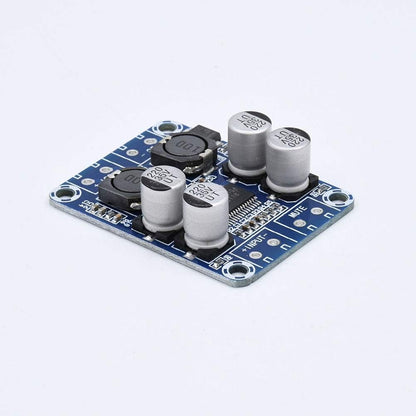

XH-M313 DC8-24V TPA3118 PBTL 60W Mono Digital Audio Amplifier Board AMP Module Chip 1X60W 2-8 Ohms

XH-M313 HD Digital Power Amplifier Board -M313 TPA3118 Bookshelf Speaker Mono 60W BTL Audio Amplifier Module

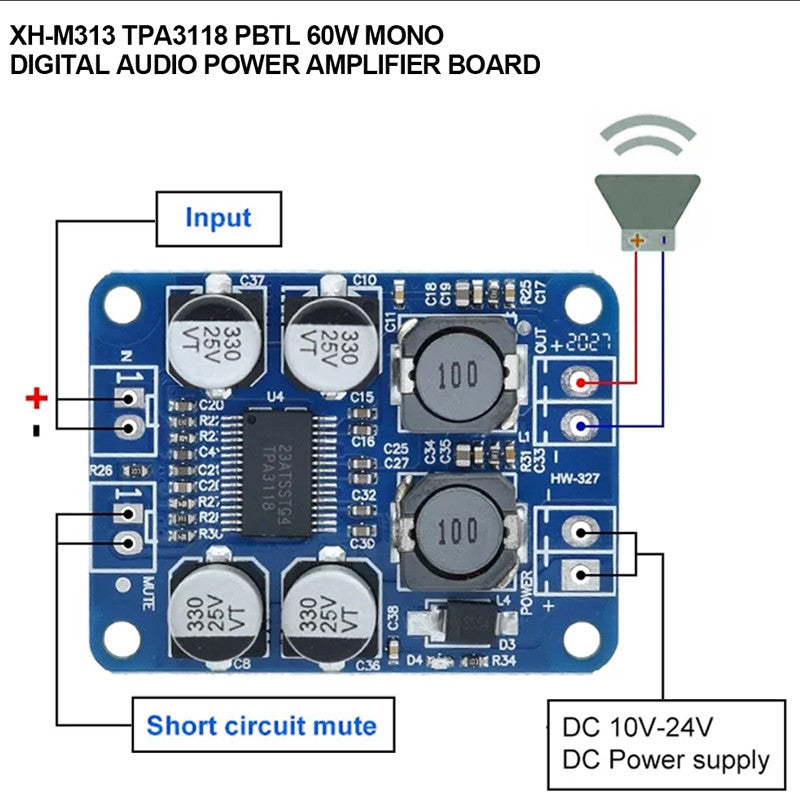

This model uses TI's TPA3118 as the main chip. The power supply range is as wide as 8-24V. In the case of 24V power supply, the load of 2Ω speakers can reach a maximum output of 60W. The circuit adopts PBTL mode, so it can achieve low resistance and high power, and large internal resistance speakers can be Parallel to achieve high power output.

● Name: Power amplifier board

● Model: XH-M313

● Amplification type: Class D

● Work efficiency: 93%

● Chip selection: TPA3118

● Supply voltage: DC8-24V

● Input current: 3A recommended

● Output power: 60W*1

● Frequency response range: 35Hz-88KHz

● Number of channels: mono

● Impedance matching: 2-8Ω

● Appearance size: 46*35*12mm

Package include

1x XH-M313 module
