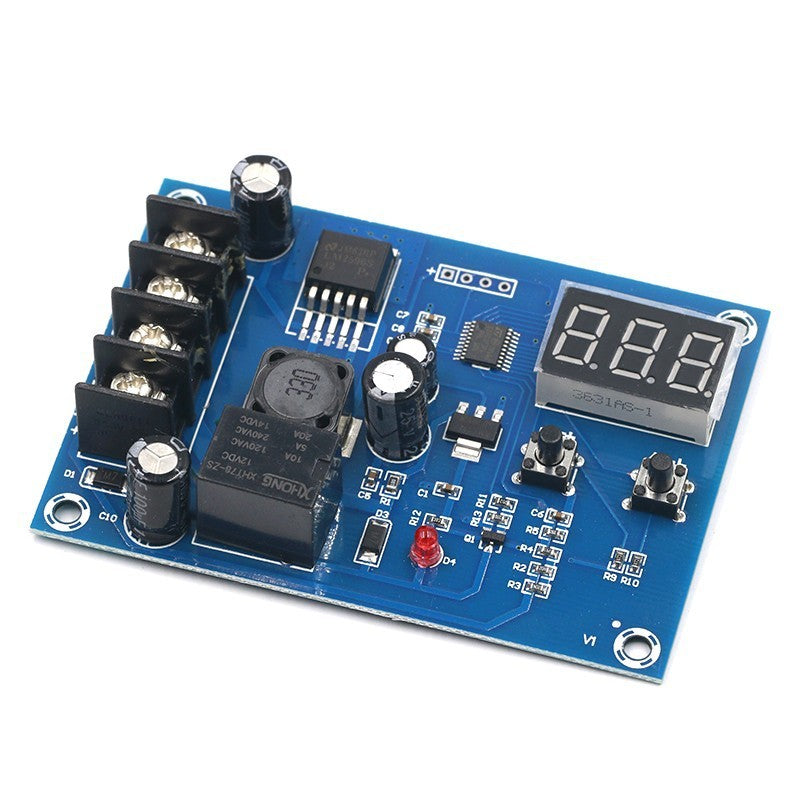

XH-M603 Lithium Battery Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board with LED Display

Product Parameters

- Model: XH - M603

- Input Voltage: DC 10 - 30V

- Display Precision: 0.1V

- Control Precision: 0.1V

- Output Type: Direct Output

- Voltage Tolerance: +/- 0.1V

- Application Field: 12 - 24V storage batteries

- Size: 82 * 58 * 18mm

- Weight: Approximately 35.5g

- Product Features: Automatically cuts off power when fully charged, automatically charges when under - voltage, and monitors real - time voltage.

Note: If there is no display after connection, it is likely that you have not connected the battery. The battery must be connected for normal operation. If the main board cannot detect the battery, it will not work.

Usage Method

Set the startup voltage: In the state of normally displaying the voltage, press the button to display the starting charging voltage; long - press for 3s, and the nixie tube will flash; you can use the start or stop button to set the startup charging voltage value.

Set the stop voltage: In the state of normally displaying the voltage, press the button to display the stop charging voltage; long - press the button for 3s, and the nixie tube will flash; you can use the start or stop button to set the stop charging voltage value.

Restore factory settings: In the power - on state, press the start/stop buttons simultaneously, and the nixie tube will display 888, indicating that the factory settings are restored.
