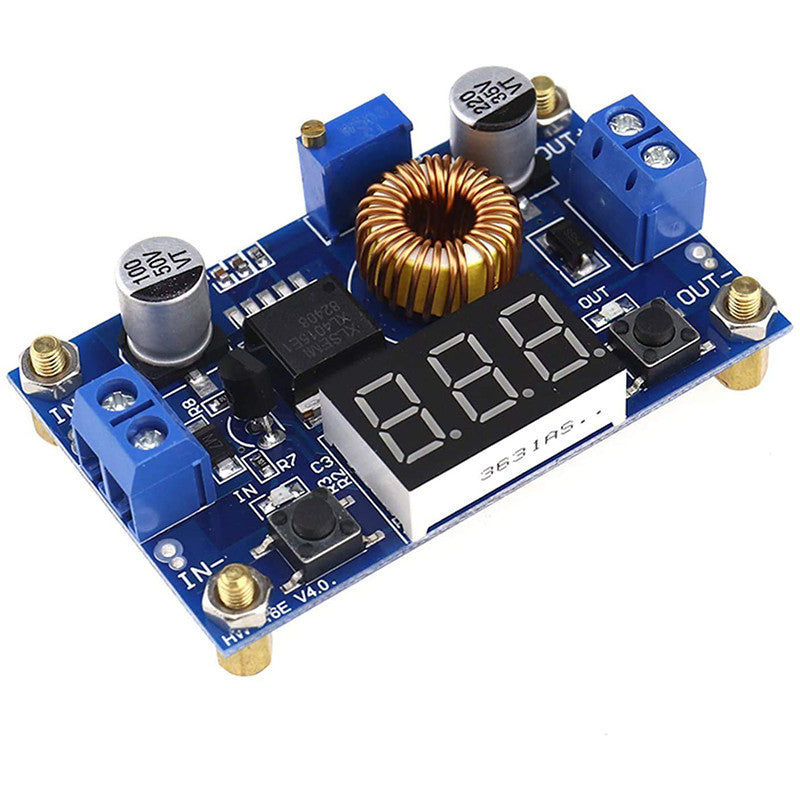

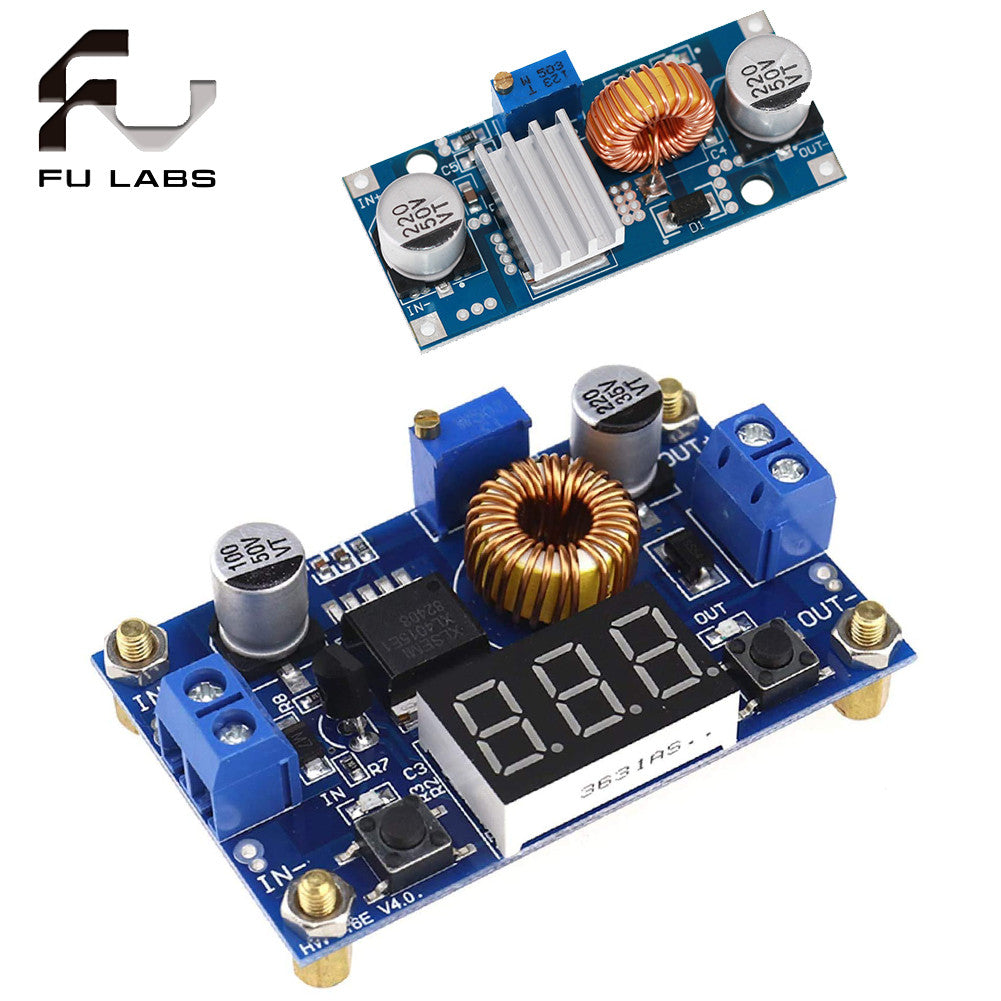

Xl4015e + Display Adjustable Step Down Volt DC 5A 75W Voltmeter XL4015 Button

  Xl4015e Display Voltmeter is a PWM buck (step-down) module with a fixed frequency of 180 KHz which is capable of moving 5A loads with high efficiency, low ripple and excellent line and load regulations. Module with voltage meter to display input voltage and output voltage. Voltage can be corrected via button to increase voltmeter accuracy.

Features:

1. 5a, high efficiency and low ripple

-power Indicator light

-On-board Voltmeter

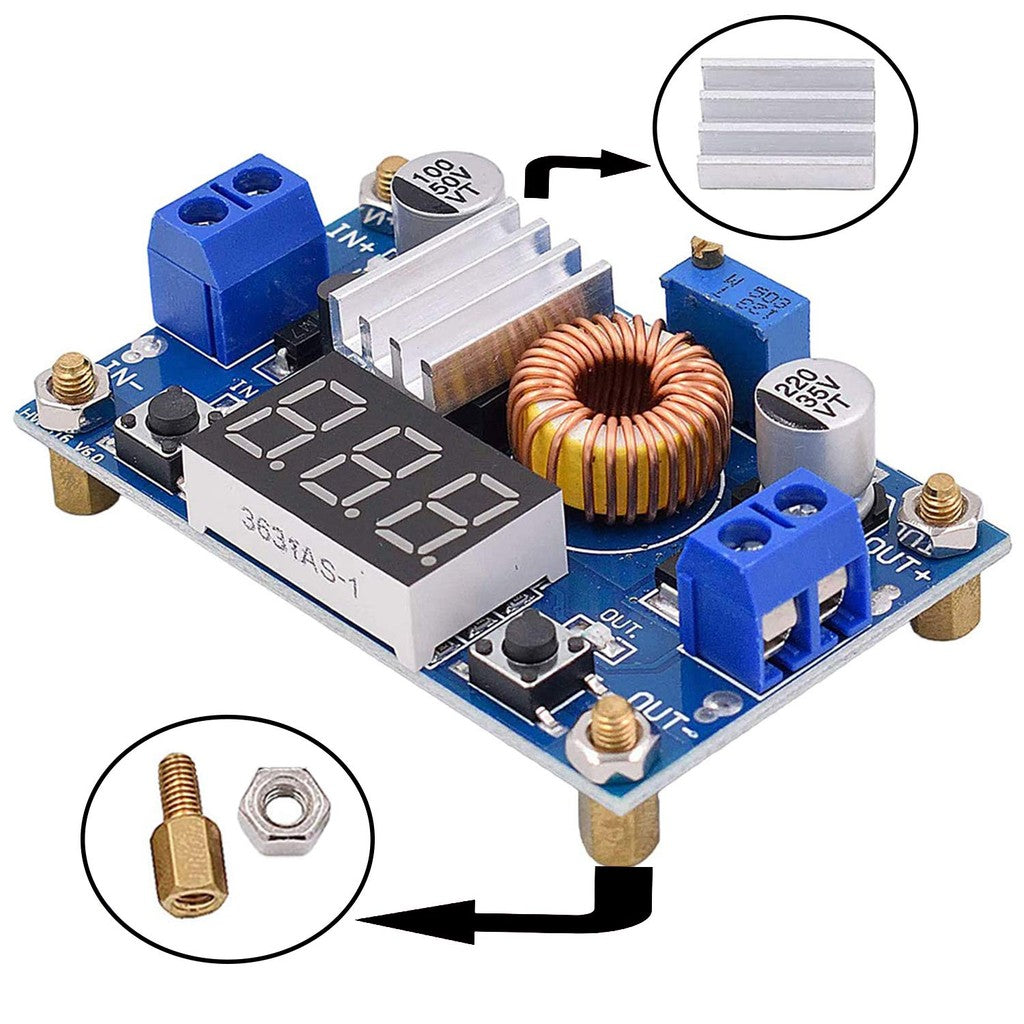

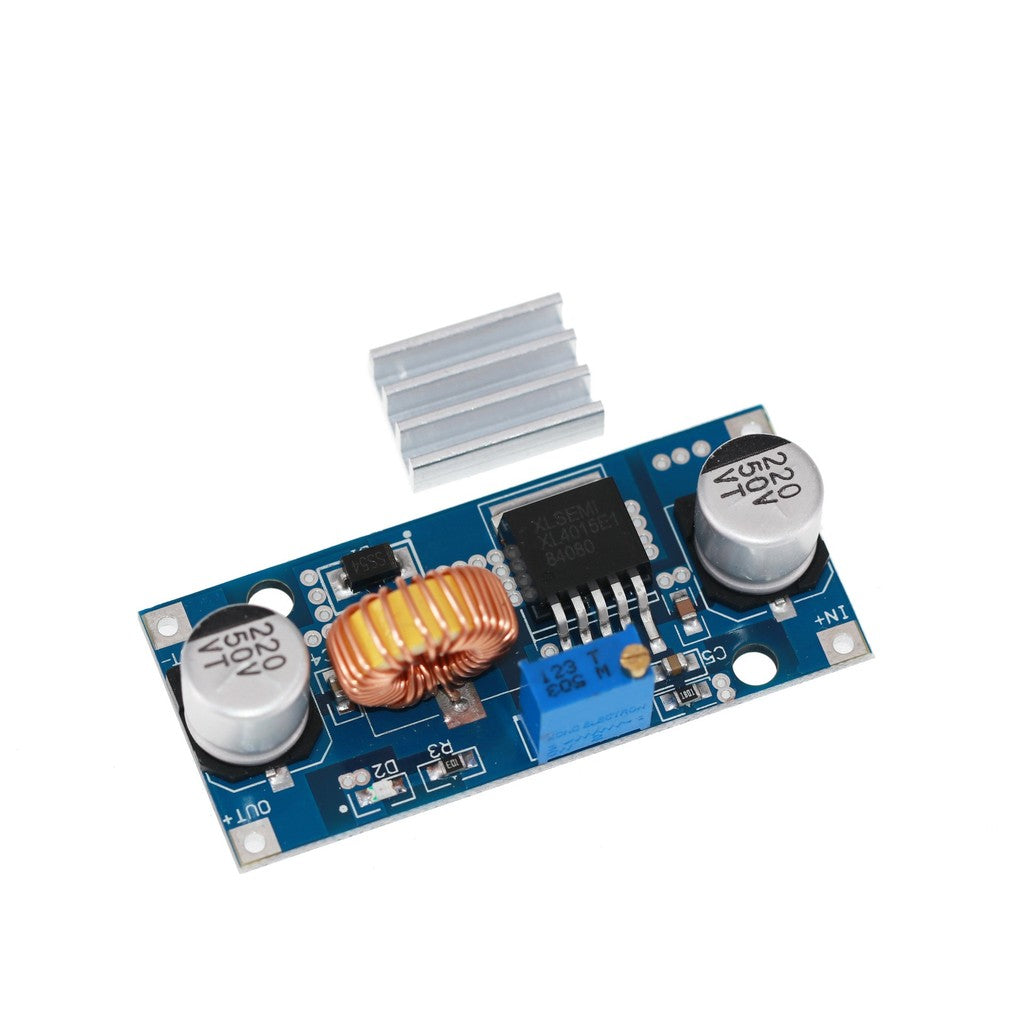

-Equipped With heatsink and pillar

Specifications:

-Input Voltage: DC 4.0 ~ 38V (Input must be 1.5V larger than output)

-Output Voltage: DC 1.25V ~ 36V

-Output Current: Max. 5a (recommended under 4.5A)

-Output Power: up to 75W

-Efficiency: Up to 95%

- Overheating & short circuit protection

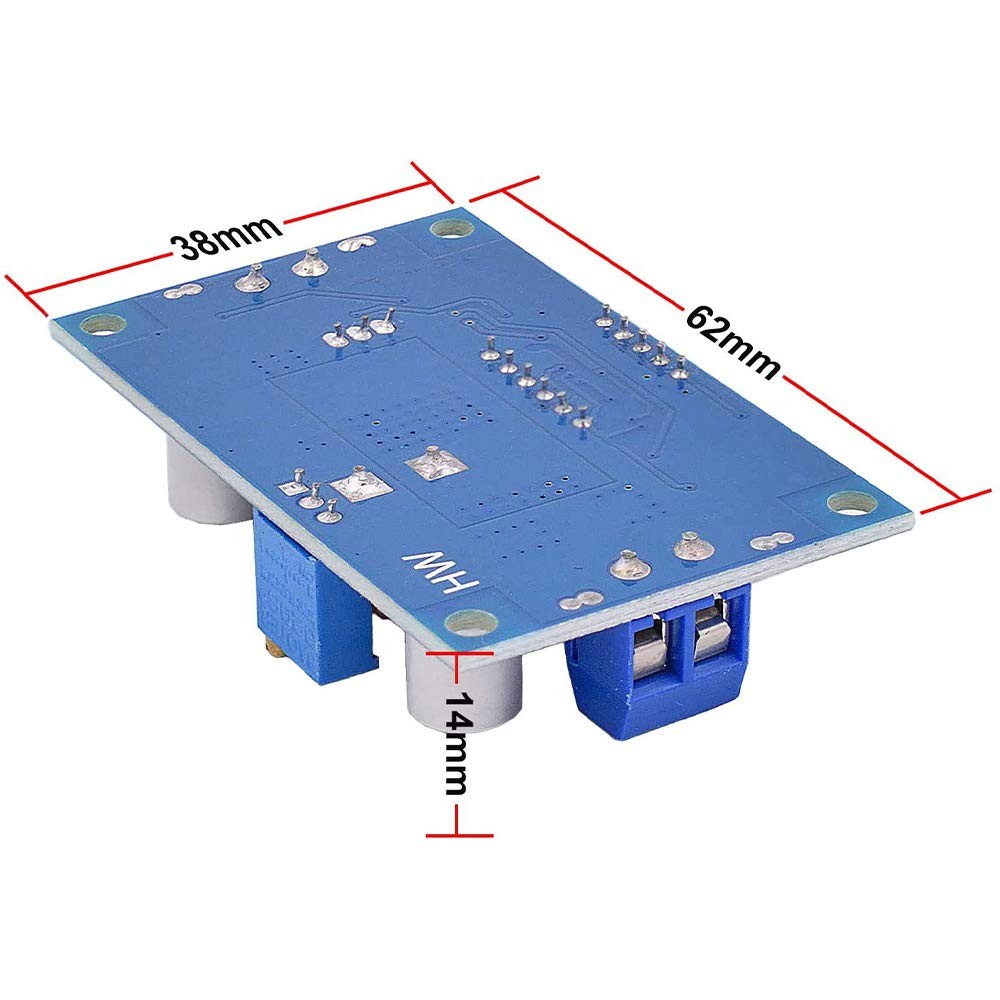

-Dimensions: 66 x 39 x 18mm

Item price includes shipping fee that should be borne by the buyer.

  Please note: Some customers reported that the module output voltage cannot be adjusted and is always equal to the input voltage. If you encounter this problem, please turn the potentiometer counterclockwise for more than 10 turns, and then use the module to adjust the voltage normally. Because the default output voltage of this step-down module is around 20V when it leaves the factory.
