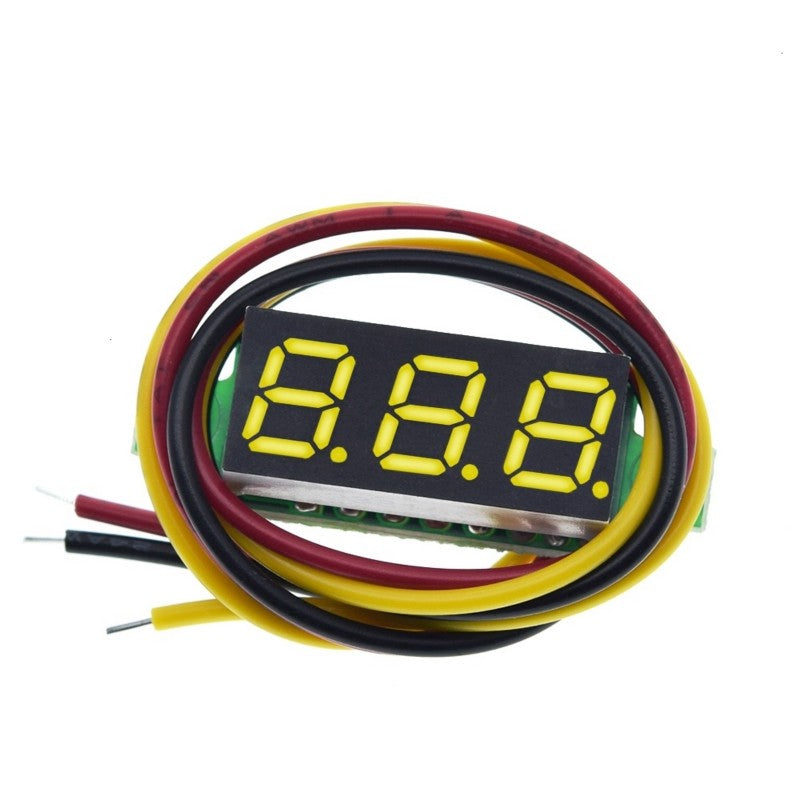

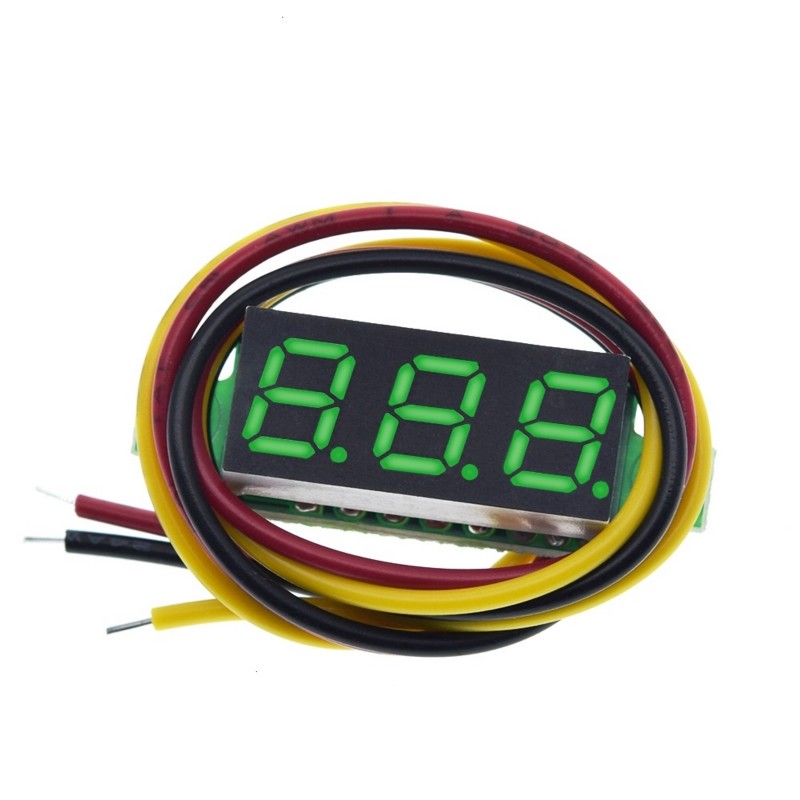

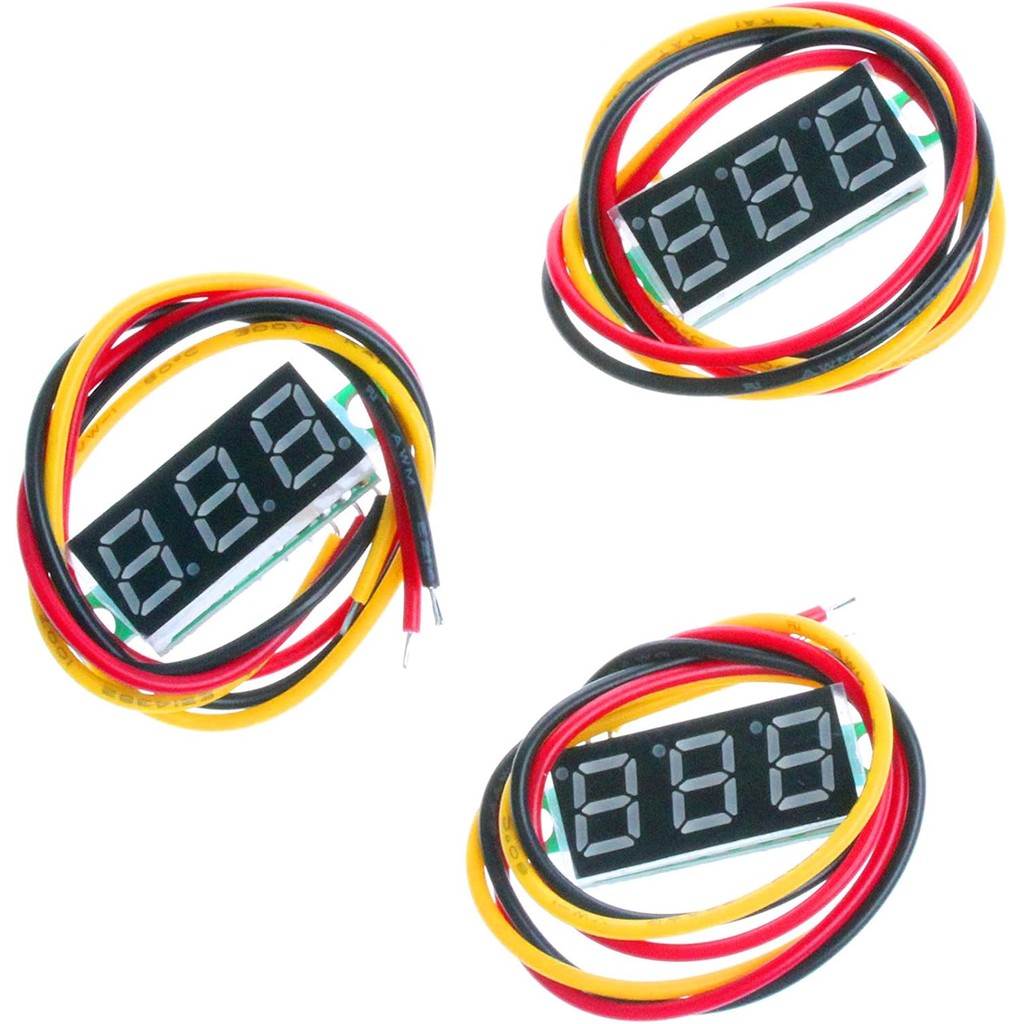

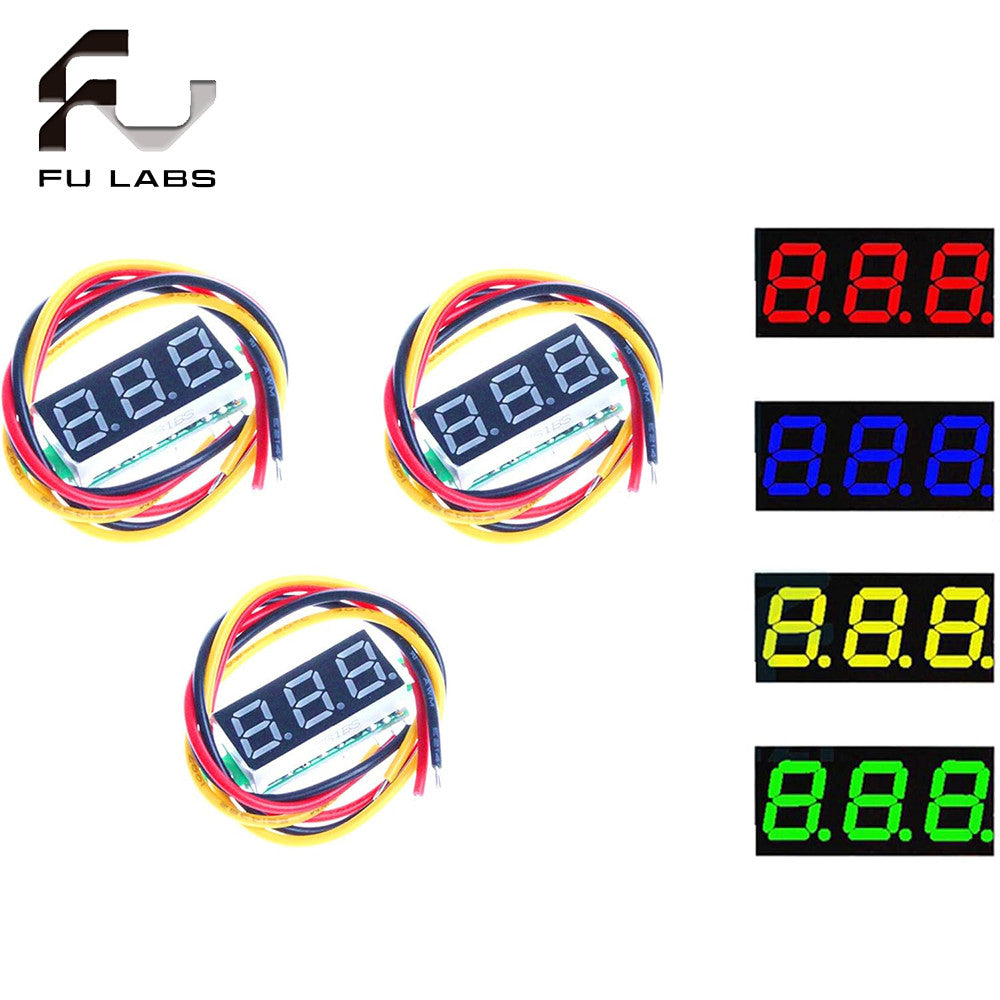

0.28 inch DC 0-100V 3-Wire Mini Gauge voltage meter Voltmeter LED Display Digital Panel Voltmeter Meter Volt Detector Blue Red Green Yellow

  0.28 inch DC 0-100V 3-Wire Mini Gauge voltage meter Voltmeter LED Display Digital Panel Voltmeter Meter Volt Detector Blue Red Green Yellow

Range DC DC0-100V, 2 and 3-wire products Universal, to break the routine voltmeter, is the latest design, can work directly in 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car /battery car / motorcycle-car line, with reverse polarity protection, line reversal will not burn. For monitoring thebattery voltage, battery voltage state to grasp, it can also be used for other products voltage measurementpurposes.

Note： 2 line with the highest input voltage can not exceed 30V, otherwise there is the risk of burnt.

NOTE: Three-line voltage range 0-100V, but also can be used as second-line use in 40V voltage to within

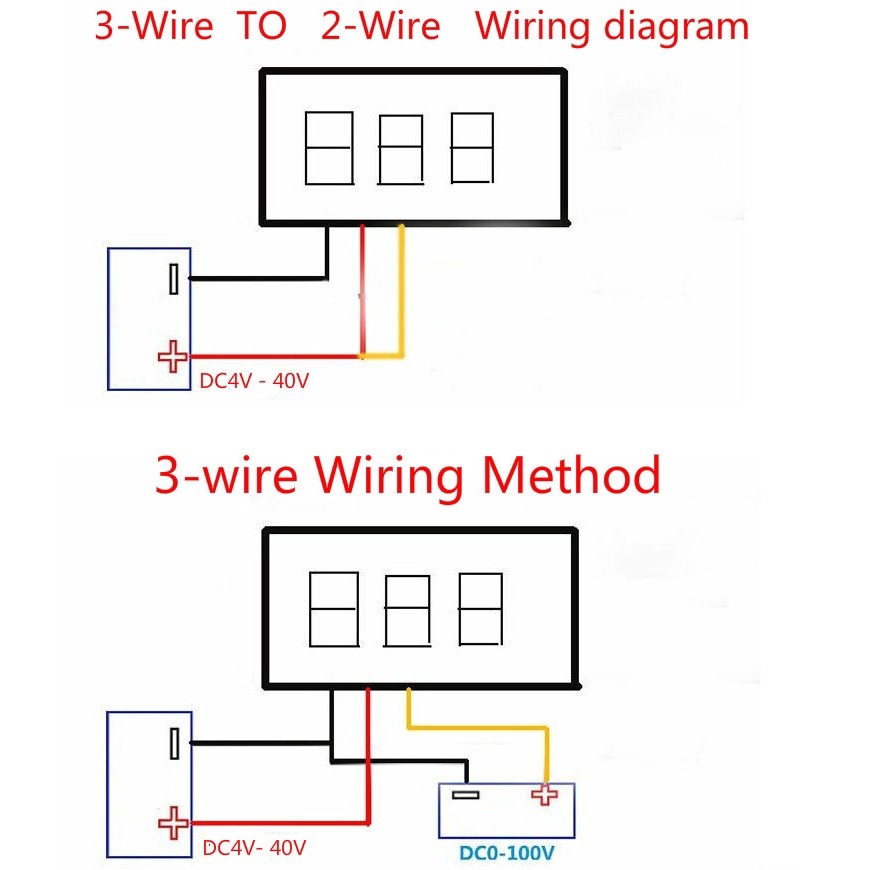

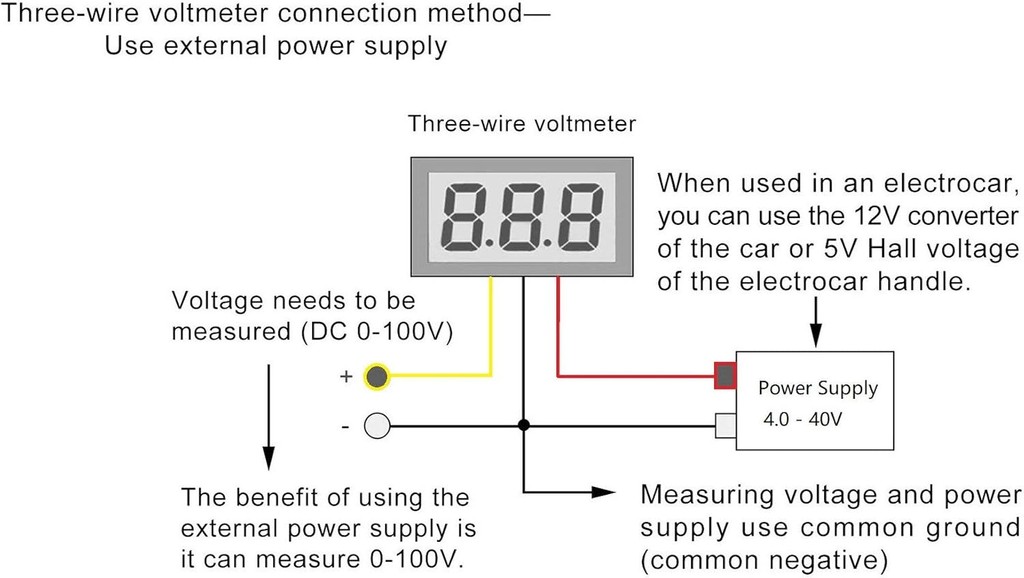

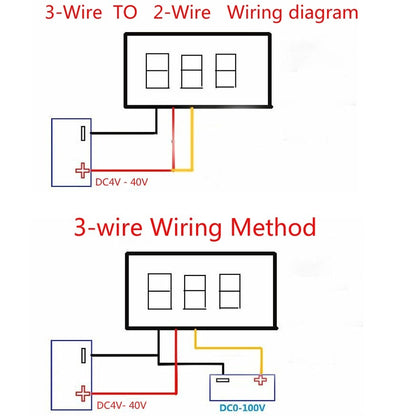

Please see the picture for wiring diagram

Technical parameters：

2 line working voltage: 4.0~40V (with reverse protection function)

2 line detection voltage: 0.0~40V

3 line working voltage: 4.0~40V (with reverse protection function)

3 line detection voltage: 0.0~100V

Working current: <20mA

Display mode: 0.28 "LED,

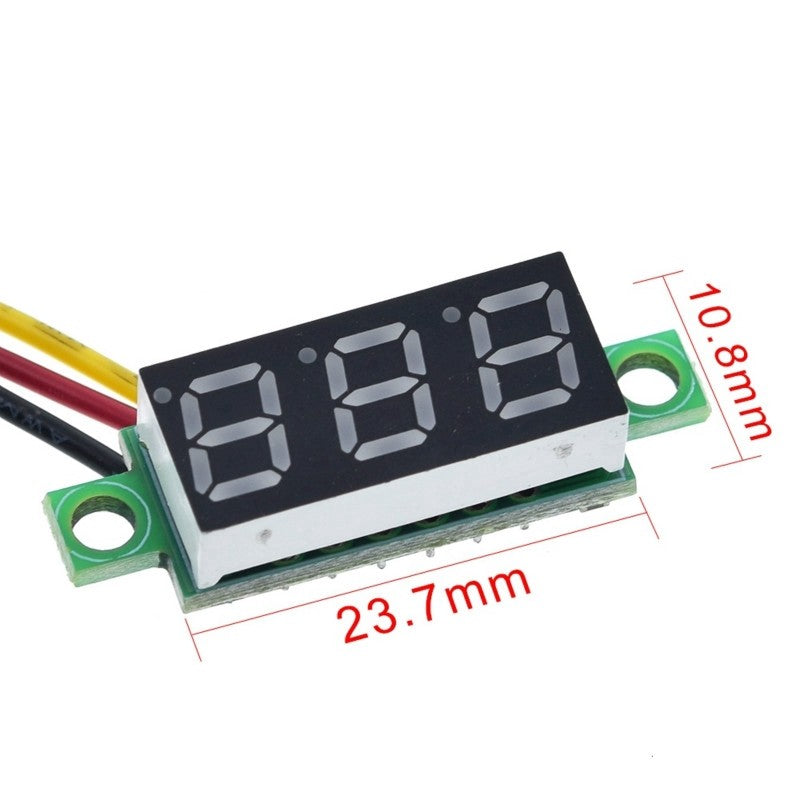

Mounting hole: 23 x 10 mm

The measurement rate: more than 200mS/ times

Measuring accuracy: 3 per thousand

Limit working condition：

Low working voltage: +4.0V

Maximum working voltage: +40V

Working temperature: -10 ~ +65

Working humidity: 10 ~ 80% (no condensation)

Working pressure: 80 ~ 106kPa

No direct exposure to sunlight

Main features:

1. product stability, high accuracy

2. standard size, easy to install

3. power supply with polarity protection circuit
