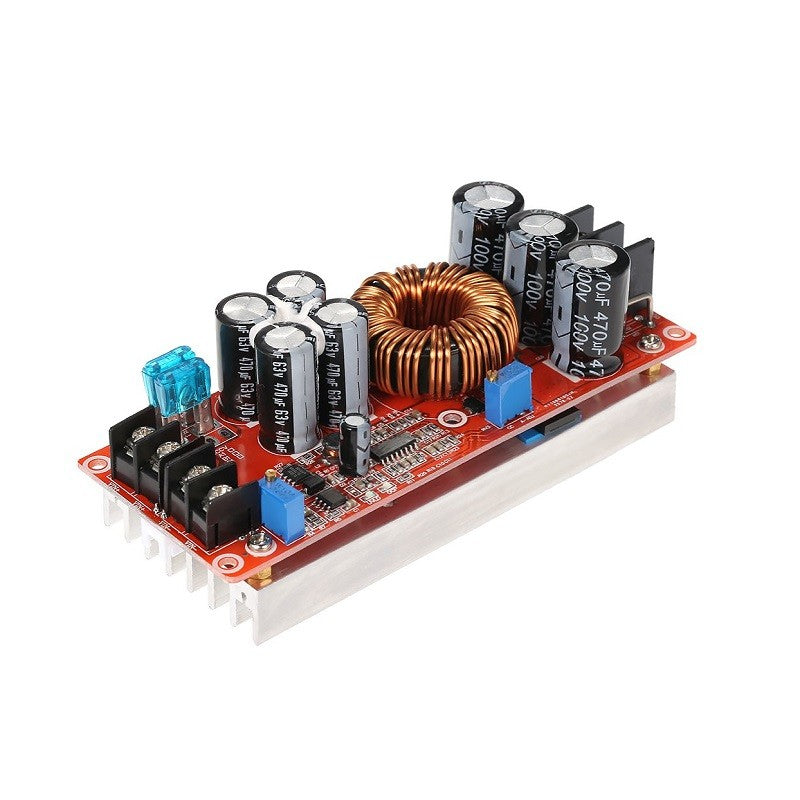

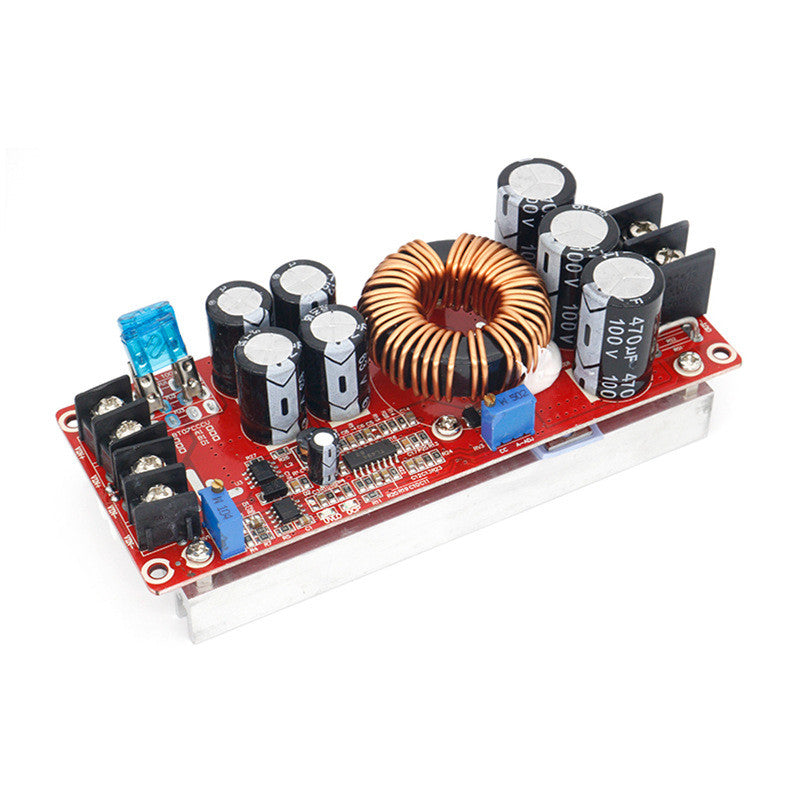

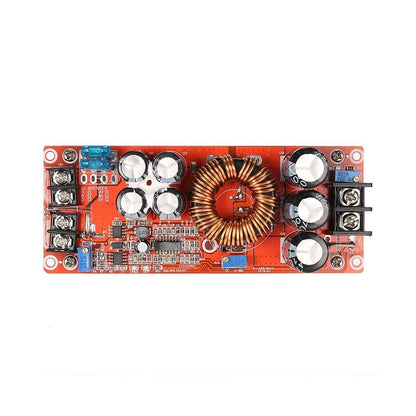

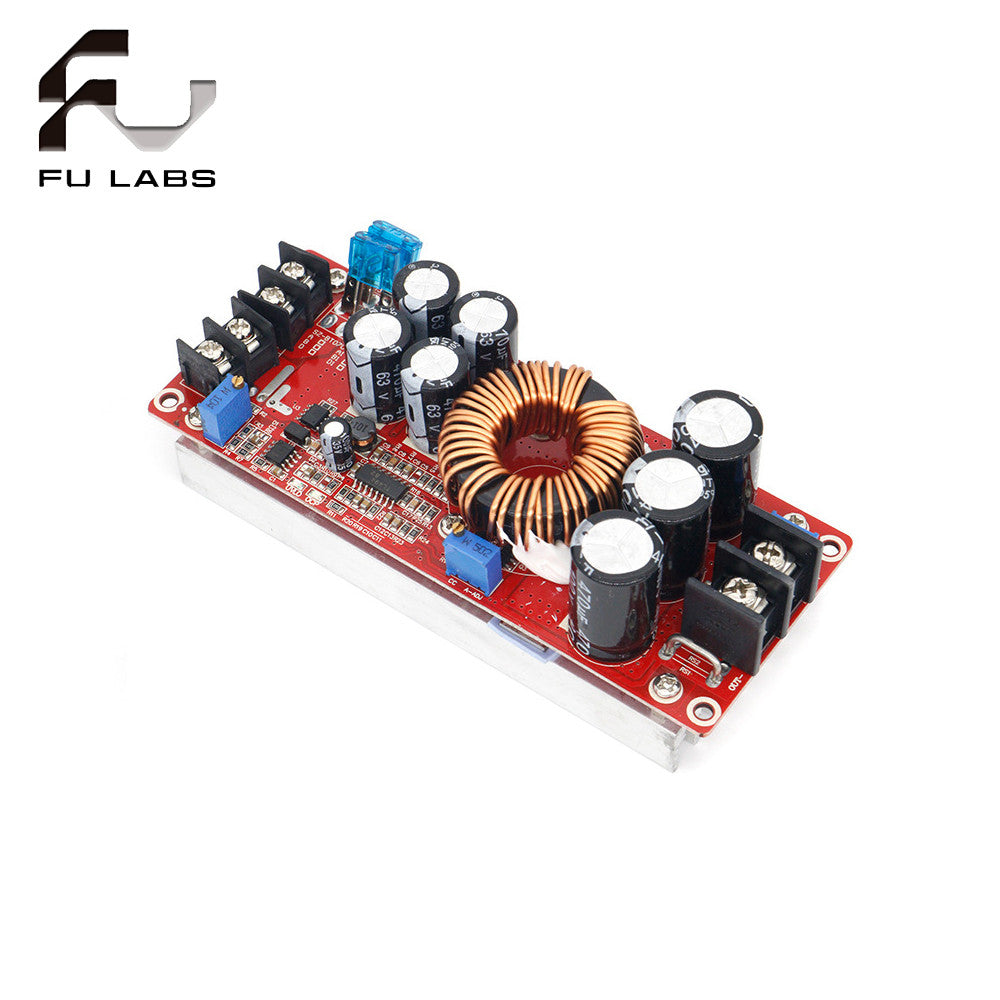

1pcs 8-60V to 12-83V 1200W 20A DC Converter Car Step-up Power Supply Boost Module

Product Parameters

● Module Model: 1200W20A Adjustable On - board Charging Power Supply Module (Code: 008532)

● Module Nature: Non - isolated Boost Module (BOOST)

Power Protection:

   ● Input Overcurrent Protection (When input exceeds 25A, it will be automatically protected and the power supply will not boost voltage)

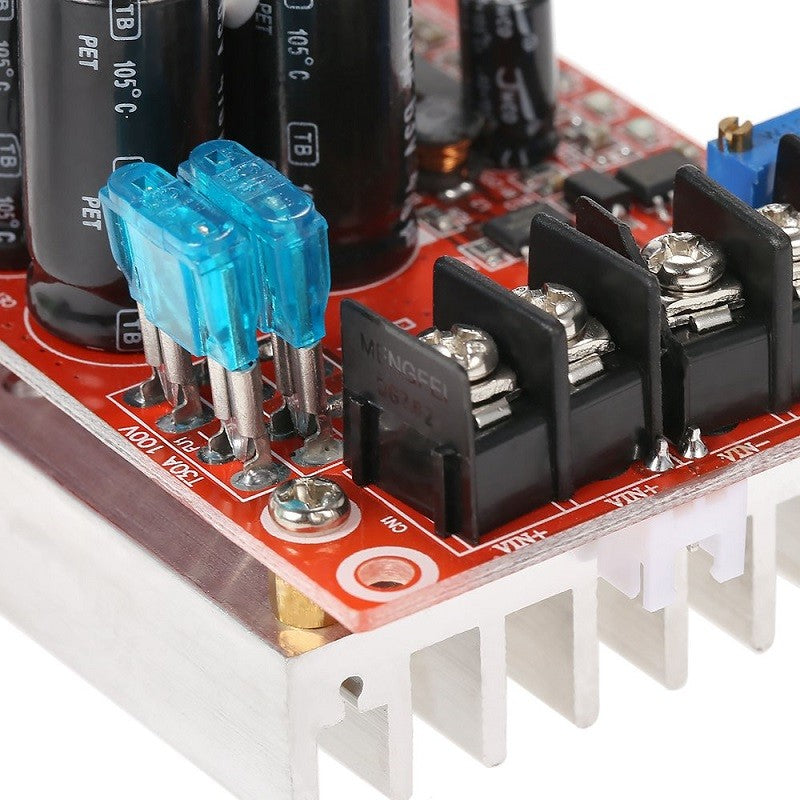

Short - circuit Protection (Input 30A fuse/Dual short - circuit protection for safer use)

   ● Input Reverse Connection Protection (150A power MOS tube for anti - reverse connection, can be reversely connected for a long time)

   ● Input Voltage: DC10 - 60V (Direct input of 10 - 60V without needing jumper caps to select voltage)

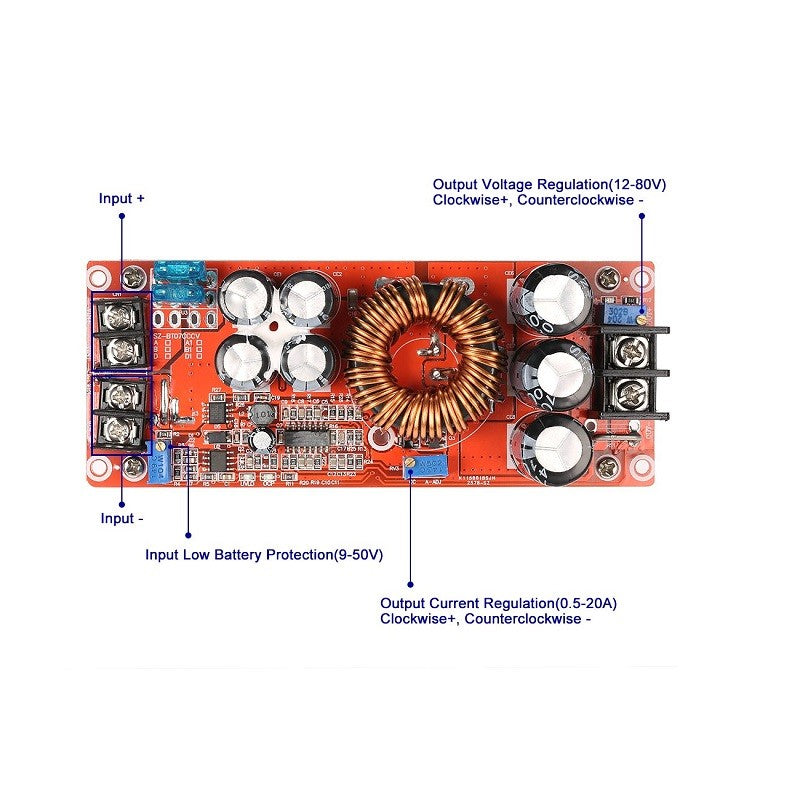

   ● Output Voltage: Continuously adjustable from 12 - 80V

   ● Input Current: 20A (MAX) (It is recommended to use fan for heat dissipation when exceeding 15A/When the input voltage for heating with fan is 12 - 24V, the input current can reach 25A)

   ● Output Current: 18A MAX (Please add heat dissipation when exceeding 10A/Related to input and output voltage difference, the larger the voltage difference, the smaller the output current)

   ● Quiescent Operating Current: 15mA (When 12V is on and 20V, the higher the output voltage, the static large current will increase somewhat)

   ● Constant Current Range: 0.5 - 18A (+/-0.3A)

   ● Input Anti - reverse Connection: Available (150A power MOS tube for anti - reverse connection, can be reversely connected)

   ● Low Voltage Protection: Available (Adjustable from 9 - 50V)

   ● Operating Frequency: 150KHz

   ● Operating Temperature: -40~+85℃ (Please enhance heat dissipation when the ambient temperature is too high)

   ● Conversion Efficiency: 92% (Efficiency is related to input, output voltage, current and voltage difference; the smaller the voltage difference, the higher the efficiency)

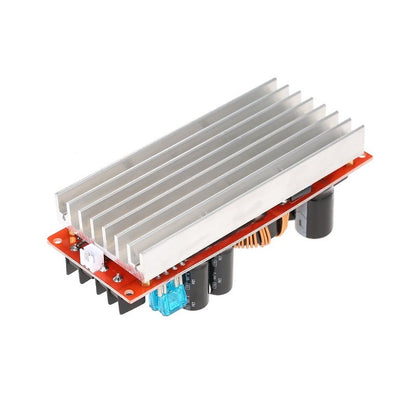

   ● Installation Method: 4 pieces of 3mm copper columns

   ● Wiring Method: Terminal

   ● Module Size: Length 130mm, Width 52mm, Height 53mm
