1pcs BMI160 Latest Stance Accelerometer Gyroscope module 6 Dof inertial Measurement Sensors

6DS3 Module Product Description

I. Basic Parameters

- Operating Voltage: 1.7-3.6V DC

- Communication Interface: I2C (up to 1MHz)/SPI

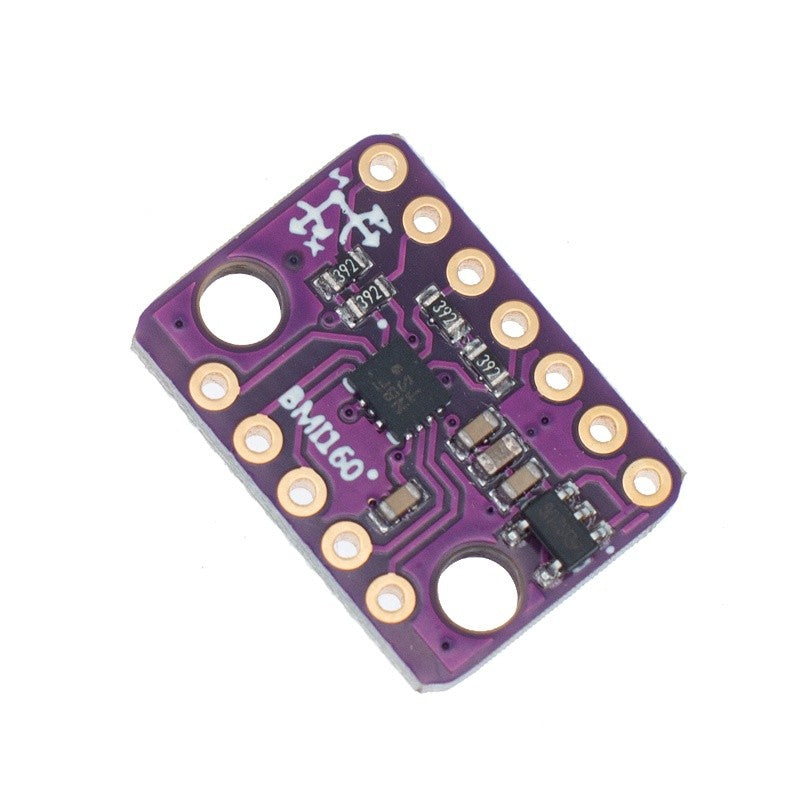

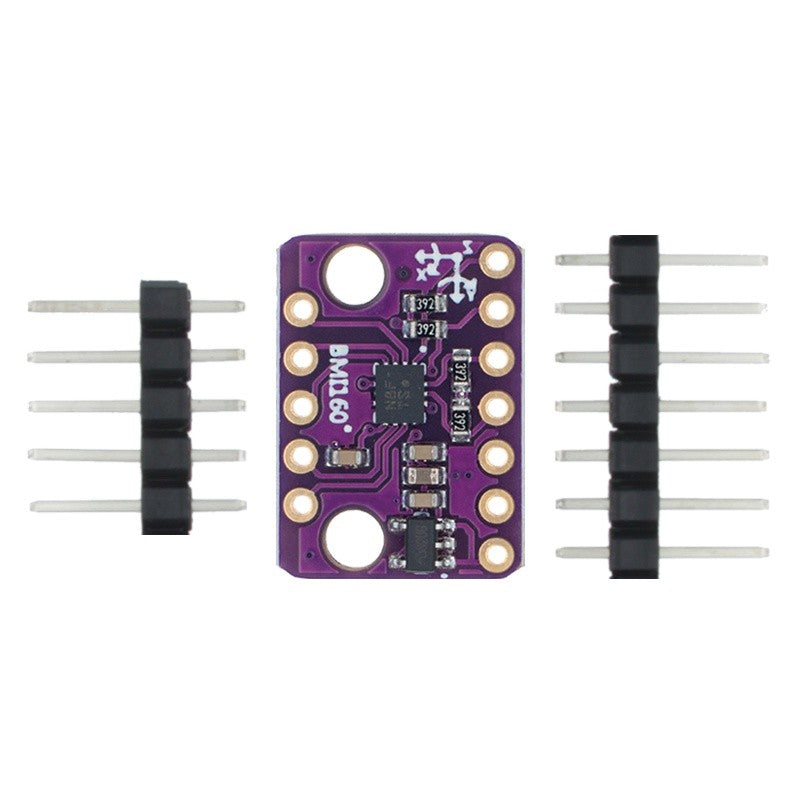

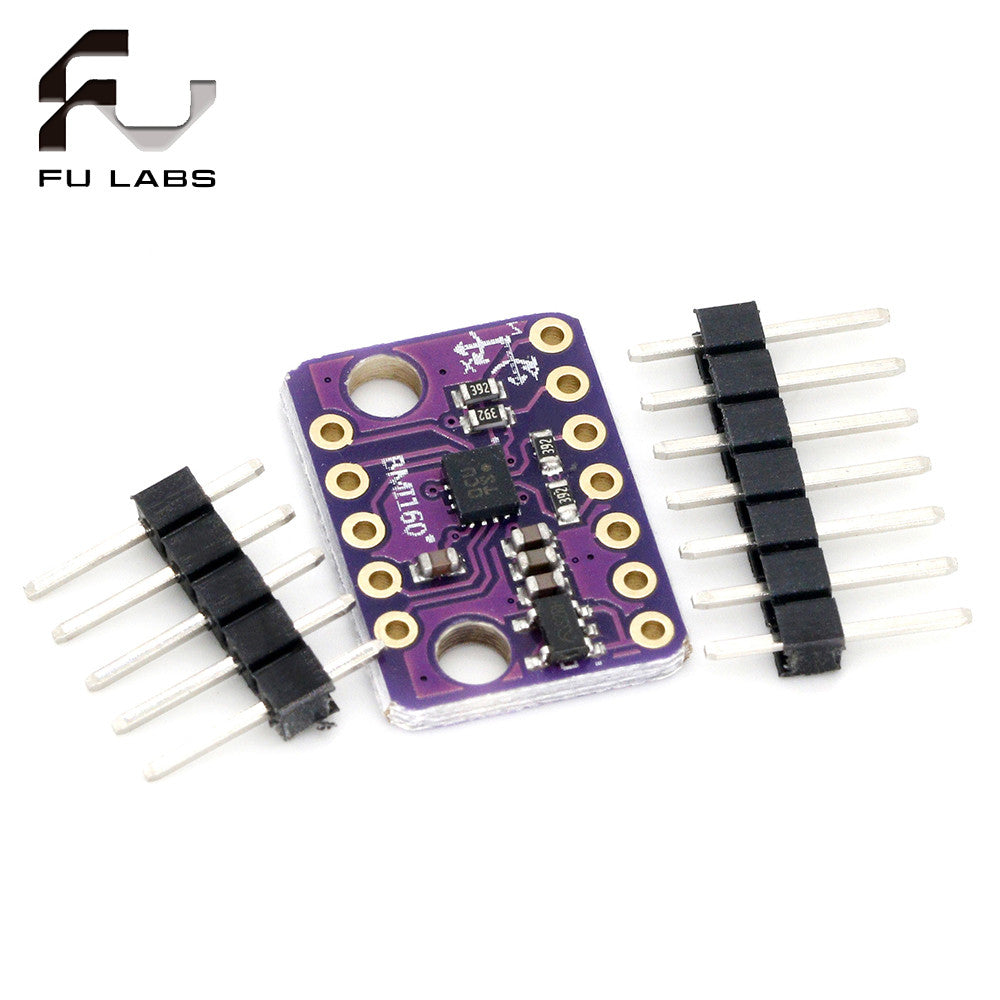

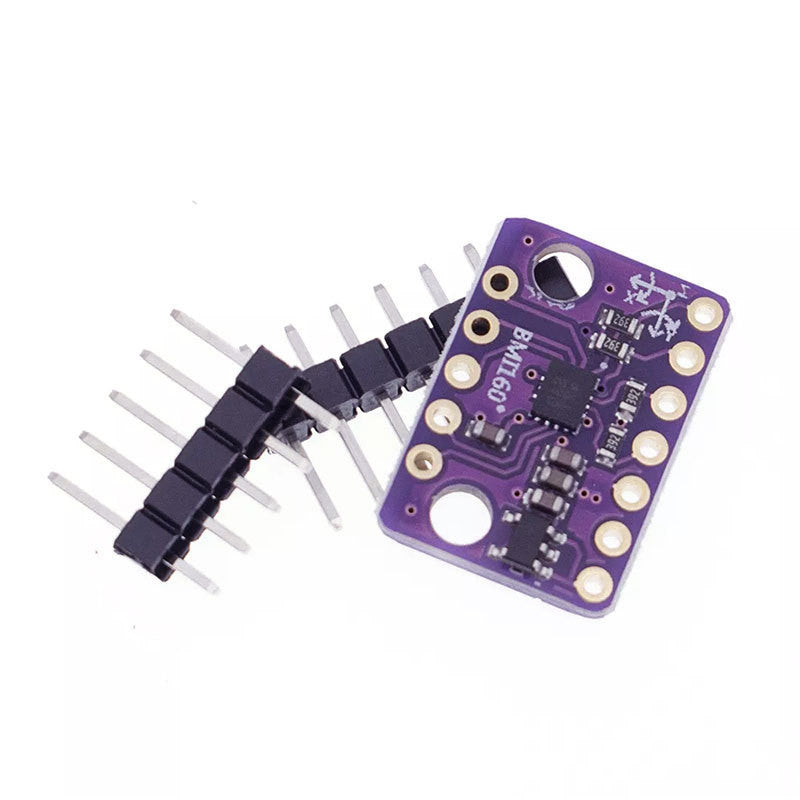

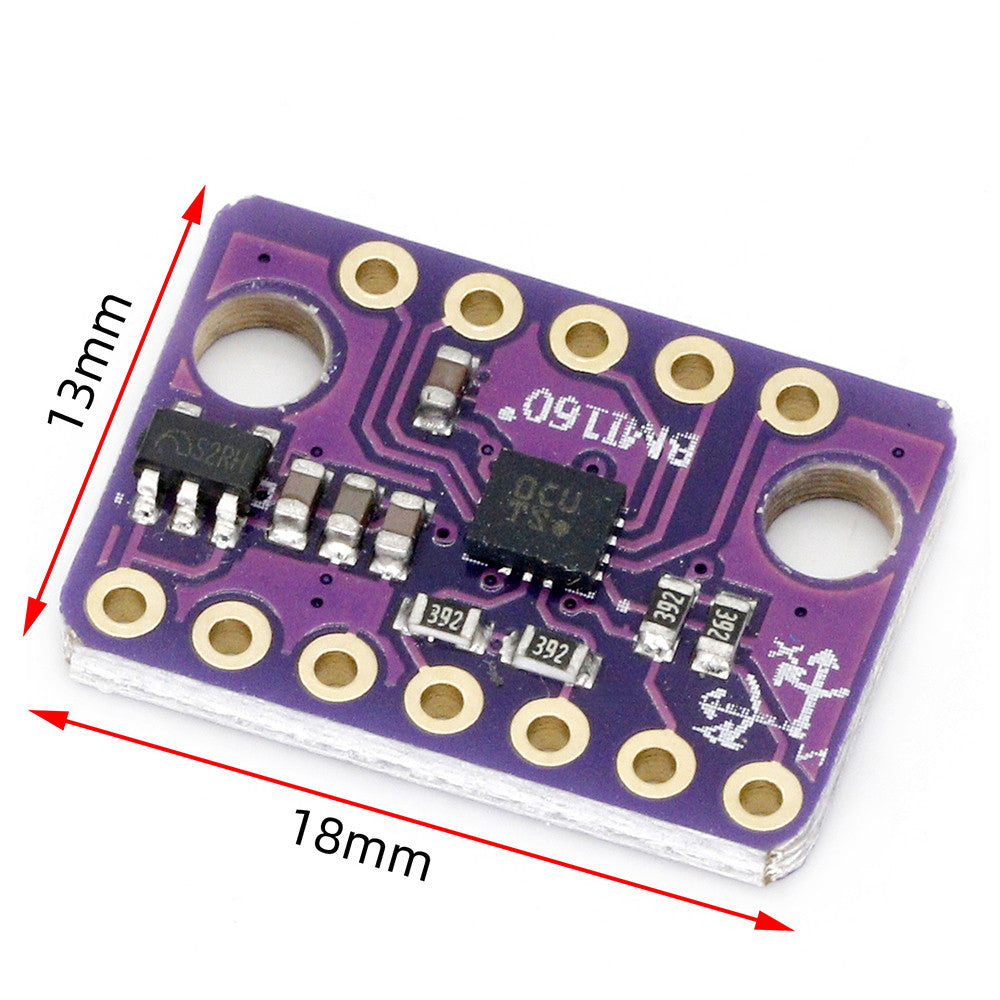

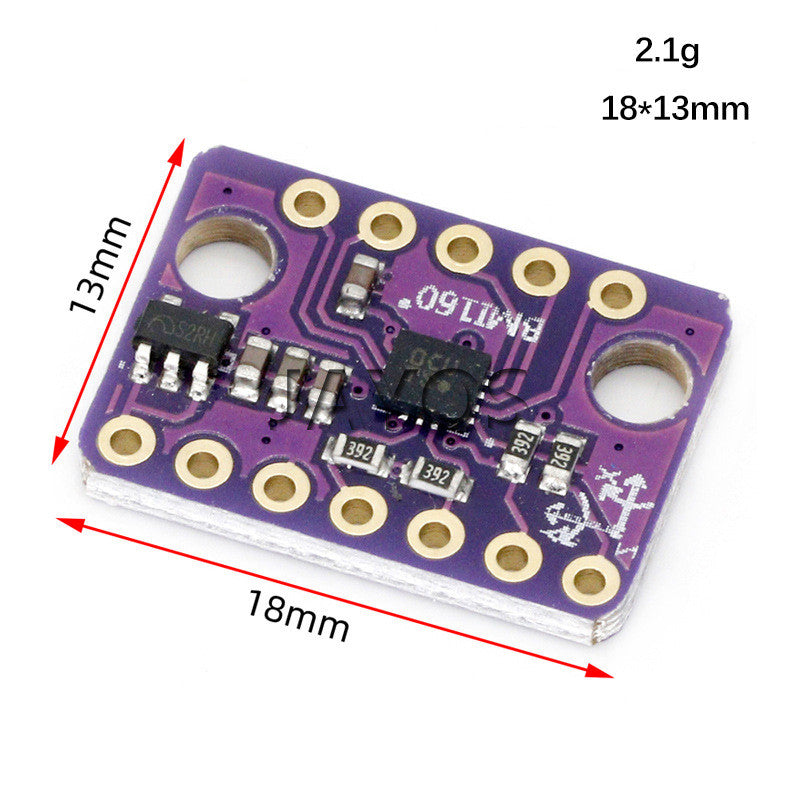

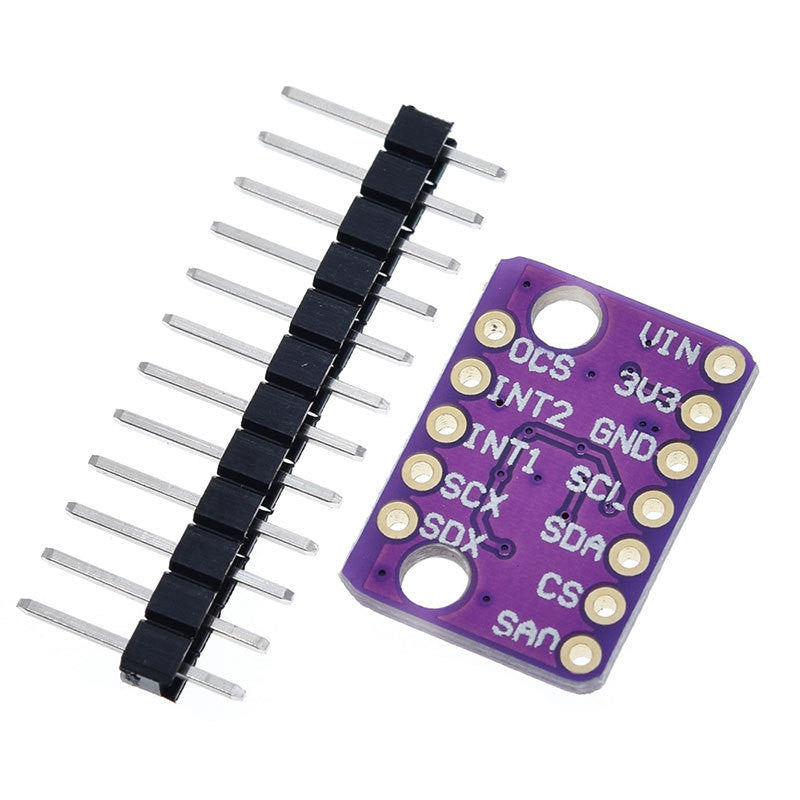

- Form Factor: Purple PCB module (as shown in the product image)

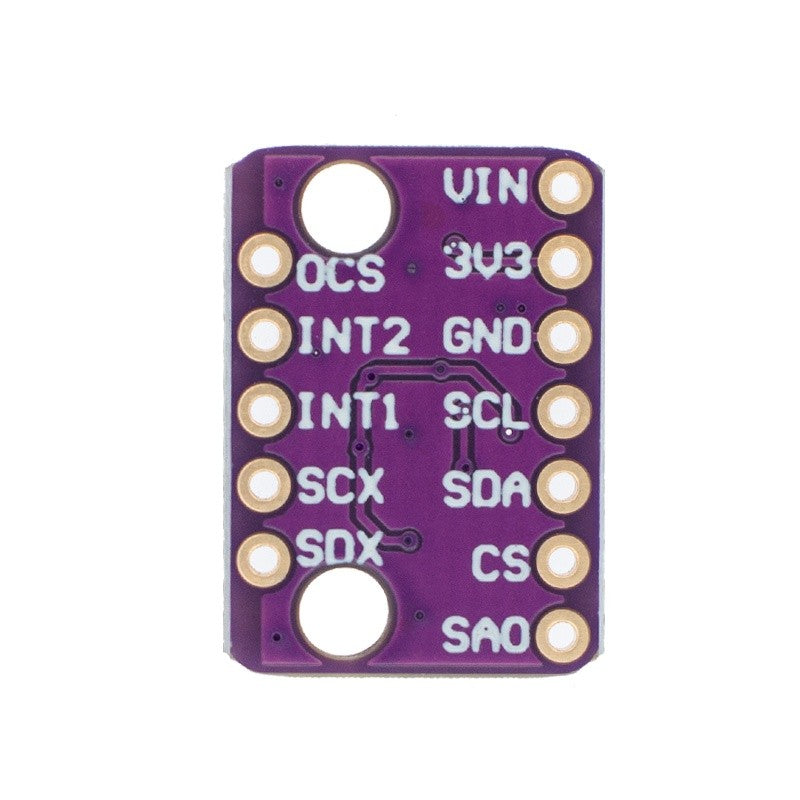

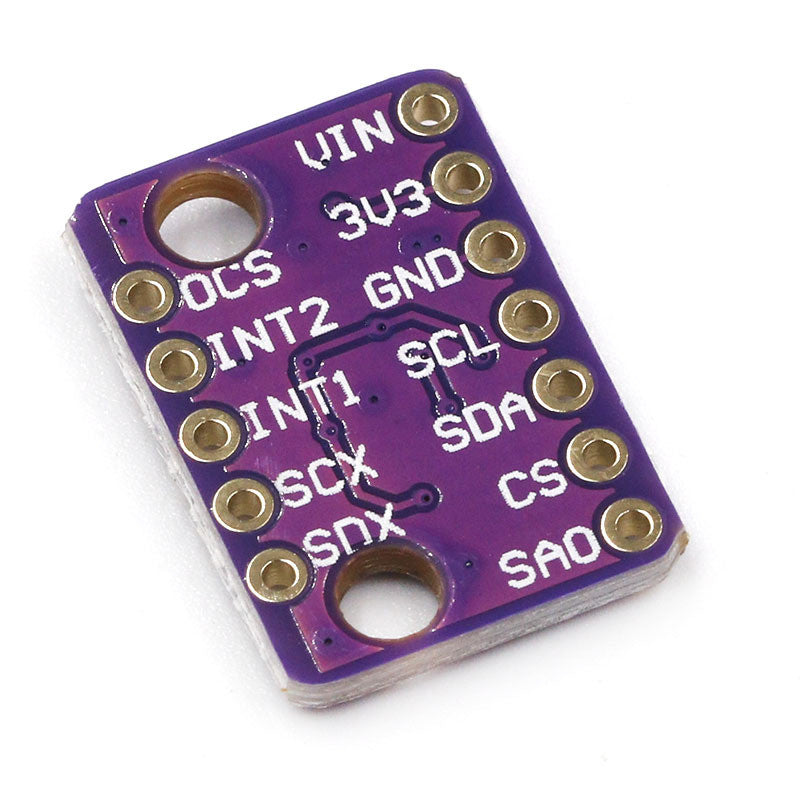

II. Pinout Details

- VIN: Positive power supply input

  3V3: 3.3V regulated power output

- GND: Ground (0V reference)

- SCL: I2C serial clock line / SPI serial clock (SCK)

- SDA: I2C serial data line / 4-wire SPI data input / 3-wire SPI data I/O

- CS: SPI chip select (mode selection pin)

- SA0: SPI data output / I2C address selection pin

- OCS: OIS interface (application-specific function)

2: Interrupt pin 2 (INT2)

- INT1: Interrupt pin 1

- SCX: Magnetometer sensor pin (X-axis)

- SDX: Magnetometer sensor pin (X-axis data I/O)

- This pin configuration supports both I2C and SPI communication protocols, with dedicated pins for power, control, and sensor interfaces. The module integrates magnetometer functionality via the SCX/SDX pins, making it suitable for motion tracking or orientation-sensing applications.
