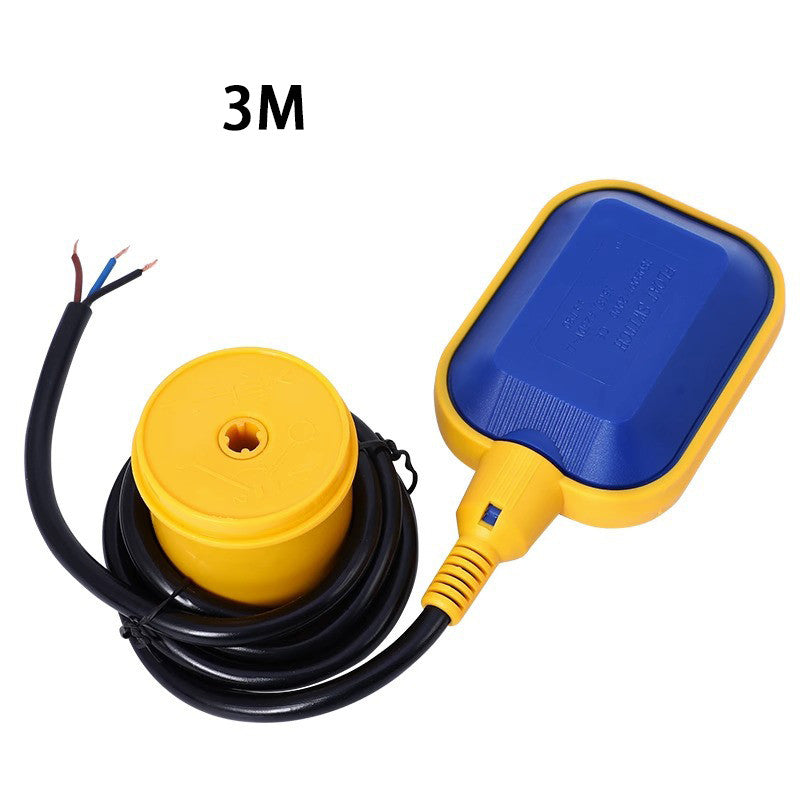

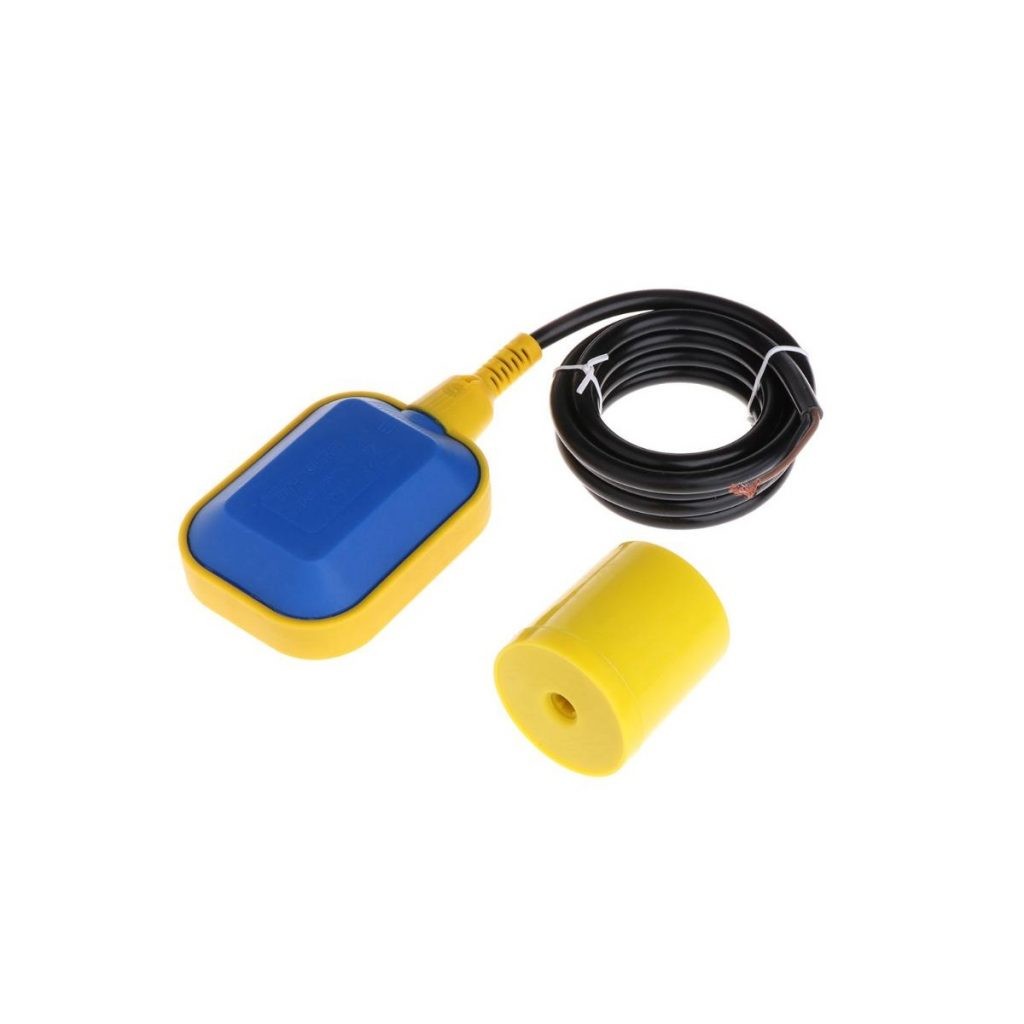

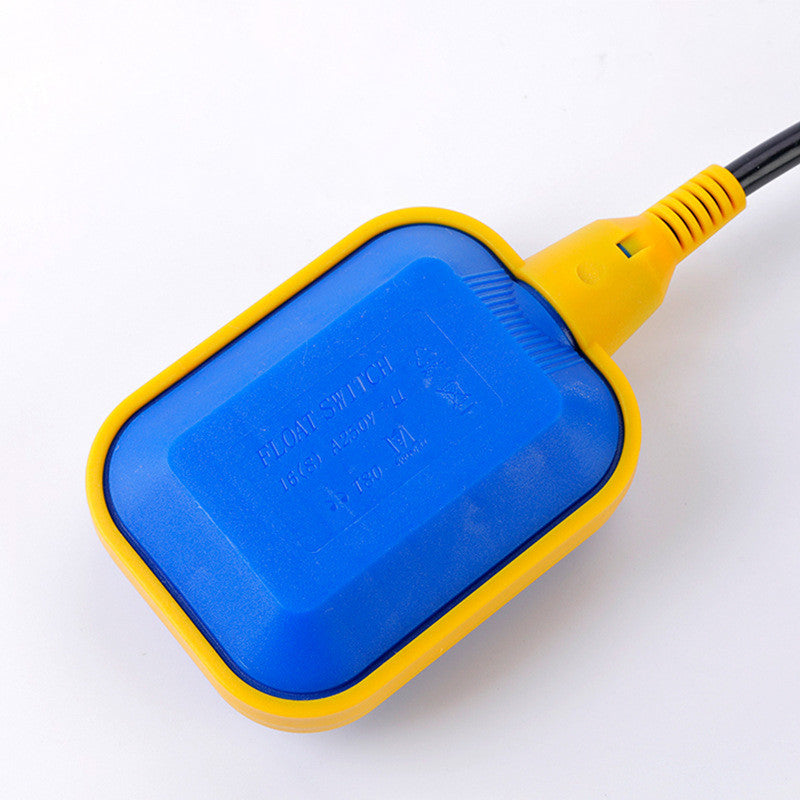

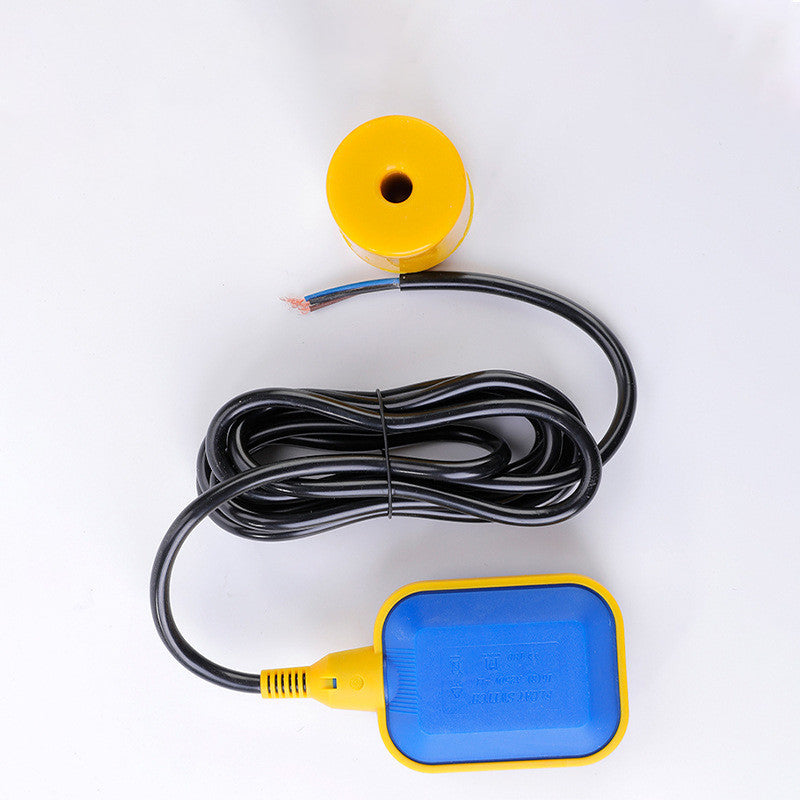

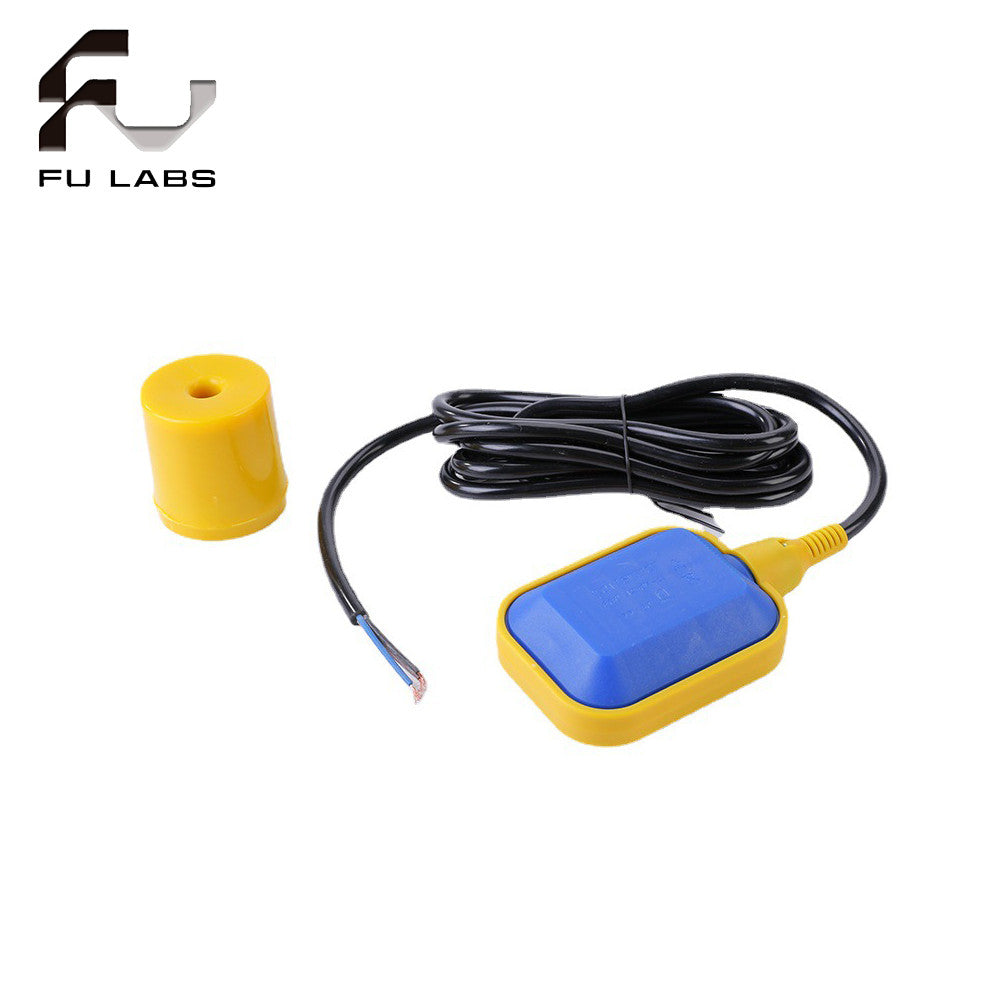

1pcs Cable Type Float Switch Liquid Fluid Water Level Controller Sensor 2m3m5m6M8m10m

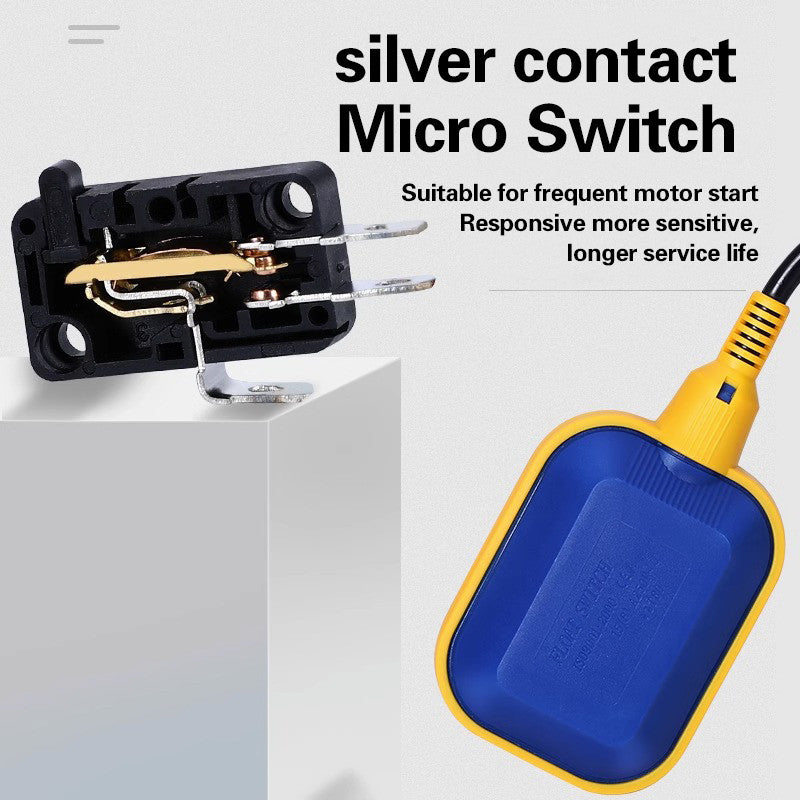

Product Description of Square Liquid Level Float Switch

1. Product Parameters

● Product Name: Liquid Level Float Switch (Square)

● Rated Current: 16A

● Operating Temperature: 0 ~ 30°C

● Rated Voltage: 250V

● Protection Grade: IP65

2. Product Components and Features

(1) PP Polypropylene Shell

The shell is made of PP polypropylene material, ensuring reliable quality and performance from the "core" to the outside.

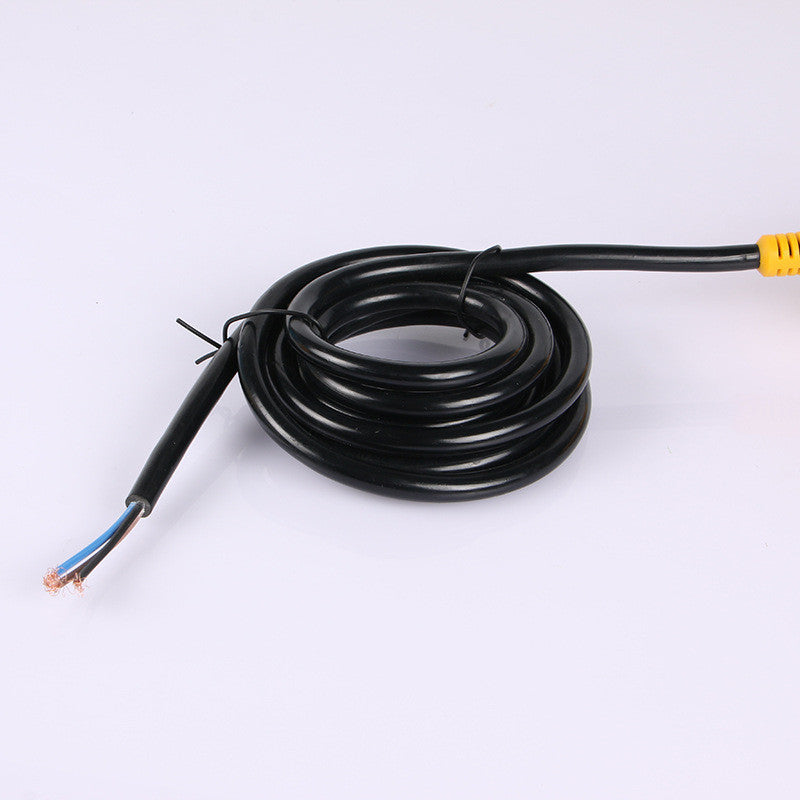

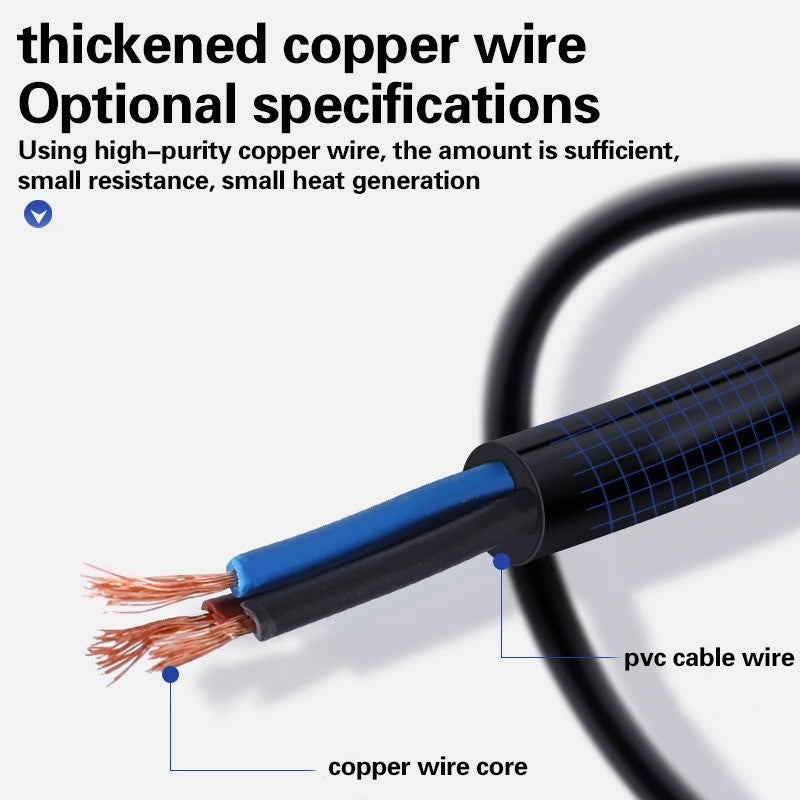

(2) PVC Cable

A PVC - material cable is used to effectively protect the wire core and improve the product's durability.

(3) Stable and Non - Tripping

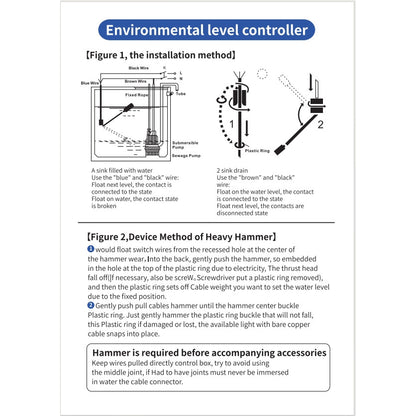

The weight comes with a working principle diagram, facilitating debugging and installation, and ensuring stability and resistance to tripping during use.

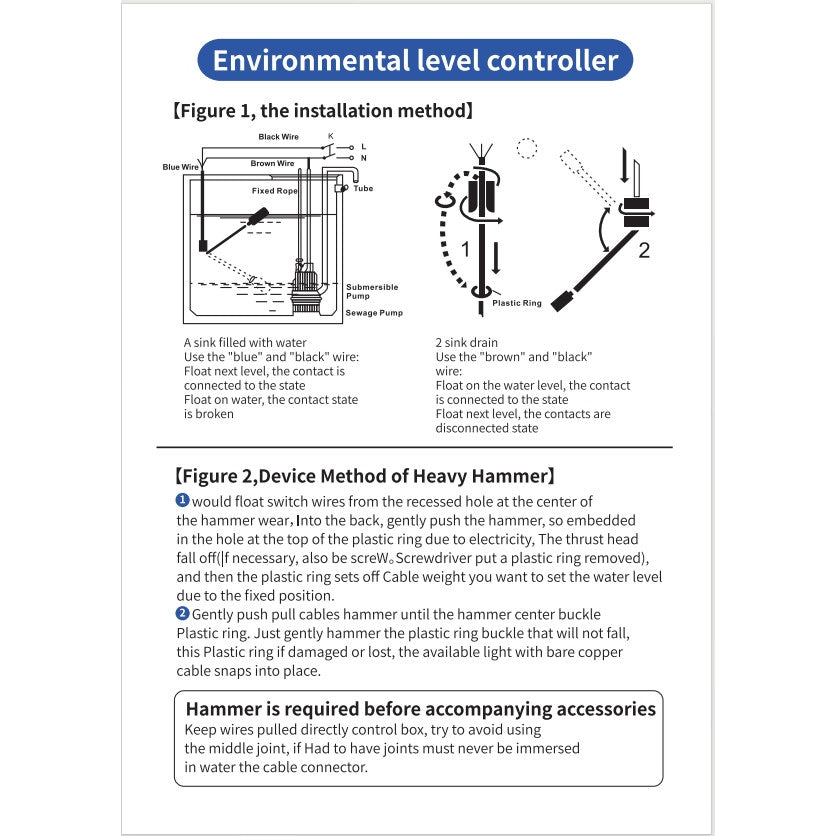

3. Wiring and System Operation Instructions

(1) Water Supply System

Wire Selection: "Black" + "Blue" wires

Working Logic: When the float is at the low water level, the contact is closed; when the float rises to the high water level, the contact is open.

(2) Drainage System

Wire Selection: "Black" + "Brown" wires

Working Logic: When the float is at the high water level, the contact is closed; when the float drops to the low water level, the contact is open.

(3) Wiring Mnemonics and Principles

"Blue - Black": Closed at Low Position, Open at High Position

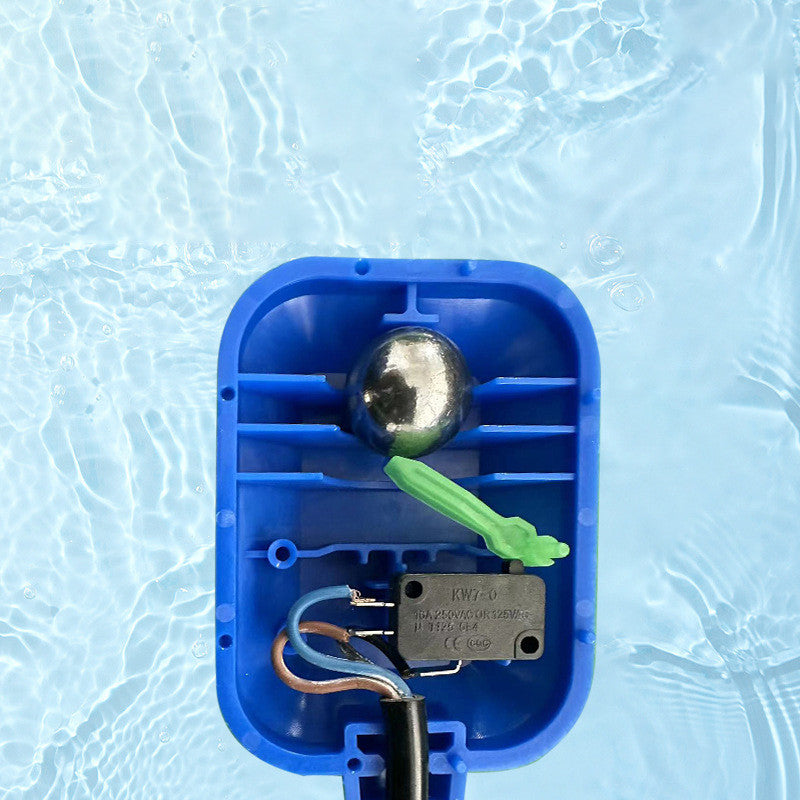

When the float head is downward, the power is connected to start the water pump. The rising water level of the water tank drives the float to rise. When the float head is upward, the internal steel ball falls, the power is disconnected, and the water pump stops. After water is used, the float head falls back downward, and the power connection cycles.

"Brown - Black": Closed at High Position, Open at Low Position

When the float head is upward, the power is connected to start the motor. The falling water level of the water tank drives the float to sink. When the float head is downward, the power is connected, and the water pump stops. After water is injected and the water level rises, the float head floats upward, and the power connection cycles.
