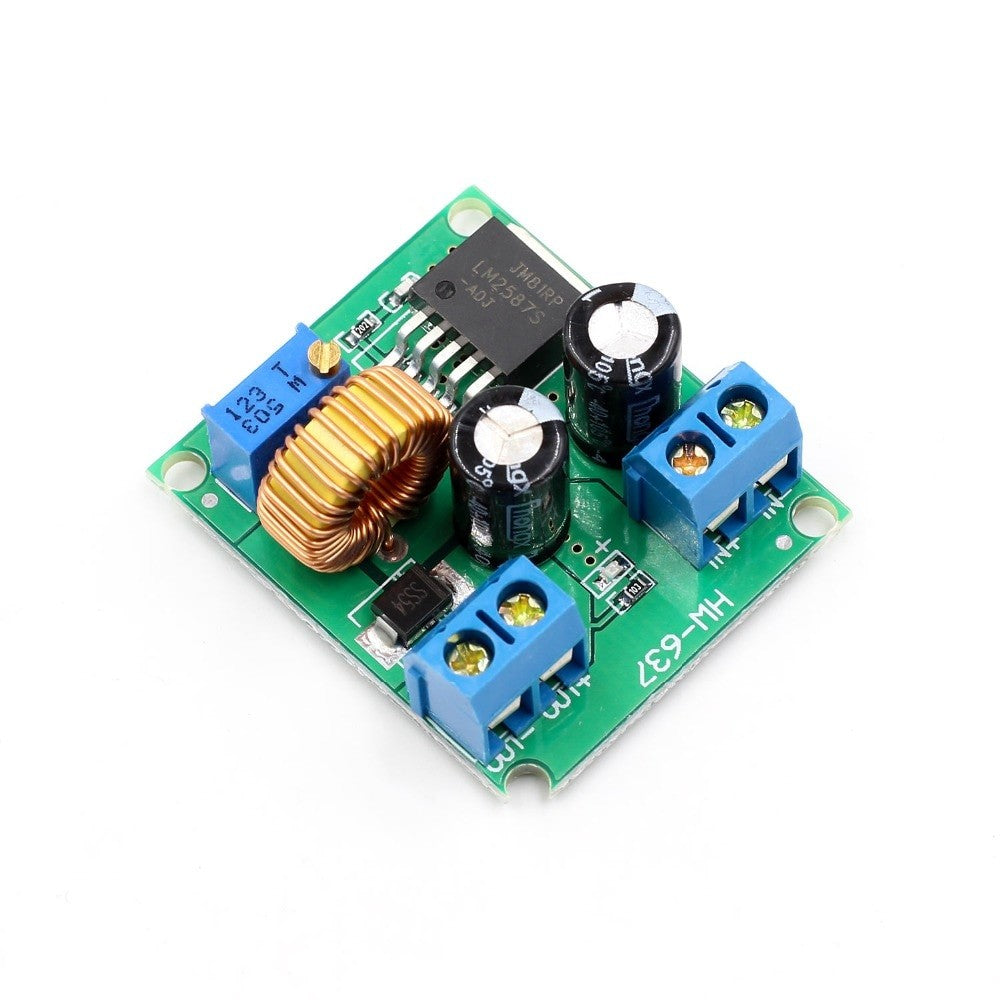

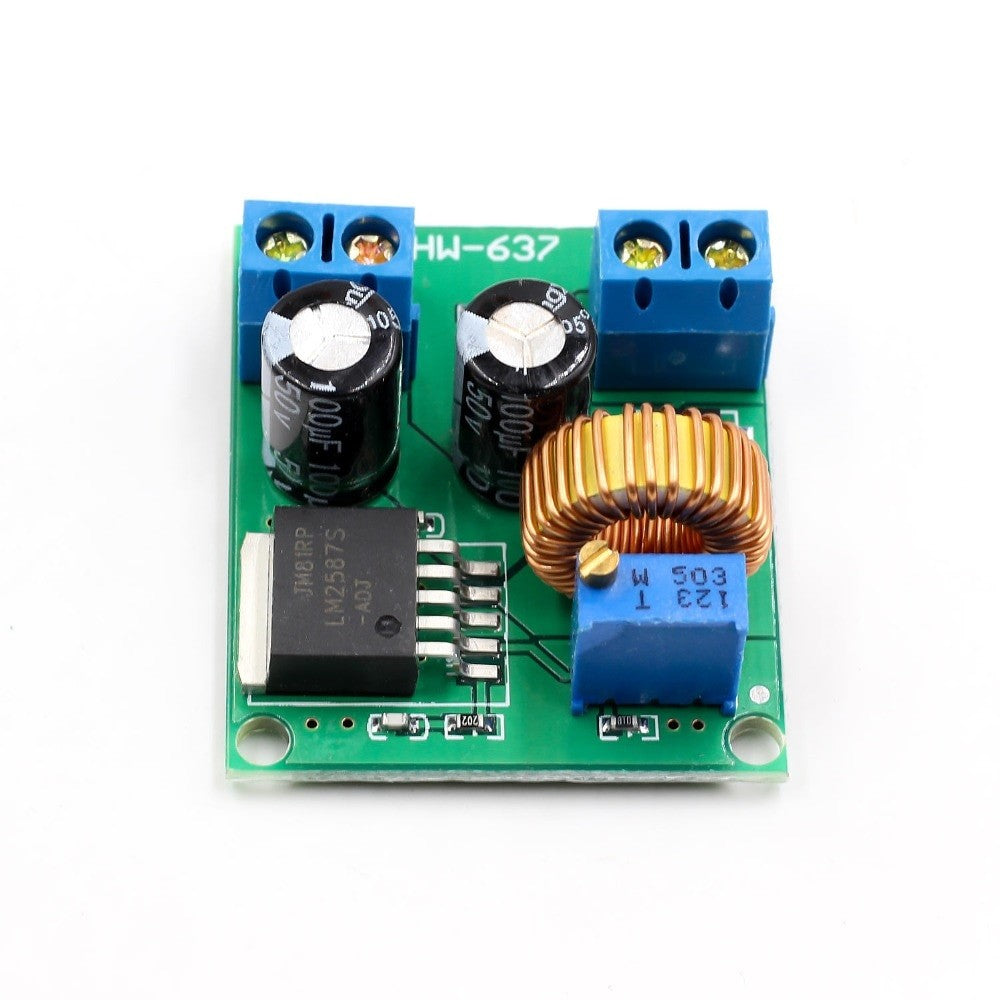

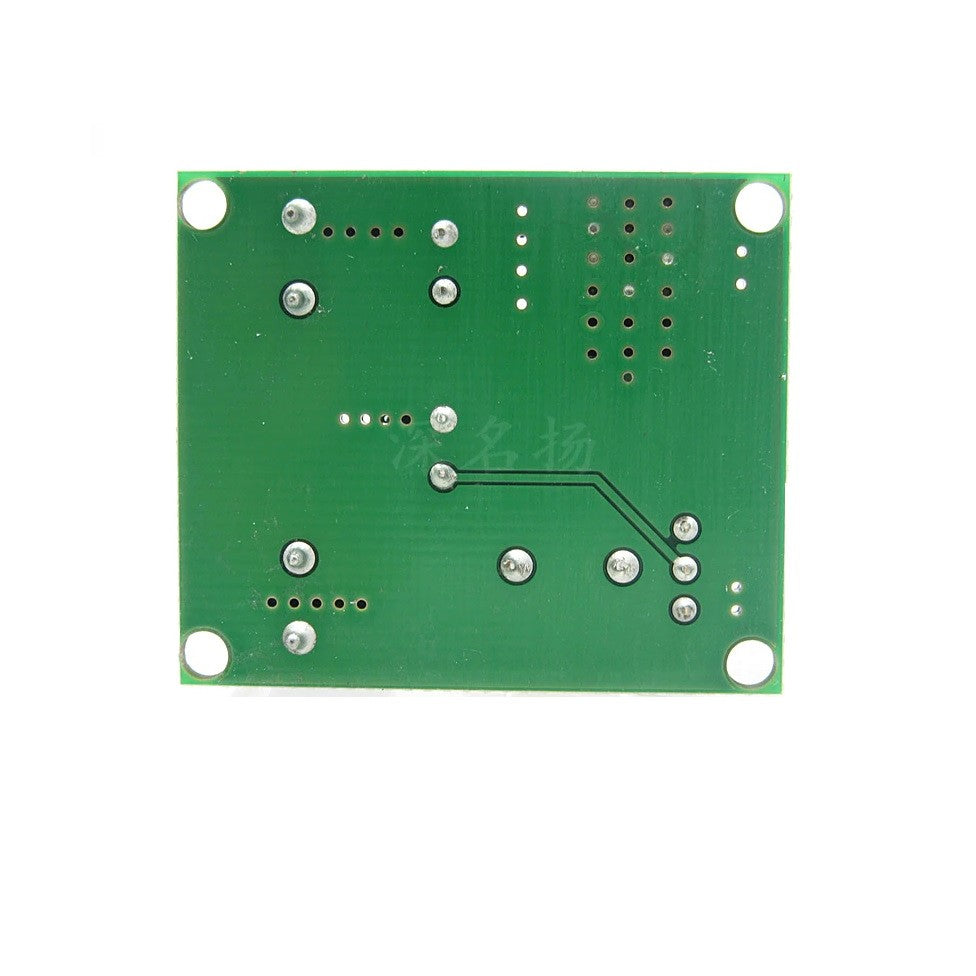

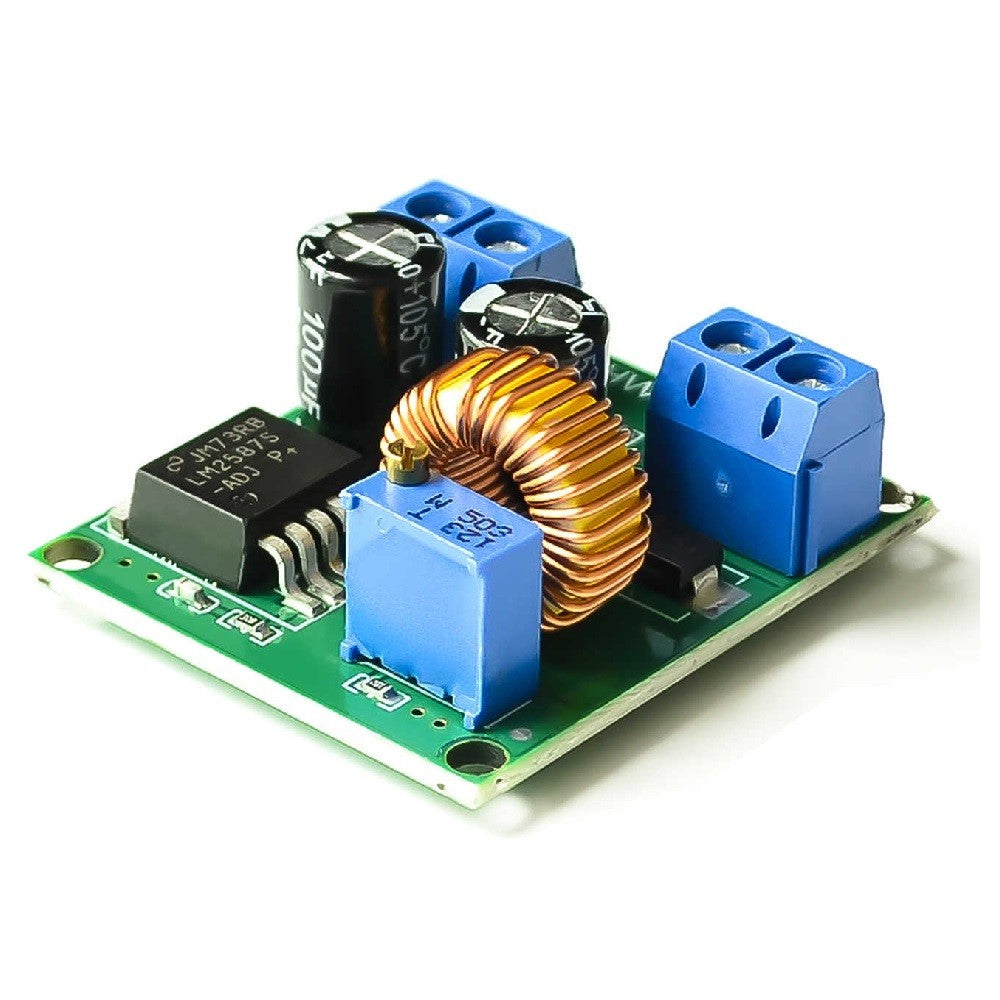

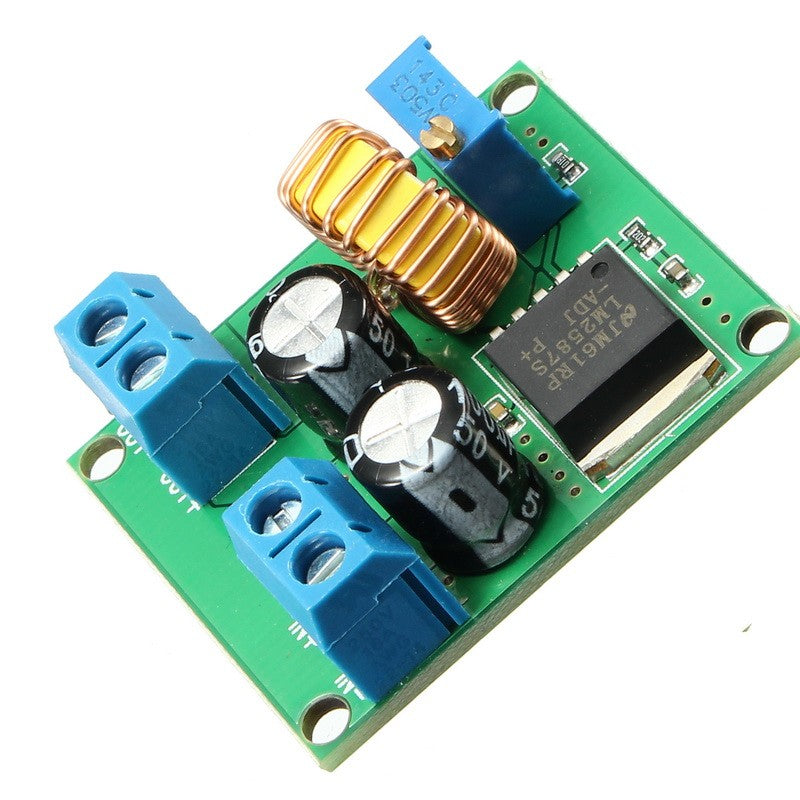

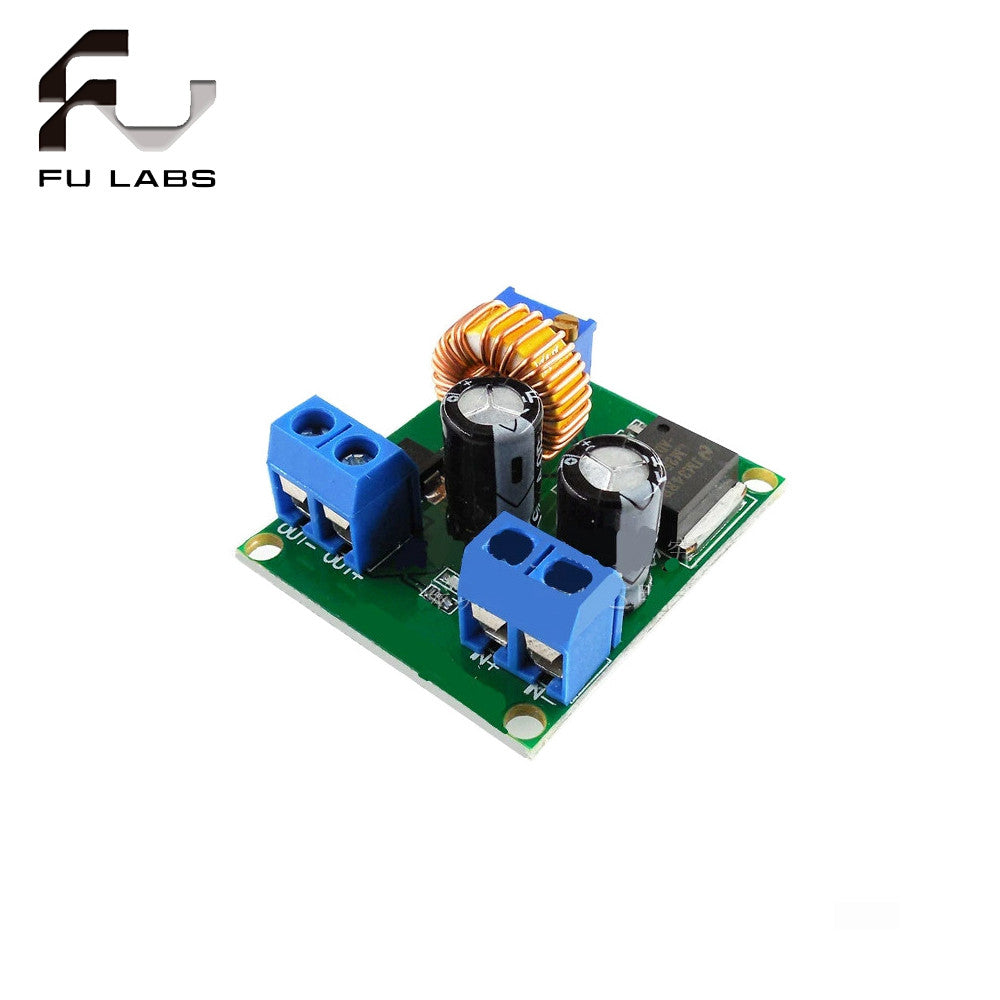

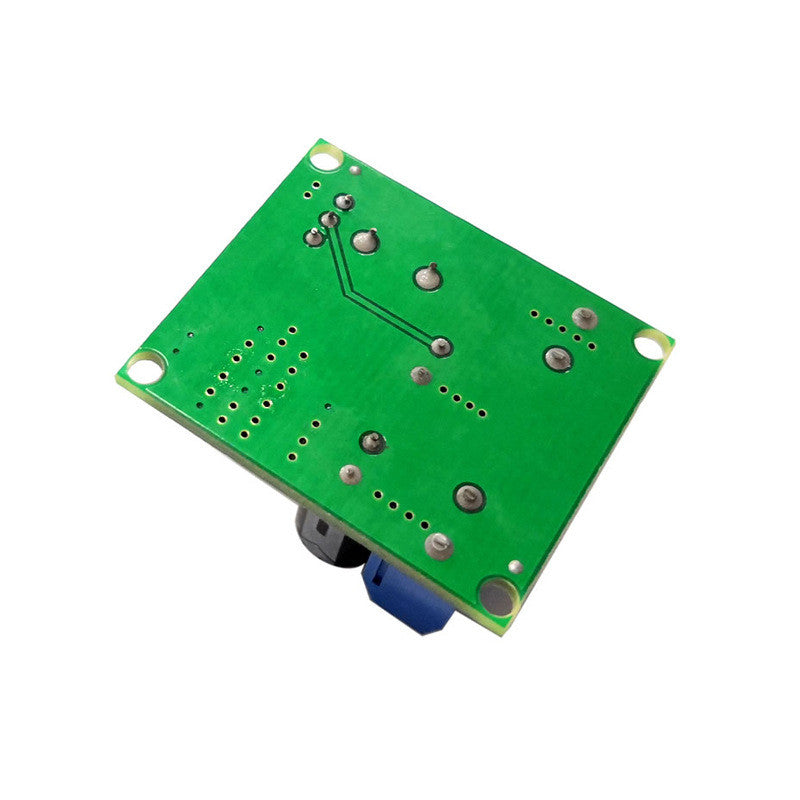

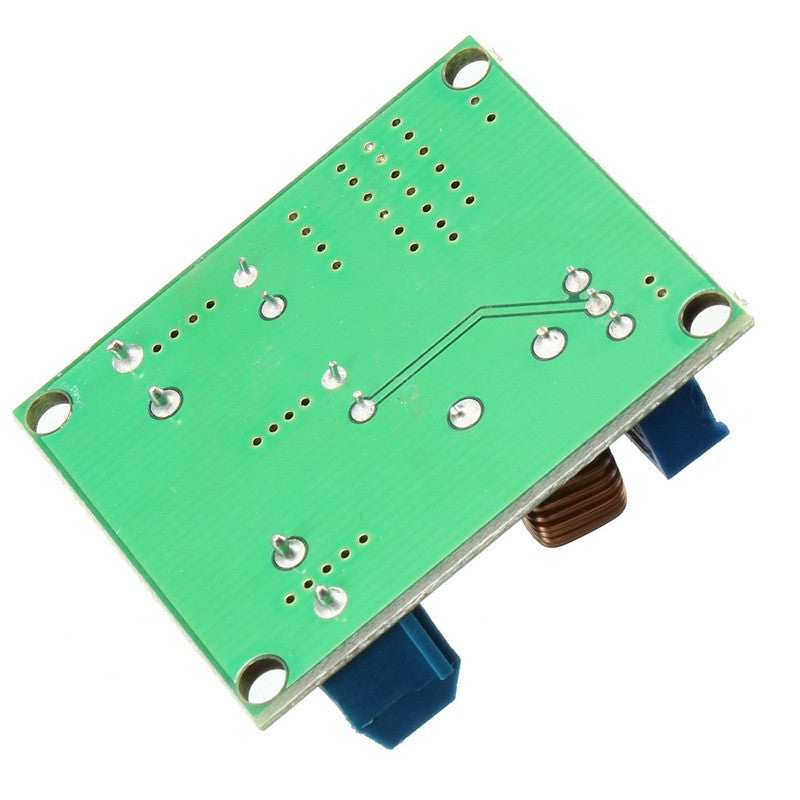

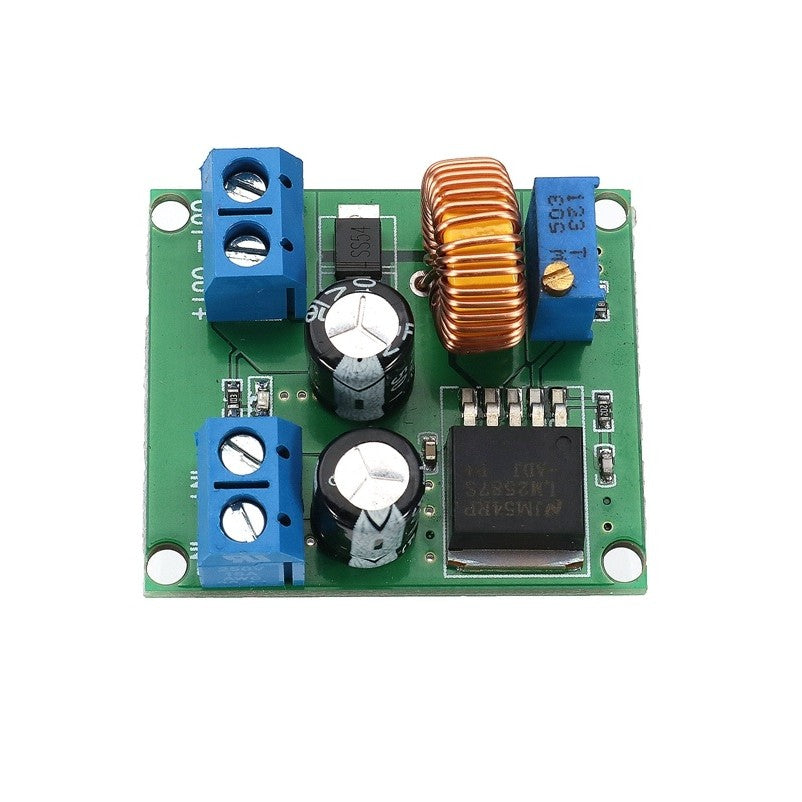

1pcs DC 3V-35V To 4V-40V Step Up Power Module Boost Converter 12v 24v Converter 12v to 5v DC DC Voltage Converter 12v to 19v

Product Description of DC - DC Adjustable Boost Module

I. Product Parameters

● Product Name: DC - DC Adjustable Boost Module

● Input Voltage: 3V - 35V

● Output Voltage: 4V - 40V Adjustable

● Efficiency: Up to 94% (MAX)

● Size: 373215mm

● Weight: Approximately 16.7g

● Operating Temperature: -40℃ - +85℃

● Load Capacity: Maximum 80W

II. Wiring and Precautions

(I) Wiring Method

No welding is required for the wiring terminal; IN is for input, OUT is for output .

(II) Core Precautions

The smaller the voltage difference between input and output, the greater the load capacity and the higher the efficiency.

When testing whether the output voltage is higher than the input voltage, only adjust the potentiometer clockwise (the output voltage will rise); Do not adjust it counterclockwise. Adjusting counterclockwise under high input voltage will damage the module!

III. Index Description

● Input Voltage Range: 3.5V - 30V (It is necessary to ensure that the output voltage is higher than the input voltage )

● Output Voltage Range: 4.0V - 30V

● Input Large Current: 5A (Based on power conservation under the rated output current, formula: Uin = (Uout * Iout) / (Iin * efficiency) )

Continuous Operating Current: 3A (Need to meet good ventilation and cooling conditions, and the ratio of output voltage to input voltage ≤ 3 )
