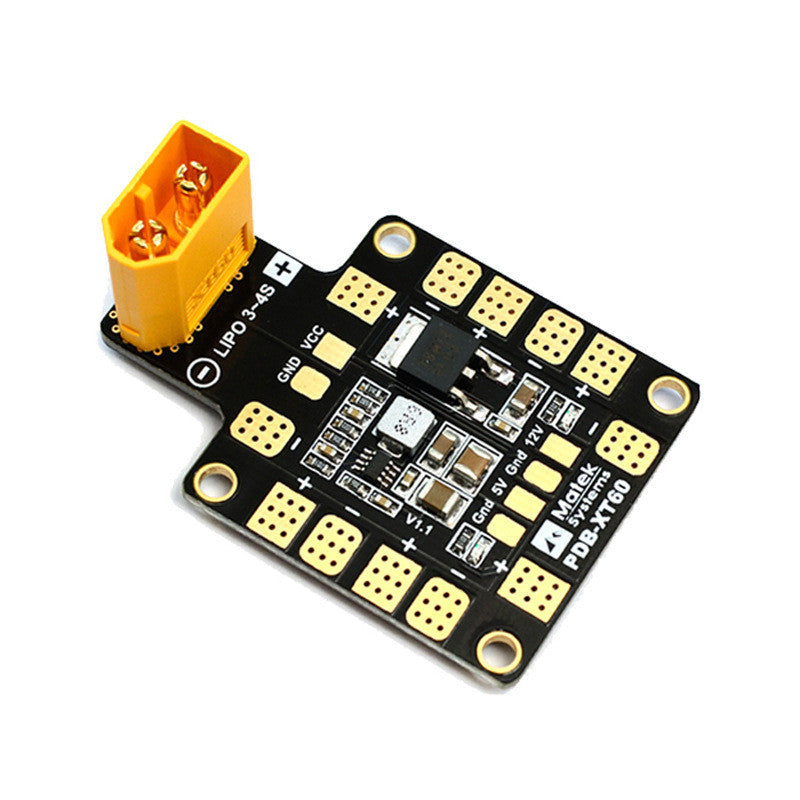

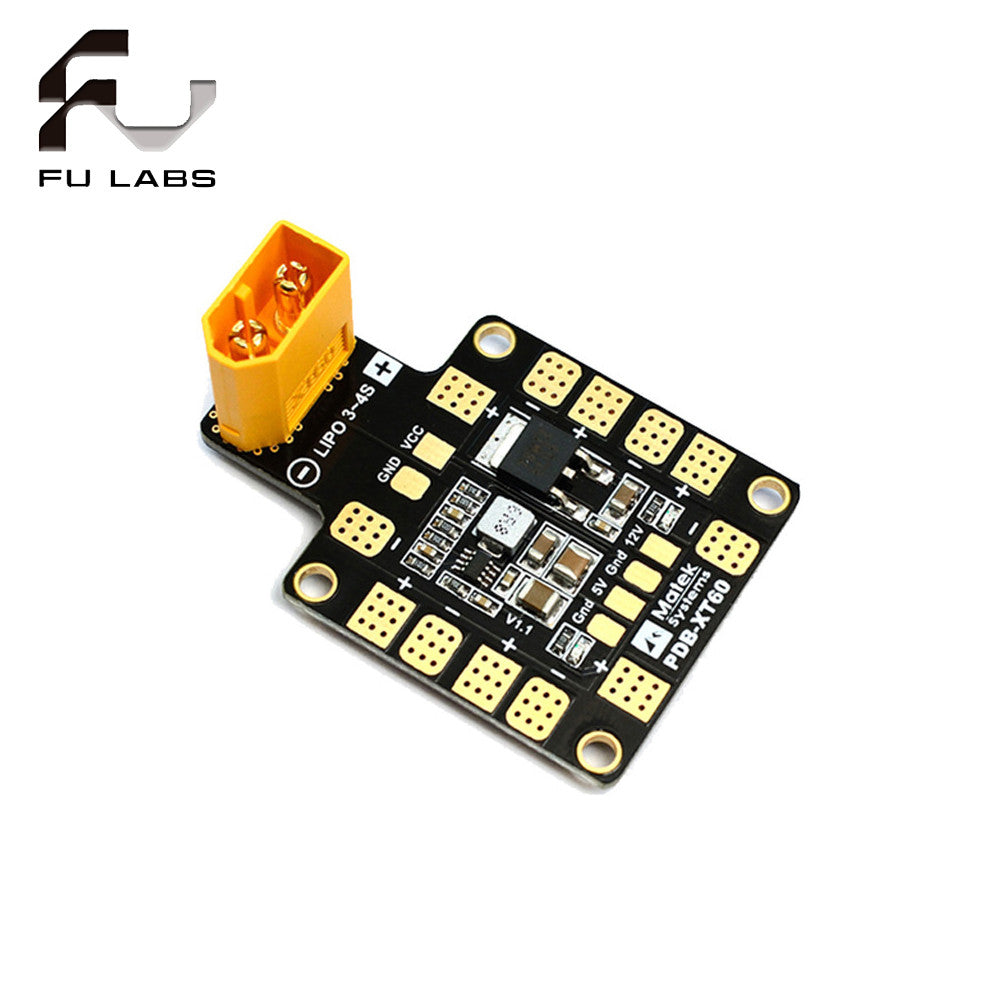

1pcs PDB Power Distribution Board BEC 5V 2A 12V0.5A XT60 Plug for FPV

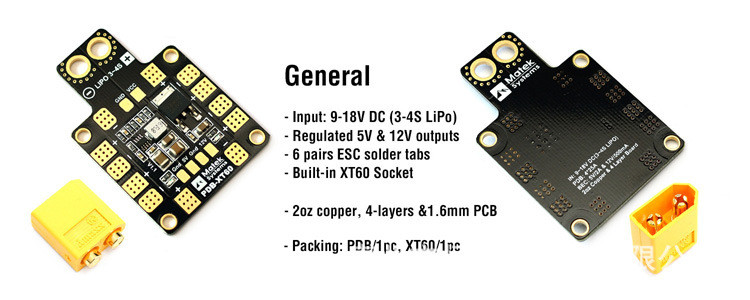

General Specifications:

● Input Voltage: 9-18V DC (3-4S LiPo compatible)

Built-in XT60 Connector

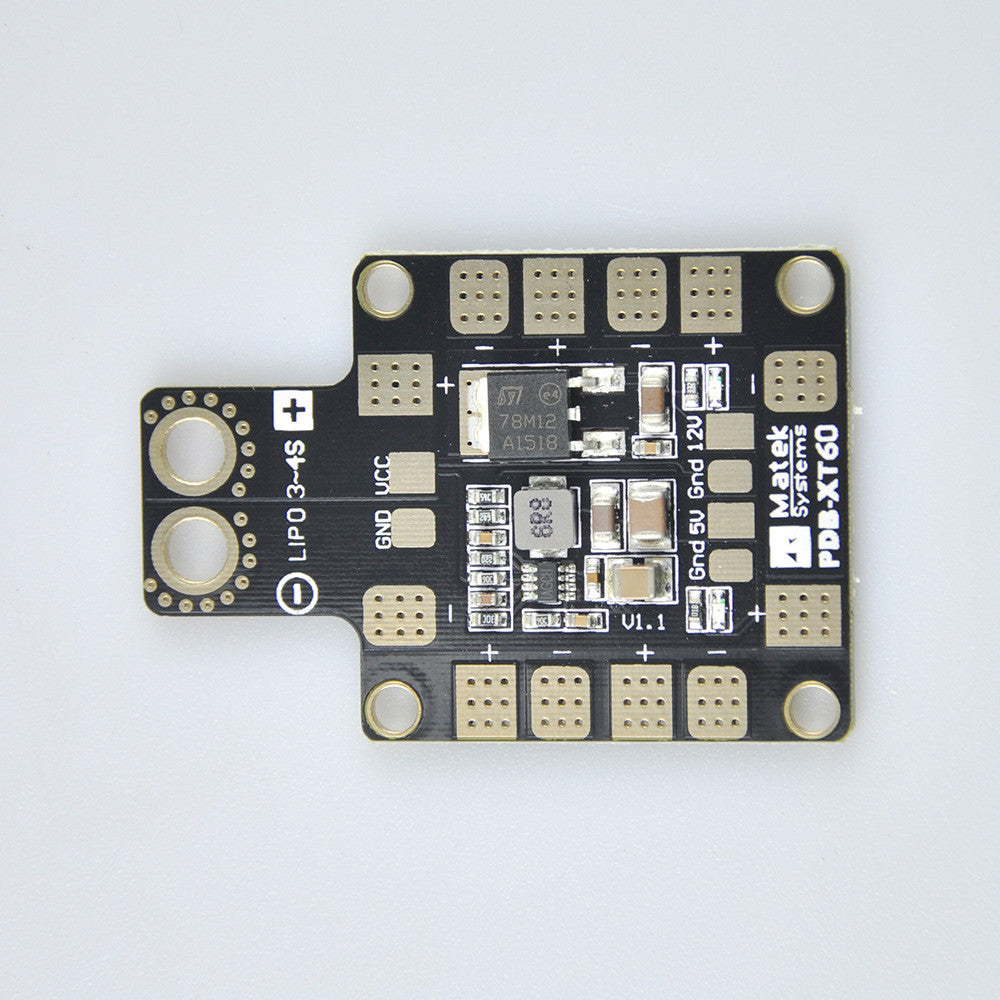

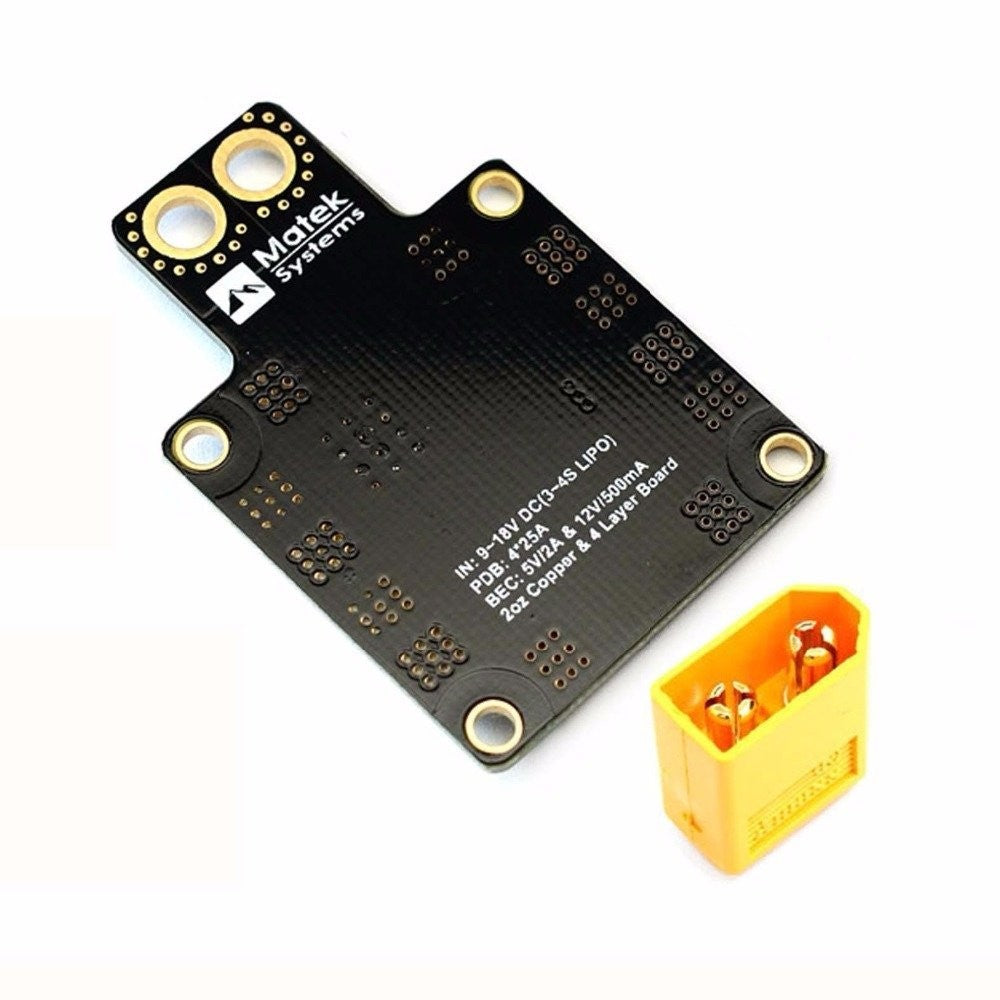

PCB Construction:

● 4-layer design (2oz copper)

● 1.6mm thickness

● Isolated power layers to prevent interference

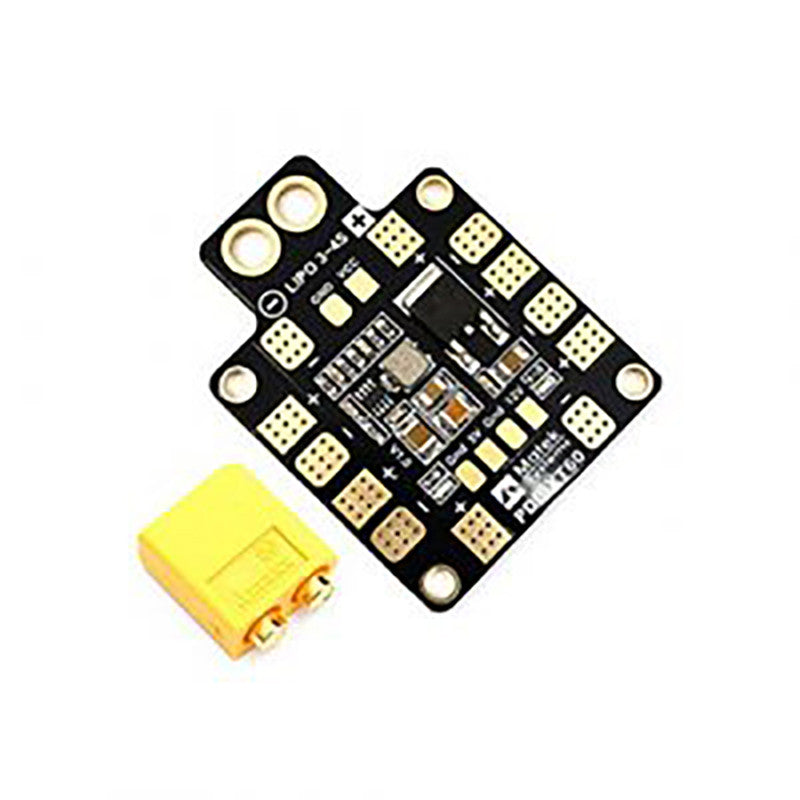

● Package Includes: 1x PDB, 1x XT60 connector

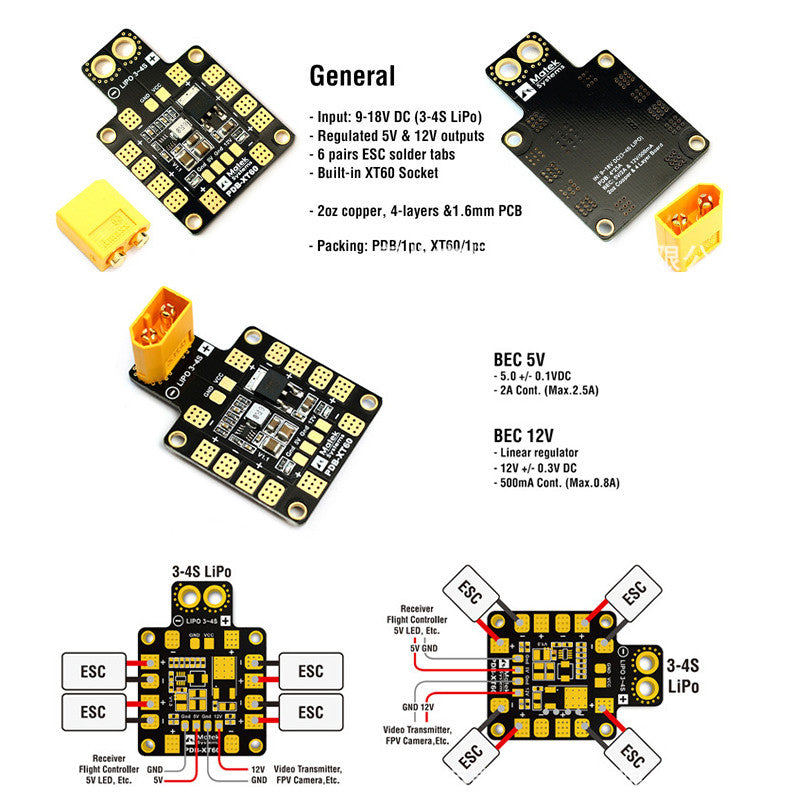

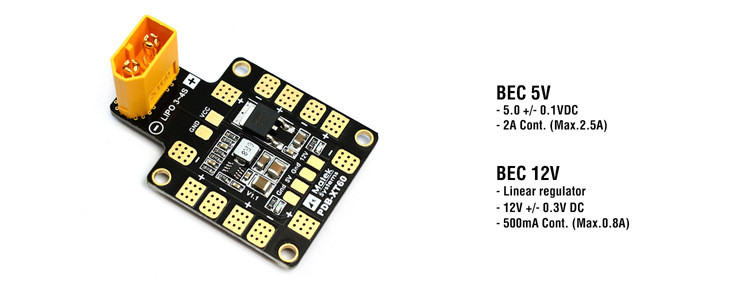

Power Outputs:

5V BEC (Switching Regulator):

● Output: 5.0V ±0.1V

● Current: 2A Continuous (2.5A Max)

● 12V BEC (Linear Regulator):

● Output: 12V ±0.3V

● Current: 500mA Continuous (800mA Max)

Design Features:

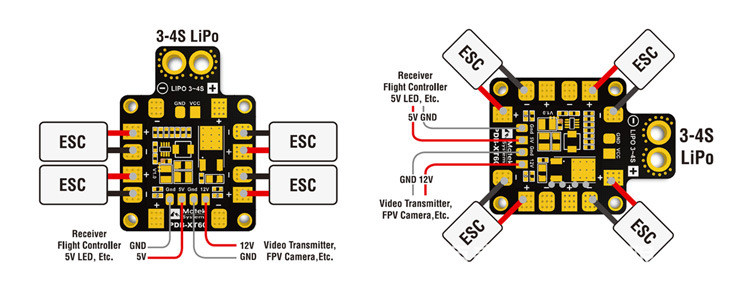

6 Pairs of ESC Solder Pads

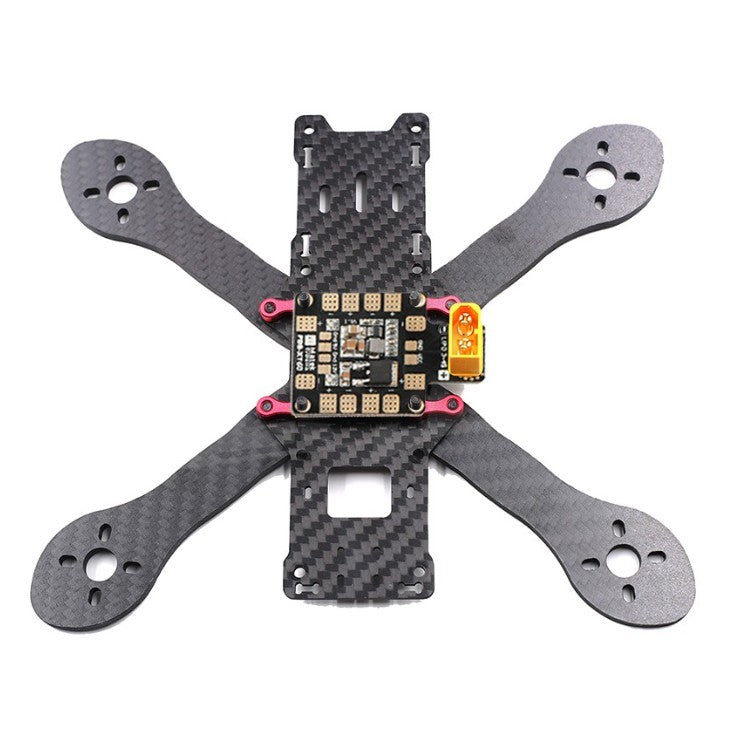

  Optimized for X/H-shaped drone frames

  Dual-layer Current Isolation

  Separates high-power motor circuits from BEC ground

  Eliminates noise interference

Key Advantages:

  Stable voltage output for flight controllers/peripherals

  Compact 4-layer PCB for high-current applications

  Plug-and-play XT60 integration
