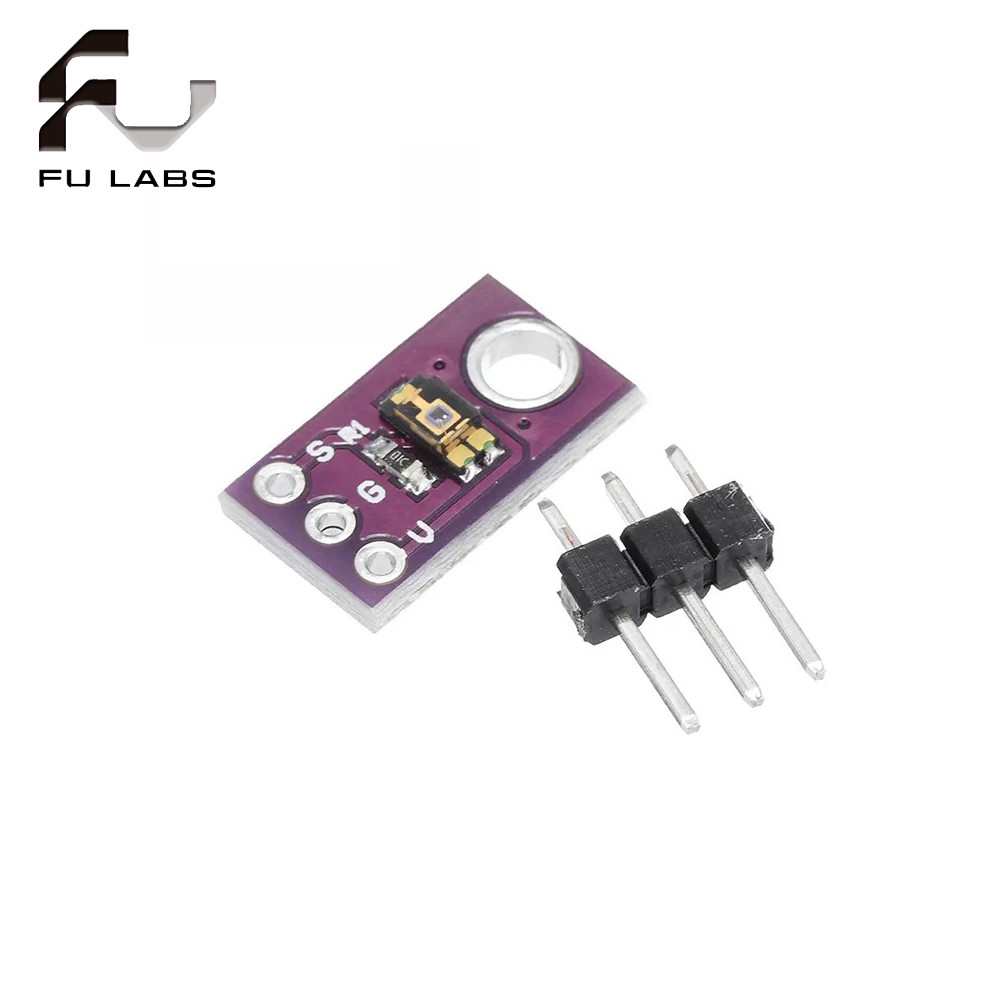

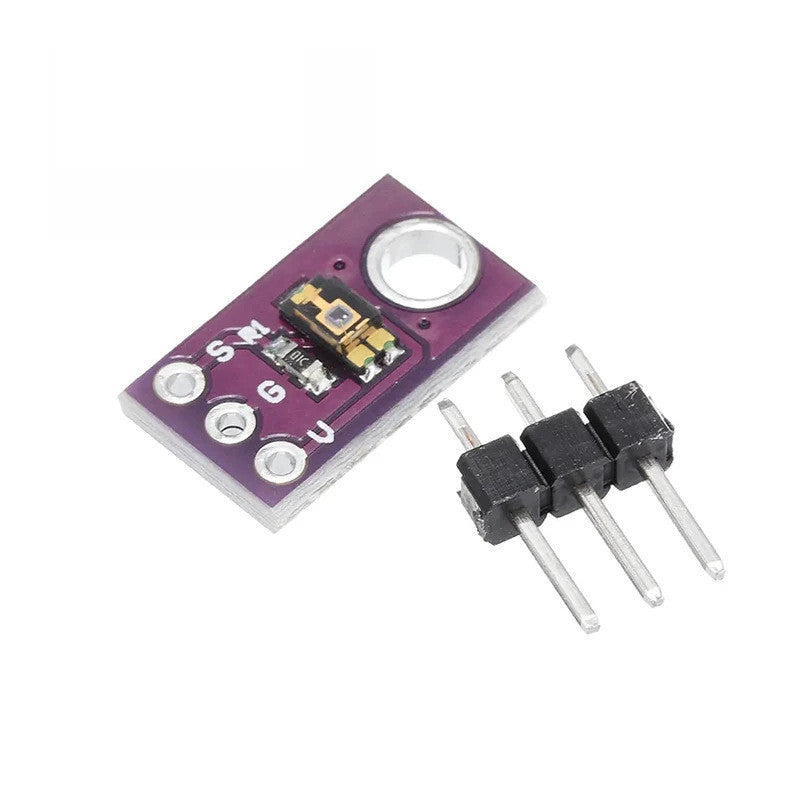

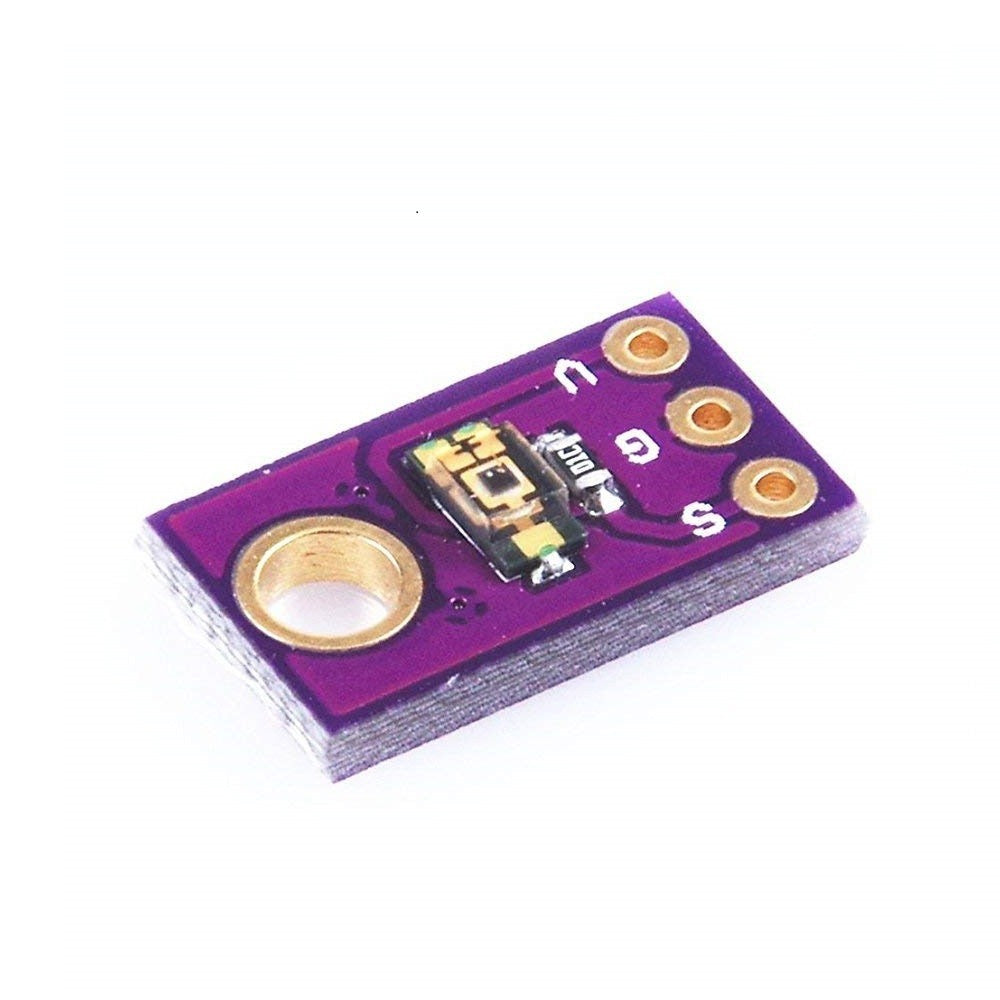

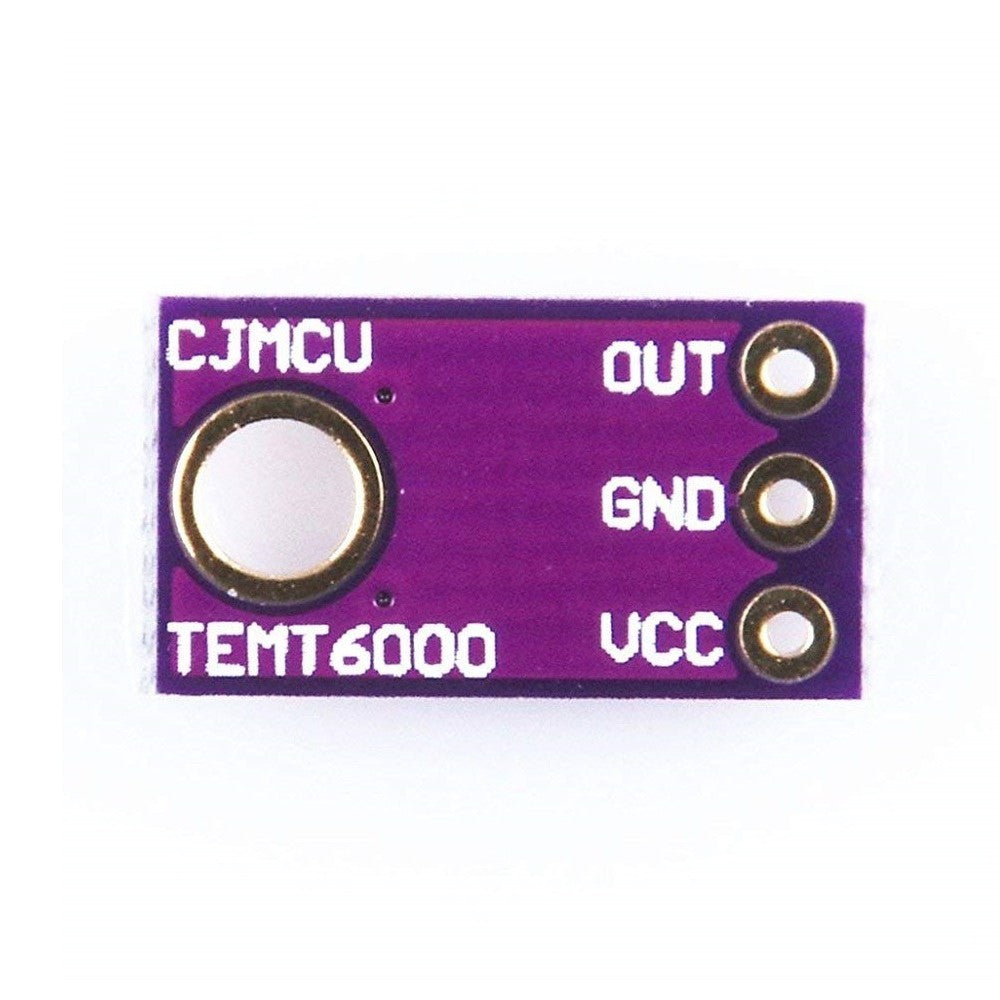

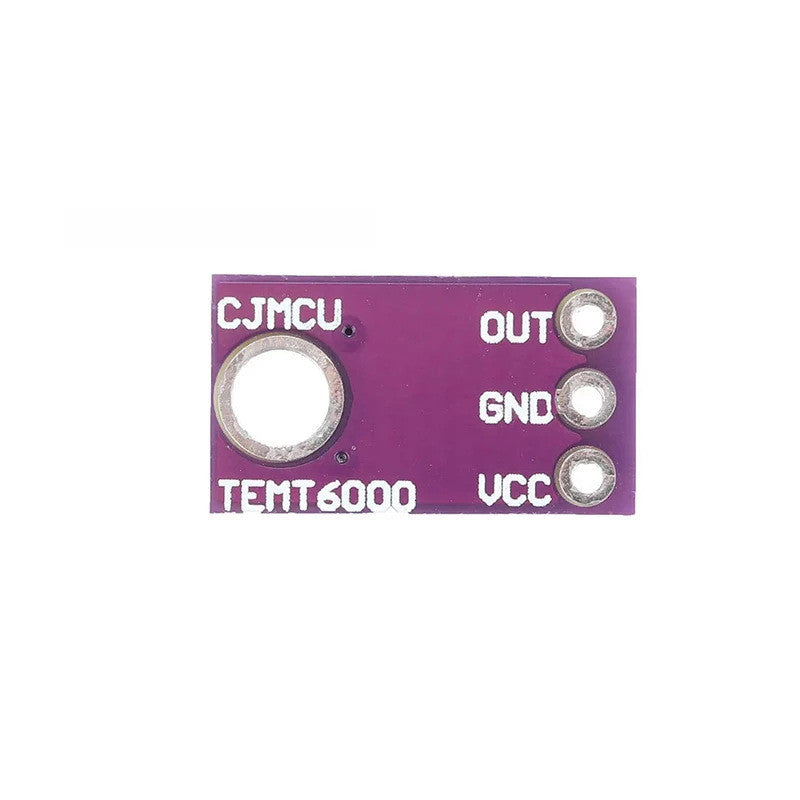

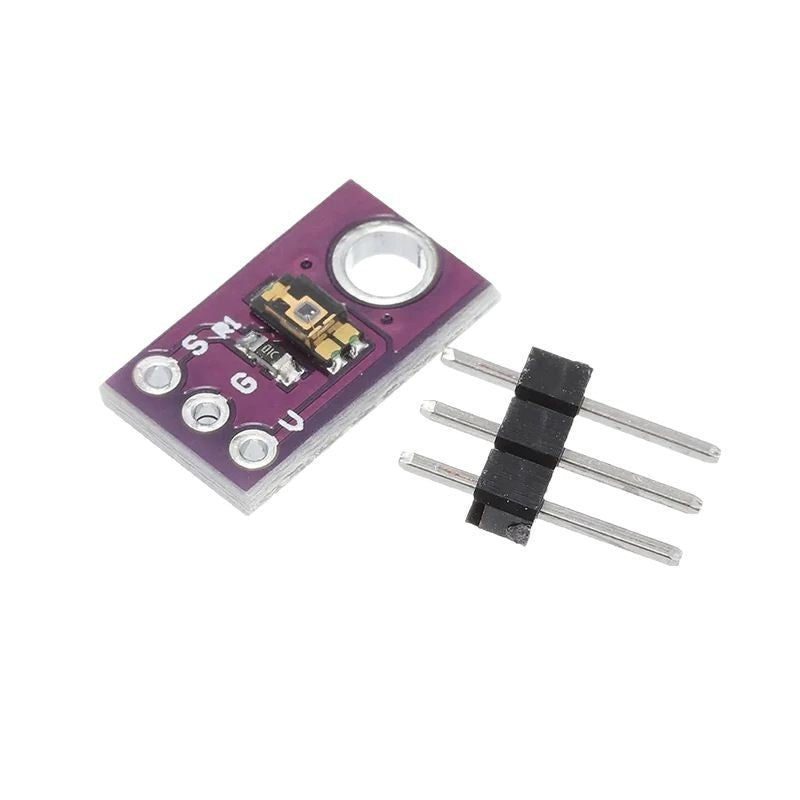

1pcs TEMT6000 Light Sensor Professional Light Sensor Module

Summary of Information for Analog Light Intensity Module (TEMT6000)

I. Product Parameters

● Product Name: Analog Light Intensity Module

● Product Model: TEMT6000

● Operating Voltage: DC 3.3 - 5V

● Operating Temperature: -40 - 85°C

● Illuminance Range: 1 - 1000 LUX

● Output Signal: Analog voltage (output range: 0 - 5V under 5V operating voltage)

● Weight: Approximately 0.6g

● Dimensions: 15mm * 10mm

II. Product Features

The sensitivity of the TEMT6000 sensor corresponds to a wavelength of 570nm, with a half - sensitivity angle of ±60°. Although it is extremely sensitive to ambient light, it can suppress the infrared (IR) spectrum, achieving a visible light spectral response similar to that of the "human eye".

The ambient light (visible light) sensor based on this module has a response to visible light illuminance similar to human eye characteristics. It can simulate human judgment of environmental light intensity, facilitating the development of human - machine friendly interactive applications (such as lighting control, screen backlight control, etc.). Moreover, it is only sensitive to visible light and does not require an additional filter.

III. General Instructions

The detailed pictures are for reference only. The actual product received shall prevail (you can contact customer service to check the physical product pictures);

Due to differences in monitors and lighting, the actual color of the product may be slightly different from that shown in the pictures; a 1 - 2mm/g measurement error is allowed for manual measurement.
