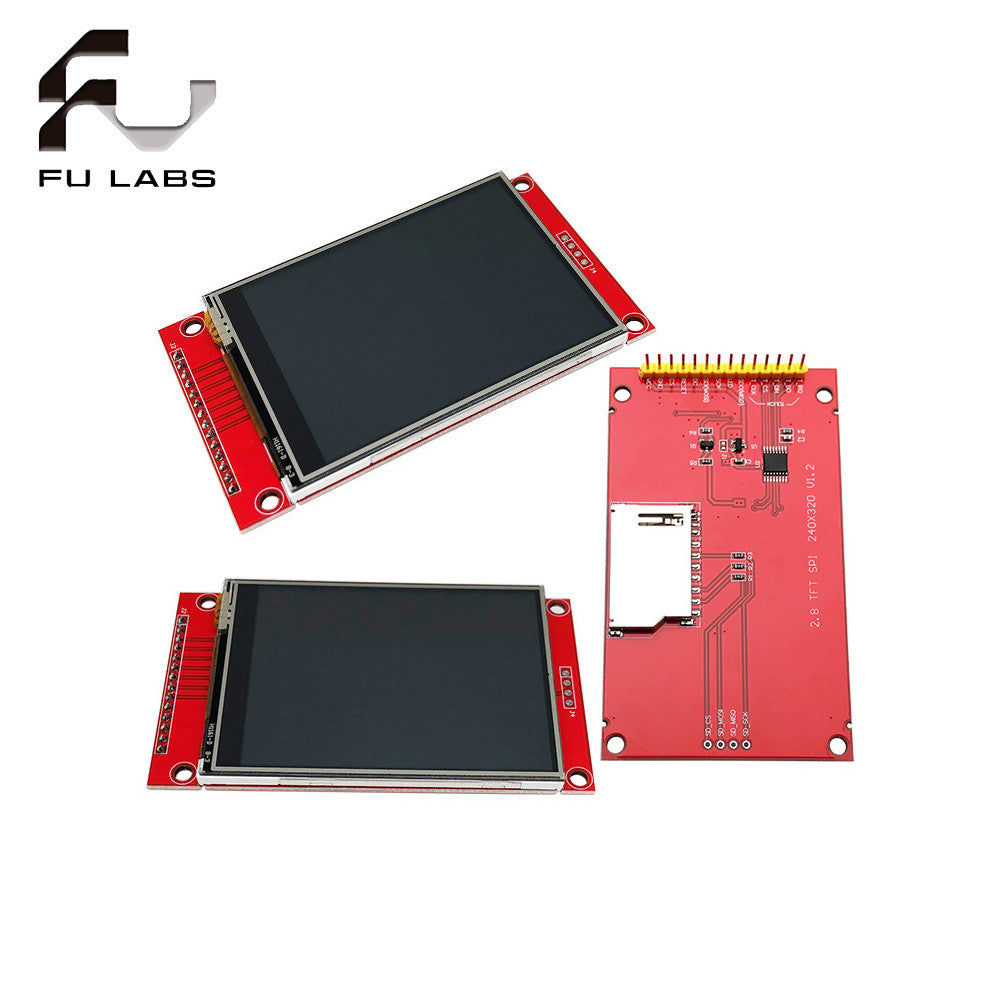

1pcs TFT Full Color Screen LCD Display Module With Touch Drive IC Interface SPI 128*128 240*320 For Arduino 2.4/2.8 Inch

Specifications of Color LCD Modules

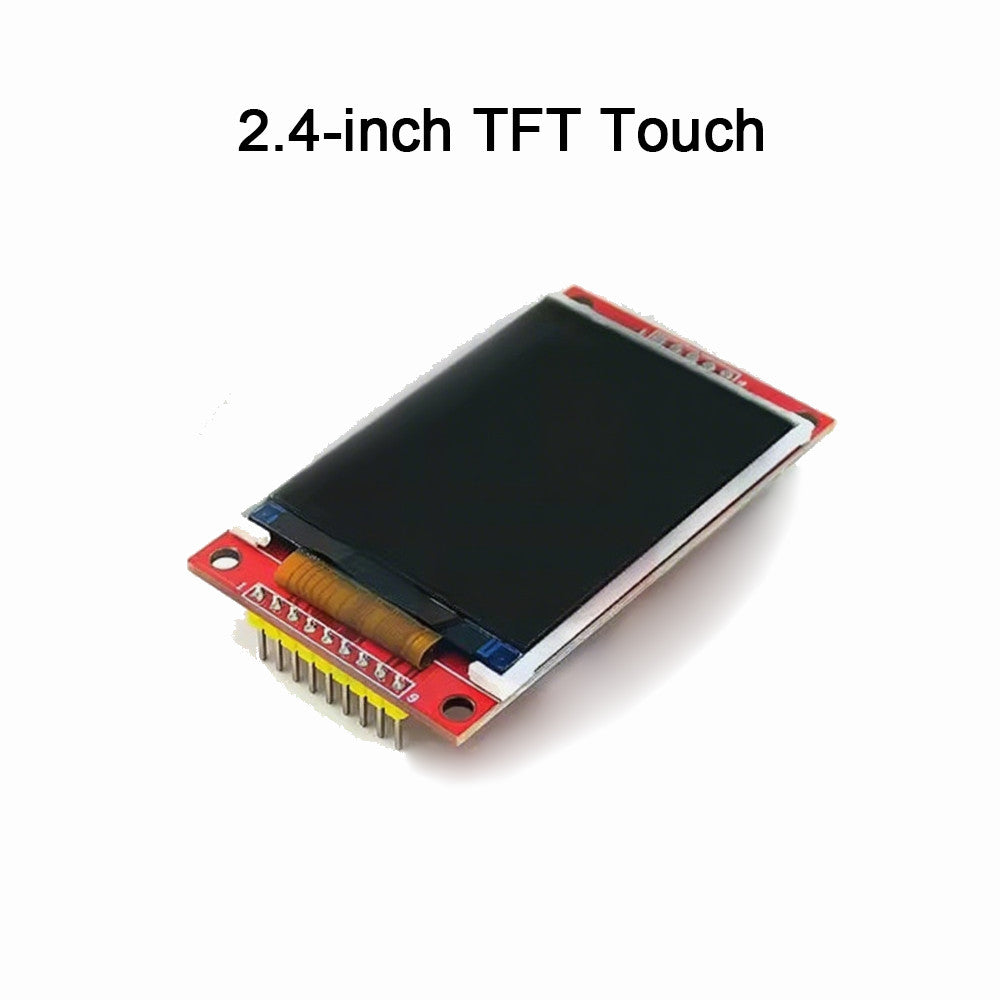

2.4-inch

● Display Color: RGB 65K Color

● SKU: With Touch (MSP2402); Without Touch (MSP2401)

● Size: 2.4 inch

● Type: TFT

● Driver IC: ILI9341

● Resolution: 320*240 Pixel

● Module Interface: 4-wire SPI interface

● Active Area (AA Area): 36.72x48.96 mm

● Module PCB Dimension: 77.18x42.72 mm

● Operating/Storage Temperature: -20℃~60℃; -30℃~70℃

● Voltage: VCC Power Supply 3.3V~5V; Logic I/O Voltage 3.3V (TTL)

● Power Consumption: To be determined

● Weight (Including Packaging): 26g without touch; 36g with touch

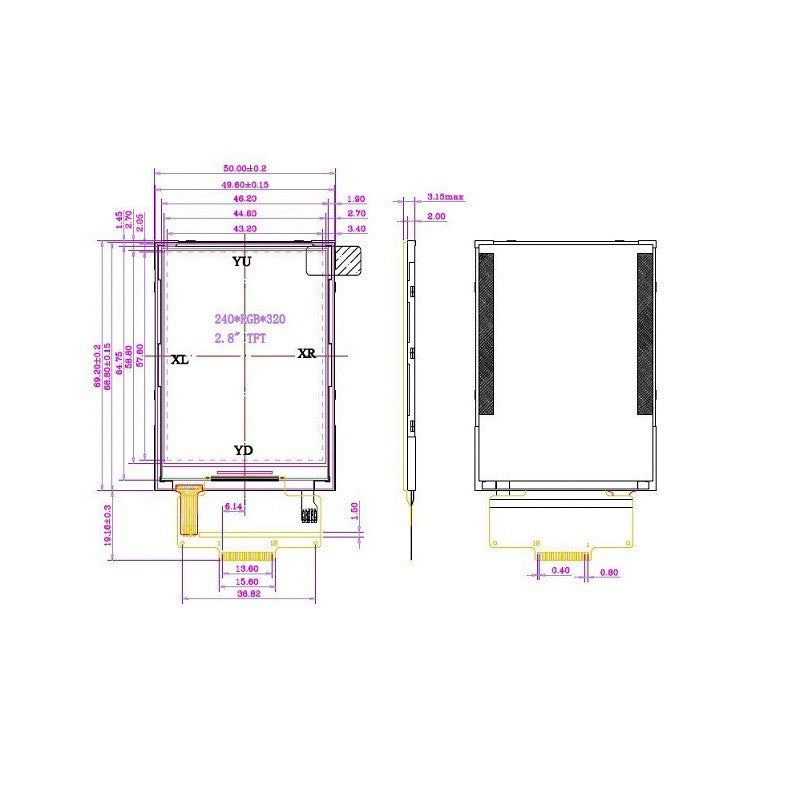

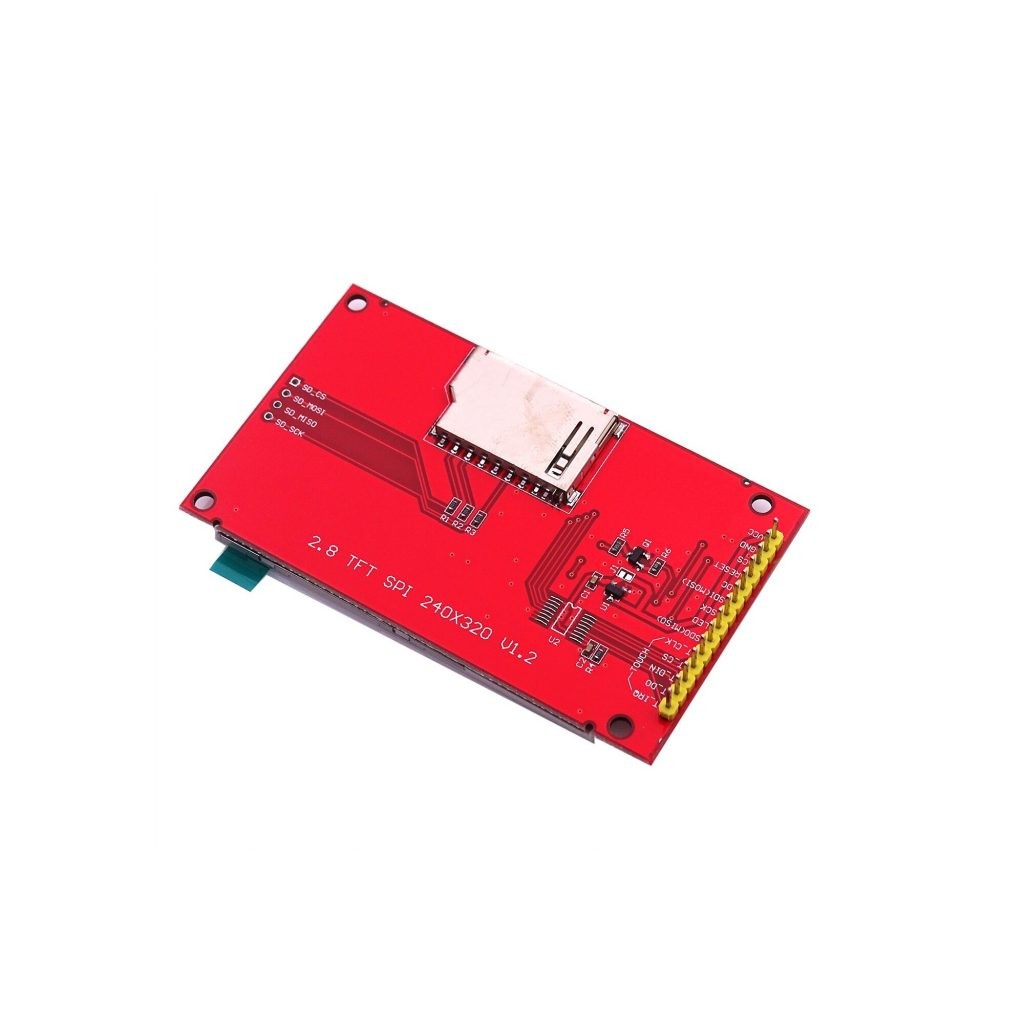

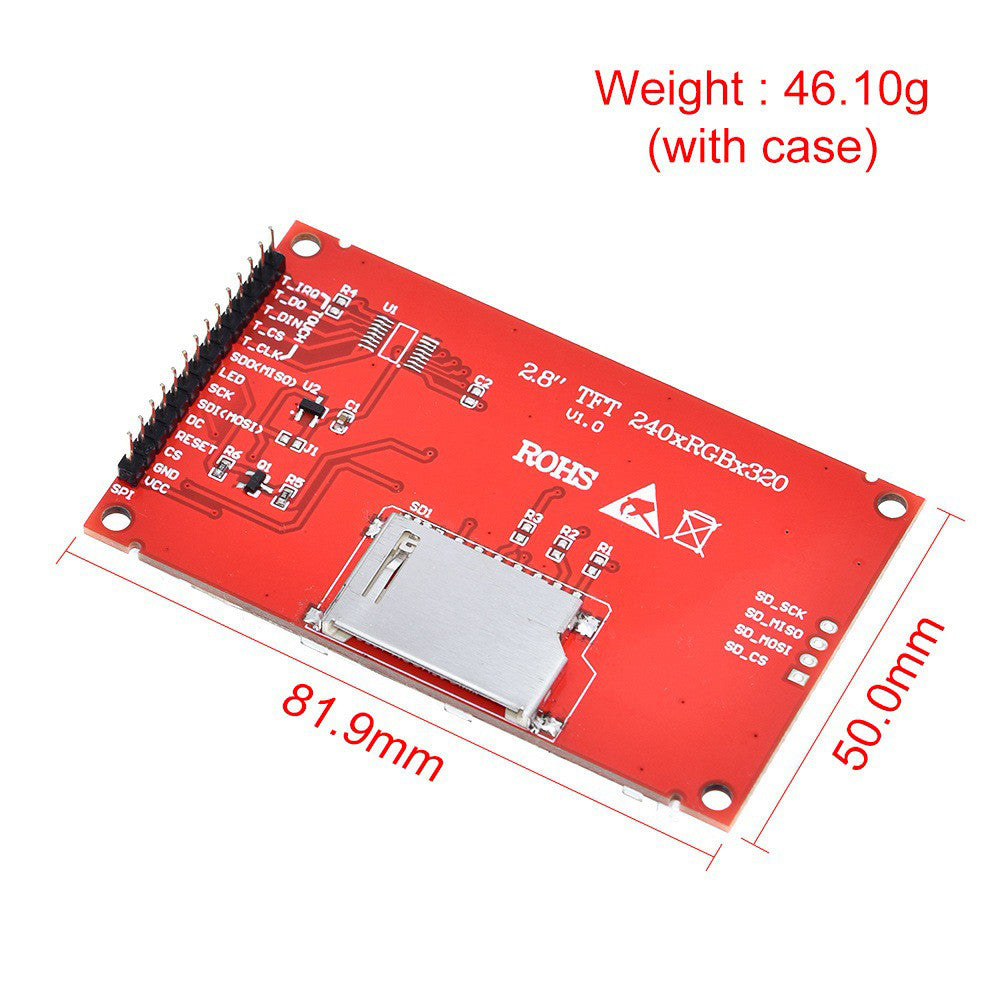

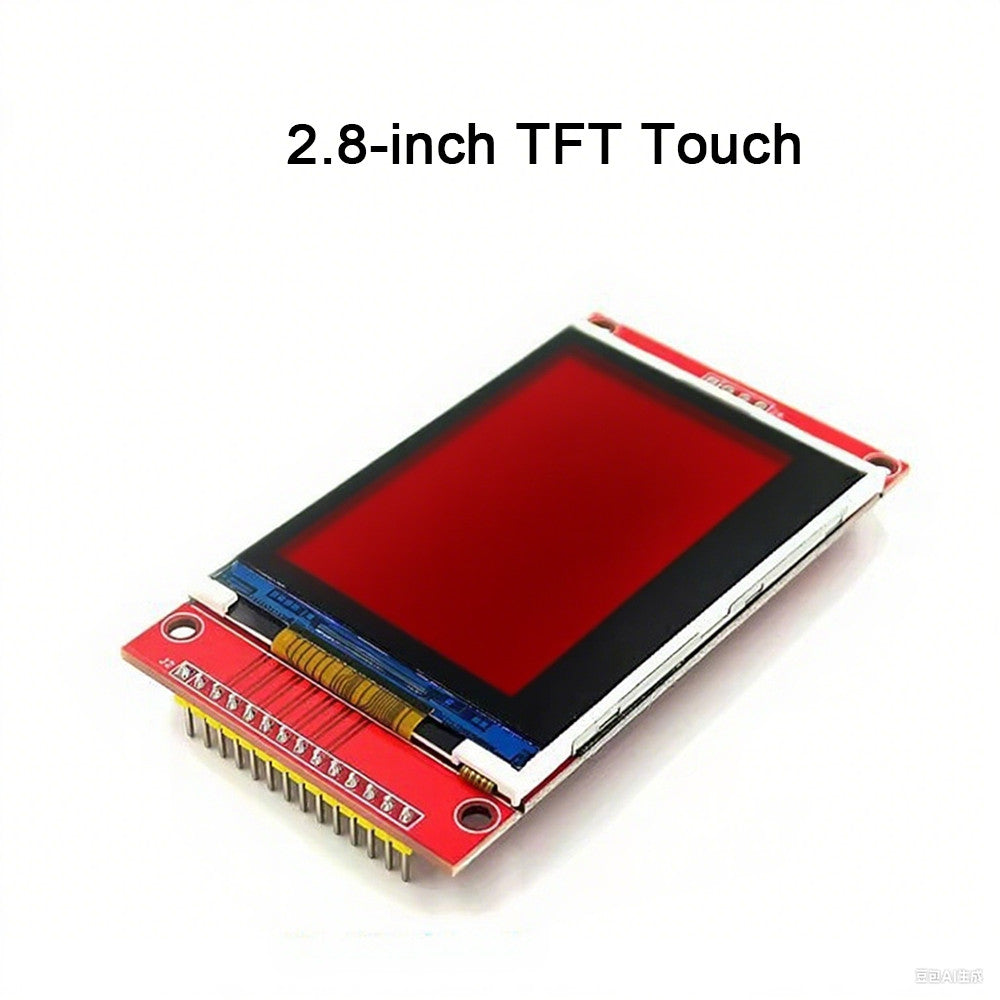

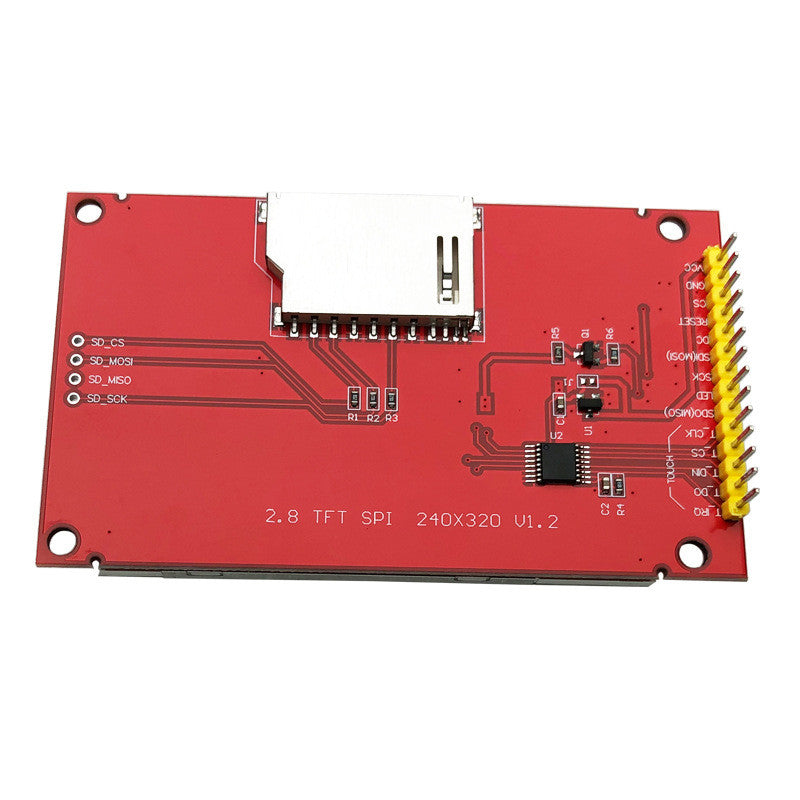

2.8-inch

● Display Color: RGB 65K Color

● SKU: With Touch (MSP2807); Without Touch (MSP2806)

● Size: 2.8 inch

● Type: TFT

● Driver IC: ILI9341

● Resolution: 320*240 Pixel

● Module Interface: 4-wire SPI interface

● Active Area (AA Area): 43.2x57.6 mm

● Module PCB Dimension: 50.0x86.0 mm

● Operating/Storage Temperature: -20℃~60℃; -30℃~70℃

● Voltage: VCC Power Supply 3.3V~5V; Logic I/O Voltage 3.3V (TTL)

● Power Consumption: To be determined

● Weight (Including Packaging): 34g without touch; 43g with touch
