1pcs V5 0 Sensor Shield Expansion Board For Arduino Electronic Building Blocks Robot Accessories

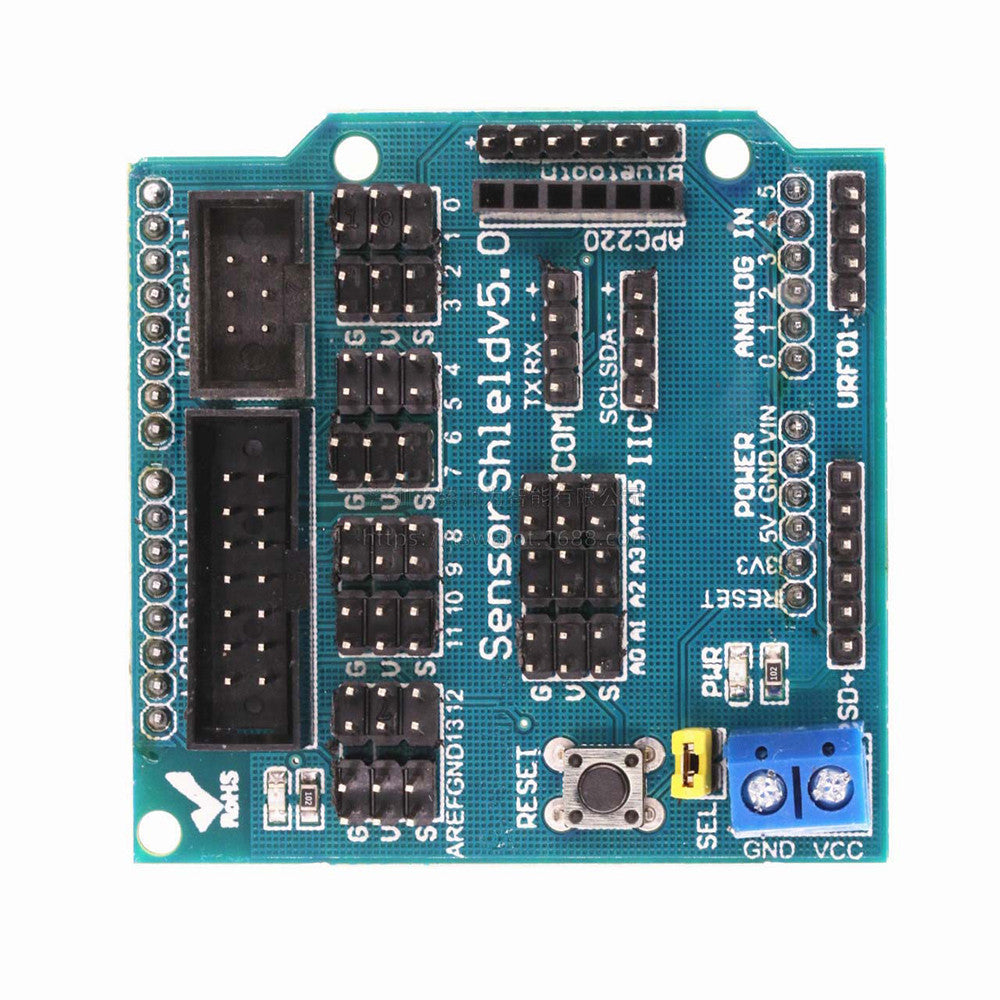

Description of UNO R3 V5.0 Sensor Expansion Board

Product Parameters

- Product Name: Sensor Expansion Board

- Model: UNO R3 V5.0

- Dimensions: 57*56.5mm

- Weight: Approximately 25g

- Function Introduction

1. Indicator Lights

There are 2 indicator lights on the board: power indicator light, D13 pin status indicator light (its status is synchronized with the D13 indicator light on the Arduino UNO board).

2. Digital Interfaces

Convert the 14 digital pins of the Arduino UNO controller into 3 - wire interfaces; 3P sensor connection wires can be used to directly connect sensors to the expansion board.

G: Corresponds to the negative power supply of the sensor

V: Corresponds to the positive power supply of the sensor

S: Corresponds to the signal terminal of the sensor

3. Analog Interfaces

Convert the 6 analog pins of the Arduino UNO controller into 3 - wire interfaces; 3P sensor connection wires can be used to directly connect sensors to the expansion board.

G: Corresponds to the negative power supply of the sensor

V: Corresponds to the positive power supply of the sensor

S: Corresponds to the signal terminal of the sensor

4. Expansion Interfaces

Including Bluetooth module interface, APC220 wireless communication module interface, serial communication interface, IIC communication interface, ultrasonic sensor interface, SD card expansion module interface.
