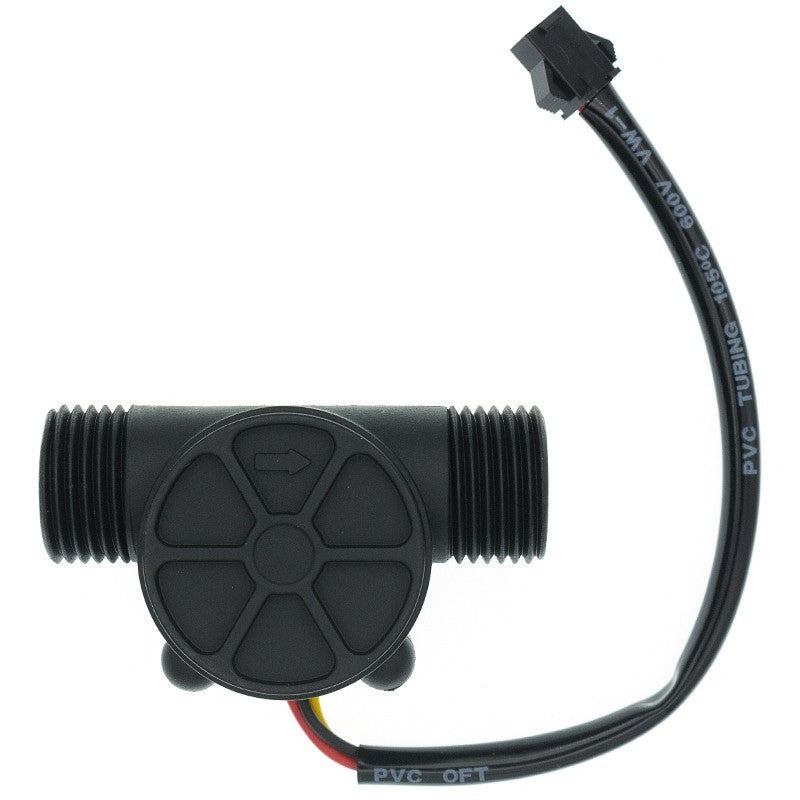

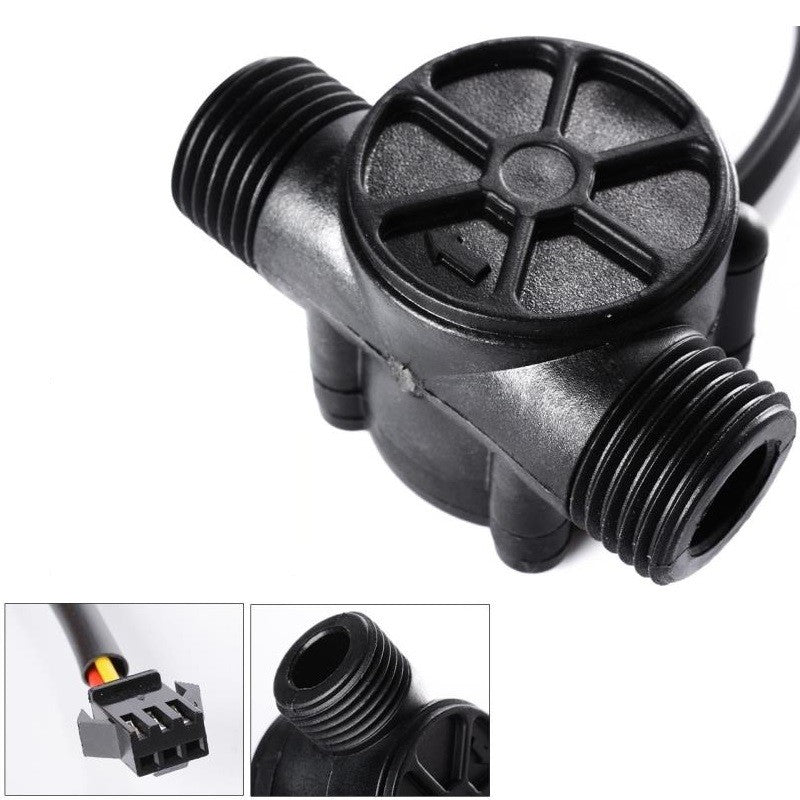

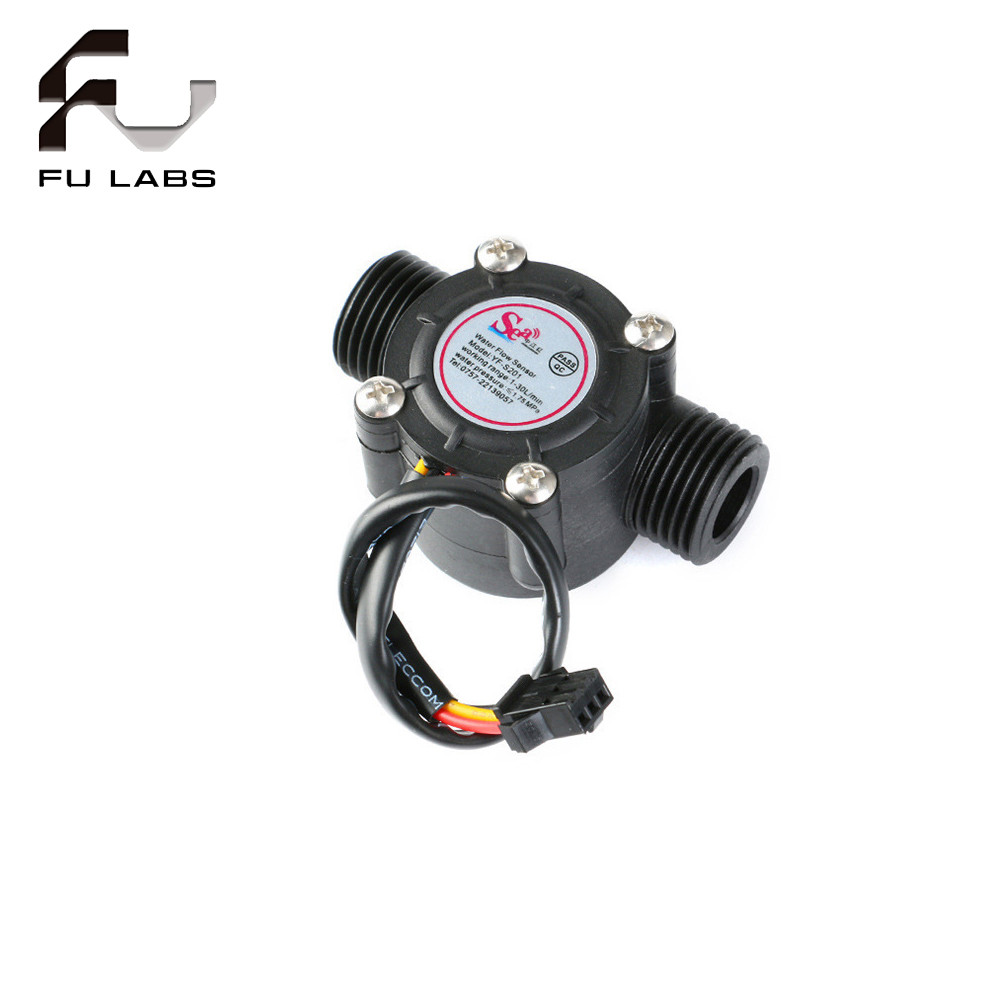

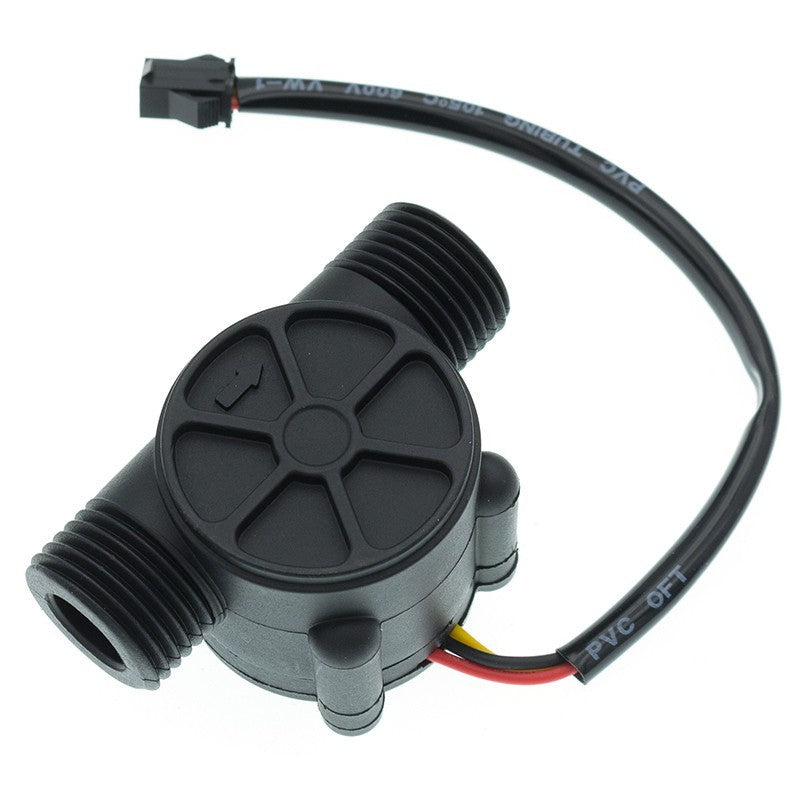

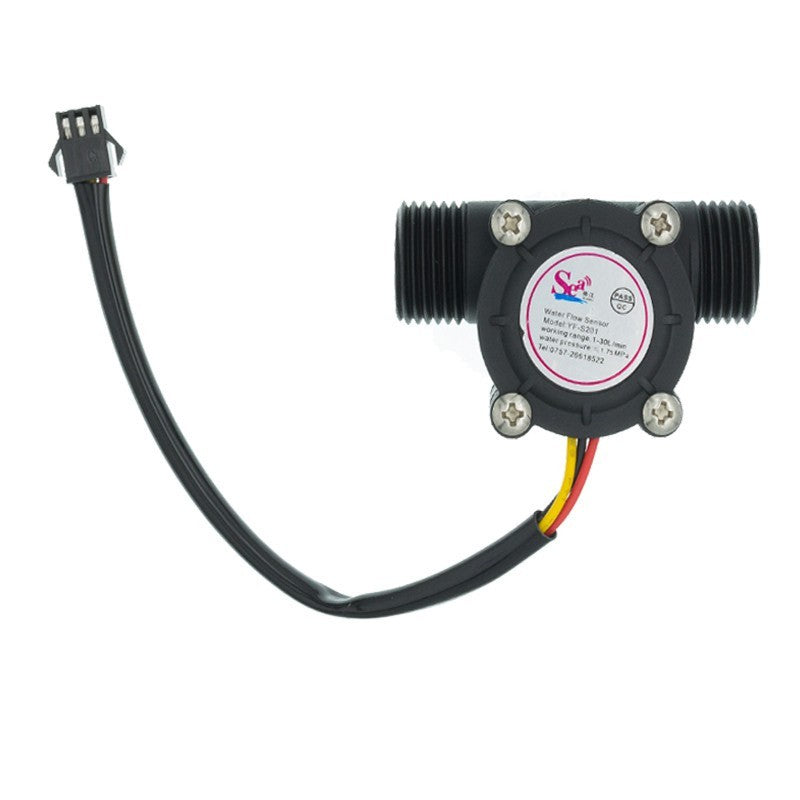

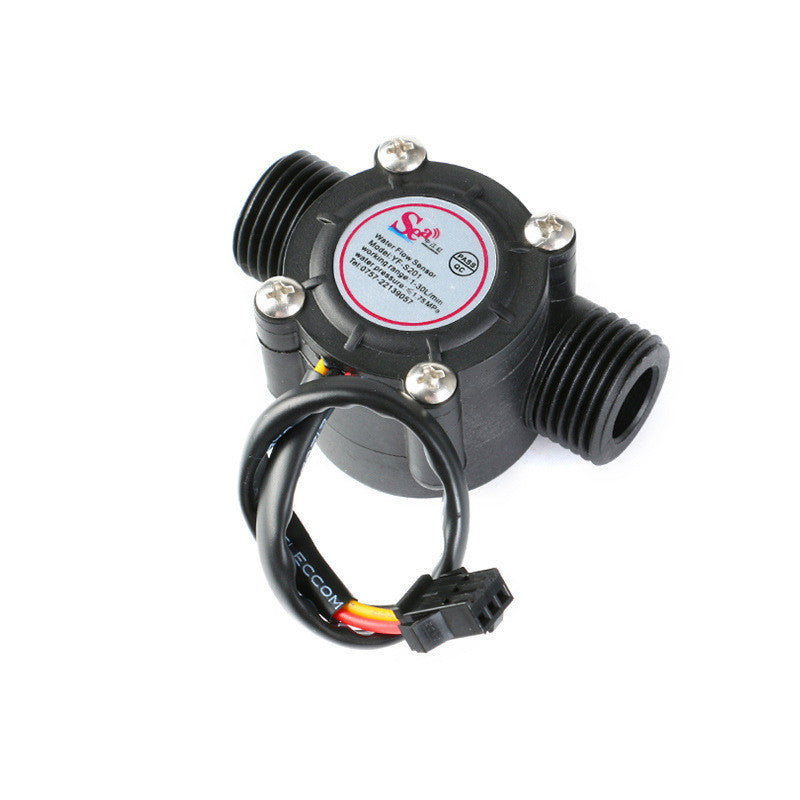

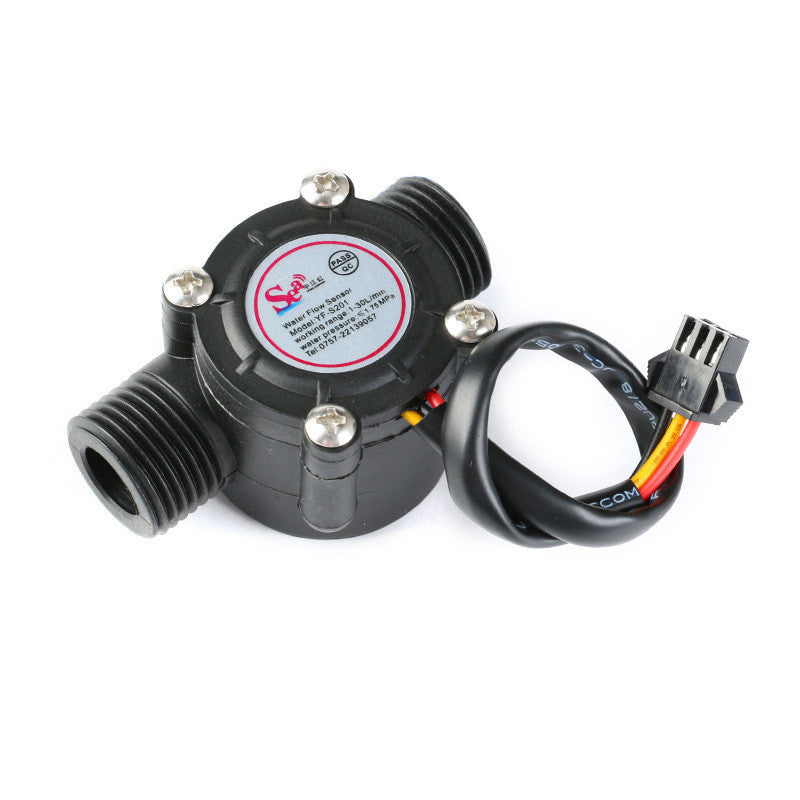

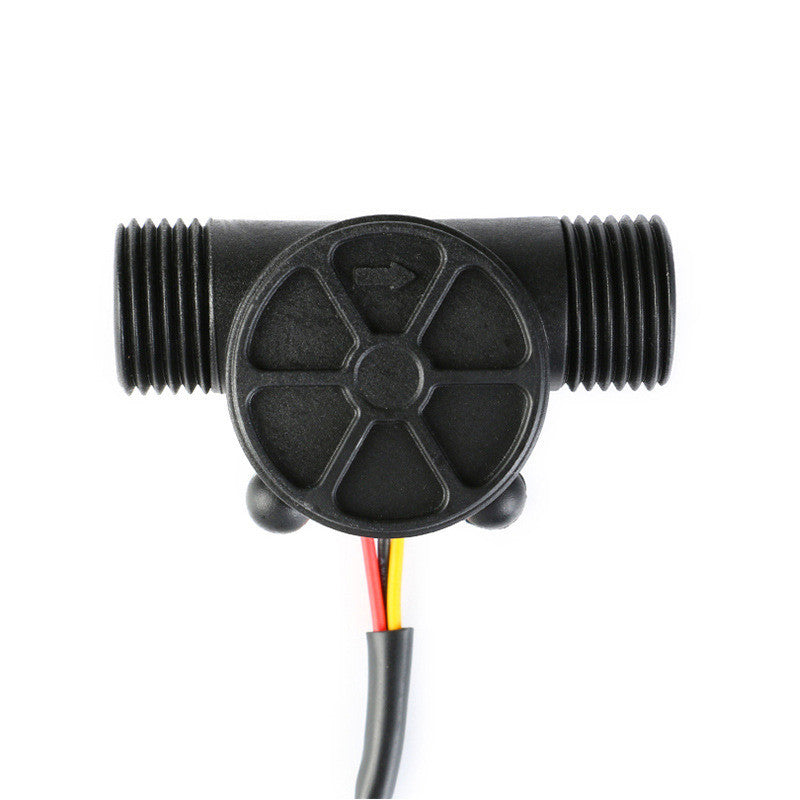

1pcs YF-S201 Water Flow Sensor Flowmeter Hall Flow Sensor Water Control 1-30L/min 4 in charge of Hall flowmeter Dijiang flow sensor DN15 flowmeter

Product details

Parameters

- Minimum Rated Operating Voltage: DC4.5

- MAX Operating Current: 15 mA (DC 5V)

- Operating Voltage Range: DC 3.5 ~ 24 V

- Load Capacity: ≤10 mA (DC 5V)

- Operating Temperature Range: ≤80℃

- Operating Humidity Range: 35%～90%RH (No frosting)

- Allowable Pressure: Water pressure below 1.75Mpa

- Storage Temperature: -25 ～ + 80℃

- Storage Humidity: 25% ～ 95%RH

- Frequency: F = 7.5*Q(L/Min)

- Voltage: 3.5 - 24VDC, current shall not exceed 10mA, 450 pulses output after 1 liter of water flows

- Flow Range: 1 - 30L/min

Features

- The device has a lightweight and compact appearance, small volume, easy to install.

- The impeller has stainless steel balls inside, forever wear - resistant.

- The seal ring uses a structure with upper and lower forces, never leaks.

- Hall element is imported, circuit has waterproof sealing ring, inlet with waterproof silicone for enhanced waterproofing.

- All raw materials comply with ROHS testing standards.

Application Scope

Suitable for water heaters, card readers, automatic water vending machines, and other flow metering equipment!
