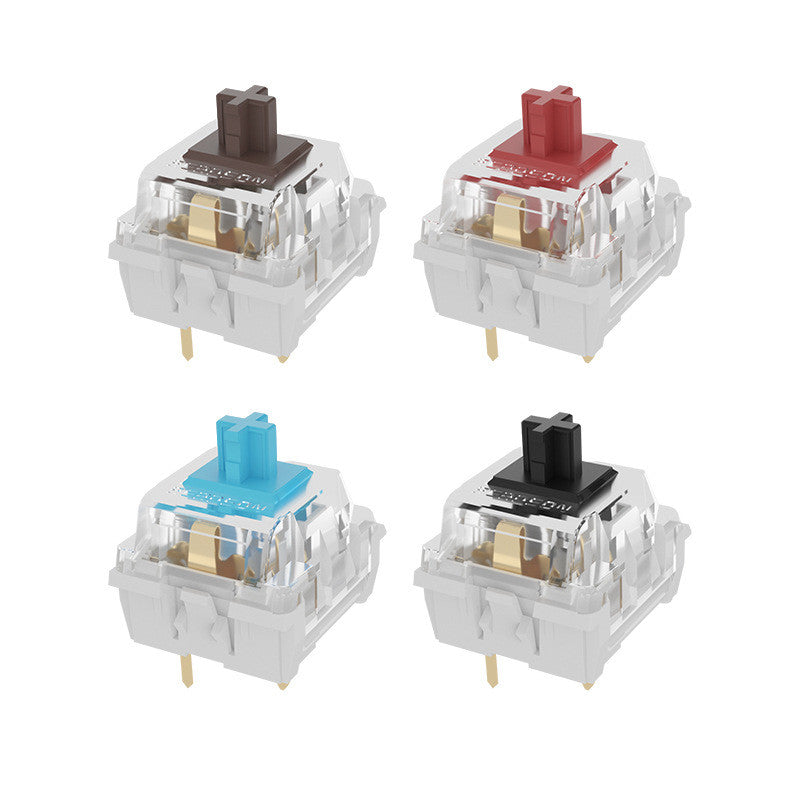

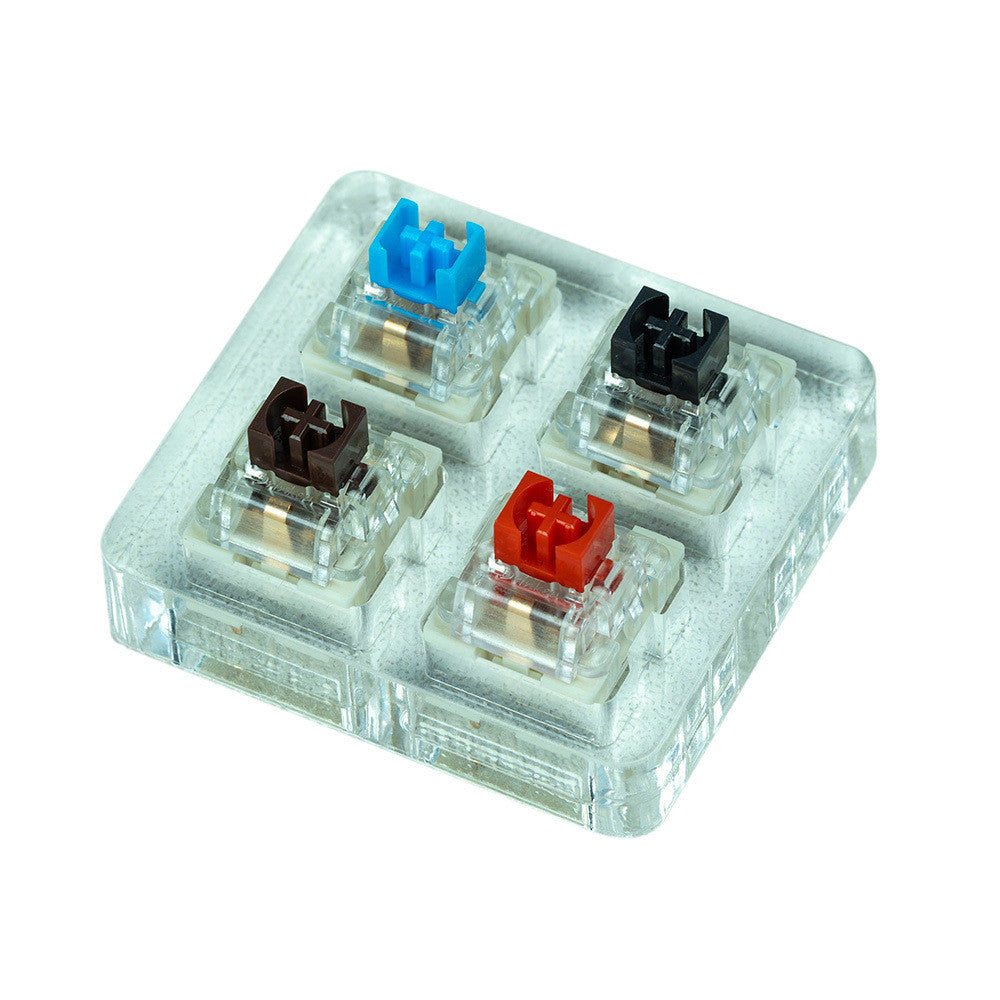

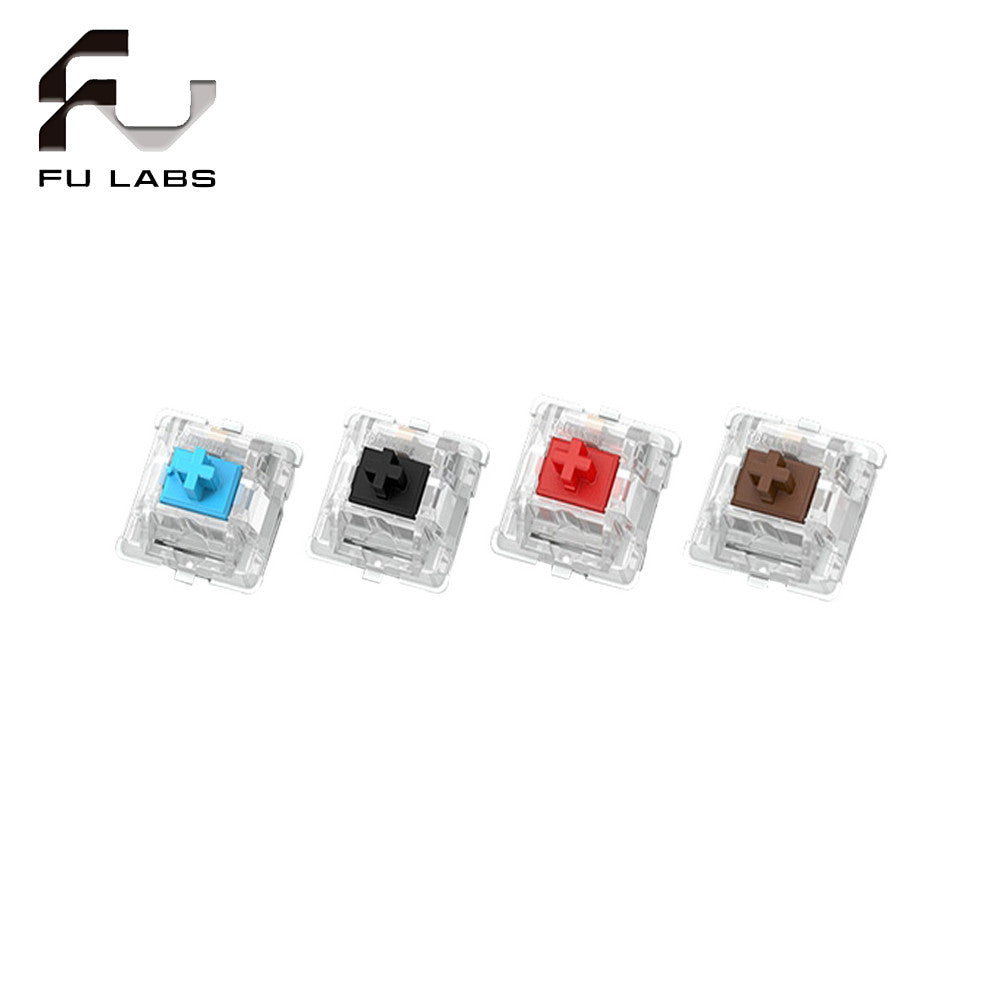

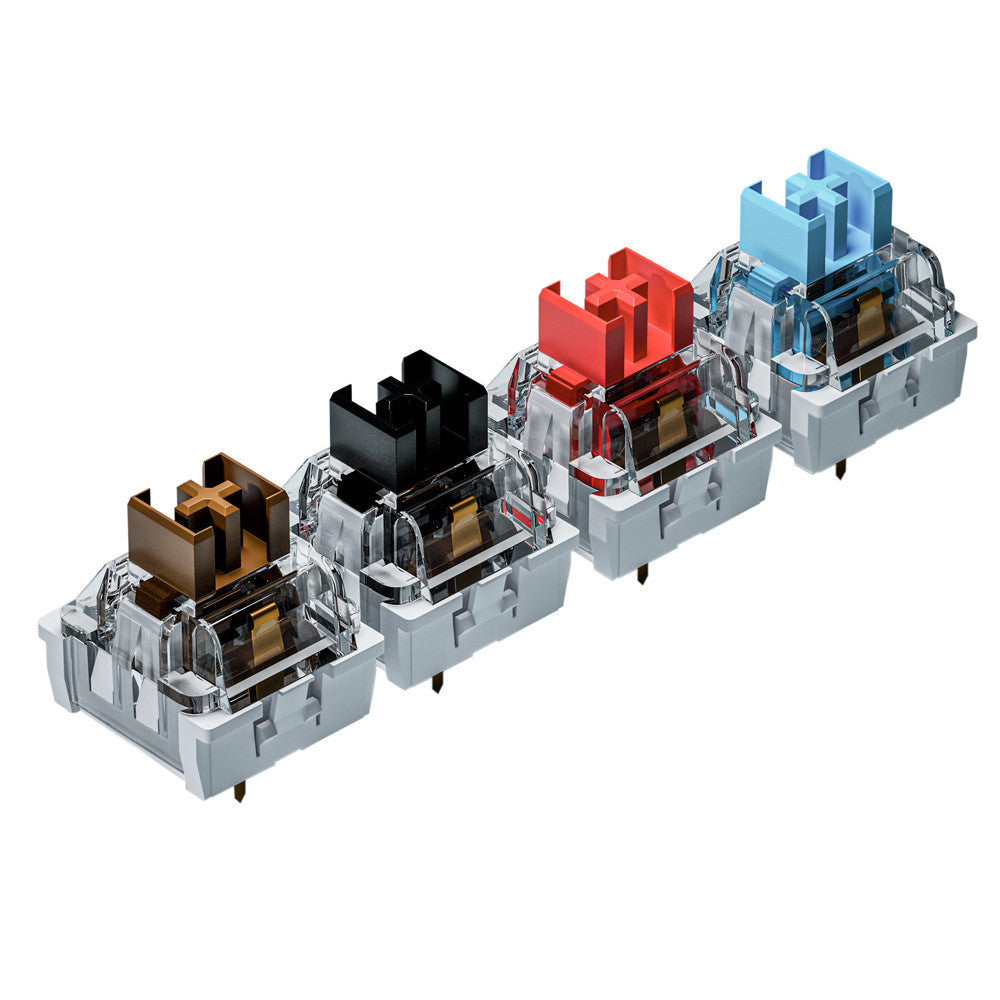

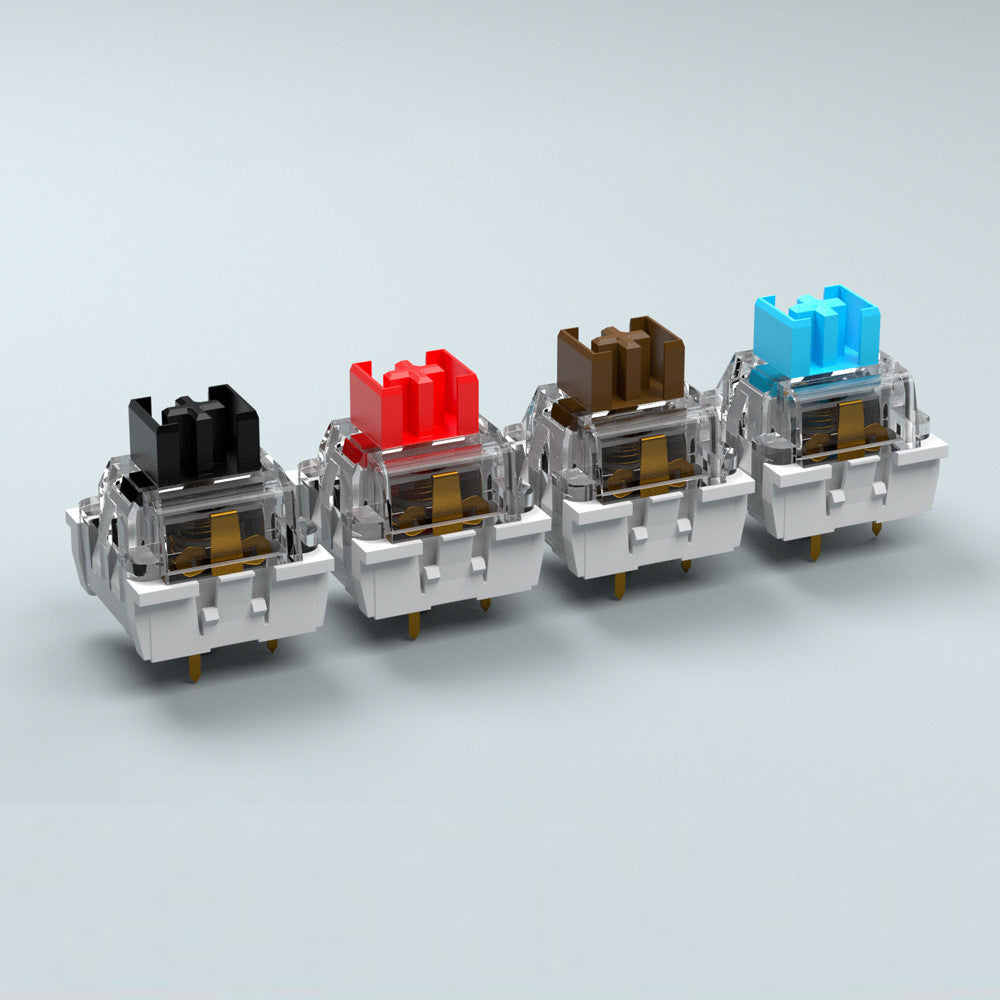

3Pin Switches black red brown blue fit for Mechanical Keyboard Keyboard axis body

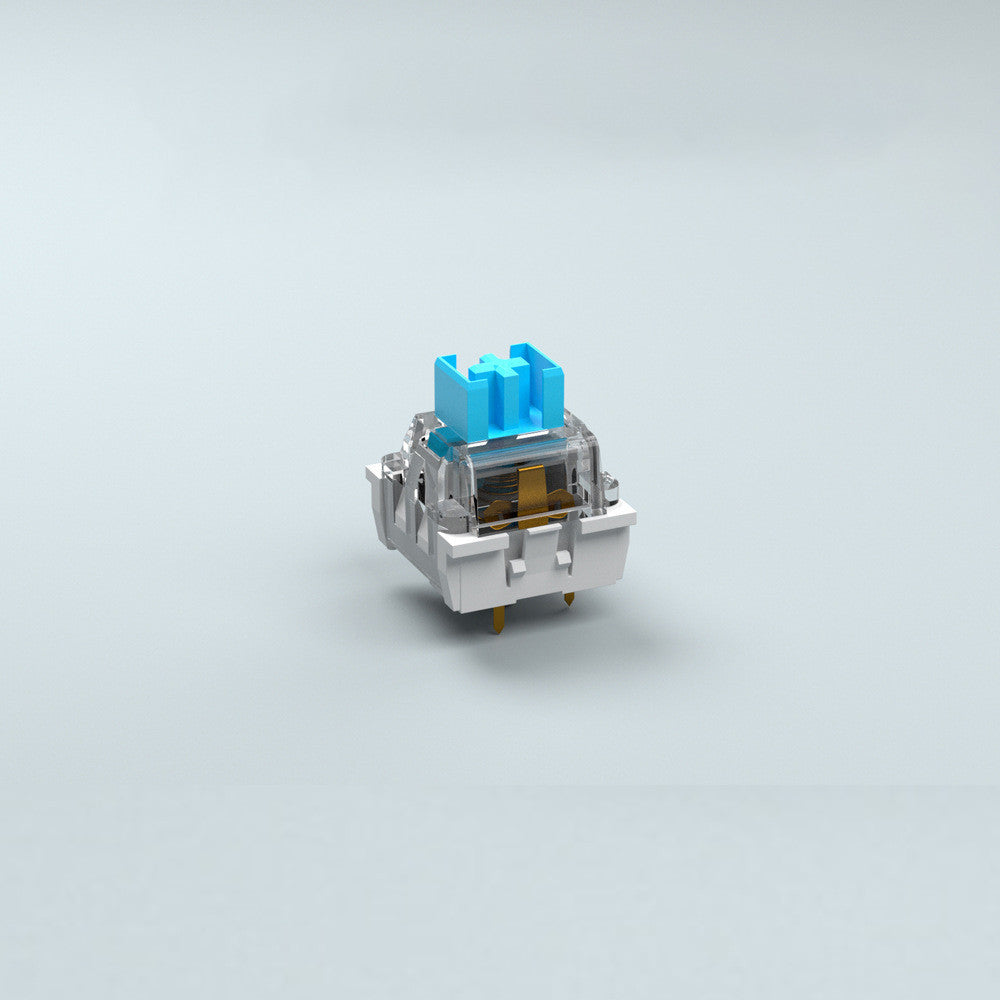

   Blue Shaft: Two segment type, with light paragraph force and strong mechanical sense, with a clear and crisp clicking sound. The pressing stroke is 4.0 ± 0.3MM, and the operating force is 50 ± 15GF.

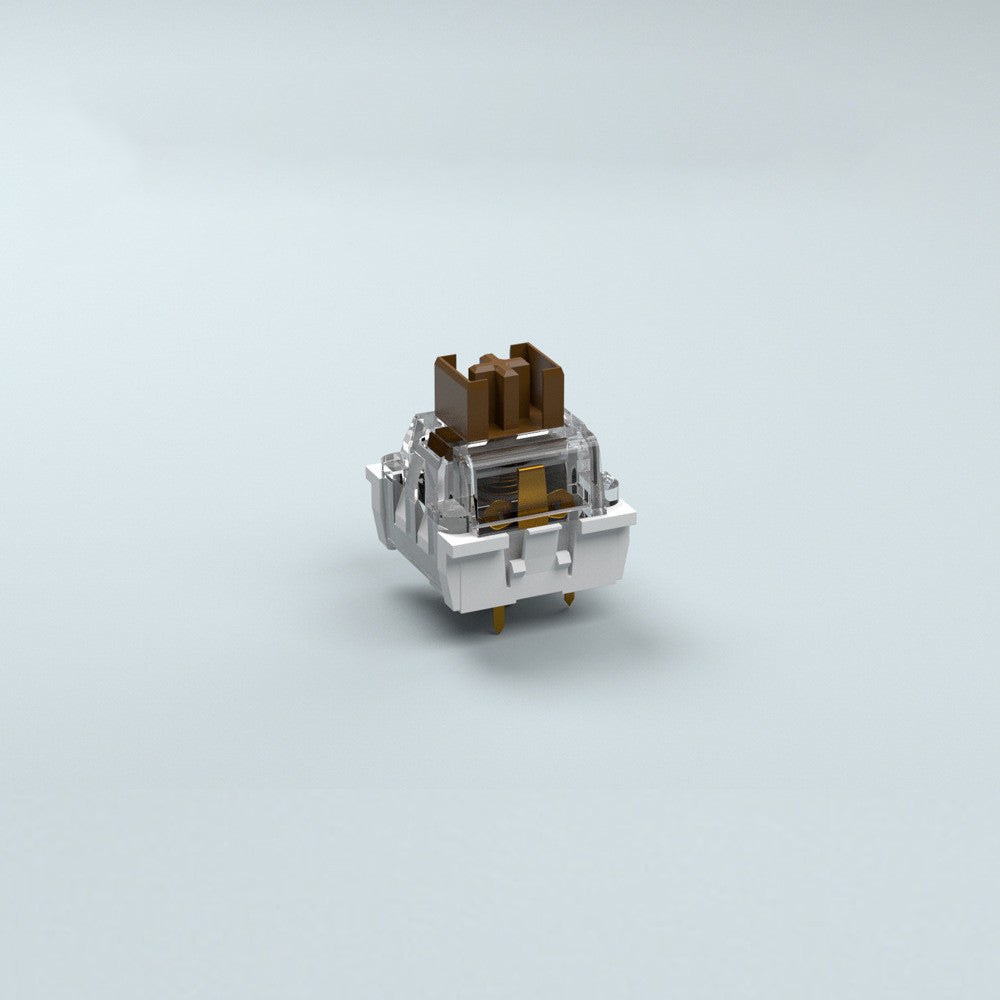

   Tea Shaft: Two segment type, with light paragraph feel and fast hand on the versatile shaft. There is a slight button sound, and the pressing stroke is 4.0 ± 0.3MM. The operating force is 50 ± 15GF.

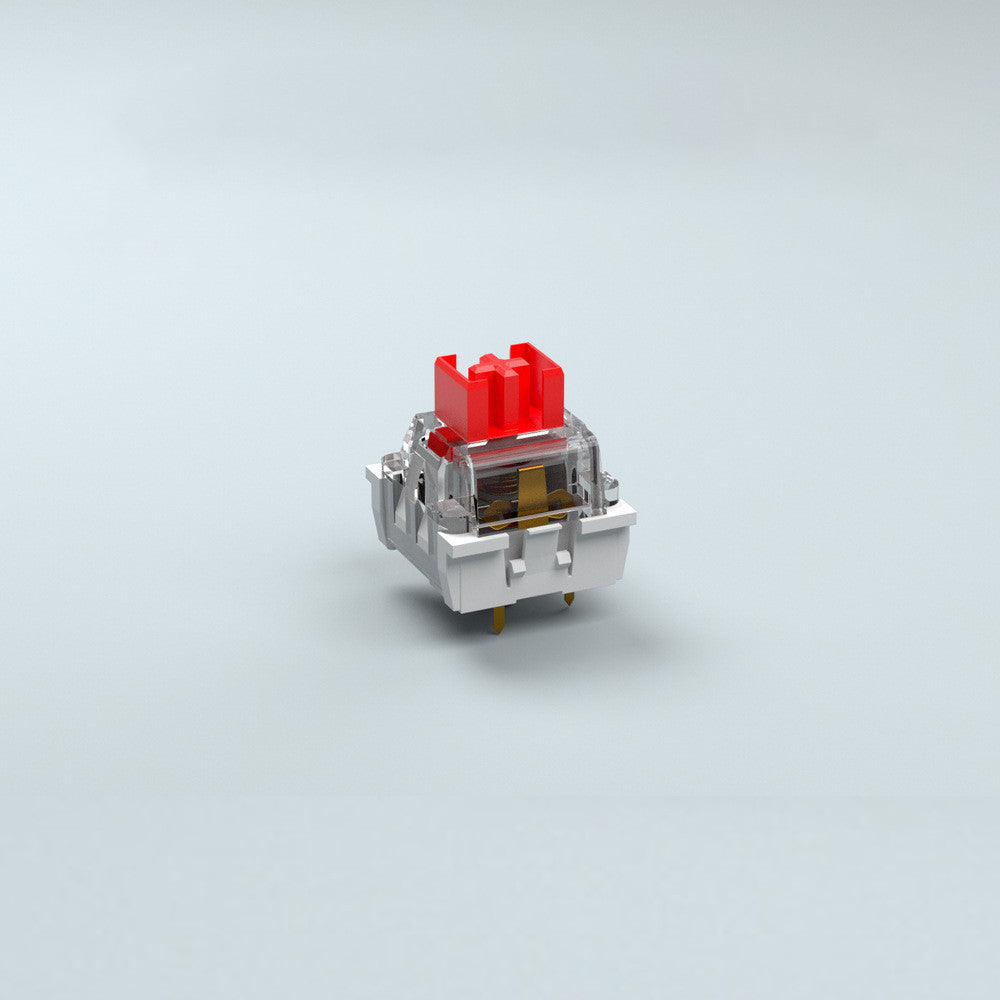

   Red Shaft: Linear feel, without paragraph feeling when tapping, straight up and down, making tapping easier. It can effectively meet the needs of gaming and typing, with a press stroke of 4.0 ± 0.3MM and a operating force of 45 ± 15GF.

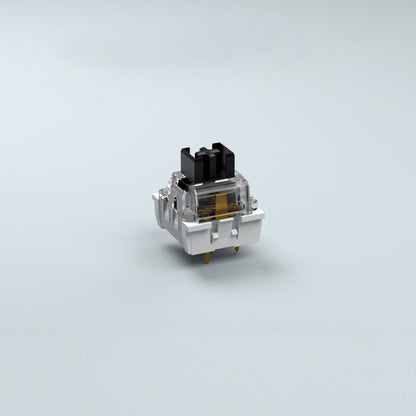

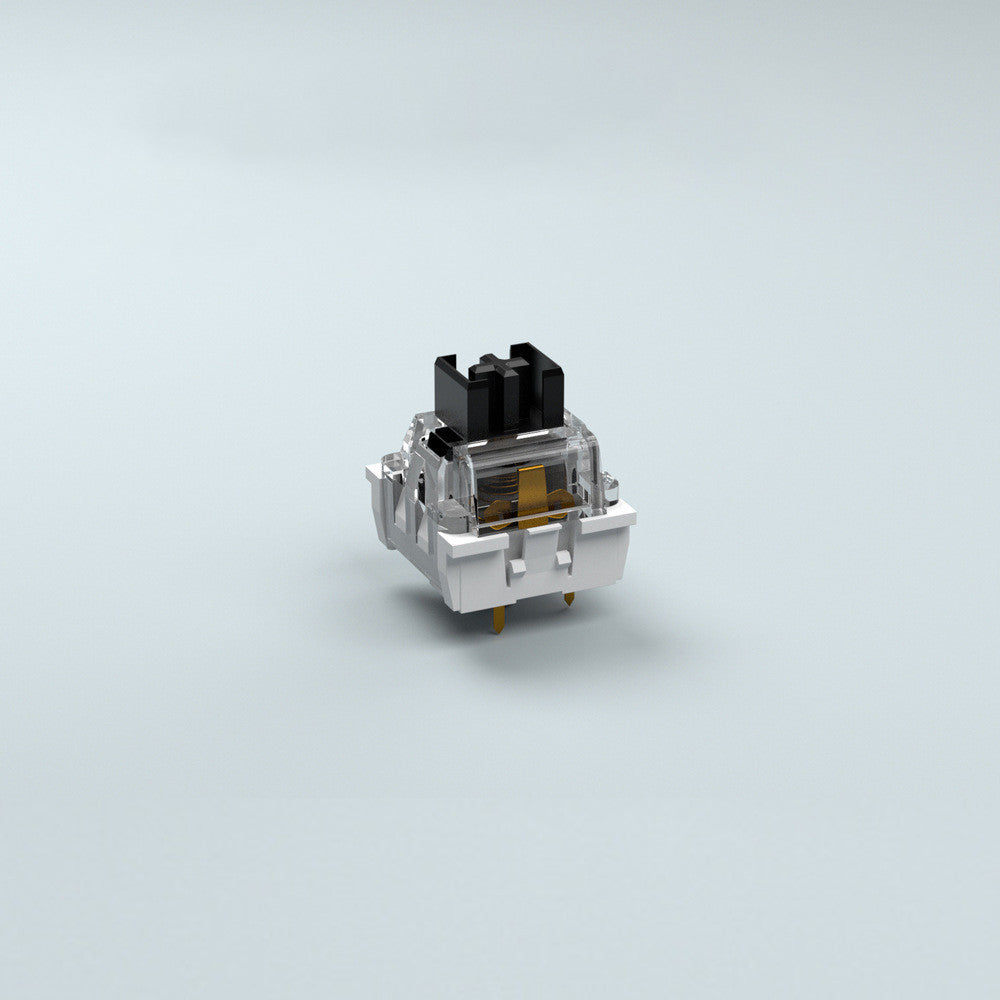

   Black Shaft: Linear feel, straight up and straight down, strong force, fast response, suitable for players with speed requirements. Press stroke 4.0 ± 0.3MM, operating force: 65 ± 15GF.

   Shaft Replacement Method

   -Plug and Play Keyboard

   1. Use a shaft puller to remove the key cap.

   2. Use a shaft puller to pull out the shaft (align the shaft puller with the clamping point).

   3. Check the installation position of the new shaft.

   4. Align the new shaft with the clamp.

   5. Gently press to install the new shaft to the locking position.

   6. Finally, install the keycap and complete the shaft replacement.

   -Non-pluggable Keyboard

   1. Prepare tools (electric soldering iron, soldering wire, solder absorber).

   2. Pull out the key cap and unscrew the screw.

   3. Absorb tin so that the pins are not connected to the board.

   4. Press down the central shaft and pull out the shaft.

   5. Align the position of the new shaft body and install and repair welding.

   6. Finally, install the keycap and complete the shaft replacement.

   Attention: When inserting a new shaft, please make sure to align the pin position properly. When it cannot be easily inserted, do not press to prevent the pin from breaking.

   Specification

   Product Size: 1.8 x 1.8 x 2.5cm

   Package Included

   1 x Mechanical Keyboard Shaft

   NO Retail Box. Packed Safely in Bag.
