3S 4S 5S BMS 100A 21V 18V 16.8V 12V 18650 Li-ion LMO Ternary Lithium Battery Protection Circuit Board Balance Charging

  3s/4s/5s Bms 12v 16.8v 21v 3.7v 100a Li-ion Lmo Ternary Lithium Battery Protection Circuit Board Li-polymer Balance Charging Module

Parameter:

  - FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)

  - Single cell battery overcharge protect voltage : 4.21-4.29 V

  - Single cell battery overcharge protect recover voltage : 4.14-4.24 V

  - Overcharge protect delay : 1.5-2.5S

  - Single cell battery over-discharge protect voltage : 2.72-2.88 V

  - Single cell battery over-discharge protect recover voltage : 2.9-3.1 V

  - Over charge protective current:100A

  - Over discharge protective current:100A

  - Over-discharge protect delay : 0.5-1.5S

  - Temperature protect : Yes,have Temperature control interface.

  - Disconnect protect : Yes

  - Shortage protect : Yes

  - Shortage delay : 100-600 uS

  - Shortage protect recover mode: Off load release.

  - Contact discharge current:80A

  - Synopline discharge current:60A

  - Charging current:60A

  - balance function:yes

  - Ampere balance (Current) : 60MA

  - Current balance accuracy : 4.14-4.24V

Description:

1.Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.

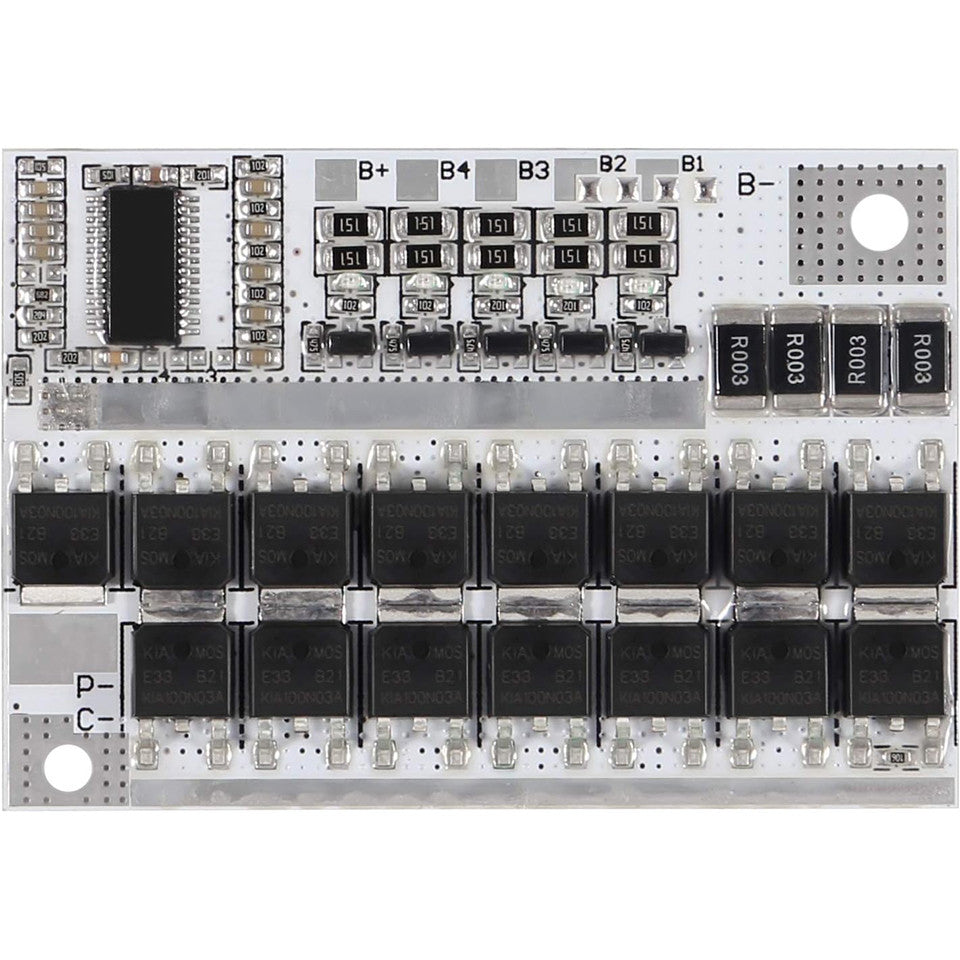

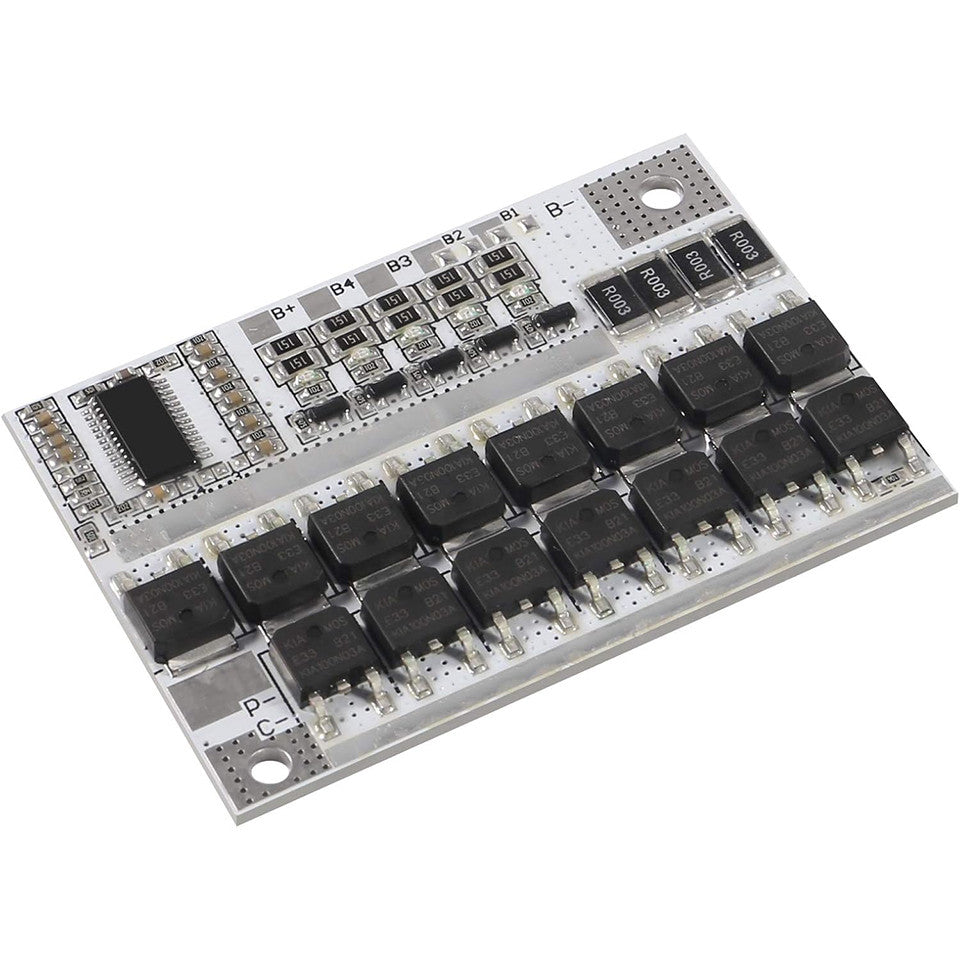

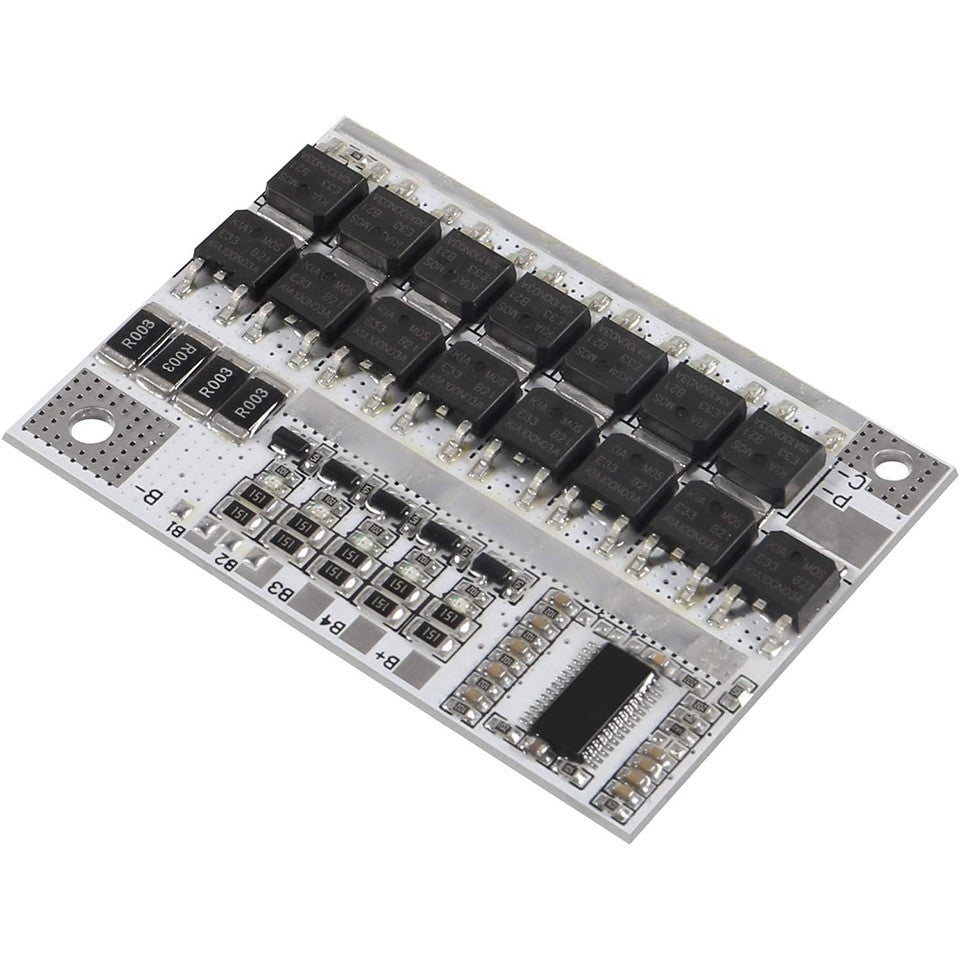

2.Common use for "same port" and "different port", the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.

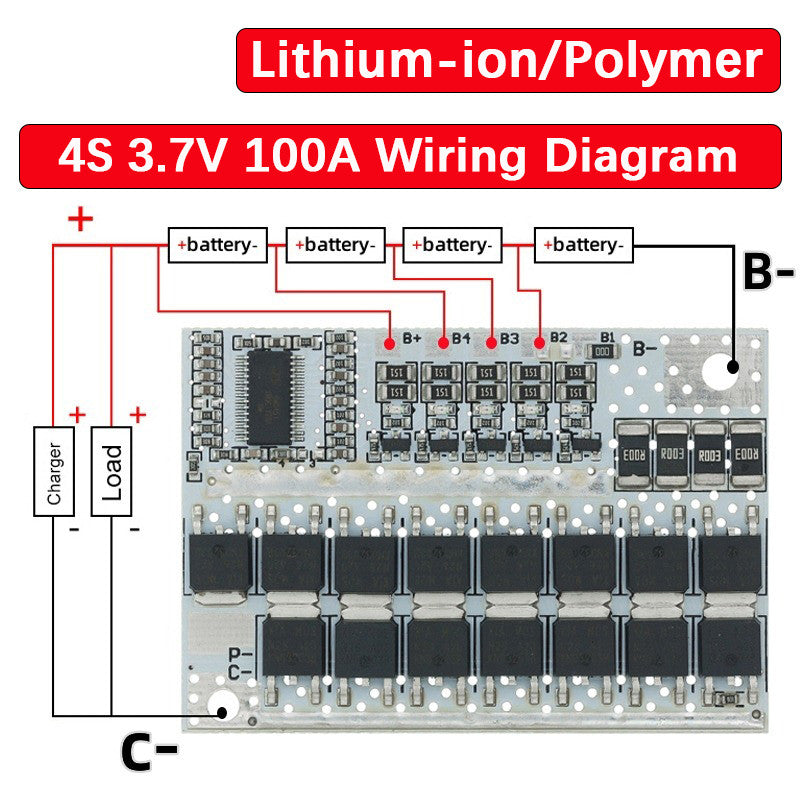

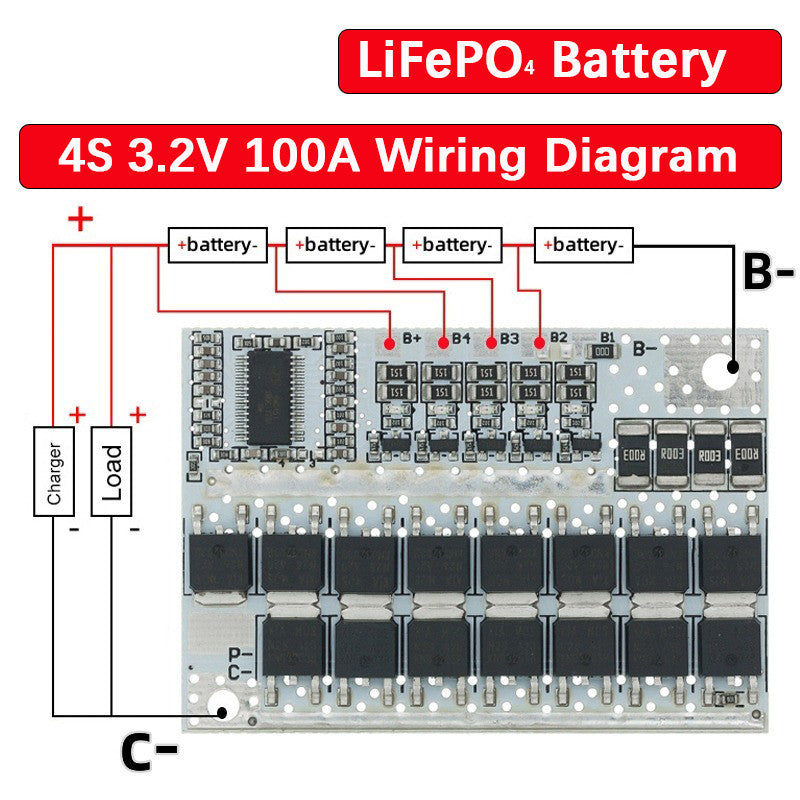

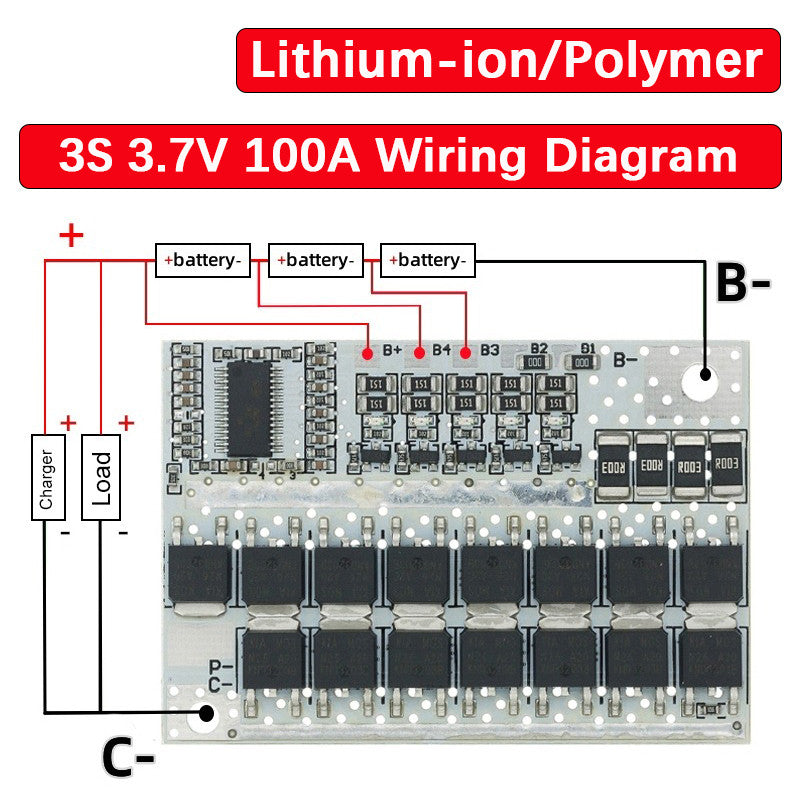

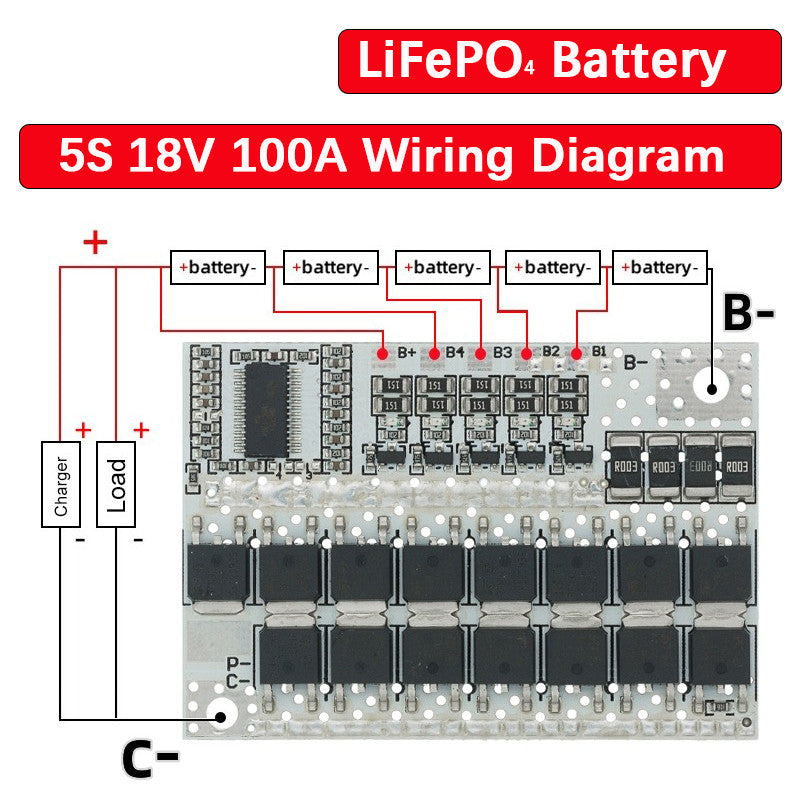

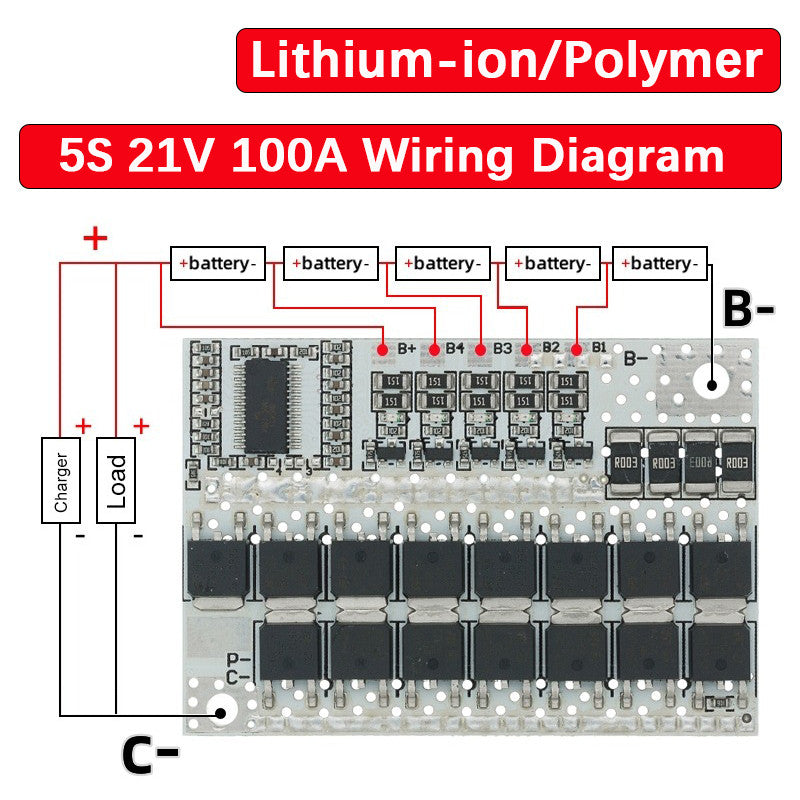

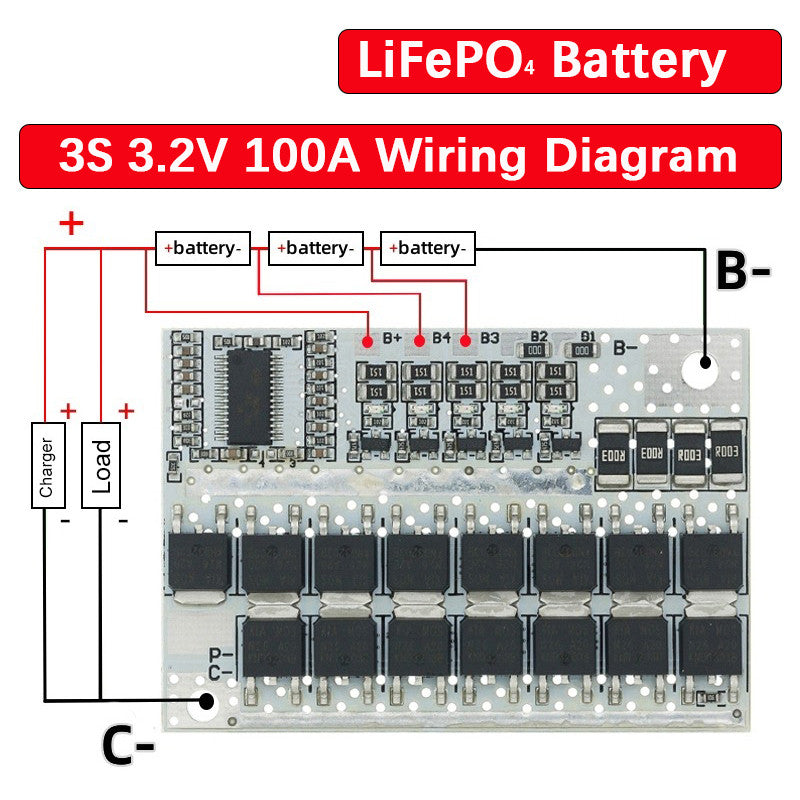

  Note:Common use for "same port" and "different port"

3.Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs
