● Output voltage: 400000 v(Please pay attention to safety)
● High pressure discharge distance between: 10 mm - 20 mm
● The output high voltage wire length: 100 mm
● Input power cord length: 100 mm (the red line is positive)
Wiring:
● Red and green power connection red line:"+" green line "-"
● output : the other side ,same color cable
Please notice:

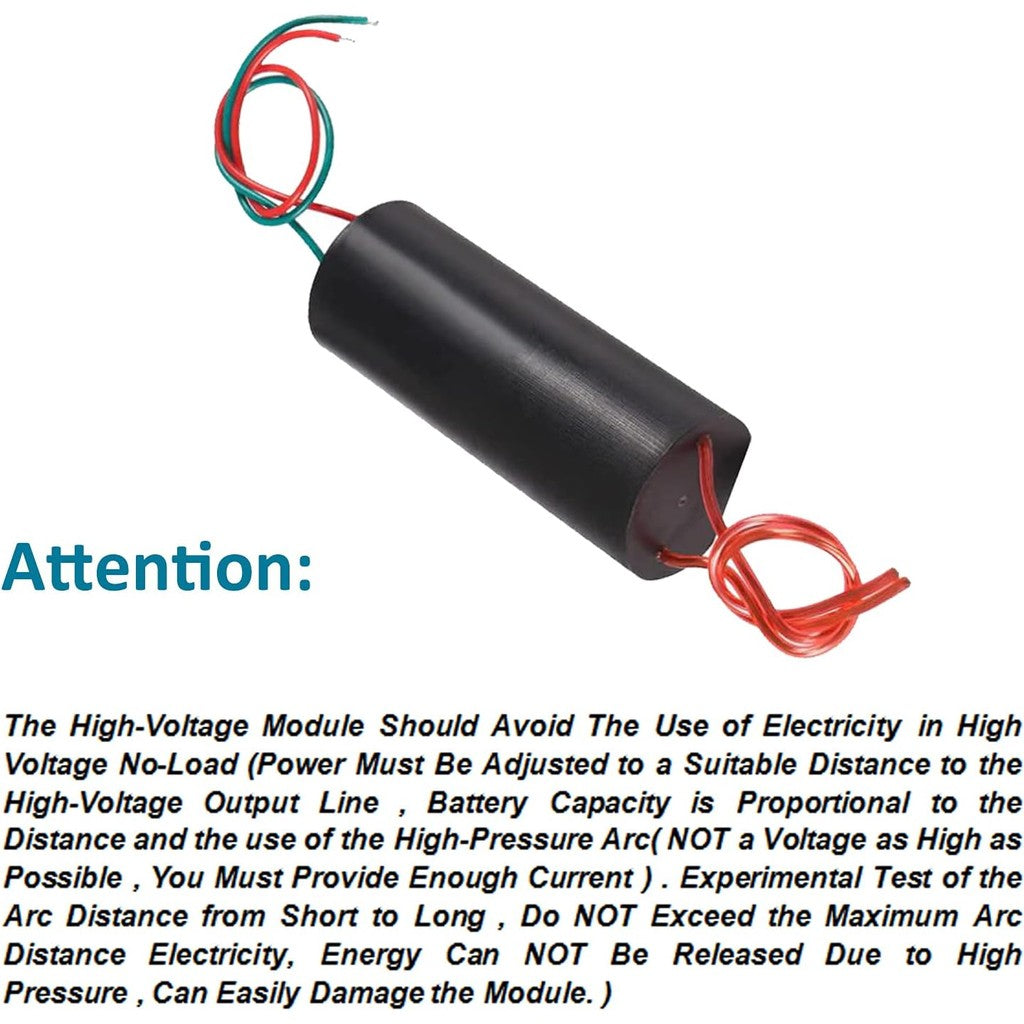

the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module
Package included:
1 x DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator
1000KV:
product description:
Note that this module is not hot, you can't order cigarette paper.

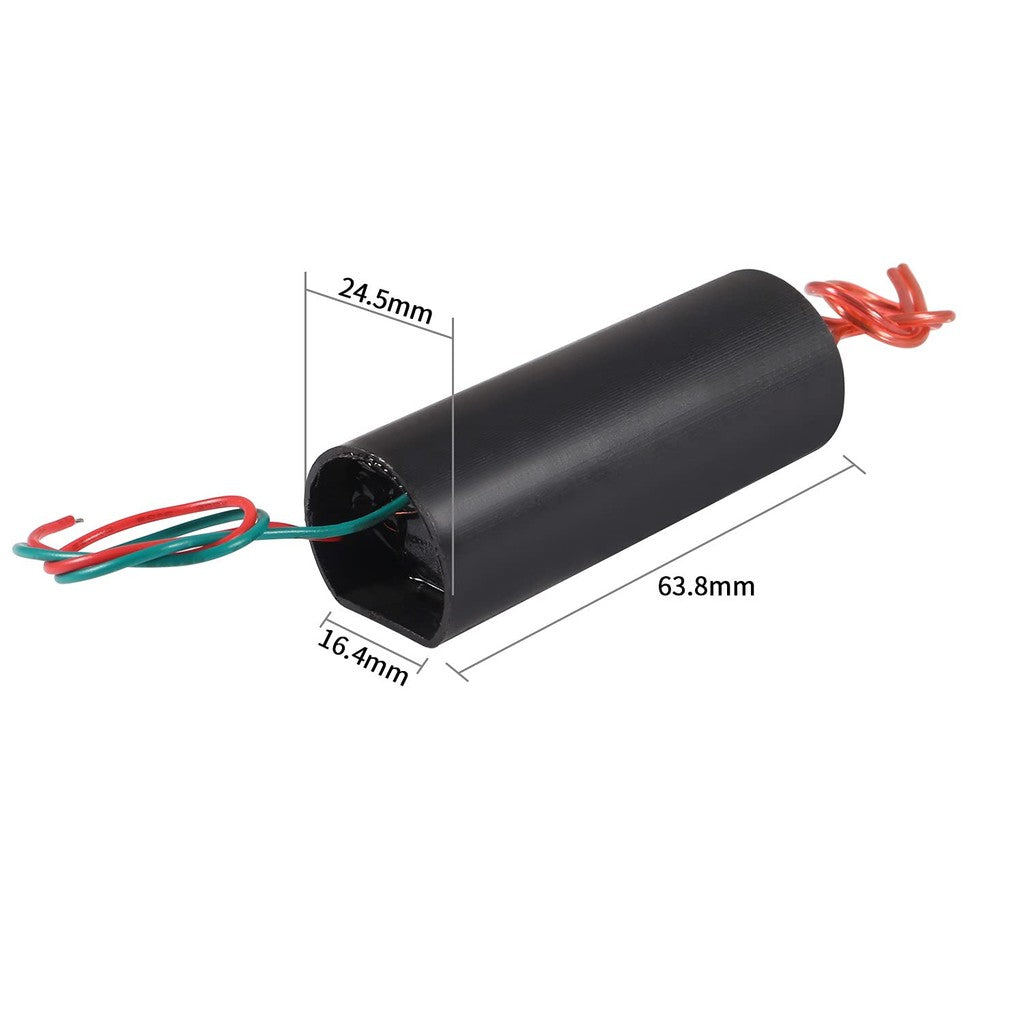

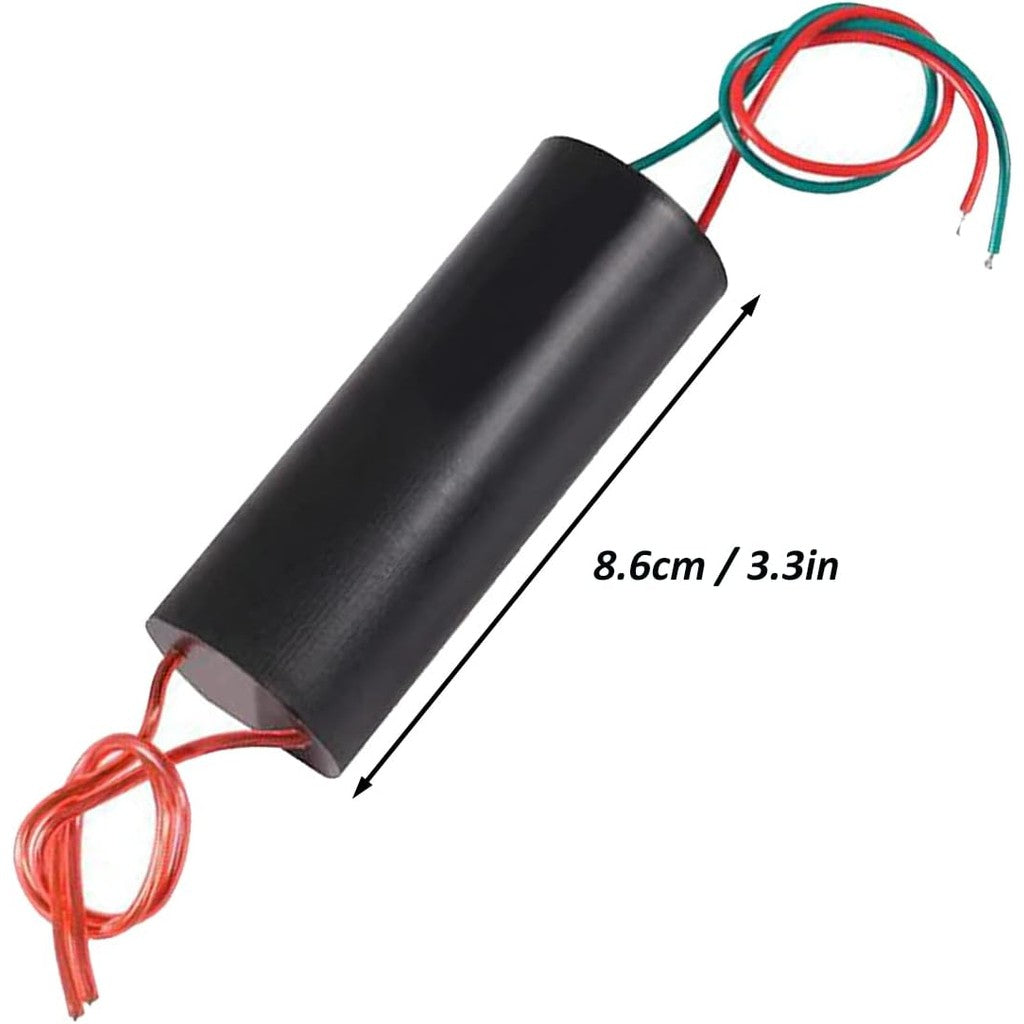

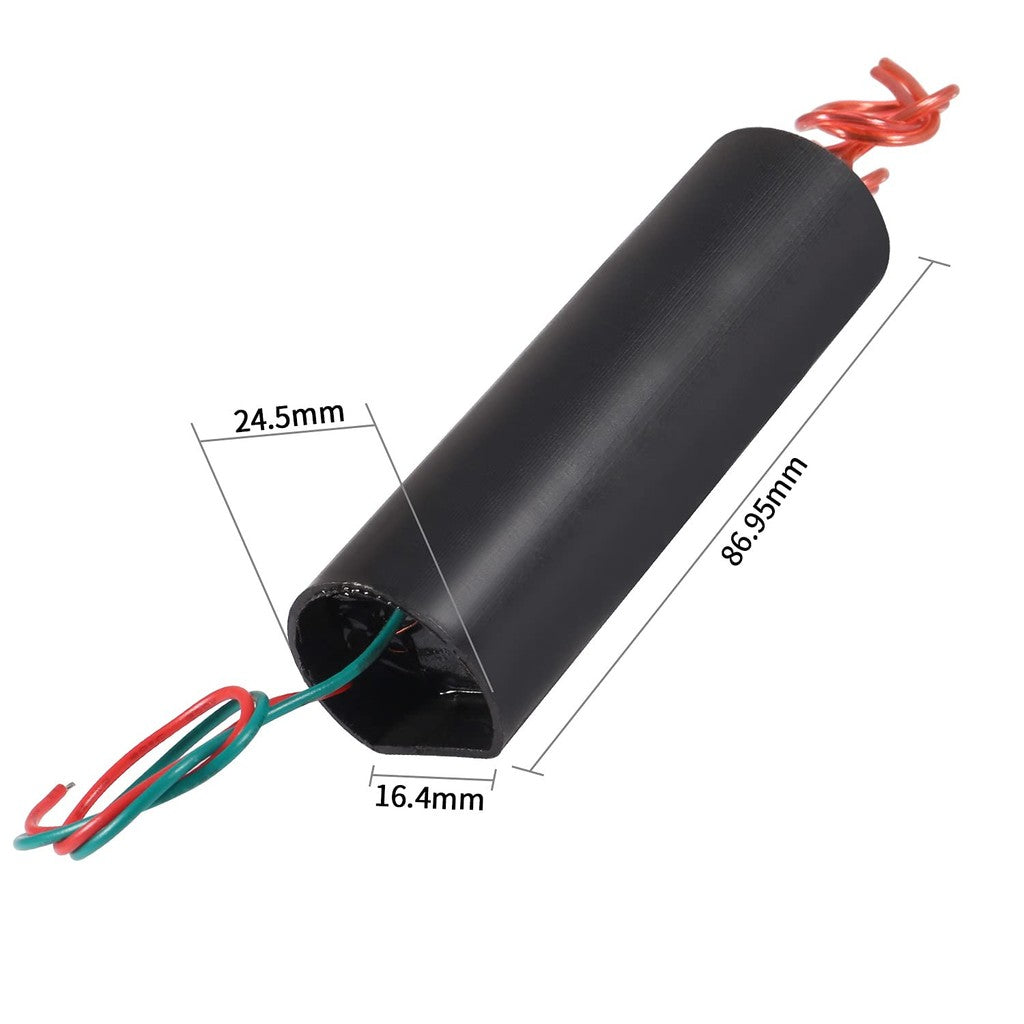

Pulling the arc for one minute to strengthen the module size is 13.5 cm long and 2.4 cm in diameter
Product introduction:This module is a high voltage module/high voltage generator made of high voltage package/transformer through component circuit. It can be used as a high voltage source for student science experiment/electronic instrument/negative ion generator/scientific small production. The module uses Tesla. The principle of the coil is made, the high-voltage pulse is output, the volume is small, the efficiency is high, and the discharge intensity is fierce.
Input parameters:3.7-7.4V/4A Input line length: 10 cm or so (red positive green negative)
Output parameters:800-1000KV/0.5A Line length: about 16 cm
High-voltage two-pole discharge distance: 1.5 cm - 2 cm (do not exceed)

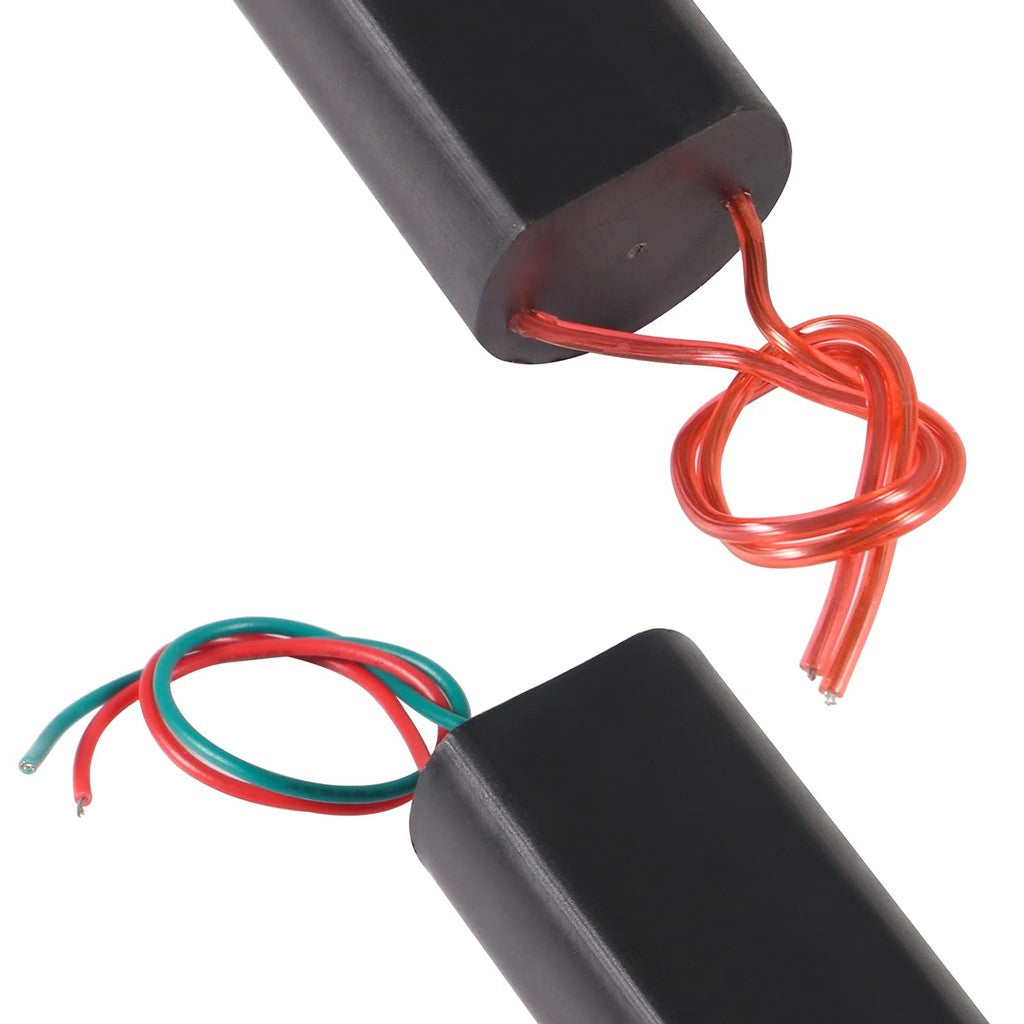

Product usage:The module is divided into input and output. The red and green lines are the input terminals, red and green are negative, and the output is two high-voltage lines of the same color. The input terminal can be connected to the battery to generate high-voltage arc.
Please operate the module strictly according to the method of use and precautions, otherwise it will easily damage the module!
About input power:3.7V lithium battery input (such as 18650 battery) NiCd/NiMH battery pack, 4V or 6V lead-acid battery, etc. The input voltage and current affect the output high voltage and arc distance.
Precautions for use:
1. The module should avoid energization when the high voltage is no-load.
