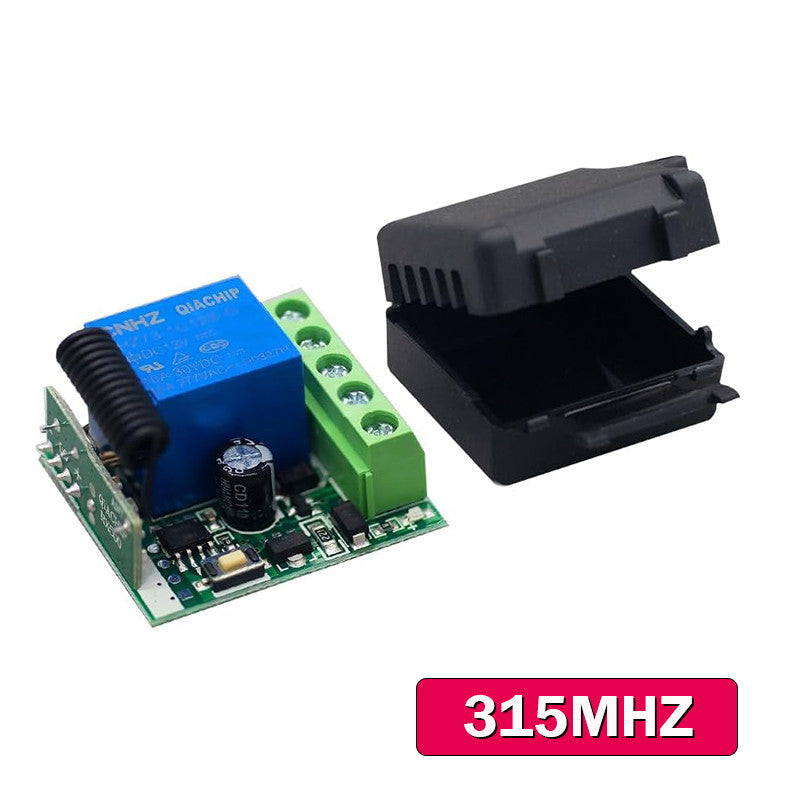

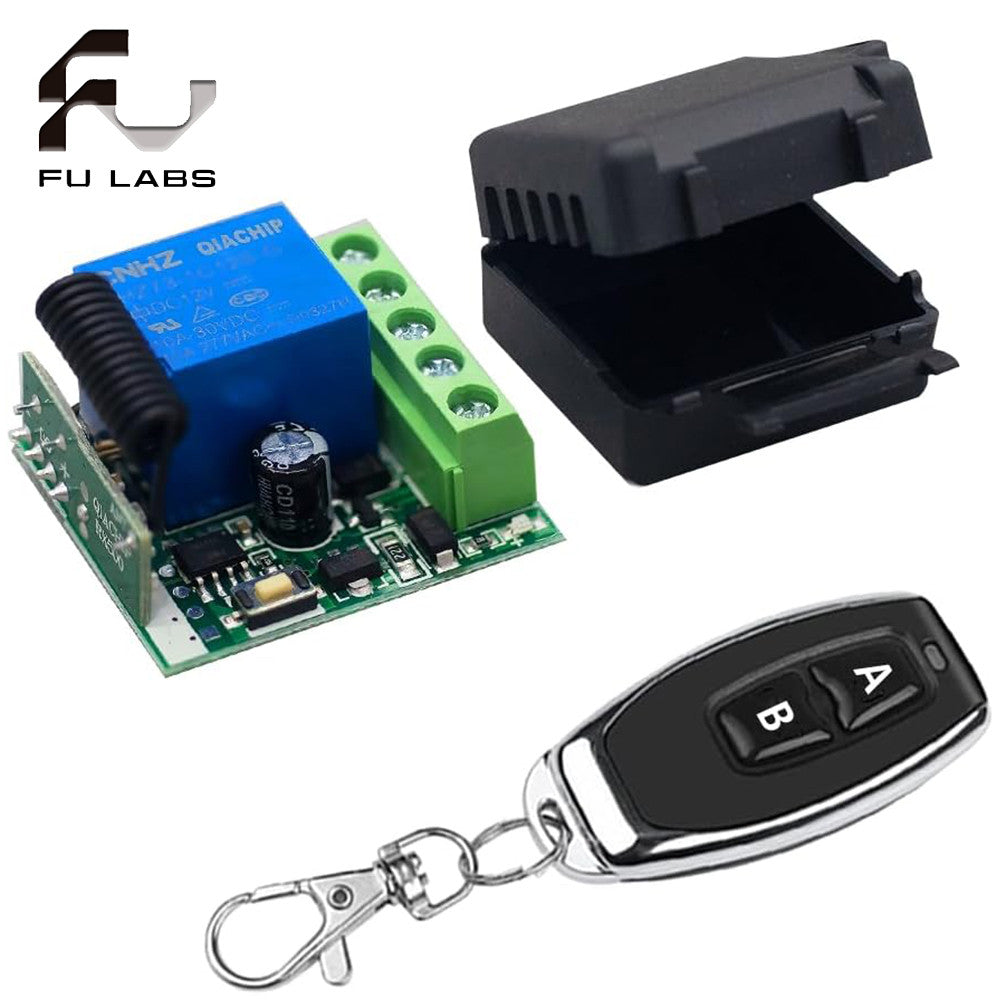

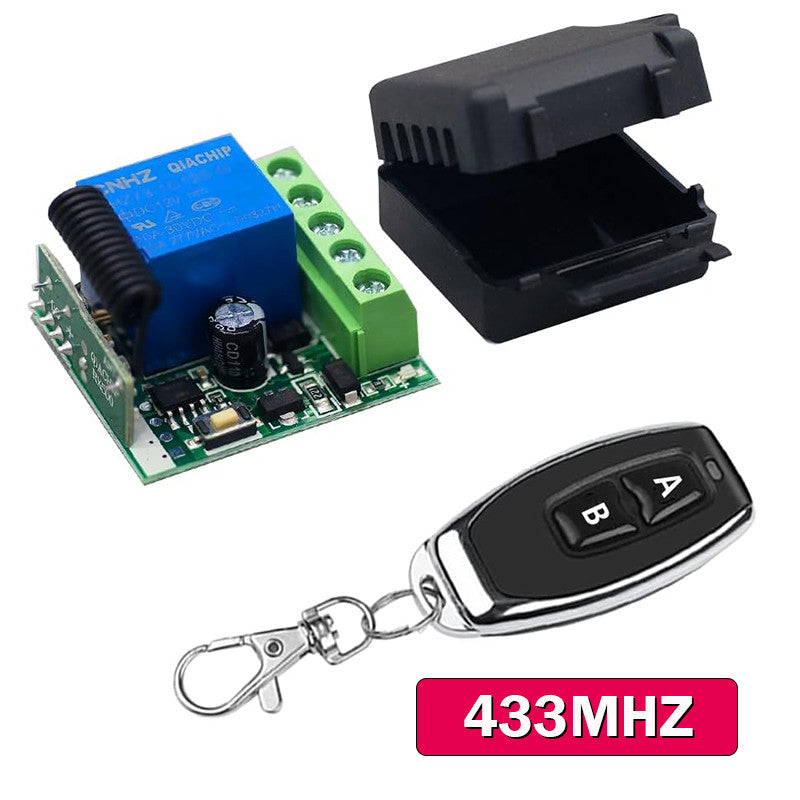

Warm Note:Due to different batches, the learning button may be in different positions. Please refer to the actual received product. It will not affect the product function.
1. Technical parameters:
● Working voltage: DA12V (3V/6V/9V/24V can be customized)
● Static working current: ≤10mA
● Working temperature: -40℃—+80℃
● Receiving sensitivity: ≥-95dB
● Working frequency: commonly used 315MHZ, 433.92MHZ (others can be customized)
● Output current: ≤10A
● Working mode: inching, self-locking, interlocking (adjustable)
● Output mode: contact output (controllable AC and DC)

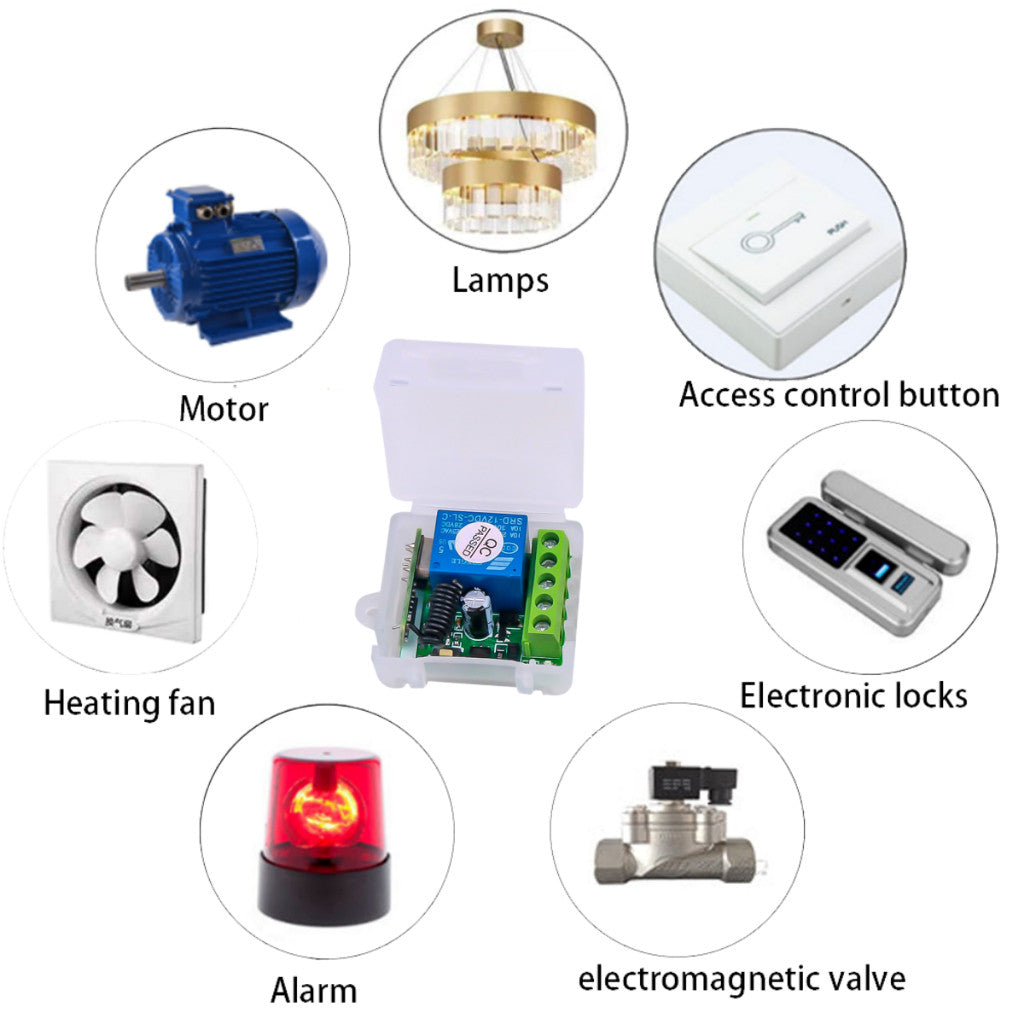

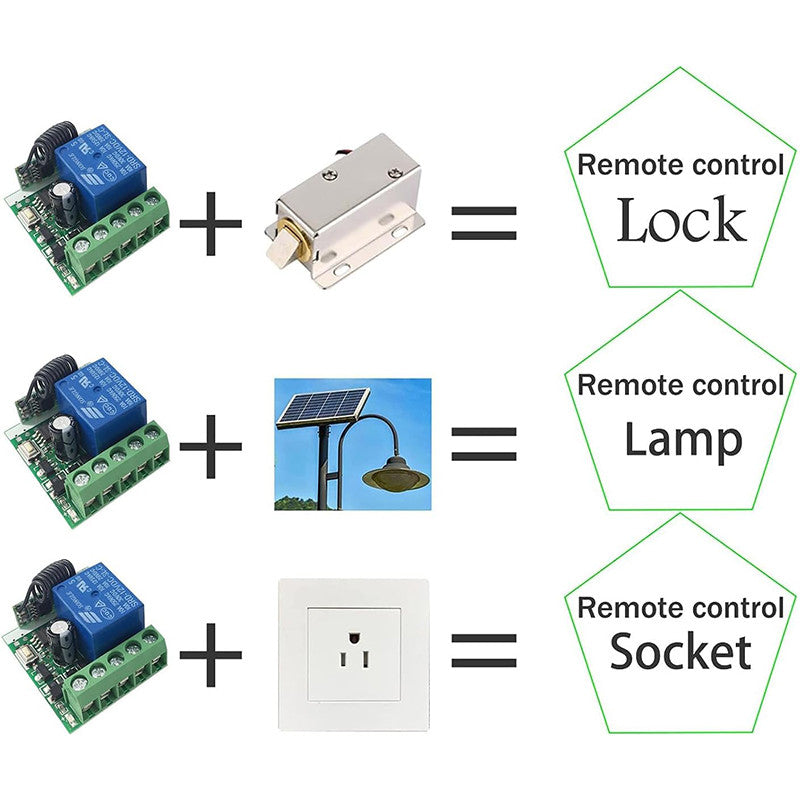

2. Scope of application:
This product is controlled by an intelligent microprocessor and can be used for garage door control, lighting control, remote curtains, access control systems and various motor control systems. Small size, easy installation, safe and reliable use, etc.

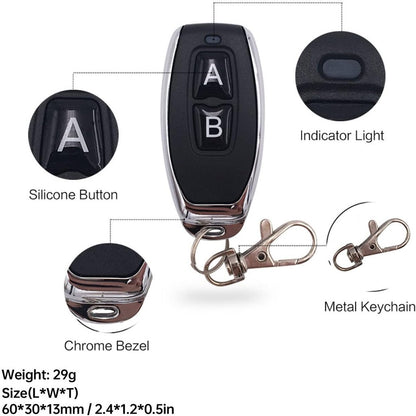

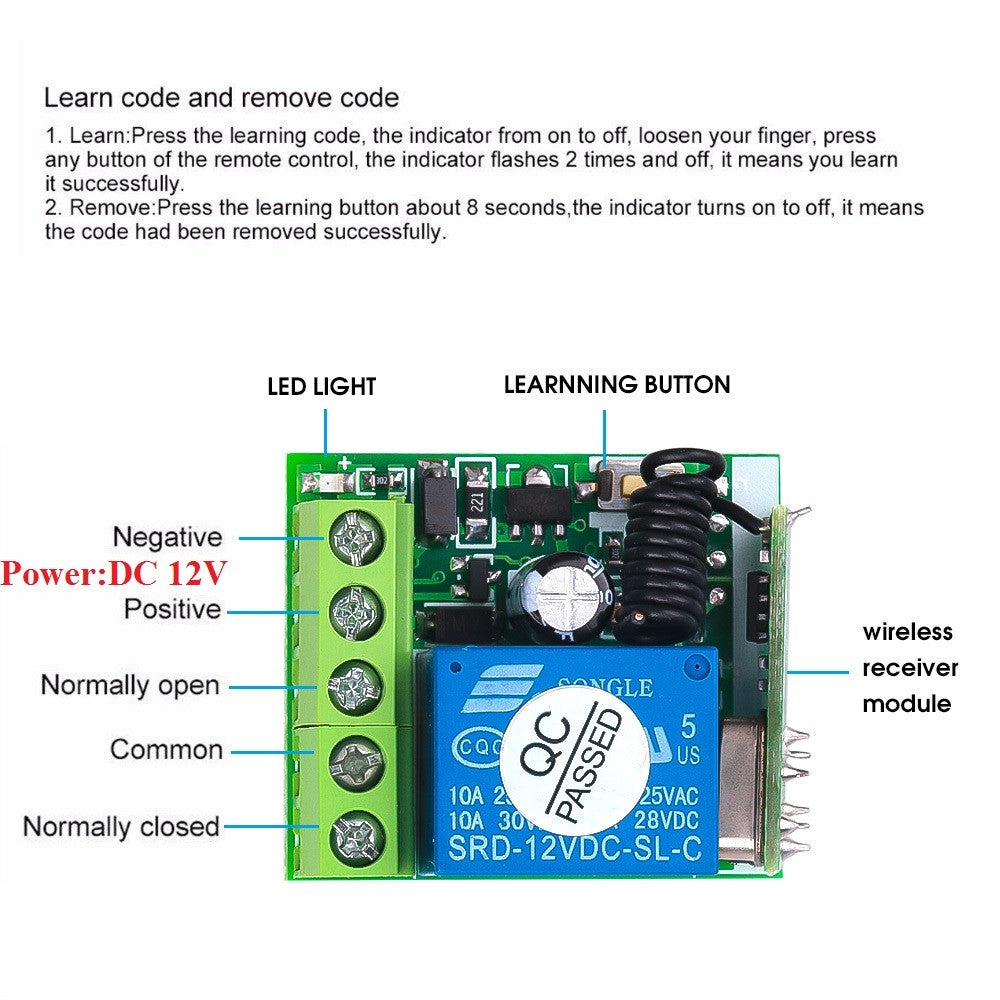

Wiring diagram 1:
1. +V: Input 12V power supply positive pole;
2. -V: Input 12V power supply negative pole;
3. NO: Output terminal: Normally open terminal of relay;
4. COM: Output terminal: Common terminal of relay;
5. NC: Output terminal: Normally closed terminal of relay:
Working mode description:
1. Inching mode: Press the remote control relay to close, release the remote control relay to disconnect.
2. Self-locking mode: Press the remote control relay to close, press the remote control again to disconnect.

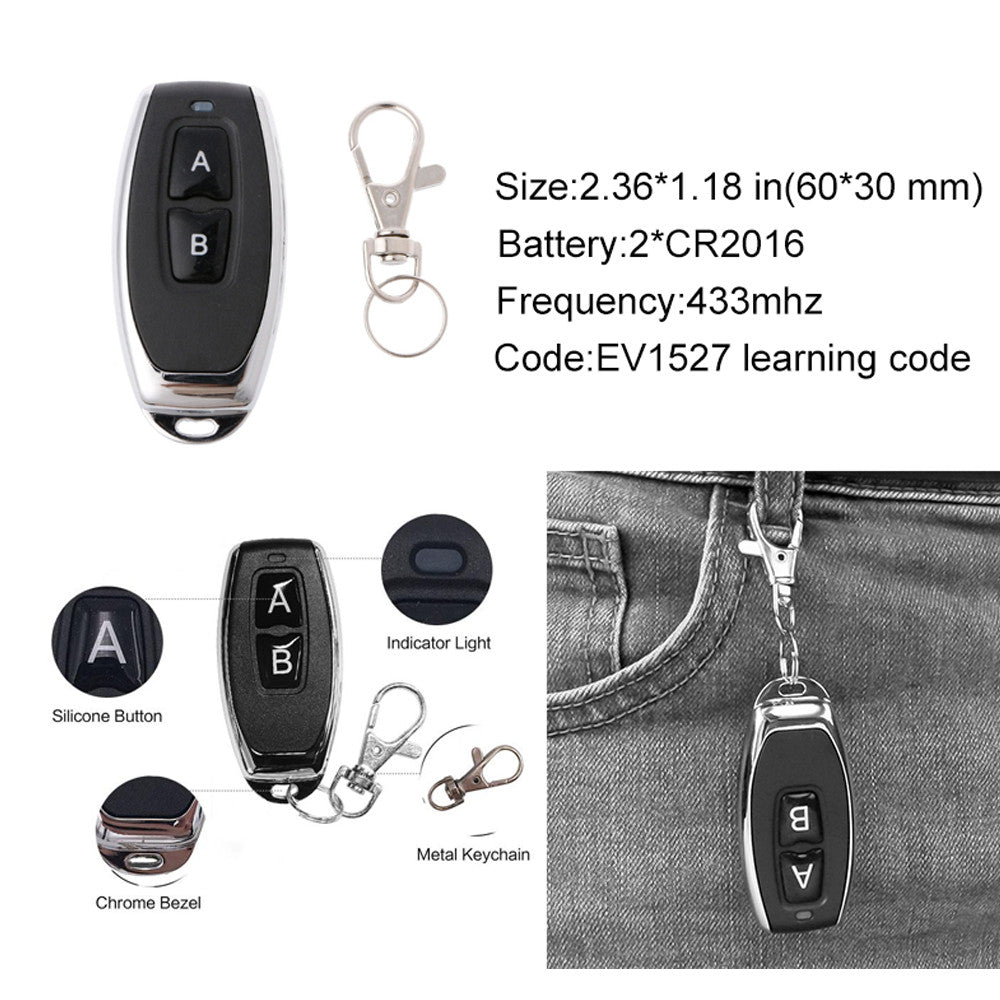

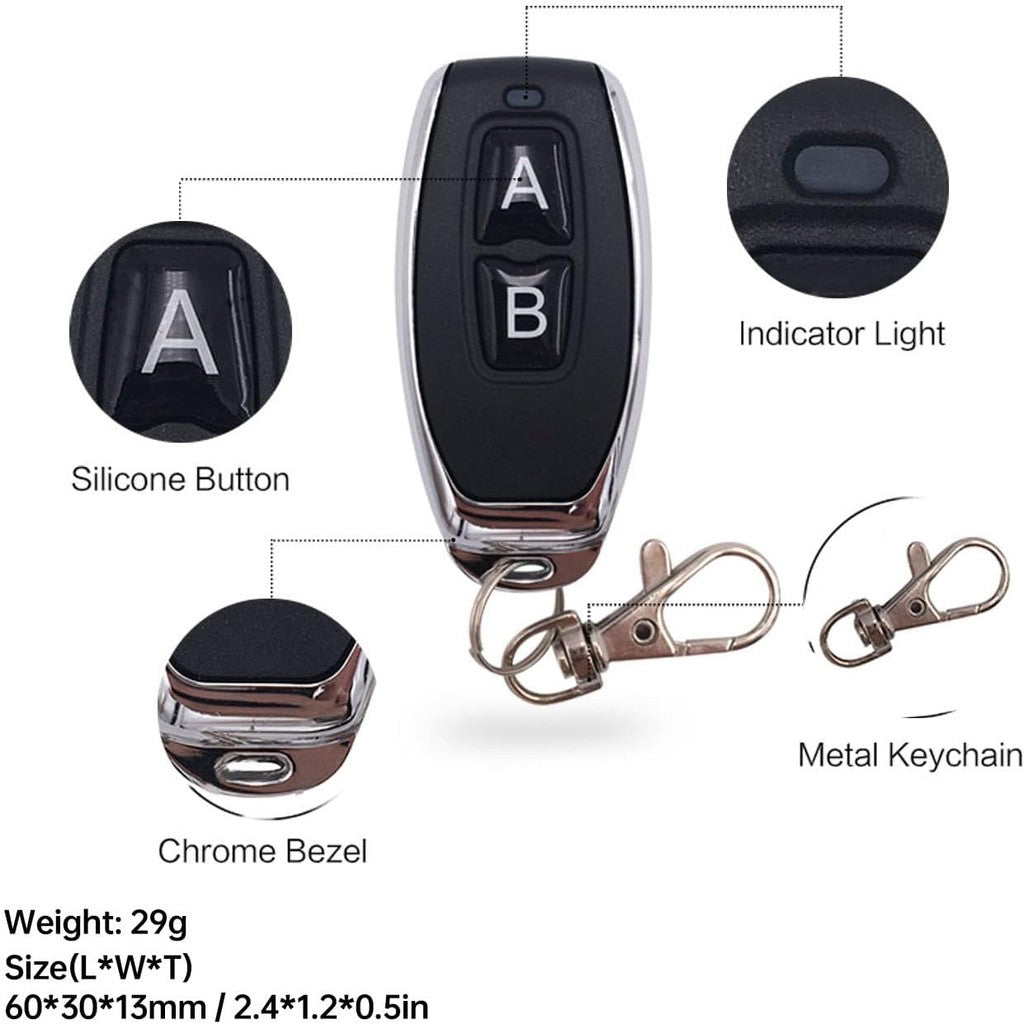

3. Interlocking mode: Press the remote control A button, the relay closes, press the remote control B button to disconnect.
4. Delay mode: Press the remote control relay to close, release the remote control to start timing, and automatically close the relay after 5 seconds, 10 seconds, 15 seconds (3 gears).

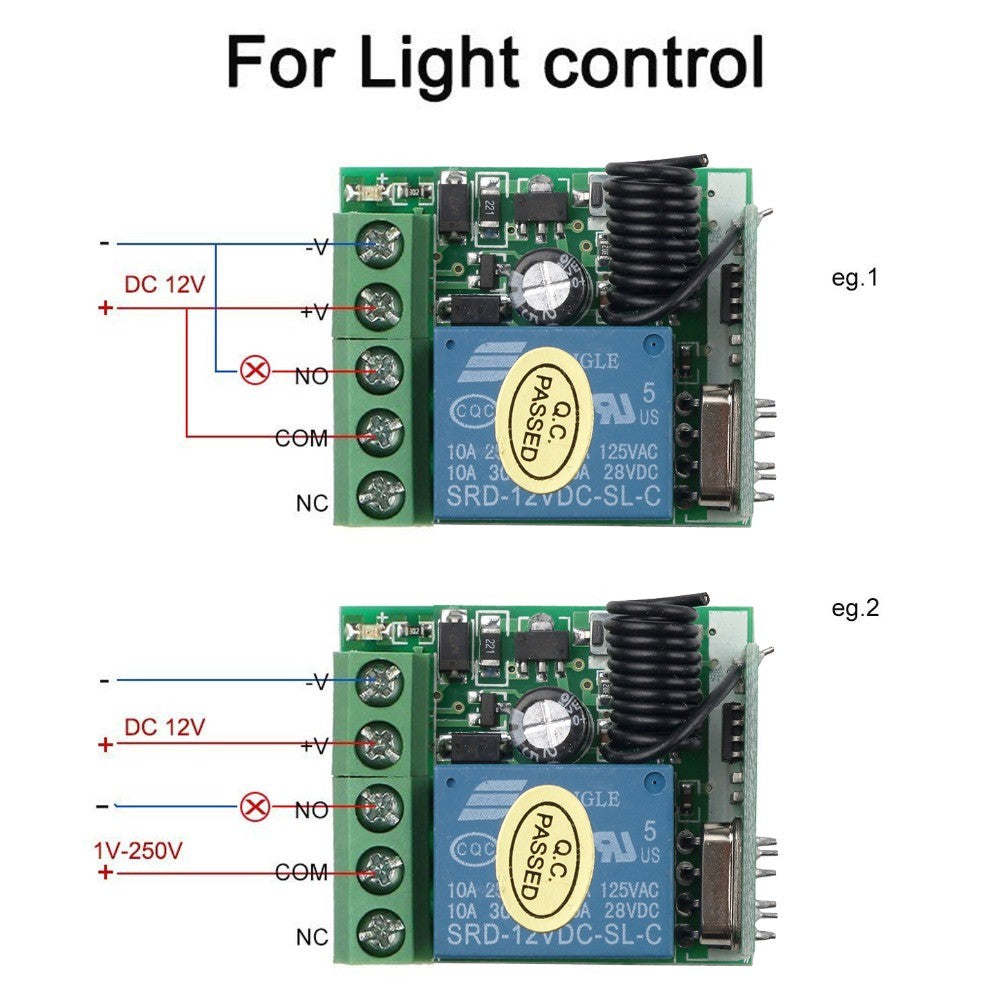

Wiring instructions:
+: Connect to the positive pole of 12V power supply;
-: Connect to the negative pole of 12V power supply;
NO: Output terminal; normally open terminal of relay;
COM: Output terminal; common terminal of relay; [can be connected to 1v~250v]
NC: Output terminal; normally closed terminal of relay;

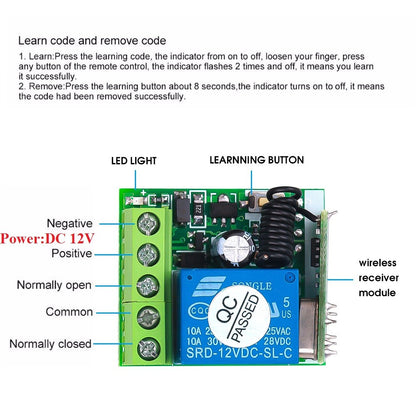

Clear data:
Connect the controller, power on, and then clear the code. Press the learning button on the control panel 8 times in a row to automatically clear all remote controllers that have learned and paired codes. After clearing, the remote controllers that have learned and paired codes will no longer be controlled.
