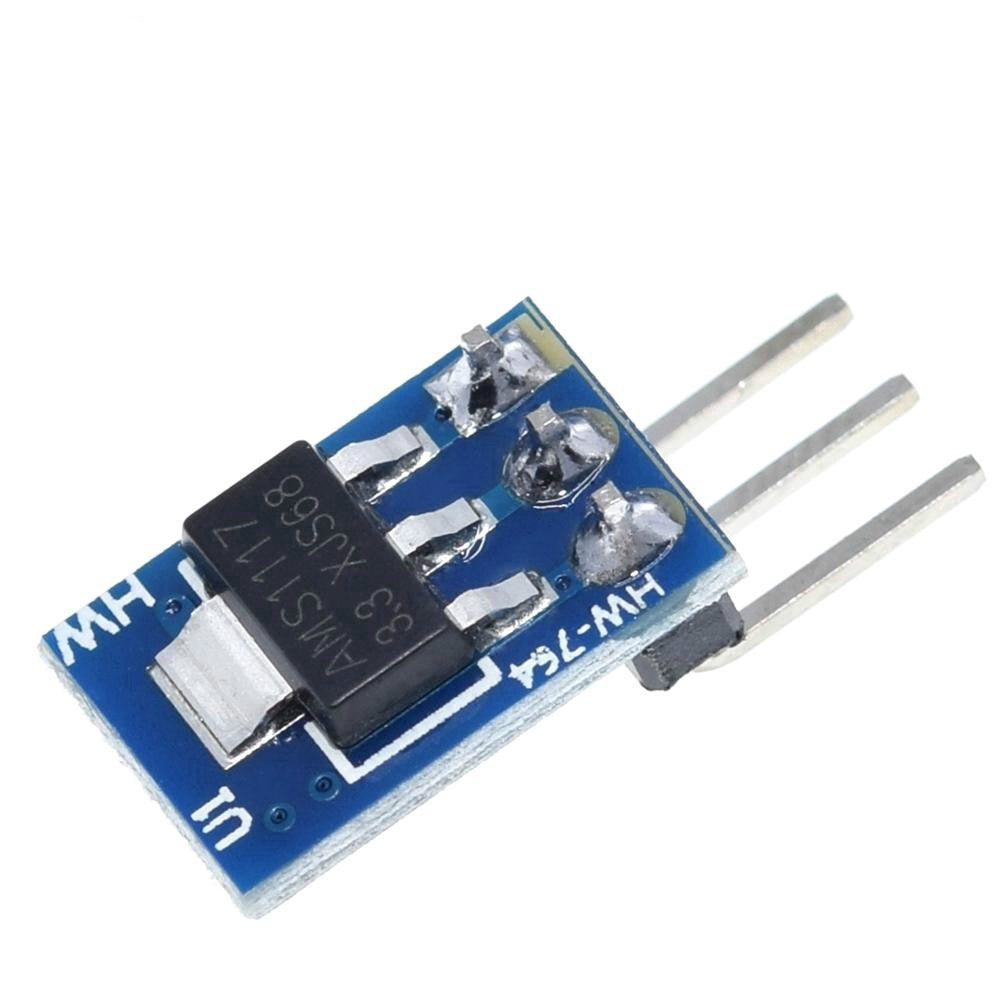

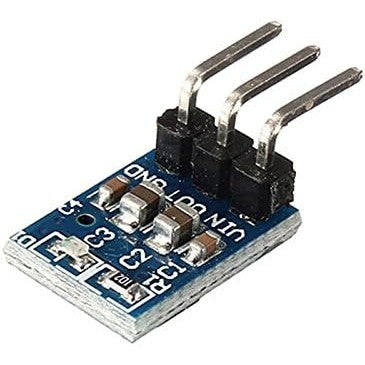

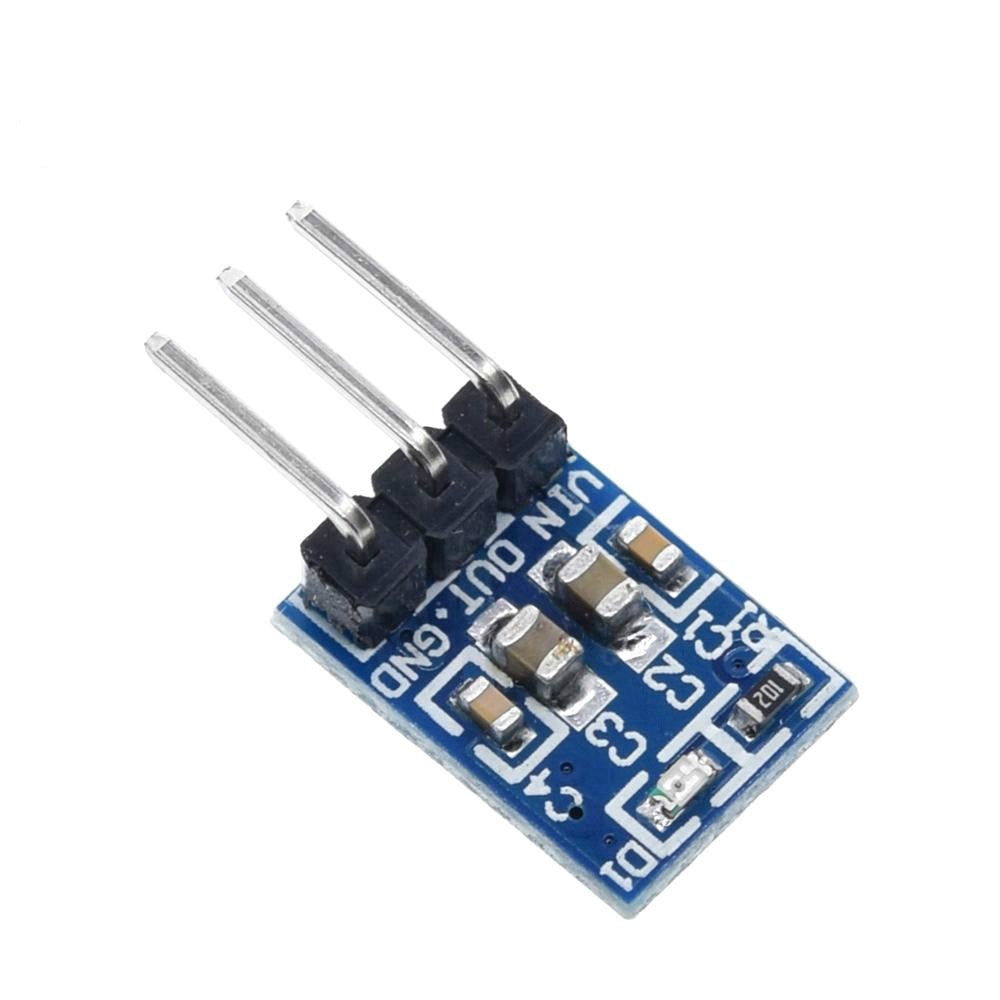

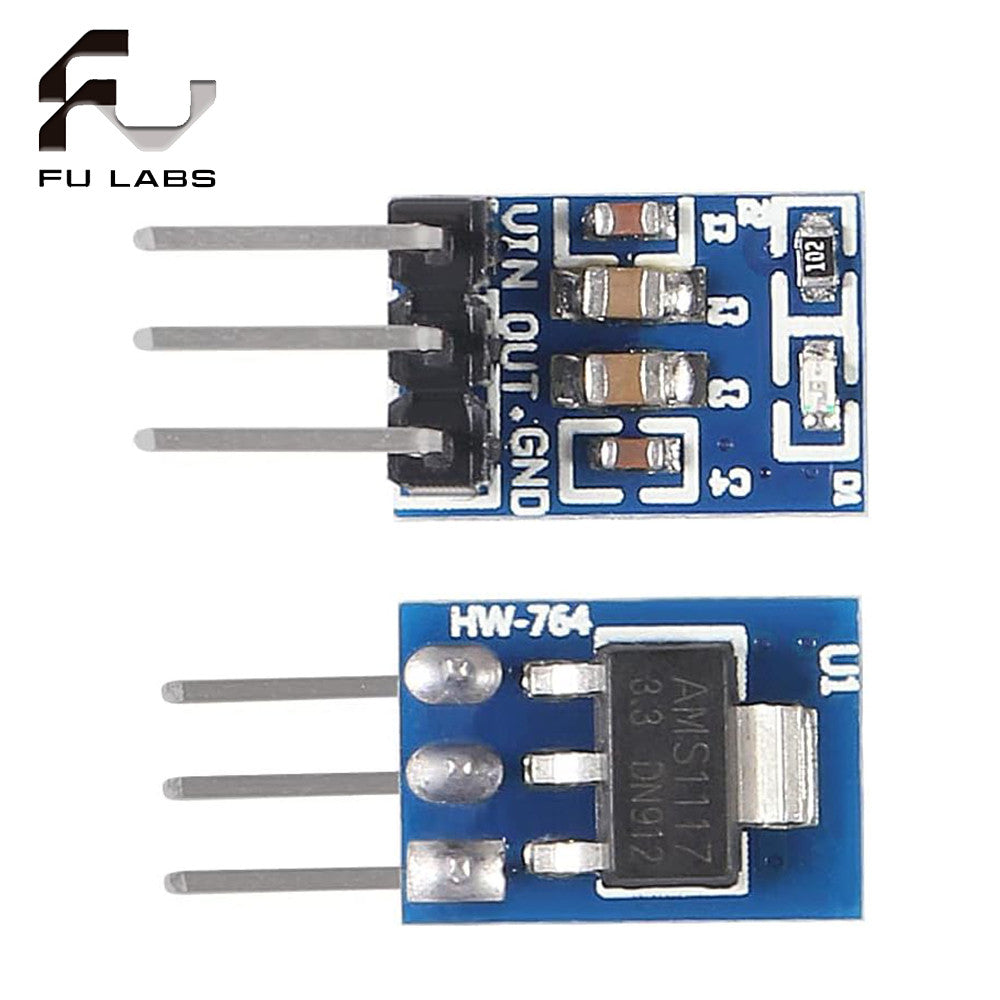

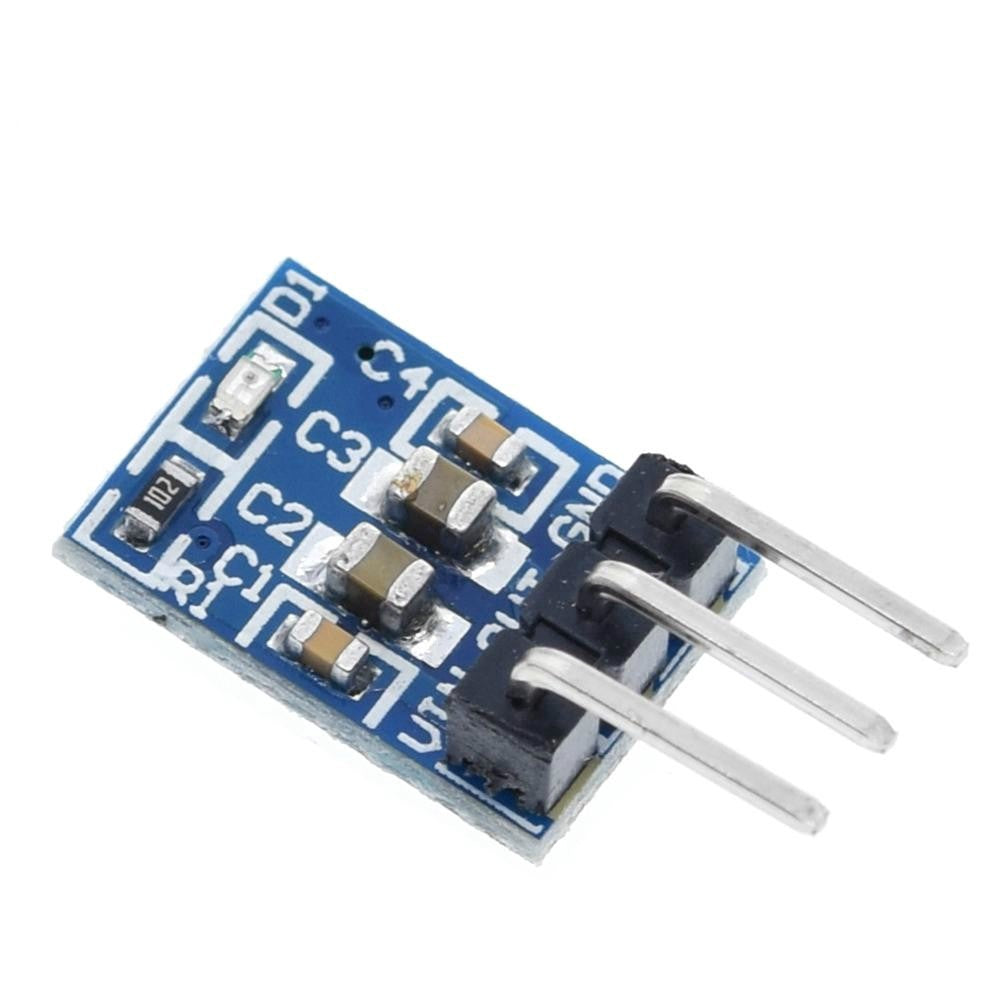

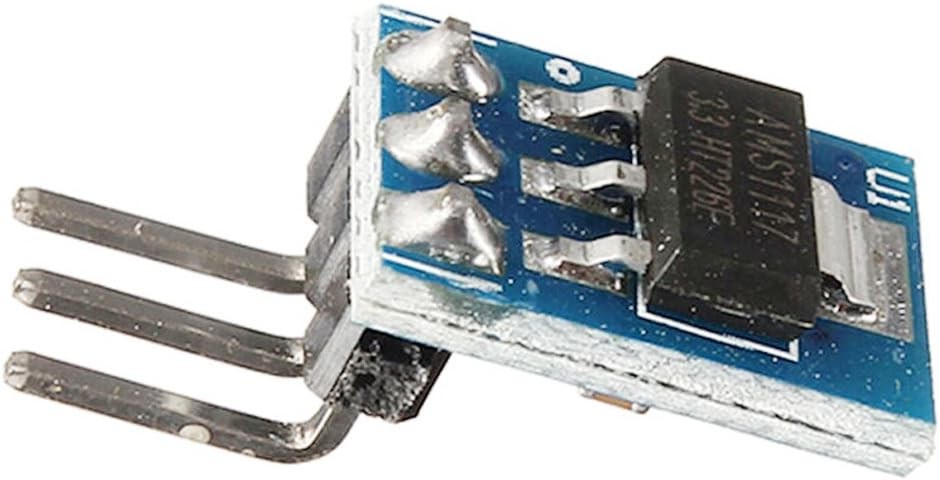

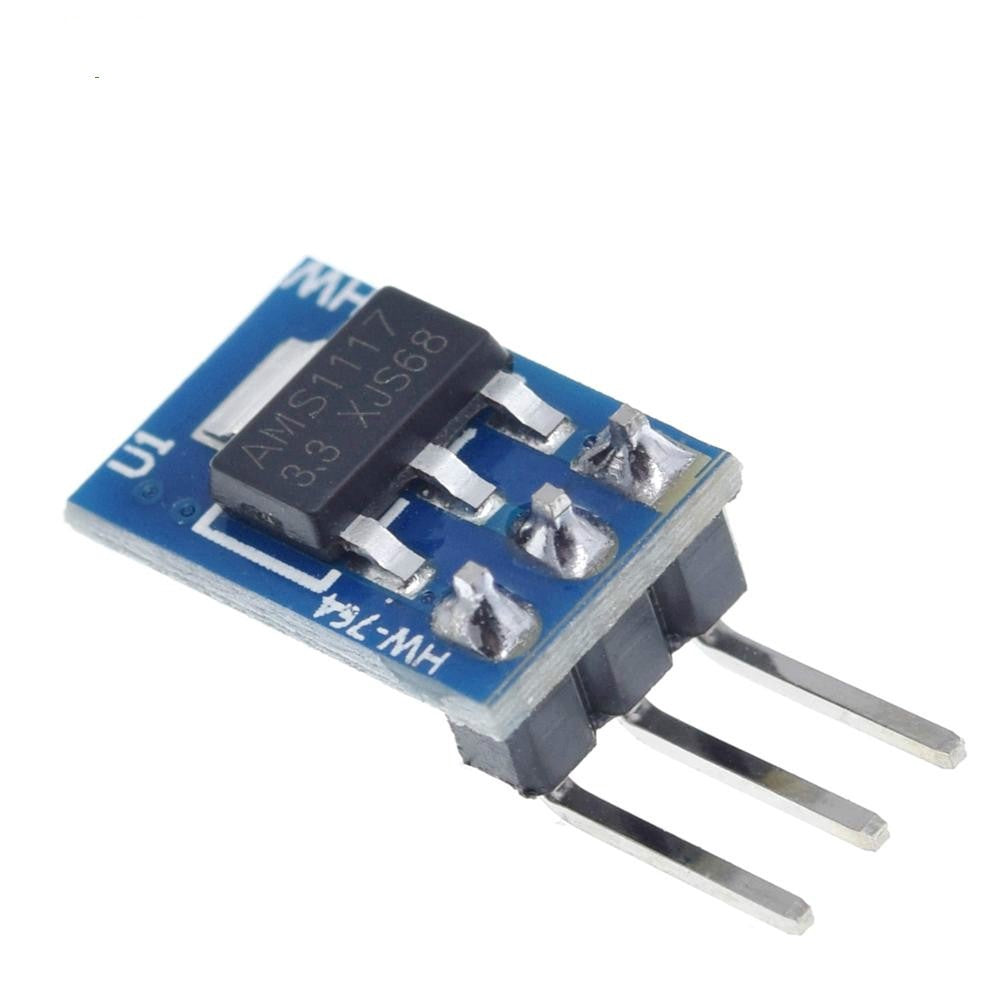

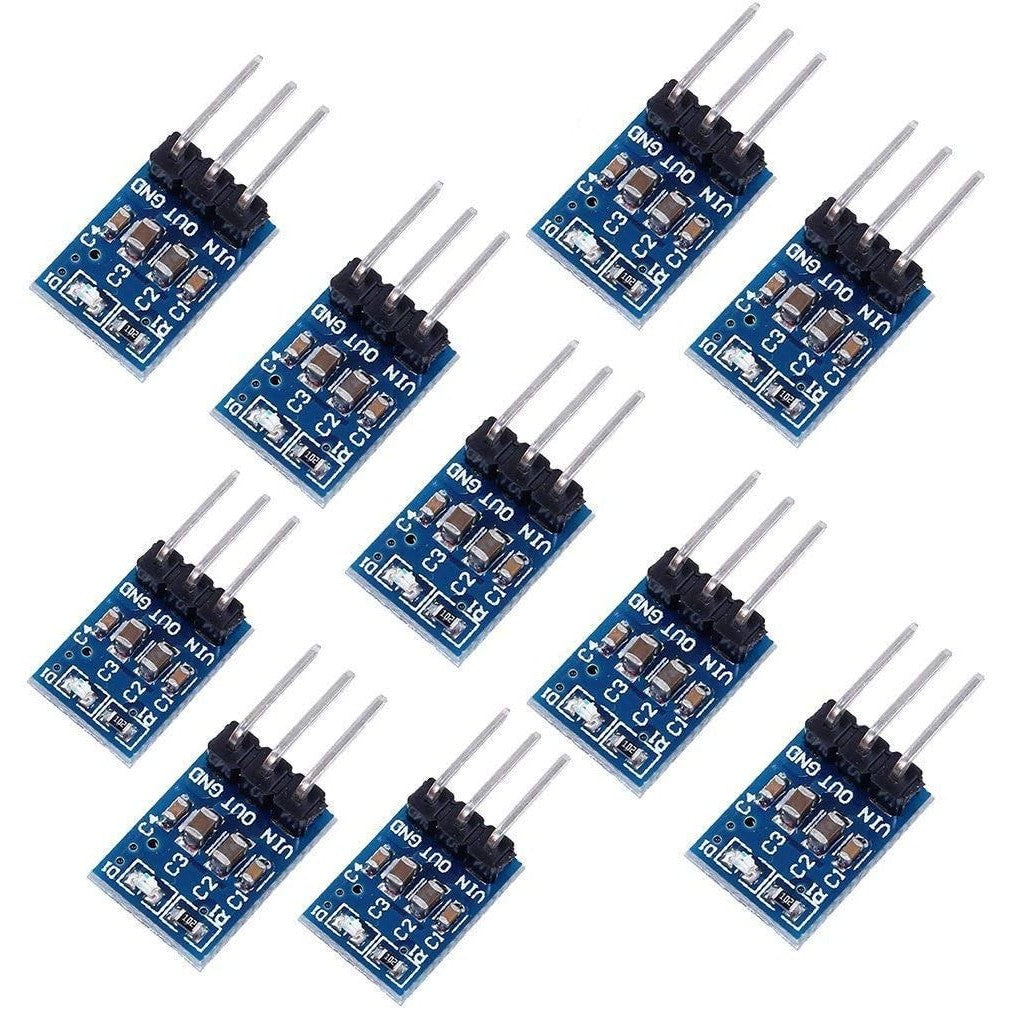

5Pcs AMS1117-3.3V/AMS1117-5.0V DC-DC Step-Down Power Supply Buck Module LDO 800mA 5V to 3.3V Power Board

  Specification:

AMS1117-3.3:

Input: DC 4.5V-7V (input voltage must be over 1V higher than output voltage)

Output: 3.3V 800mA (Load Current Invariant Energy Over 800mA)

The input voltage difference of 1.2V is only 1.2 higher than the output voltage difference, so it can work normally.

With power indicator

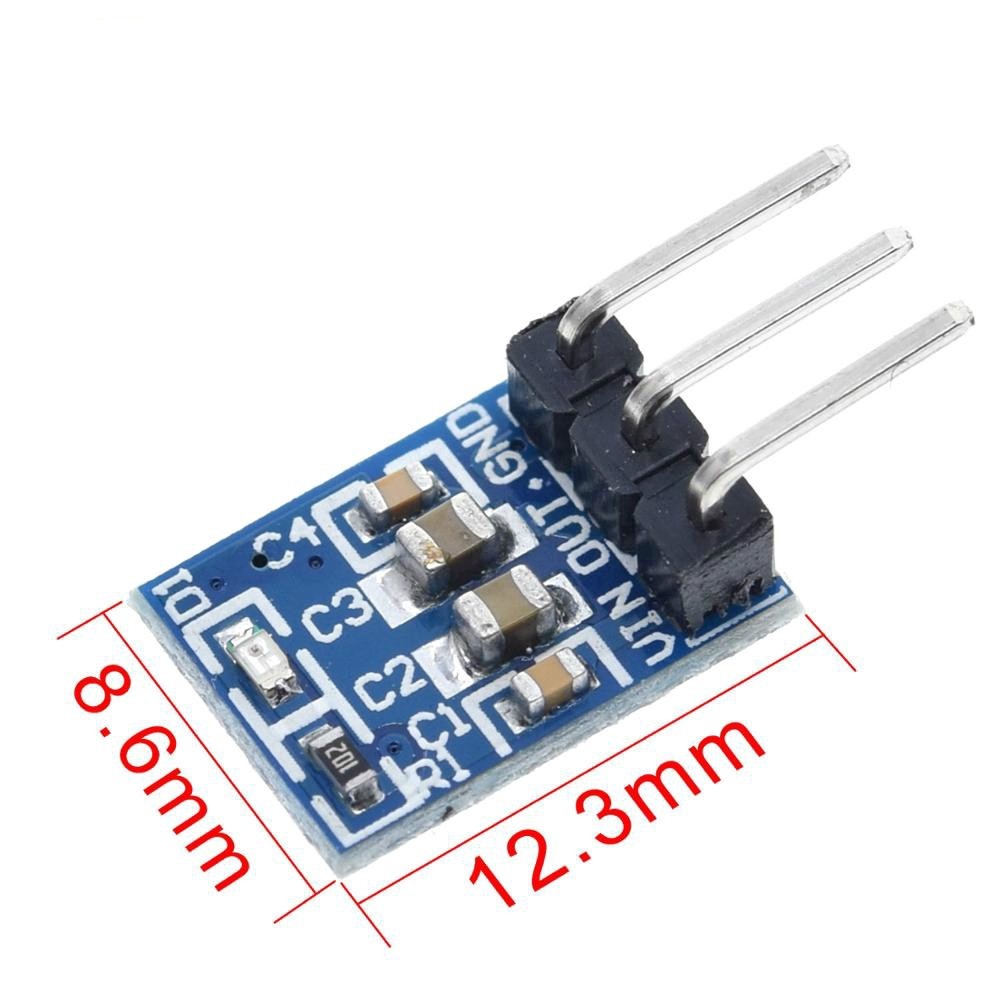

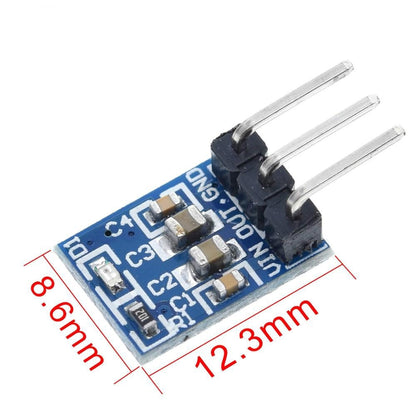

Board size: 12.3*8.6*4mm/0.47*0.31*0.15''

Packaging weight: 2g

AMS1117-5.0:

Input: DC 6.2V-12V

Output: 5V, 800mA (load current cannot exceed 800mA)

Input and output use 2p single row needle, easy to connect

With power indicator

Board size: 12.3*8.6*4mm/0.47*0.31*0.15''

Packaging weight: 2g

Attention:

1: the Boost modules or buck module indicate the operating voltage, both Please donot exceed operating voltage, or it will be on easily!

2: the Boost module output voltage can only be greater than or equal to the input voltage, always be less than the input voltage.

3: Buck module input voltage must be who the output voltage of 1.5 V or 2 V, otherwise it can not output the enough power!

4: Automatic Adjustable Boost or Buck the module from the start voltage and limit the working voltage, both Please donot exceed them, or it will be on easily!

5: always reverse polarity, or it will be short circuit, or will be born easily!

Note:

Please allow 1-3mm differs due to manual measurement.

Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

#AMS1117-3.3V/AMS1117-5.0V DC-DC Step-Down Power Supply Buck Module
