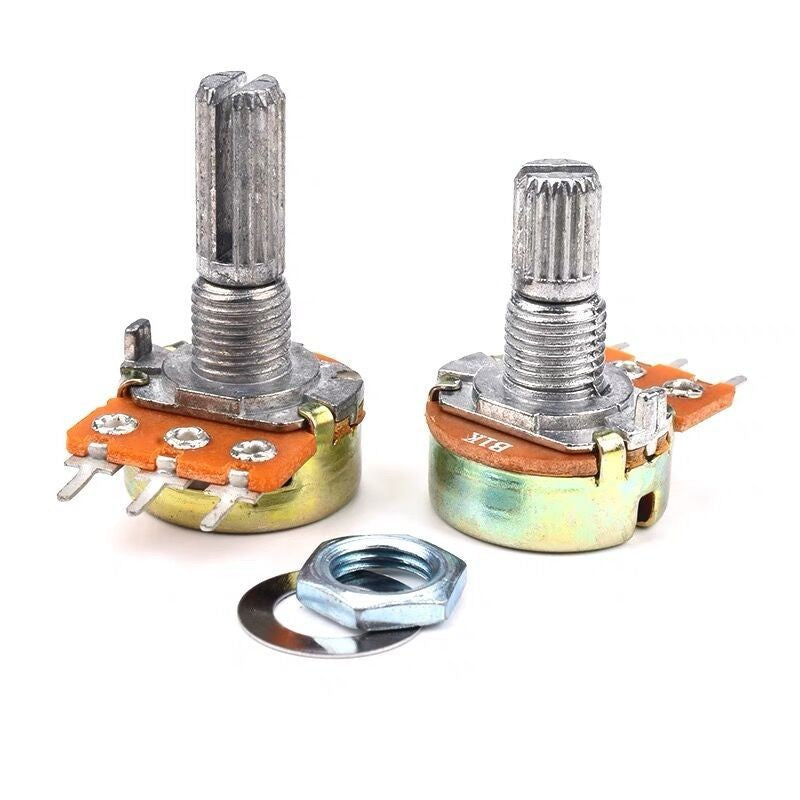

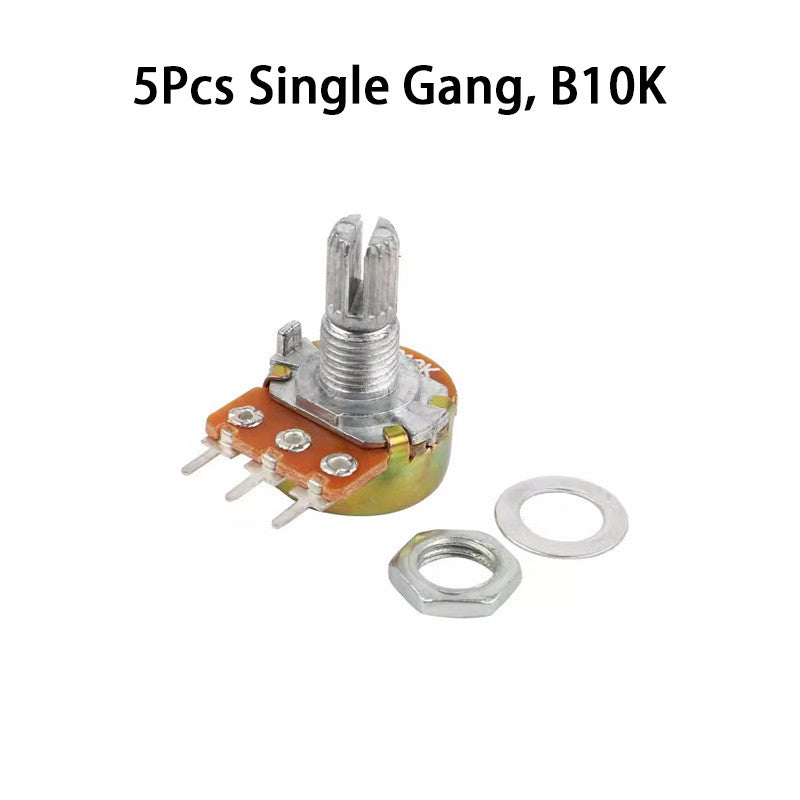

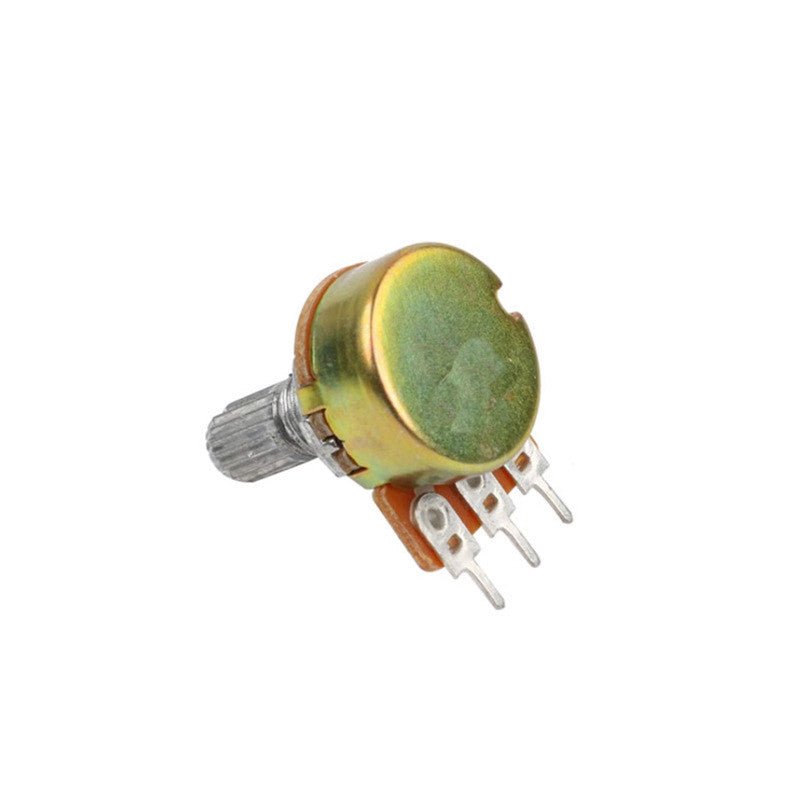

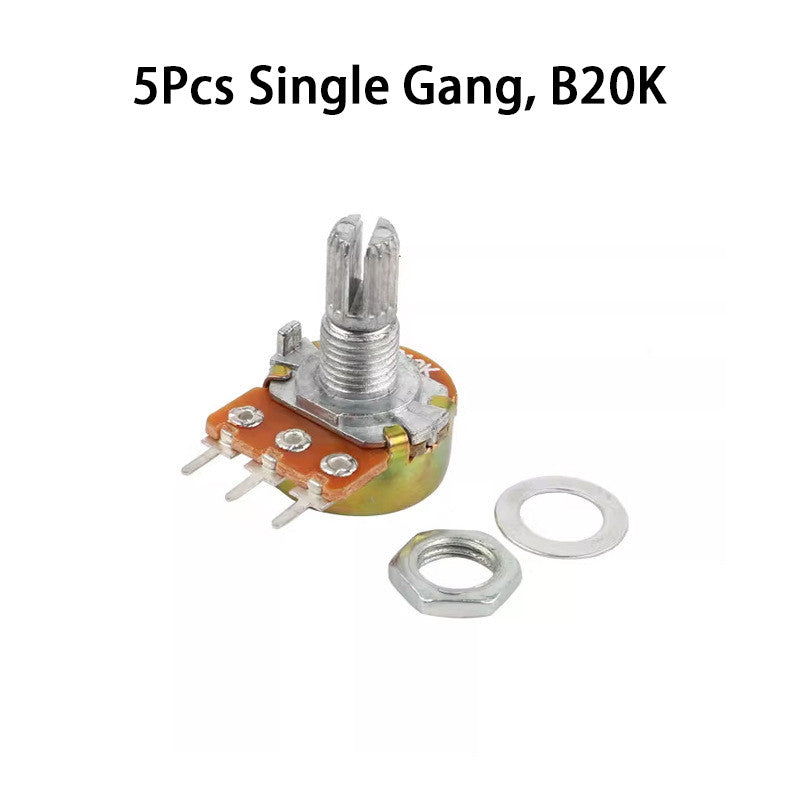

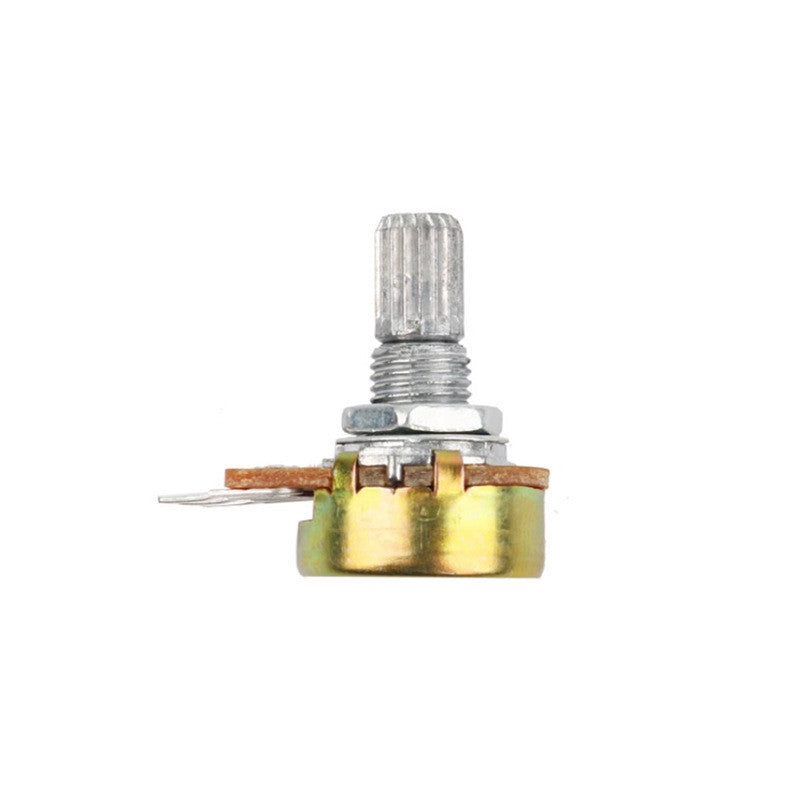

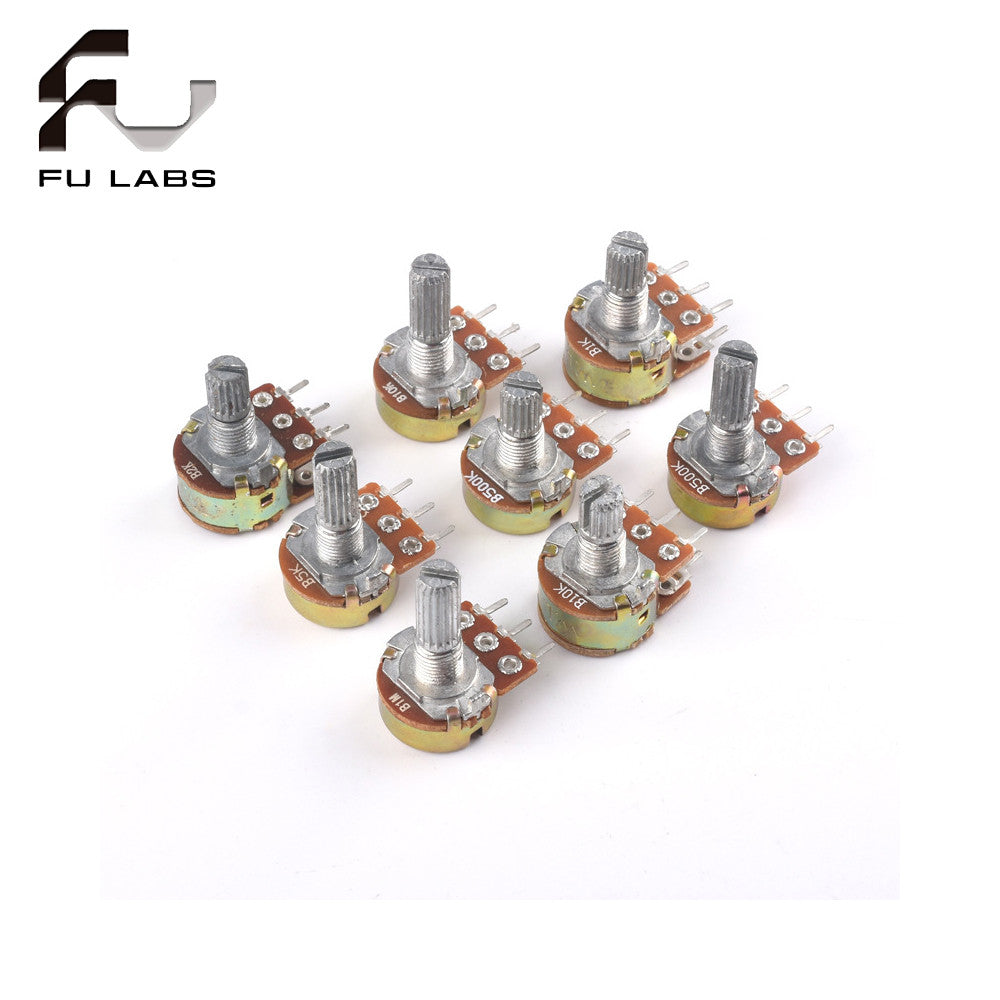

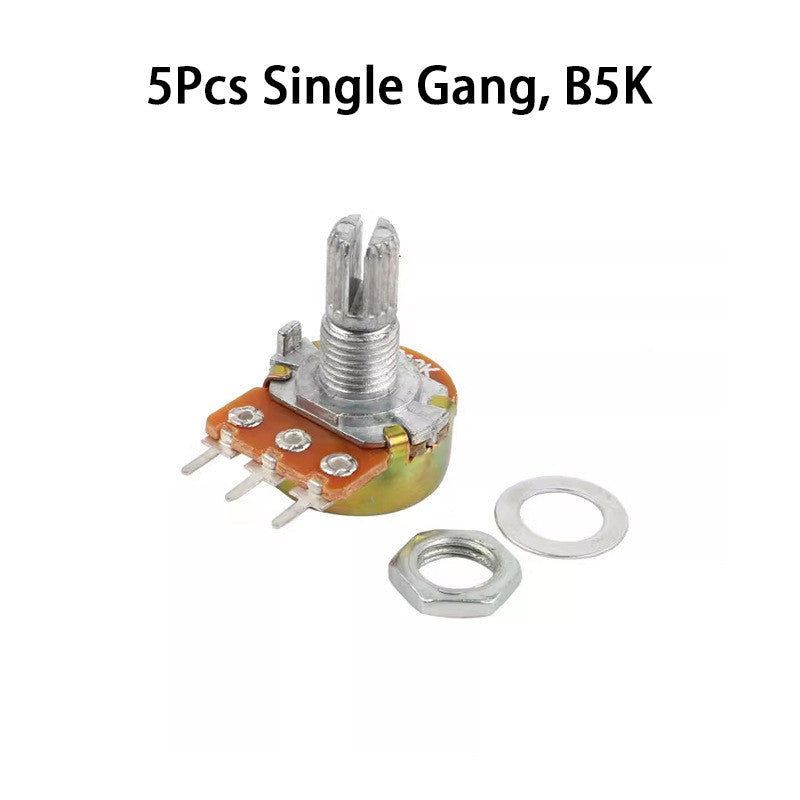

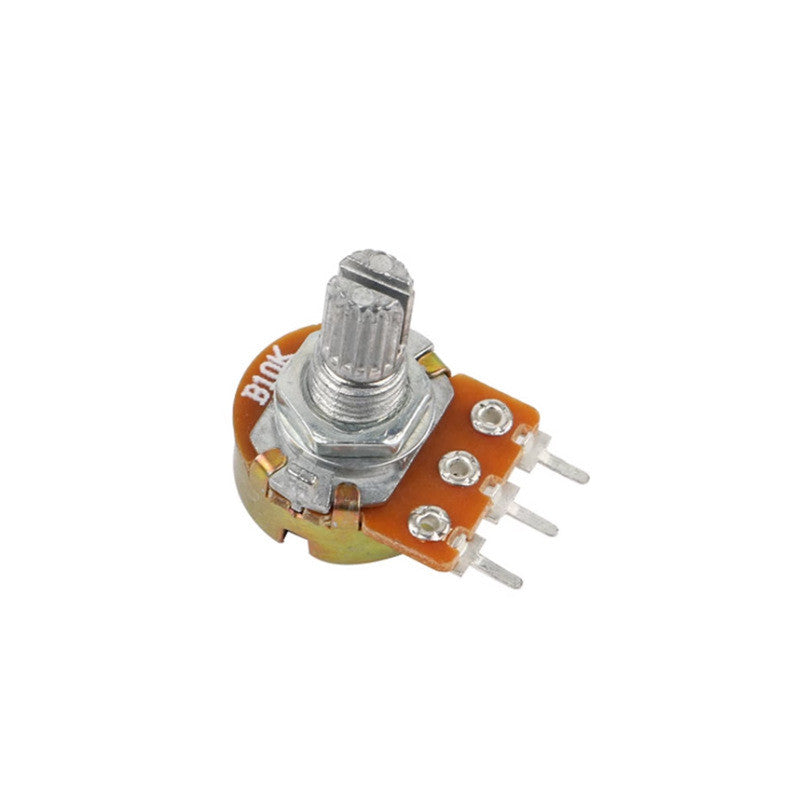

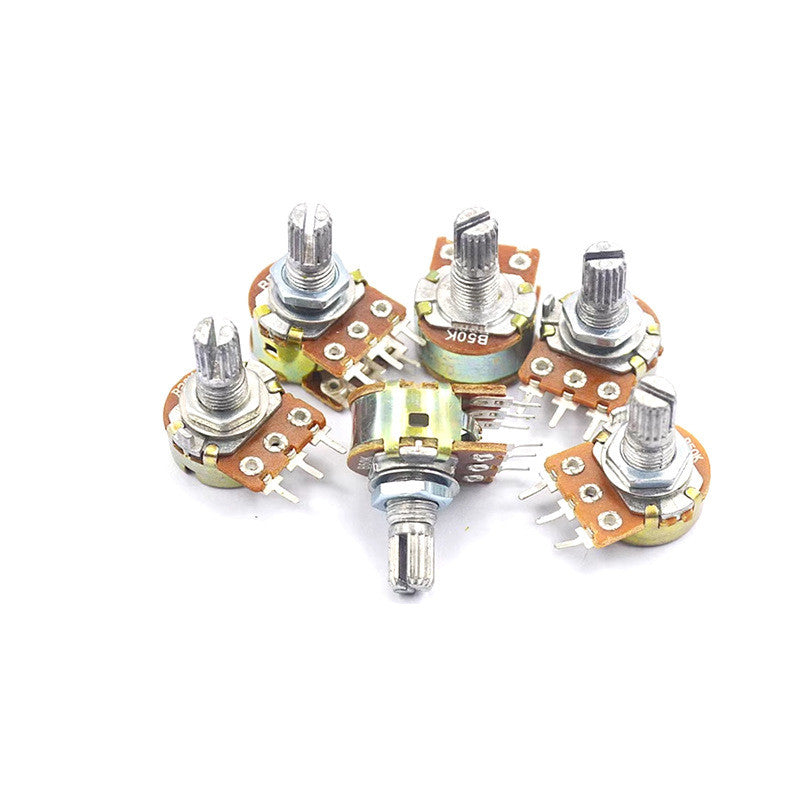

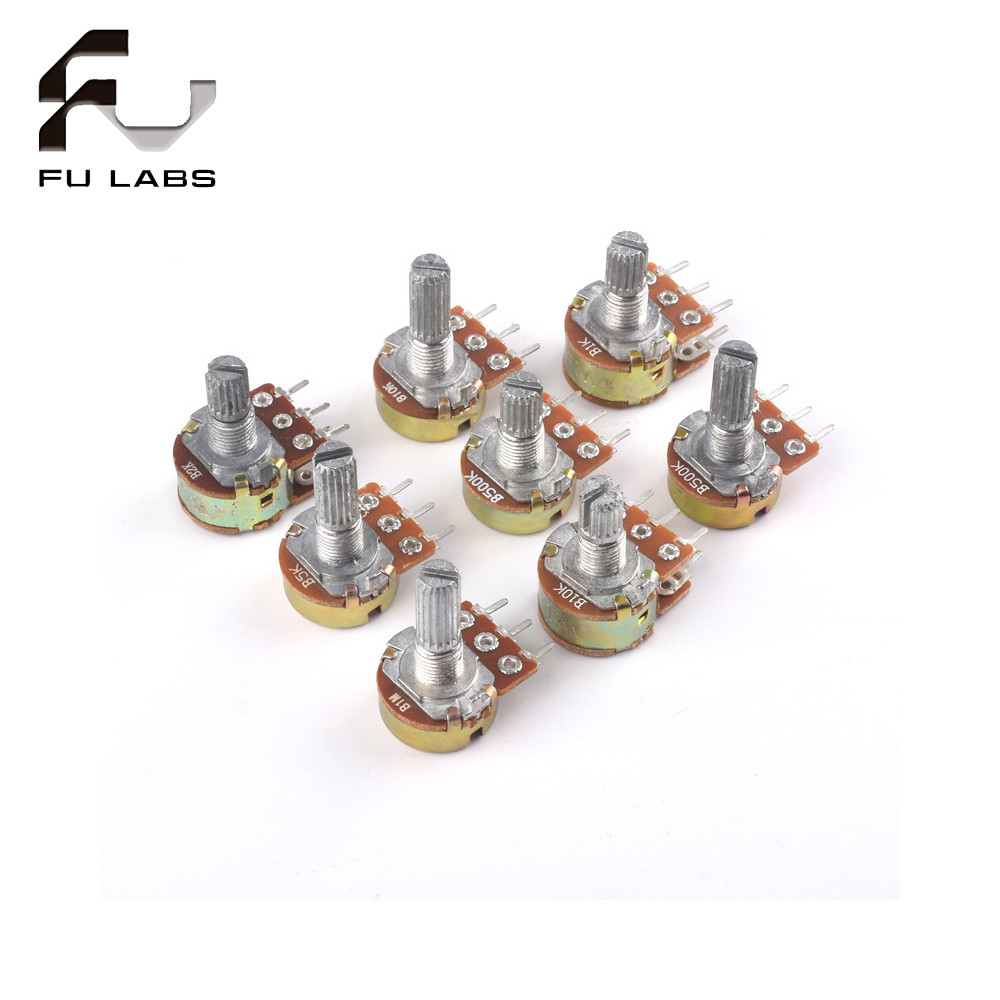

5pcs WH148 Linear Potentiometer 15mm Shaft With Nuts And Washers 3pin B5K B10K B20K B50K B100K B250K B500K B1M

Product Information of Rotary Potentiometer (WH148)

1. Product Parameters

- Name: Rotary Potentiometer

- Model: WH148

- Specification: Single - gang/Dual - gang

- Size: Shaft Height 15/20MM

2. Technical Parameters

- Rotation Angle: 300°±10°

- Resistance Tolerance: 10 - 200Ω:±20%; 200Ω - 2M:±10%

- Upper Carbon Film Material: 6.0g/in² DuPont

- Stop Torque: Center:7.71/12.14 inOunces; Ends:5 - 150g.cm

- Total Resistance Variation: 50E3 - 1MΩ:IM2; 10K - 100K:AM2

- Noise - free Function: 2.0% max, when move from 0.2 - 1.2MΩ

- Service Life: Center > 200M cycles at 20°C/50%RH 2V; Others > 50M cycles

- Contact Resistance: < 100MΩ 2 at 250V; Core insulated: 1 minute AC 250V

- Withstand Voltage Performance: 40 - 85°C ± 28%

- Resistance Range: 1 - 100K ± 20%

- Matching Error: 100000:1

- Limit Power: 100mW
