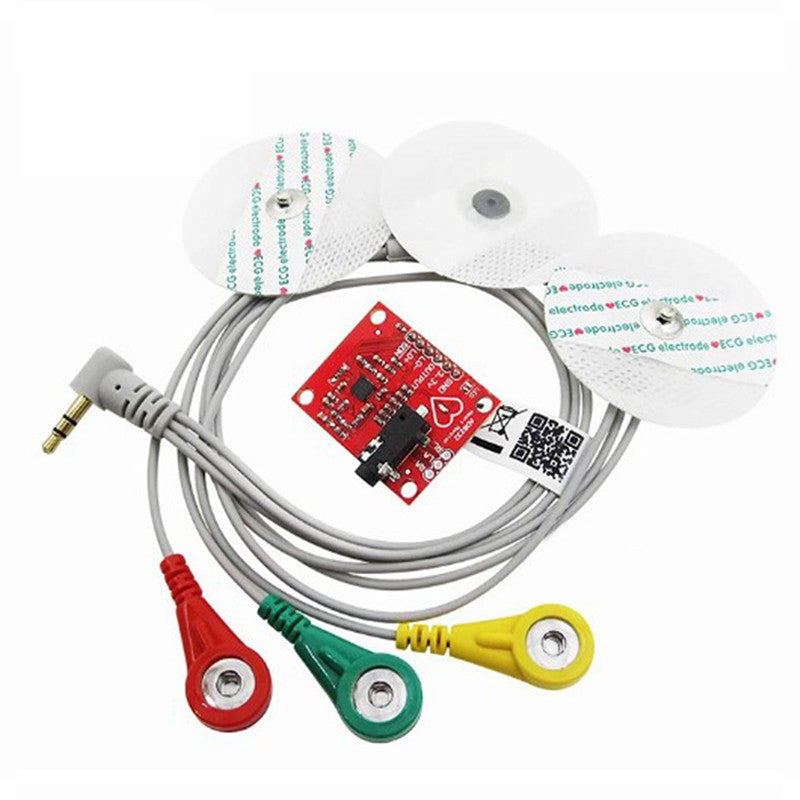

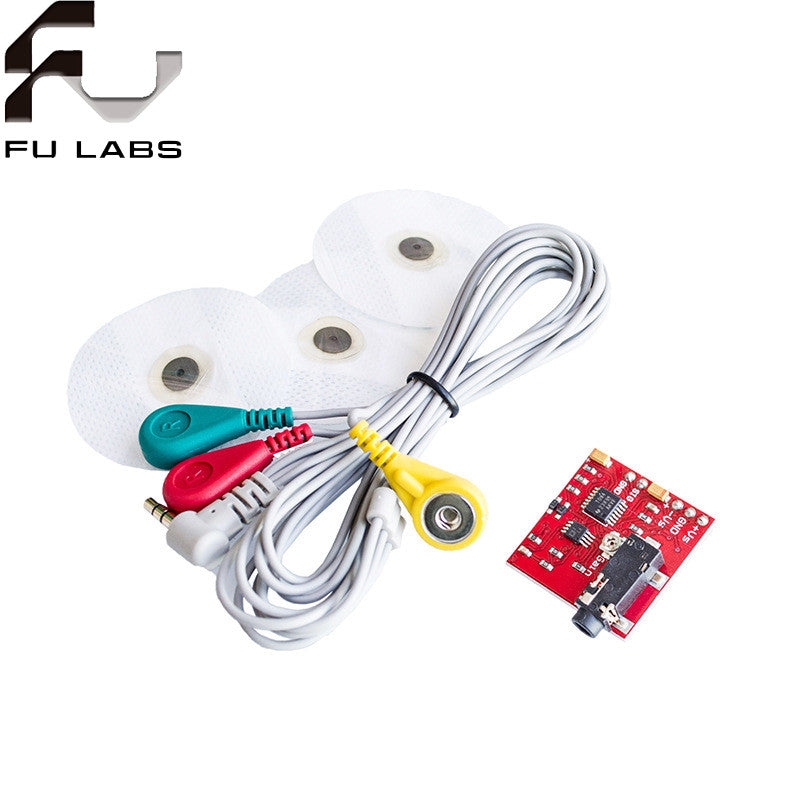

AD8232 Ecg module AD8232 ecg measurement pulse heart ecg monitoring sensor module kit Diy

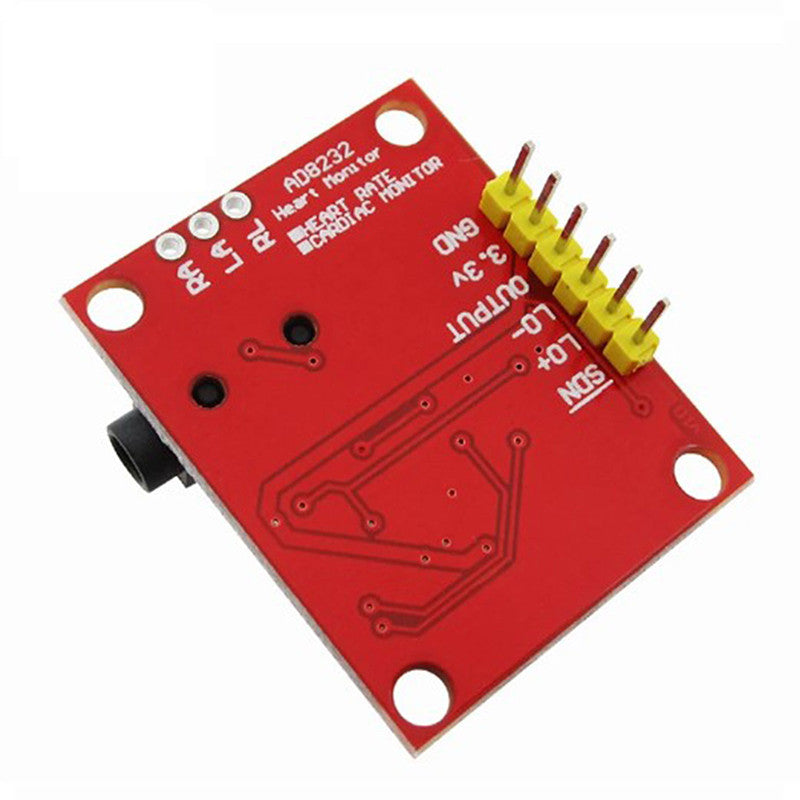

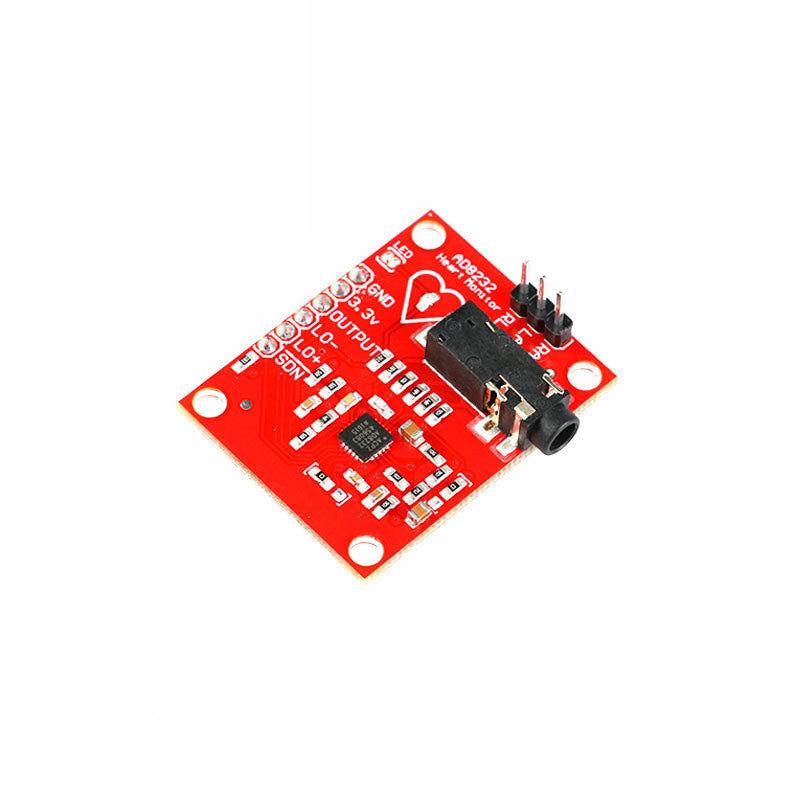

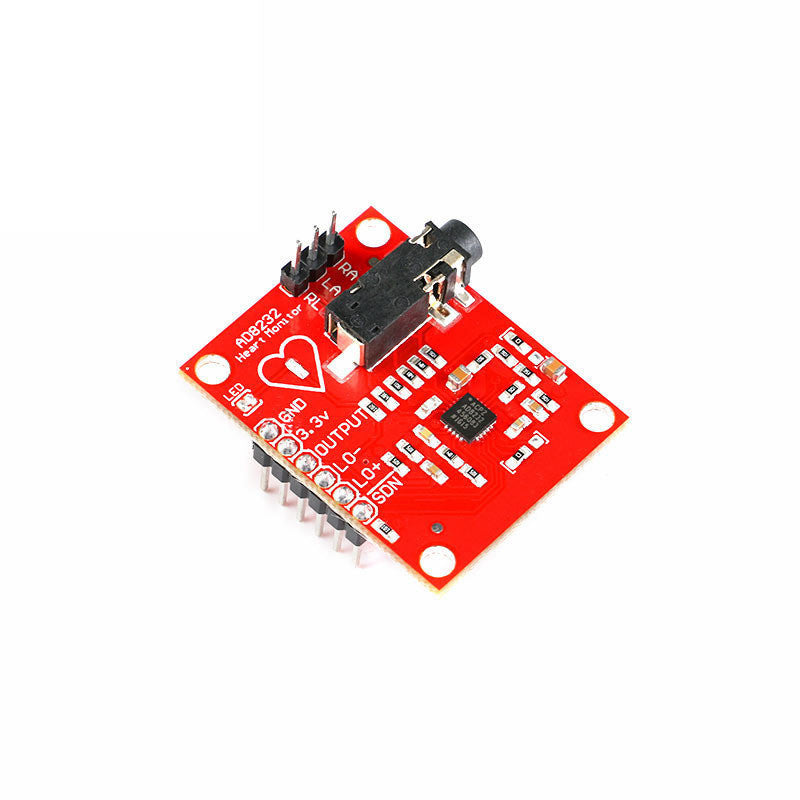

AD8232 ECG Sensor Module

Core Features

  Professional ECG Signal Conditioning: High-gain amplification + adjustable filtering

Motion Artifact Rejection: Dual-pole HPF eliminates movement noise

Fast Recovery: Auto-resets signal on lead detachment

Key Specs

- Voltage: 3.3V/5V

- Bandwidth: 0.5Hz–40Hz (adjustable)

- Temperature: -40℃ to +85℃

- Output: Analog (requires ADC)

Applications

✅ Sports wristband heart rate monitoring

✅ Portable ECG devices

✅ Biopotential experiments

Usage Notes

Requires medical electrodes

Avoid 50/60Hz powerline interference

*"Saves 60% peripheral circuits vs. op-amp solutions"*

Advantages:

Integrated filters – No extra op-amps needed

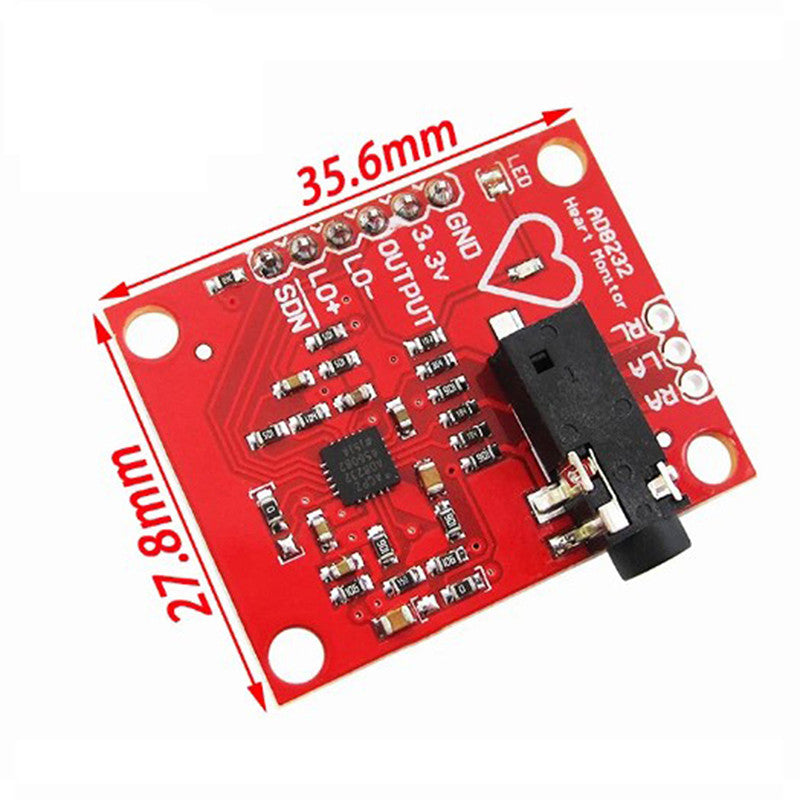

Compact size – Fits wearables

Arduino/ESP32 compatible
