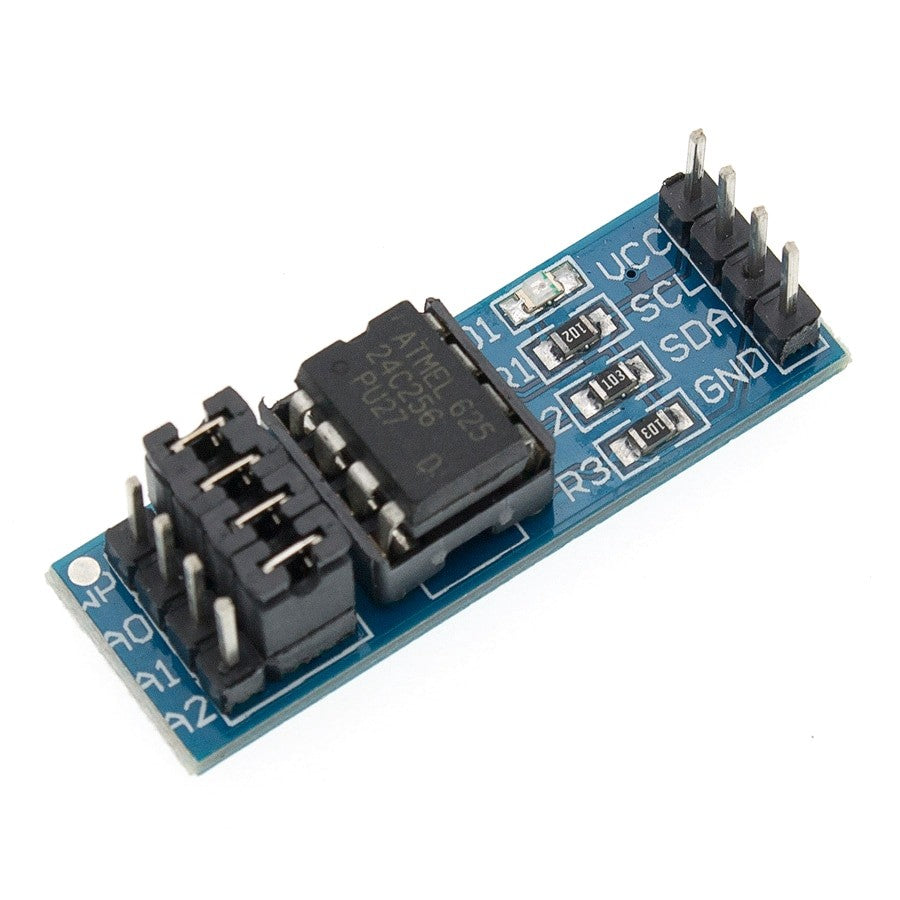

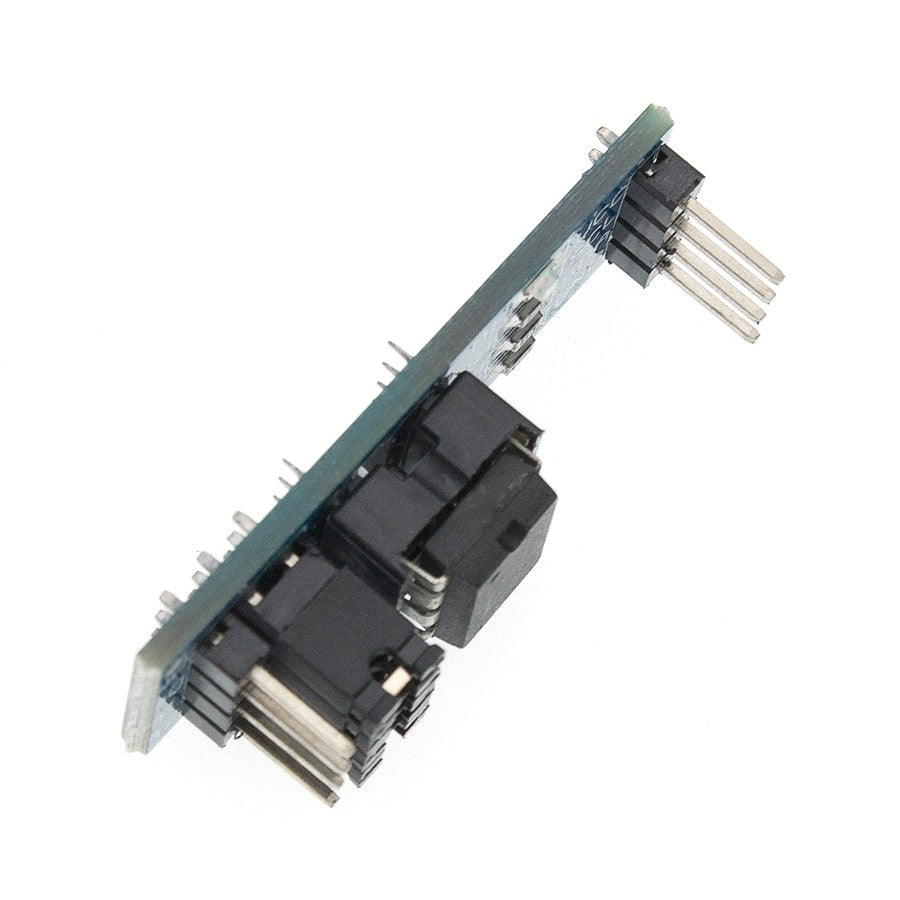

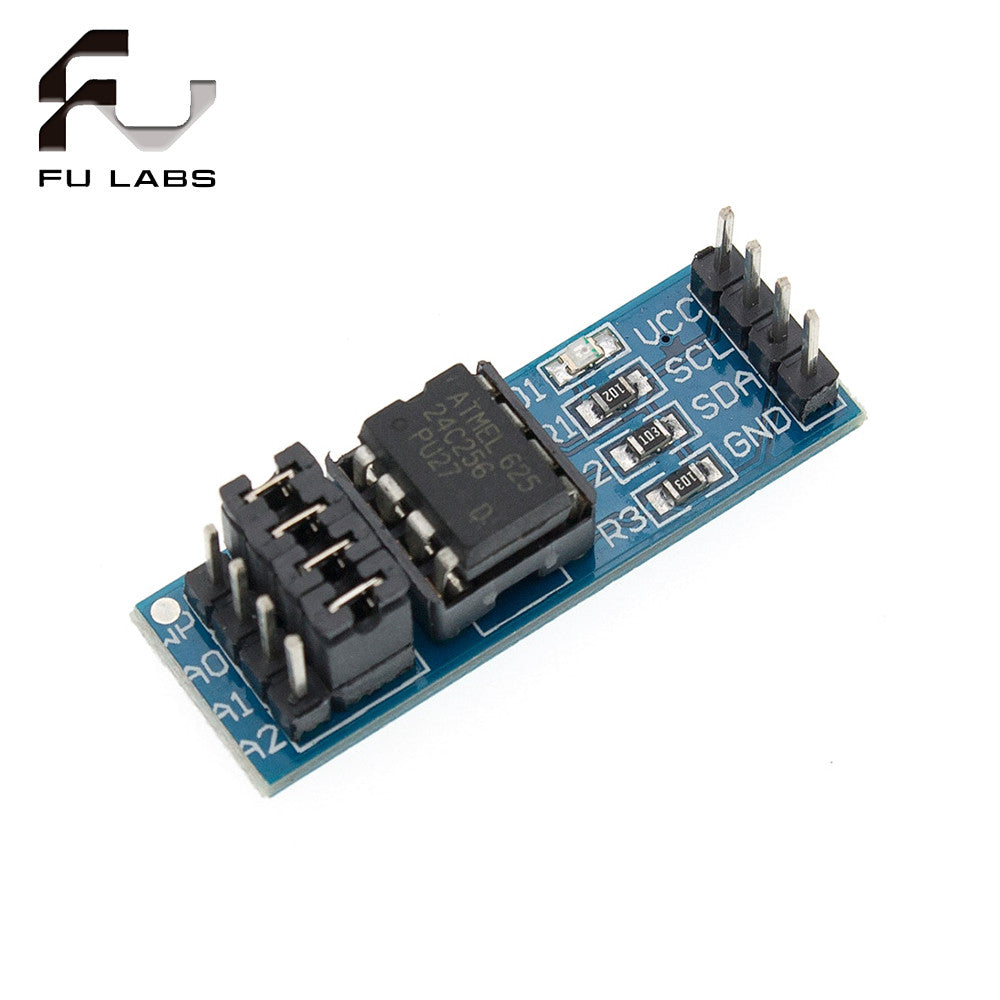

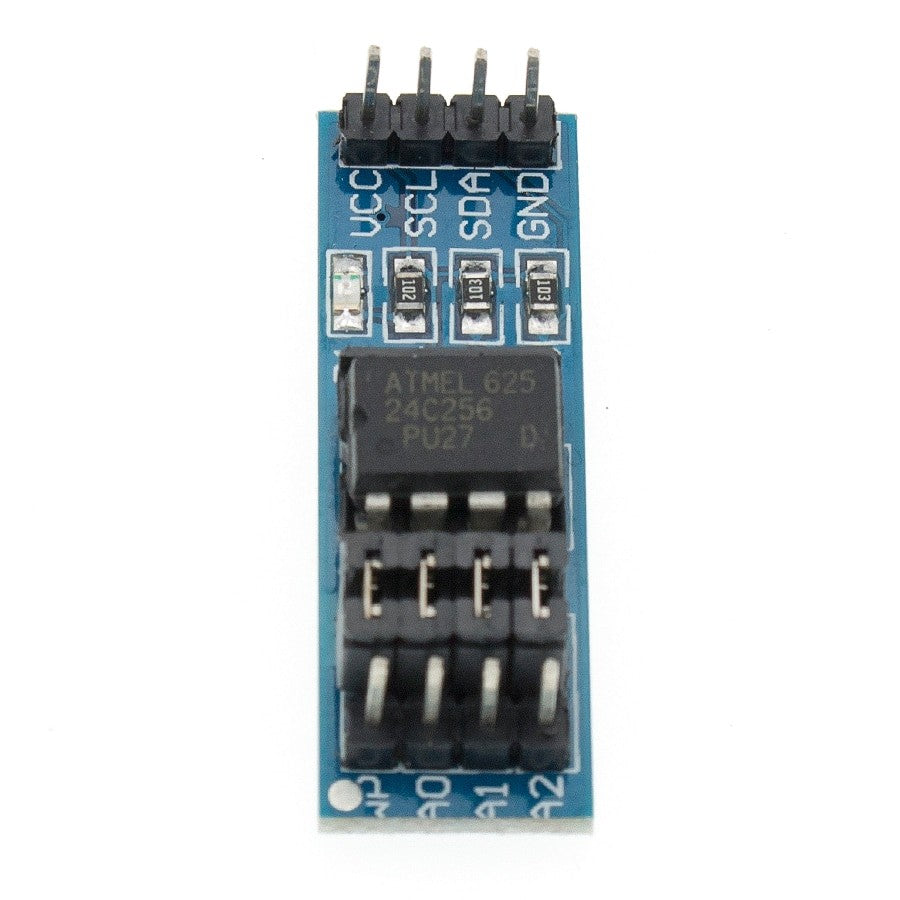

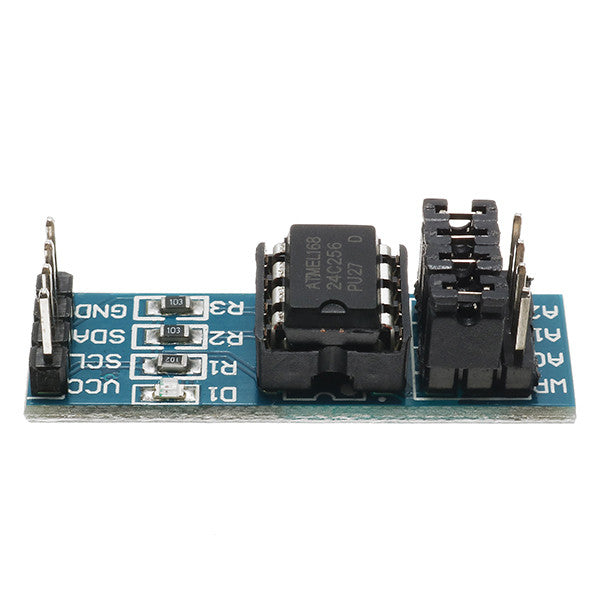

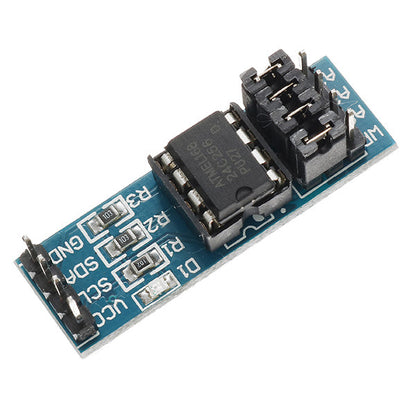

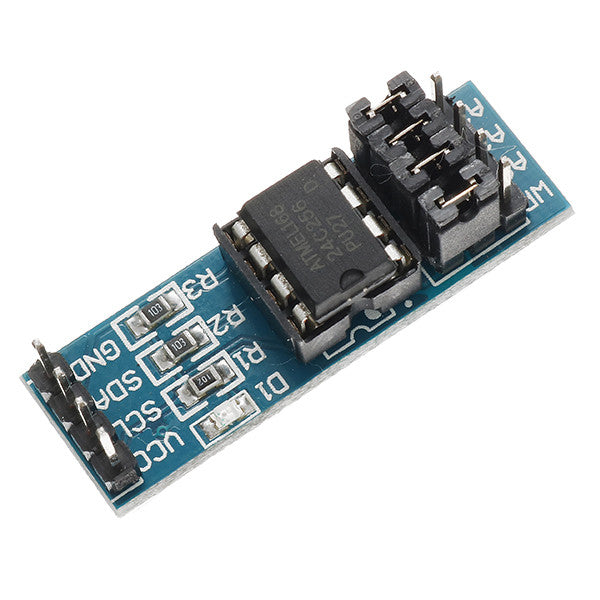

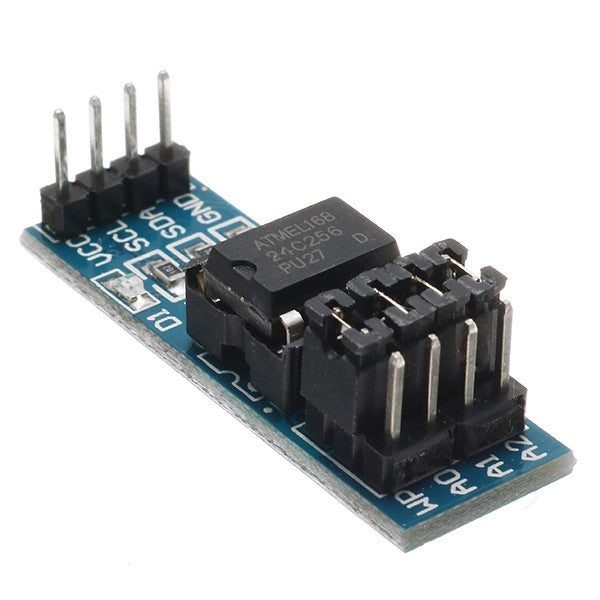

AT24C256 I2C interface EEPROM Memory Module for arduino

Product Features

- Onboard 8P IC Socket

- Pre-installed with AT24C256 chip (256Kbit capacity)

- Supports easy chip replacement when needed

- Convenient Power Supply

- Pin header for power connection

- Built-in power indicator LED

- Complete I2C Interface

- Onboard pull-up resistors for I2C communication

- Standard I2C interface (SCL/SDA)

- Fully Accessible Pins

- All pins clearly labeled and accessible

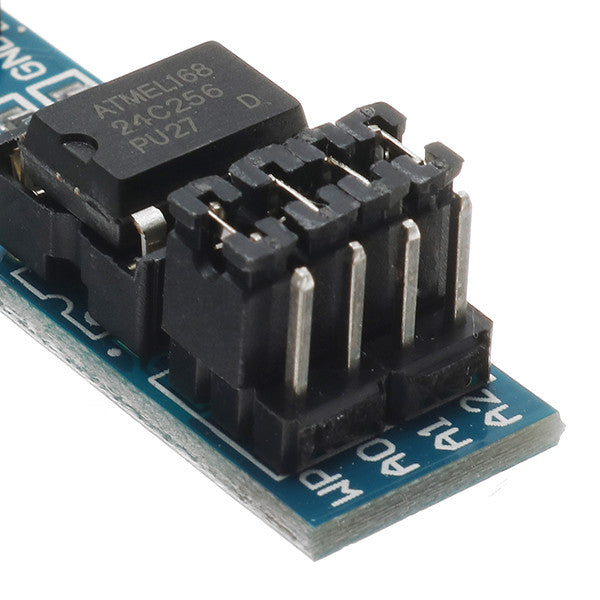

- Address inputs (A0-A2) configurable via jumper

- Write protection (WP) pin controllable via jumper

Compact Design

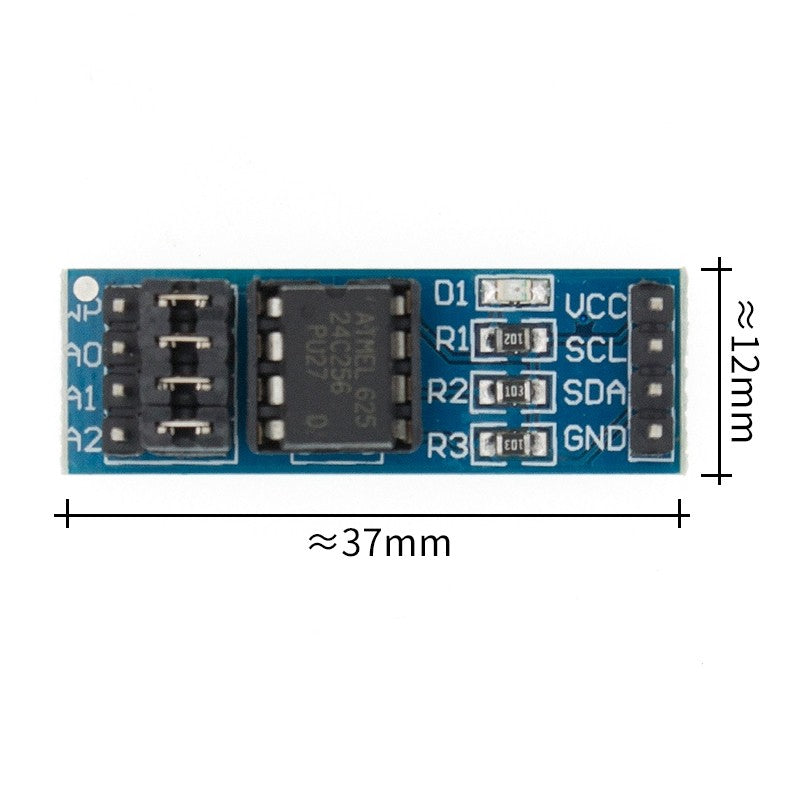

- PCB dimensions: 36.5mm × 12mm

- Package Includes

1 × SUNLEPHANT AT24C256 Storage Module

Typical Applications

Data logging systems

Parameter storage for embedded projects

I2C communication experiments

Arduino/Raspberry Pi expansion

Usage Notes

Operating voltage: Check AT24C256 specifications (typically 1.8V-5.5V)

I2C address range: Configurable from 0x50 to 0x57 via A0-A2 jumpers

Write protection: Enable/disable via WP jumper
